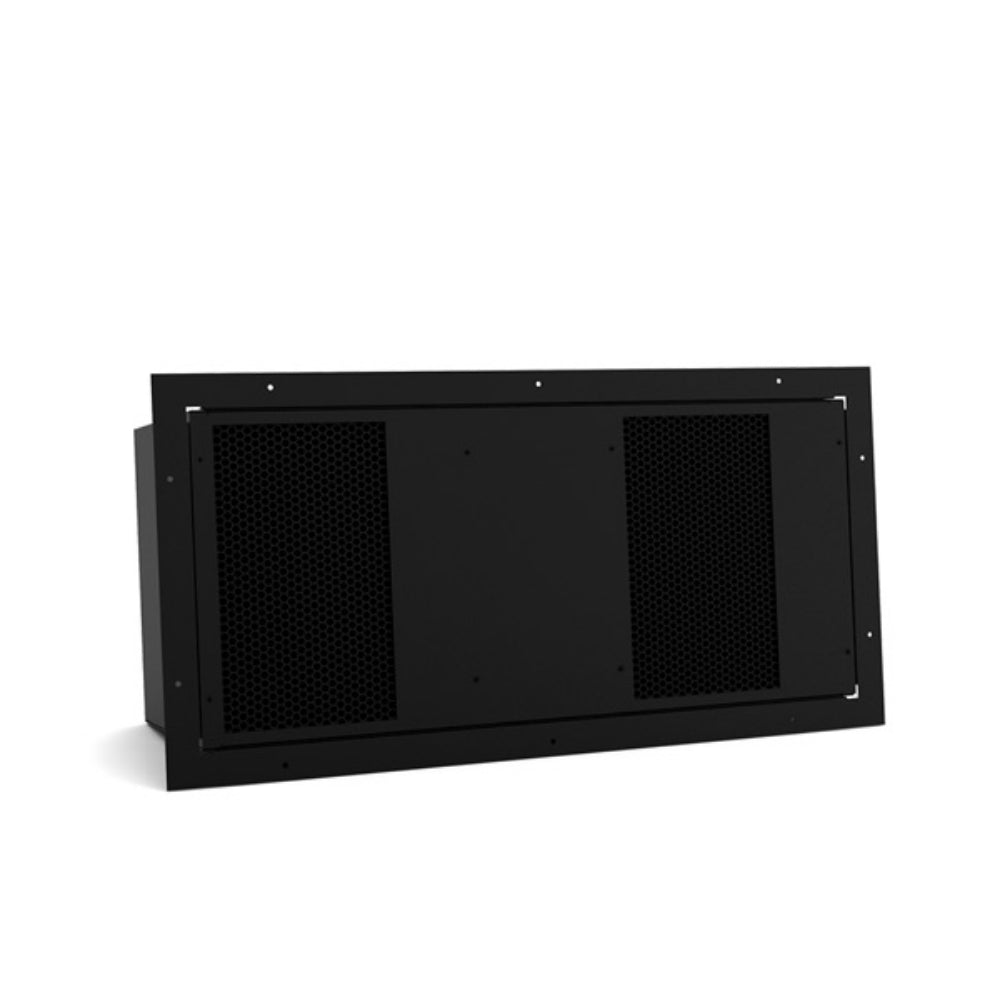

WhisperKOOL Mini Ceiling Mount Wine Cellar Cooler System (220V Condenser)

$6,719.00

Notify me when back in stock

Description

Attention wine lovers! Are you searching for the perfect way to store your wine collection at the ideal temperature without taking up valuable space in your home? Look no further than the WhisperKOOL Mini Ceiling Mount Wine Cellar Cooler System, available now at Wine Cooler Collection.

This state-of-the-art cooling system offers excellent efficiency by drawing in the warmer air which accumulates at the ceiling, cooling and dispersing the air throughout your wine cellar environment. With a 2-speed fan switch and hex mesh grille with air filter, you can trust that your wine will be kept in the ideal environment.

Not only is the WhisperKOOL Mini Ceiling Mount Wine Cellar Cooler System efficient and effective, but it's also incredibly easy to install with flare fittings. You can choose between standard and 24V thermostat options, and with the included pump system to remove excess condensation and cold weather start kit, you can rest easy knowing that your wine collection is well taken care of.

One of the best features of the WhisperKOOL Mini Ceiling Mount Wine Cellar Cooler System is that it allows for maximum racking space, so you can store even more of your favorite bottles. Plus, no ducting is required, making it the perfect solution for those who value space-saving designs.

And with a 220V High Efficiency (H.E.) Condenser, you can trust that your wine collection will be kept at the perfect temperature for years to come. Don't settle for subpar wine storage. Invest in the best with the WhisperKOOL Mini Ceiling Mount Wine Cellar Cooler System.

Order now from Wine Cooler Collection and experience the luxury of a perfectly cooled wine collection. Your wine deserves the best, and so do you.



Product Video

Features
  • Offers excellent efficiency by drawing in the warmer air which accumulates at the ceiling, cooling and dispersing the air throughout the environment
  • 2-speed fan switch
  • Hex mesh grille with air filter
  • Flare fittings for easy installation
  • Standard and 24V thermostat options available
  • Includes a pump system to remove excess condensation
  • Includes cold weather start kit
  • Allows for maximum racking space
  • No ducting required
  • 220V High Efficiency (H.E.) Condenser (Click to learn more)

NOTE: WhisperKOOL does not provide a smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment.

Specs

Dimensions: 31.18"L x 10.75"W x 21.18"H
Condensing Unit HP: 0.35HP
Voltage Rating: 220V (15-amp dedicated circuit required)
Weight (lbs): 51
Amps: LRA 5.3A, RLA 1.55A, FLA 1.7A
Line Set: Liquid line 1/4” OD; Suction line 3/8” OD (less than 50 ft.), 1/2” (greater than 50 ft.)
Installation: The evaporator unit is installed in the cellar. The condensing unit is installed up to 100 line feet from evaporator unit.
Temp. Delta: Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature.

Resources

H.E Owner's 220V Manual

Owner's Manual w/ 24V Thermostat Conversion Kit

Product Sheet

Warranty

Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty

A limited 2-year product warranty is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.

Submit Checklist Online
