Breezaire WKCE Series Wine Cellar Cooling System WKCE 1060

BREEZAIRE WKCE SERIES WINE CELLAR COOLING UNIT WKCE 1060, 1060 BTU



breezaire wine cellar cooling system home dyi

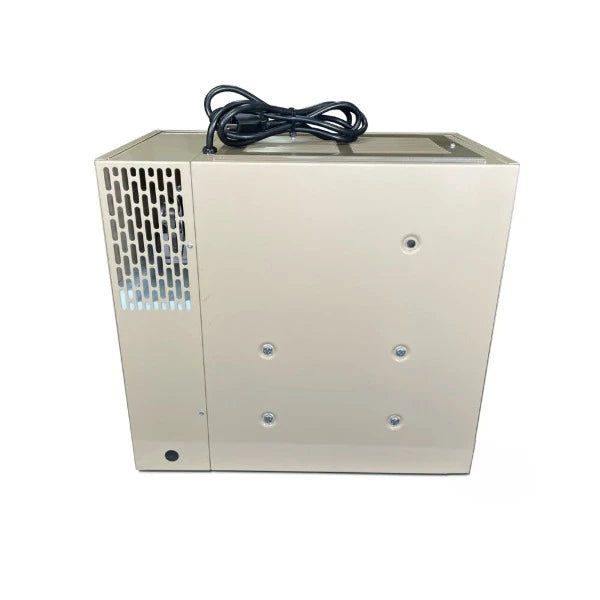

The WKCE Series cooling units are a compact design with cold air discharge on the bottom, which makes them ideal for installation in cabinets.

Because of their configuration, the WKCE series cooling units are not rated for a specified number of cubic feet. They are intended for cabinets and other constricted enclosures. Ask your Breezaire Dealer for details.

The WKCE has a digital electronic (Sentry III+) control system which features:
- Large, easy to read, green LED display.
- Accurate, easy to adjust, readable set points with a continuous reading of enclosure temperature or displaying of a set point when changing enclosure temperatures.
- Power outage protection, which delays units start up after power outages.
- Blocked airflow protection, which shuts down the unit and protects your wine in case of high temperatures caused by condenser blockage.
- Controls temperature by enclosure air sensors or optional bottle probe.
- Units are shipped from the factory fully charged and ready for use when mounted in a wall and connected to 115 AC volt source

BLACK Series upgrade, not only has Breezaire changed the color of the exterior to an attractive jet black finish, but they have also made the base out of stainless steel. Please allow for 2-4 weeks for production.



breezaire wine cooling

  • Adjustable Temperature
    The ideal temperature for storing and aging wine is between 50° and 60° F. Each BREEZAIRE system includes an adjustable thermostat that makes it possible for the user to precisely control the conditions in the wine cellar. When initially bringing the temperature down to the desired level and in maintaining the target temperature, the system produces a gentle stream of cool air - never a blast of cold air that could subject the wine to abrupt temperature changes.

  • Automatic Humidity Control
    Humidity must be present in the wine cellar to prevent cork and label deterioration. The gentle cooling action of the BREEZAIRE system maintains the relative humidity in the 50% to 75% range, eliminating excess moisture but never allowing the air to become dry enough to create an undesirable condition. (Additional moisture may be required in extreme dry climates.)

  • Vibration-Free Operation
    All BREEZAIRE systems are engineered to be vibration free, hand assembled, and tested to ensure that they meet the most exacting standards. The elimination of vibration levels that may be undetectable to the owner results in wines that have greater clarity and brilliance.

  • Ultra Quiet Operation
    BREEZAIRE systems perform their task quietly and unobtrusively to preserve the atmosphere of isolation from the outside world that makes a visit to a wine cellar a unique experience.

  • Attractive Metal Cabinet
    An attractive metal cabinet that blends in with the decor of your cellar area and can be flush mounted to any wall.

  • Ease of Installation
    BREEZAIRE's most popular systems are completely self-contained modules that are simply mounted in a wall and connected to a standard 115V AC source. No plumbing, complicated wiring or special procedures including the on-site installation of refrigerant are required.

  • Uncompromising Quality
    All BREEZAIRE systems are designed to deliver superior performance. Constructed using only the highest quality components, and hand assembly by skilled craftsmen in BREEZAIRE's U.S. production facilities.

  • Comprehensive Warranty Coverage
    Owners enjoy the security of warranty coverage that reflects BREEZAIRE's high standards.

  • Full Factory Support
    Support in the form of expertise in system selection, enclosure design and problem solving in the highly specialized area of creating and maintaining an ideal environment for delicate products.
    • HUMIDITY & INSTALLATION: By the nature of their operation, wine cooling units will maintain a stable humidity level, lower than the relative ambient humidity. In situations where the ambient humidity is high, the cooling unit will lower the humidity to desirable storage levels. In situations where the ambient relative humidity is very low, the desired enclosure relative humidity may not be achieved without adding moisture. To add moisture to the enclosure only use slow, natural evaporation from a small porous water container. Do not use a humidifier.
    • TEMPERATURE & INSTALLATION: These compact wine cellar cooling units are designed to cool 25 degrees less than the ambient temperature of the venting side of the unit. In some cases, improper placement or installation may cause the unit's performance to be degraded. The condensing unit must have a constant supply of fresh air, less than 85 degrees F. If the condensing unit is located in a confined area with poor ventilation, the unit will not be able to reject the heat it is removing from the enclosure and a malfunctioning unit will be suspected, even though the unit is mechanically sound. Call us to discuss your installation concerns.



         Model          Electrical               Dimensions (in)                   Weight
   WKCE 1060         3 AMP               18W x 10.5H x 16.6D                45 lb.
   WKCE 2200*        4 AMP               18W x 10.5H x 16.6D                55 lb.

Limited Warranty for all BREEZAIRE self contained units(USA only) BREEZAIRE Products Company warrants this product to be free from defects in material and workmanship and agrees to repair or replace any part of the enclosed unit which proves defective under these terms and conditions.

Alteration, repair or attempted repair of the unit by anyone other than BREEZAIRE will void this warranty.

Who is protected: This warranty may be enforced only by the original retail customer and is not transferable.

Length of Warranty:
All parts used in this unit are warranted for Five years(60 months) from the original retail purchase.
Factory labor is provided at no cost for one year (12 months) from the original retail purchase.

What is not covered: Any unit on which the serial number cannot be verified. Damage, deterioration or malfunction resulting from, but not limited to:

Any shipment of the unit (claims for shipping damage must be presented to the shipper). Installation or removal of the unit. Installation in an enclosure of inadequate design that does not follow the minimum guide lines of the installation instructions. Inadequate ventilation for supplying and exhausting condenser air that does not follow the minimum guide lines of the installation instructions. Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature, improper storage, unauthorized modification, electrical power surges or failure to follow instructions supplied with the unit. Exposure to corrosive environments such as, but not limited to, marine air, caustic pool chemicals, cleaning solvents, gasoline and petroleum products. Burial or coverage by, but not limited to, dirt, snow, mud, storage shelves, fabric products or vegetation. Any cause which does not relate to product defect.

What BREEZAIRE will pay for:During the first 12 months BREEZAIRE will pay for labor and material to repair the unit at our factory. Additionally, BREEZAIRE will pay the cost of shipping the unit to and from our factory. During the 13th to 60th months BREEZAIRE will pay for the material to repair the unit at our factory.

What BREEZAIRE will NOT pay for: Installation or removal of the unit. Handling or packaging of the unit. Repairs performed by anyone other than BREEZAIRE. Any other damages, whether incidental, consequential or otherwise.

How to obtain warranty service: BREEZAIRE may require you to provide the original bill of sale or receipt as proof of purchase in order to obtain warranty service. Please retain any such proof of purchase. If a problem is suspected with a BREEZAIRE cooling unit, please contact your dealer. Do not return a unit without authorization from BREEZAIRE. Should it be necessary to return your unit for warranty service, it must be packaged in the original packaging or similar packaging providing an equal degree of protection. Any freight charges must be prepaid, BREEZAIRE will not accept collect shipments. If the unit is found to be defective BREEZAIRE will reimburse (during the first 12 months) the cost of shipping the unit at standard second day freight rates.

LIMITATION OF IMPLIED WARRANTY BREEZAIRE'S SOLE LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO, AT OUR OPTION, THE REPAIR OR REPLACEMENT OF THE UNIT. BREEZAIRE SHALL NOT BE LIABLE FOR: DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE UNIT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE UNIT, LOSS OF TIME OR COMMERCIAL LOSS. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE. THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

While great effort has been made to provide accurate guidelines, BREEZAIRE cannot warrant its units to properly cool a particular enclosure. Customers are cautioned that enclosure construction, unit location and many other factors can affect the operation and performance of the unit. Therefore the suitability of the unit for a specific enclosure or application must be determined by the customer and cannot be warranted by BREEZAIRE.
