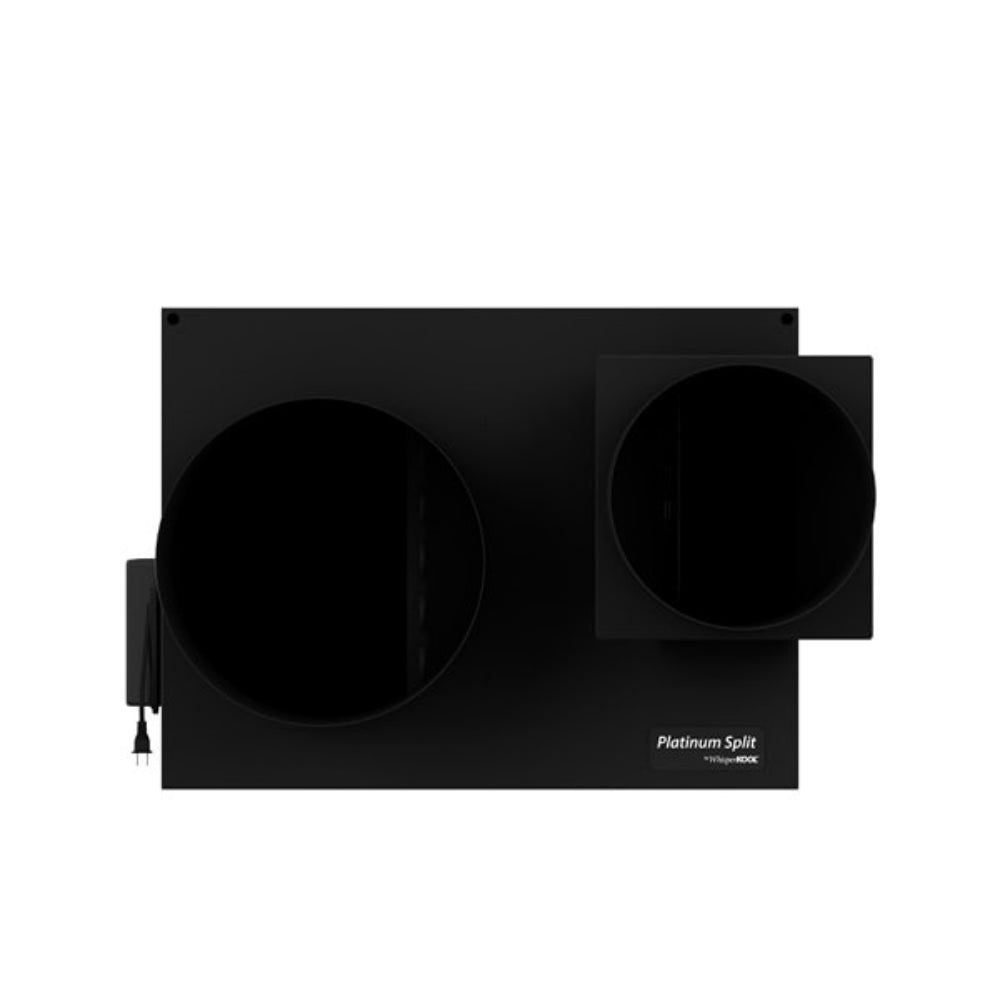

WhisperKOOL Platinum Split 4000 Ducted Wine Cooling System (220V Condenser)


Notify me when back in stock


Are you looking for a wine cooling system that is not only efficient and effective, but also incredibly quiet? Look no further than the WhisperKOOL Platinum Split 4000 Ducted Wine Cooling System, available now at Wine Cooler Collection.

With flare fittings for easy installation, this system is a breeze to set up and use. Its 2-speed fan switch lets you adjust the BTU/h capacity to your desired level, and both standard and 24V thermostat options are available to suit your needs.

The WhisperKOOL Platinum Split 4000 Ducted Wine Cooling System is designed for quiet and efficient operation, so you can enjoy your wine collection without any distracting noise. Plus, with the option to place the condensing unit outdoors, you can ensure that your wine is protected from the elements and your cellar remains at the perfect temperature.

This system also includes a pump system to remove excess condensation, making maintenance a breeze. And with a 55°F temperature differential between the cellar and condensing unit air intake temperature, you can rest assured that your wine is being stored at the optimal temperature.

For those who are concerned about the impact of UV rays on their wine, the WhisperKOOL Platinum Split 4000 Ducted Wine Cooling System also offers an upgrade option with a UV-C lighting system. This will protect your wine from the harmful effects of UV rays and help it to age gracefully.

Finally, the 220V High Efficiency (H.E.) Condenser ensures that your wine cooling system operates at maximum efficiency, keeping your collection at the perfect temperature without consuming excess energy.

Investing in the WhisperKOOL Platinum Split 4000 Ducted Wine Cooling System is an investment in the future of your wine collection. Don't settle for anything less than the best – choose WhisperKOOL and enjoy the peace of mind that comes with knowing your wine is in good hands. Order yours today at Wine Cooler Collection.

  • Quiet and efficient operation
  • Flare fittings for easy installation
  • 2-speed fan switch to adjust BTU/h capacity
  • Standard and 24V thermostat options available

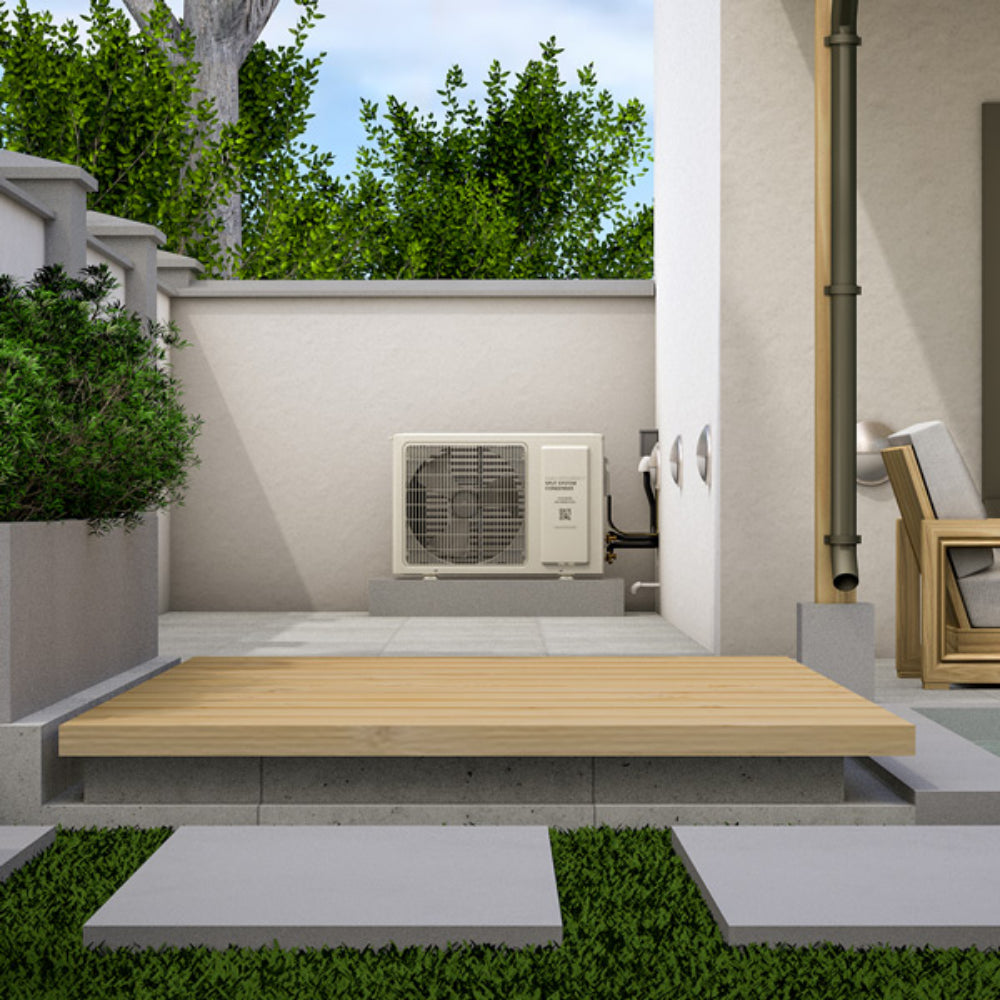

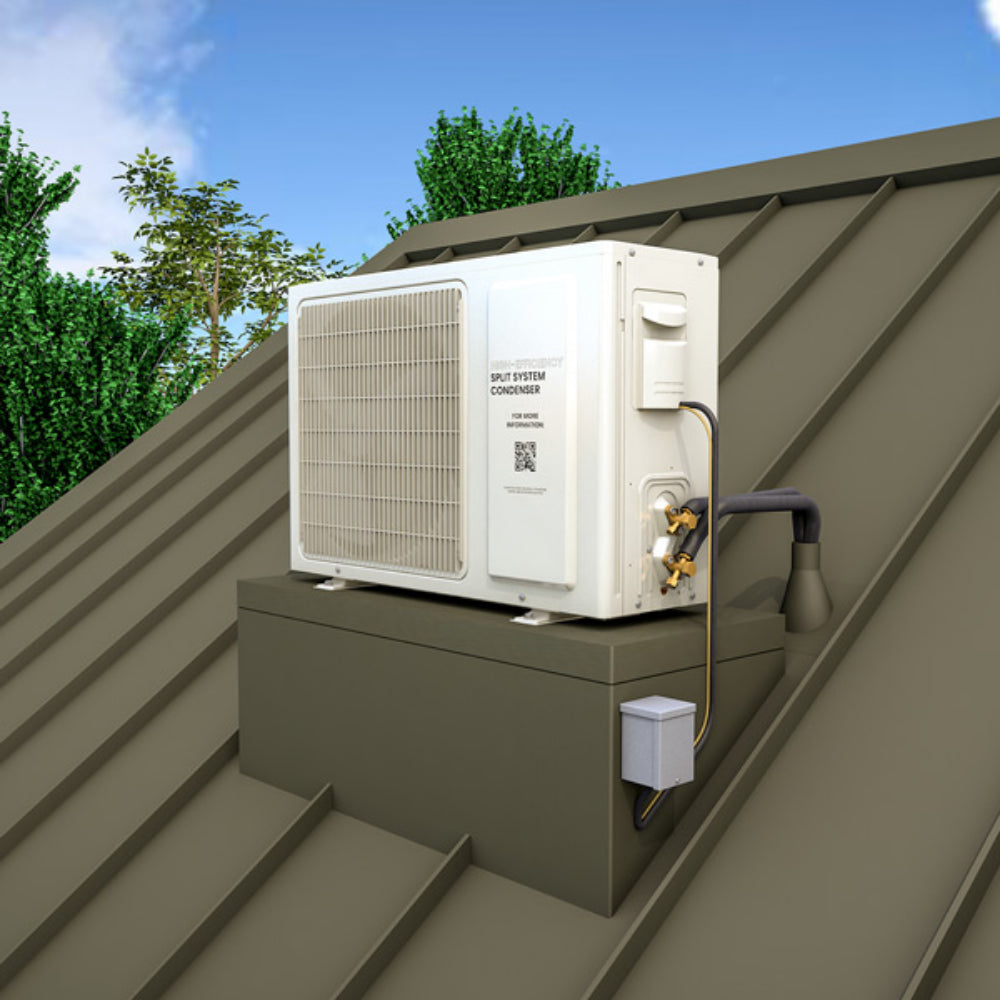

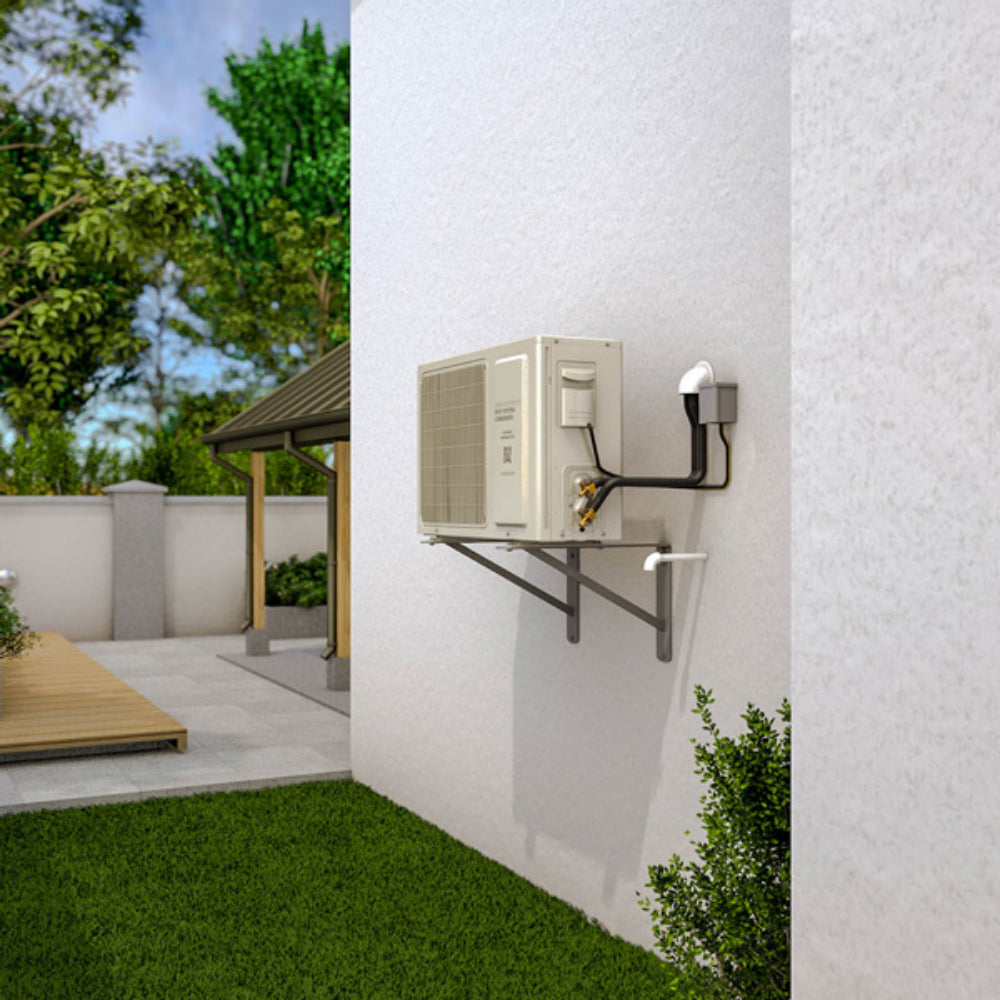

  • Condensing unit can be placed outdoors with purchase of exterior housing
  • Includes a pump system to remove access condensation
  • 55°F temperature differential between cellar and condensing unit air intake temperature

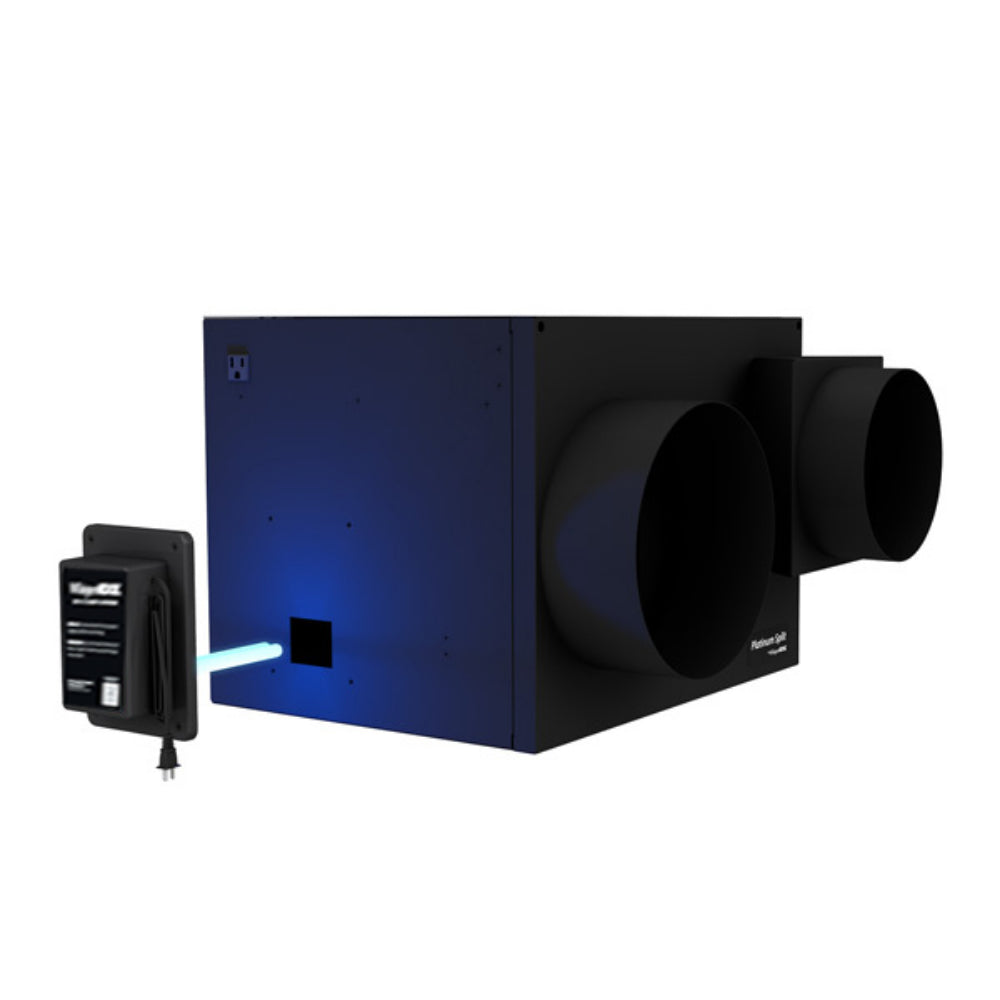

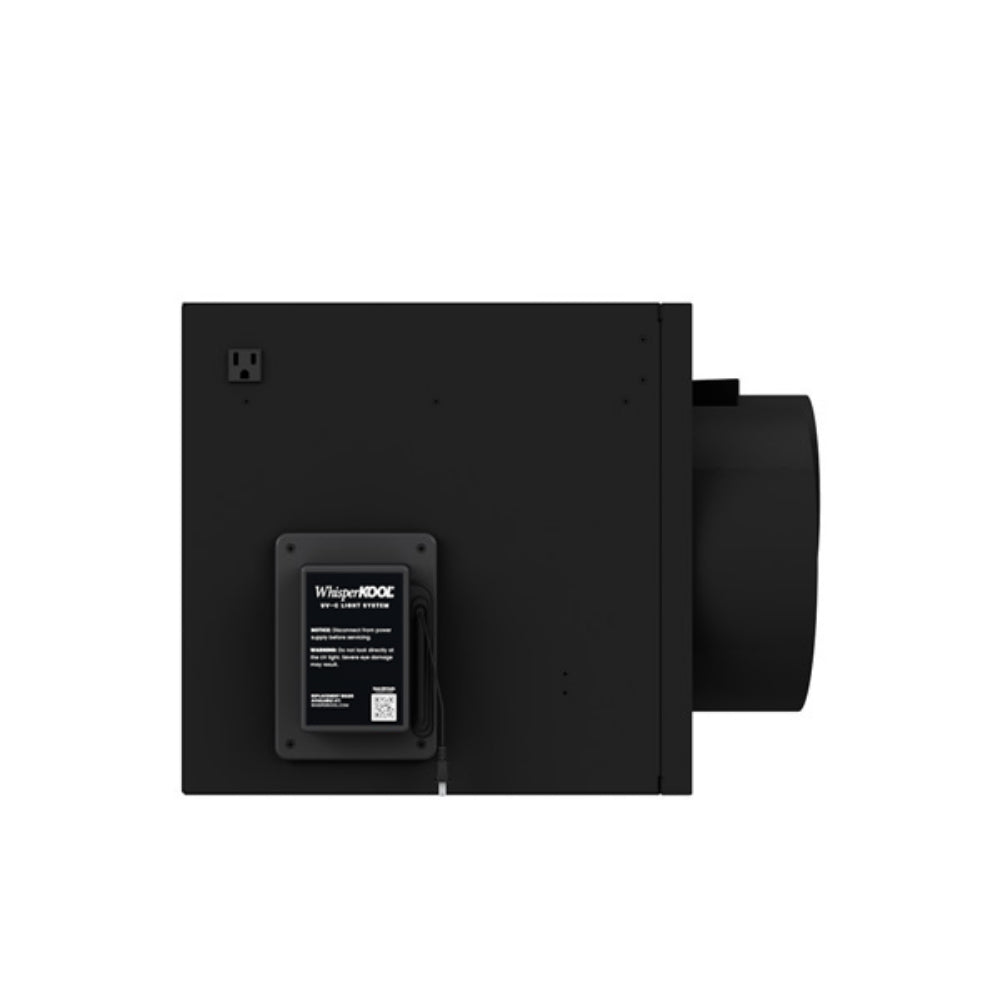

  • UV-C Lighting System (Click to learn more about the upgrade)

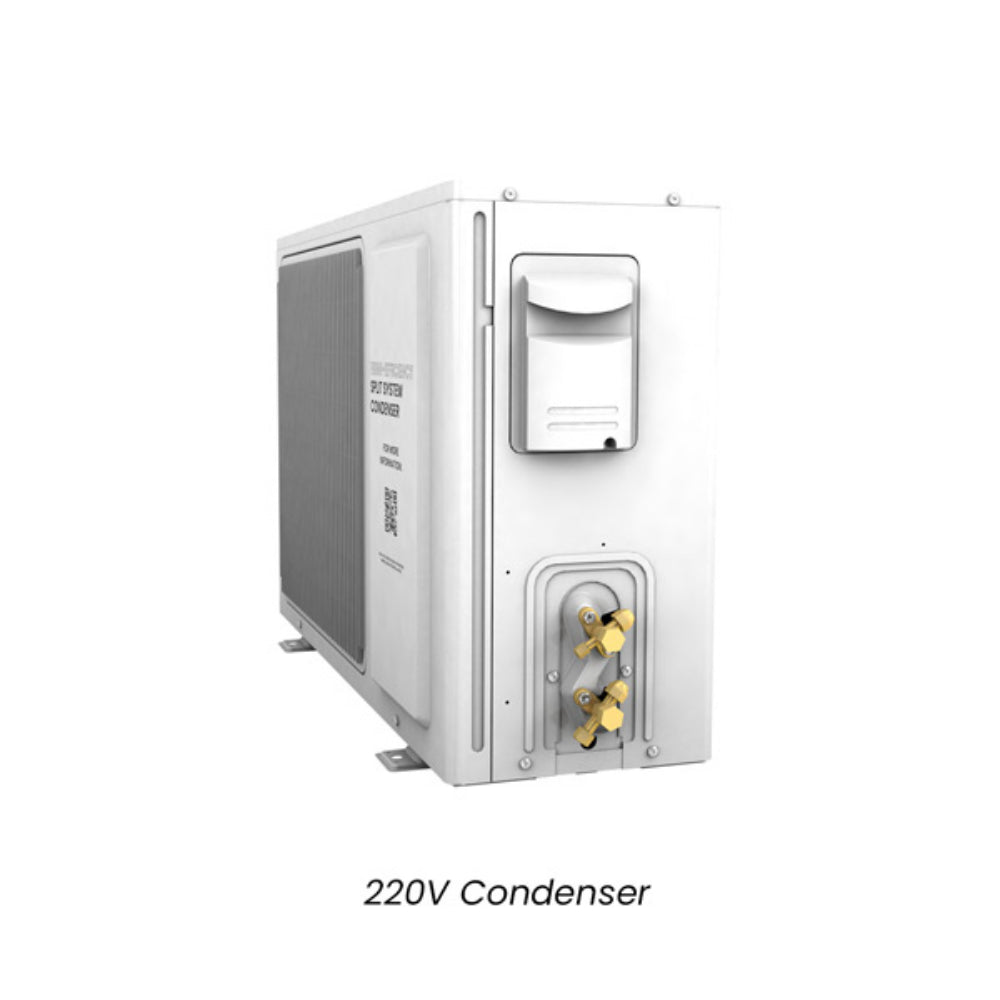

  • 220V High Efficiency (H.E.) Condenser (Click to learn more)

Note: A qualified HVAC-R technician is required for the installation of your Ducted Platinum Split 4000. Failure to have the system installed by a qualified technician will void the warranty.

*PLEASE NOTE: WhisperKOOL does not provide a smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment.


Dimensions: 31.18"L x 10.75”W x 21.18"H
Condensing Unit HP: 0.6HP
Voltage Rating: 220V (15-amp dedicated circuit required)
Weight (lbs): 55
Amps: LRA 10.7, RLA 2.7, FLA 3.1
Line Set: Liquid line 1/4" OD; Suction line 1/2" OD (less than 50ft.), 5/8" (greater than 50.ft)
Drain Line: 1/2” ID clear plastic tubing (not included)
Installation: The evaporator unit is installed in the cellar. Condensing unit can be installed up to 100 line feet from the evaporator unit.
Thermostat: KDT- Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable), 24V - Customer supplied
Temp. Delta: Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature

3D Tour


110V Owner's Manual H.E Owner's 220V Manual

Product Sheet


Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty

A limited 2-year product warranty is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
