Newair SplitShelf 70 Can, 20 Bottle Built In Dual Zone Fridge – 24"
Free shipping in the US. In-stock orders ship within three business days.
Pay over time with Shop Pay Installments or Affirm
Product Details
24" Newair SplitShelf Fridge Designed for Wine and Beverage Storage

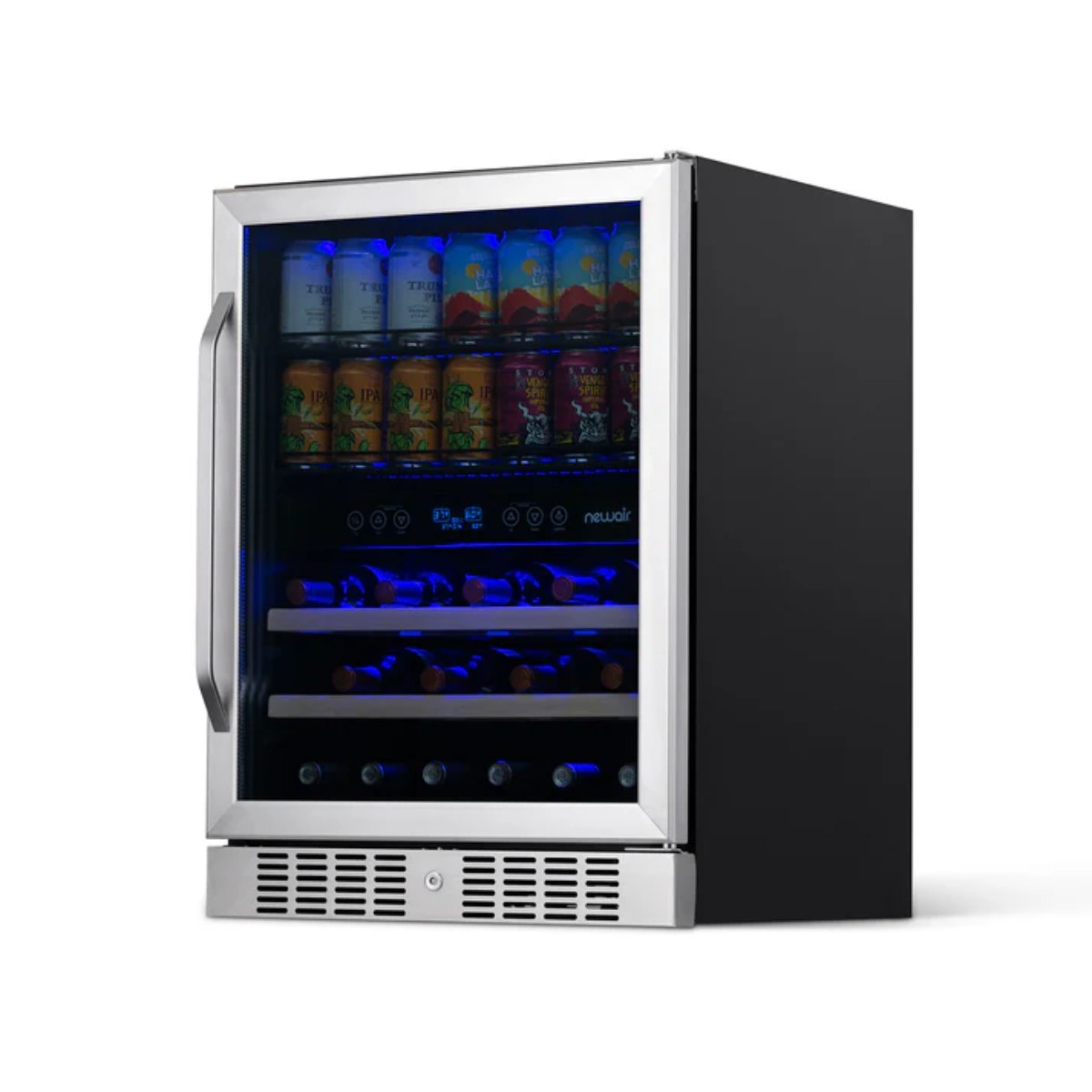

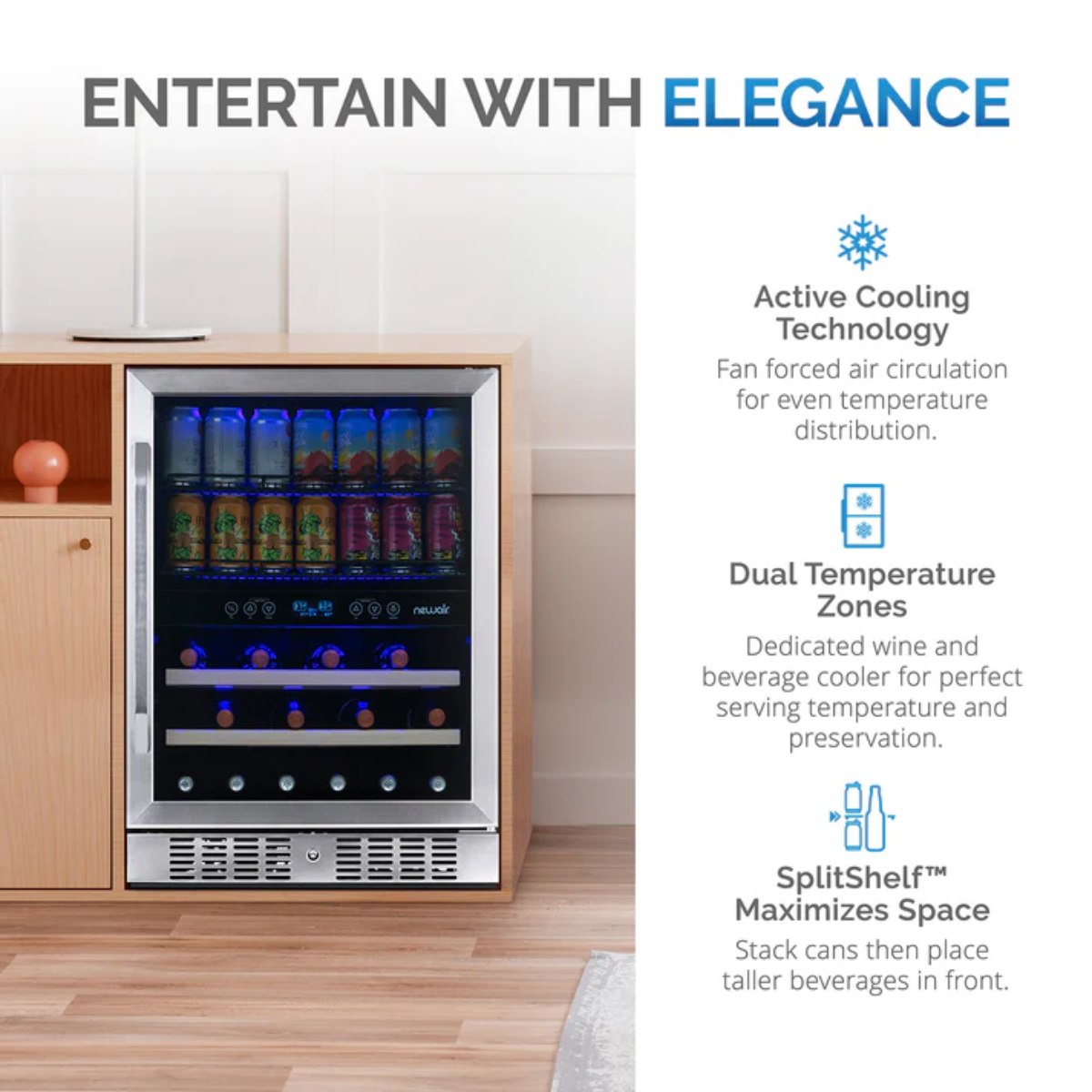

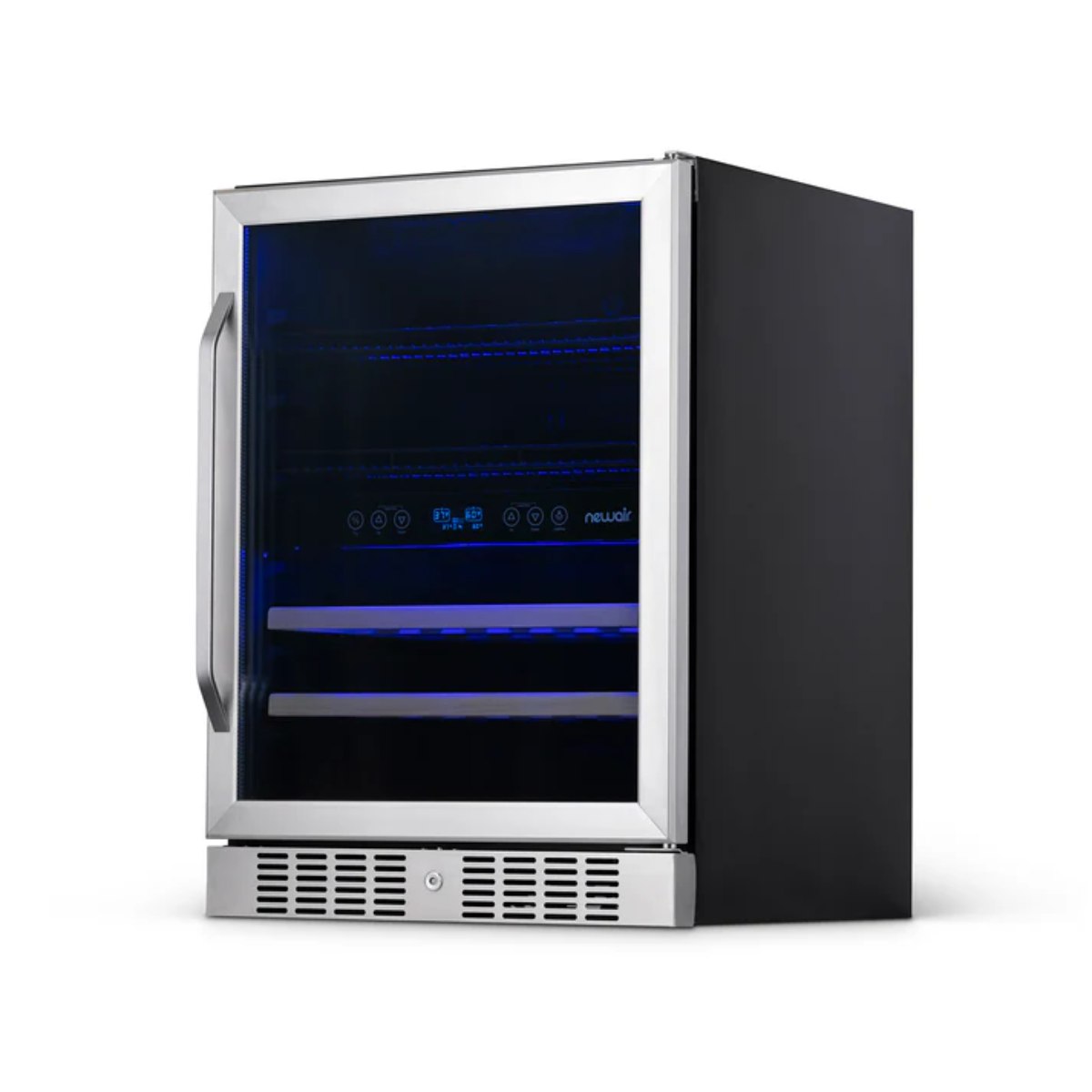

Upgrade your entertaining with the Newair SplitShelf™, a versatile dual-zone wine and beverage fridge designed for seamless built-in or freestanding installation.

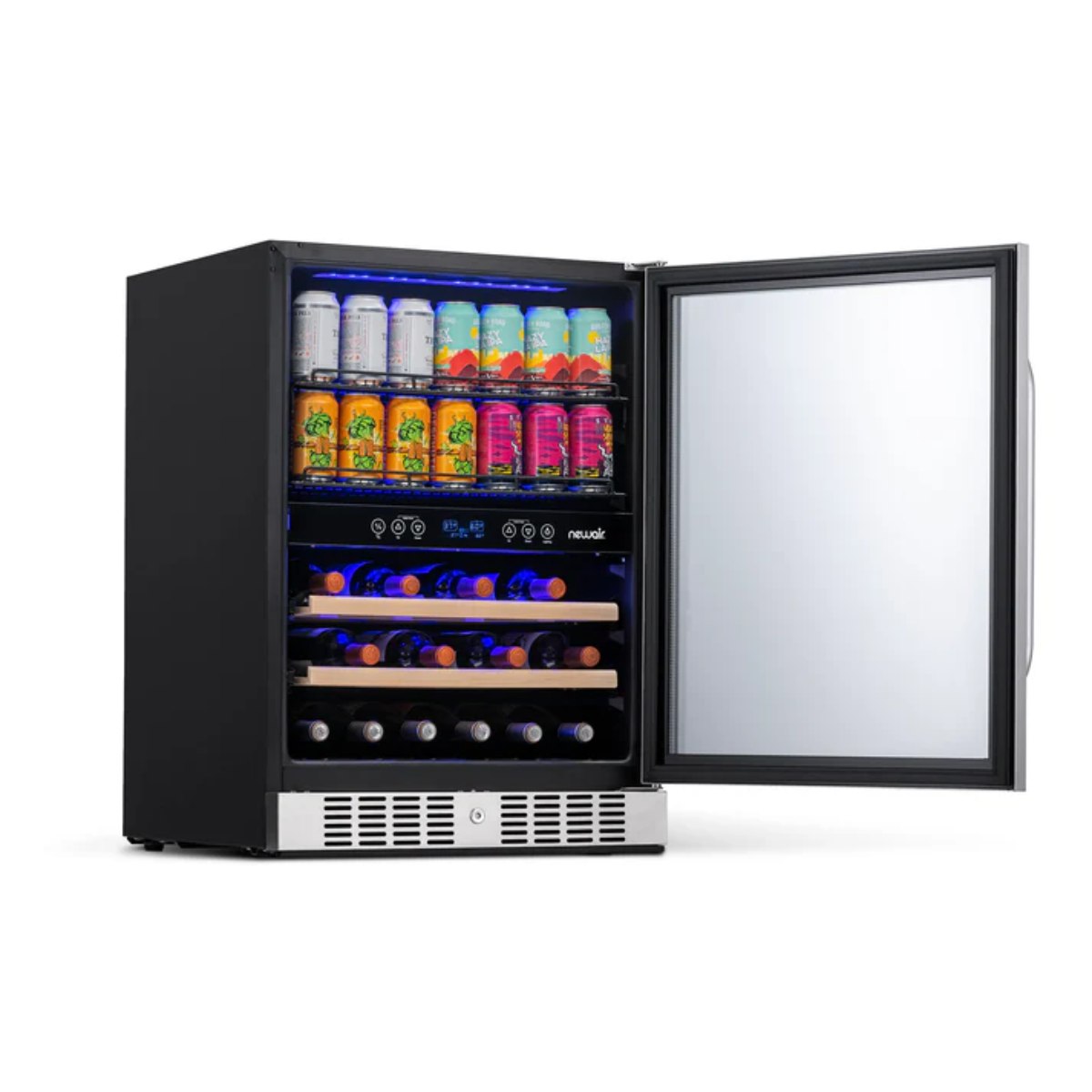

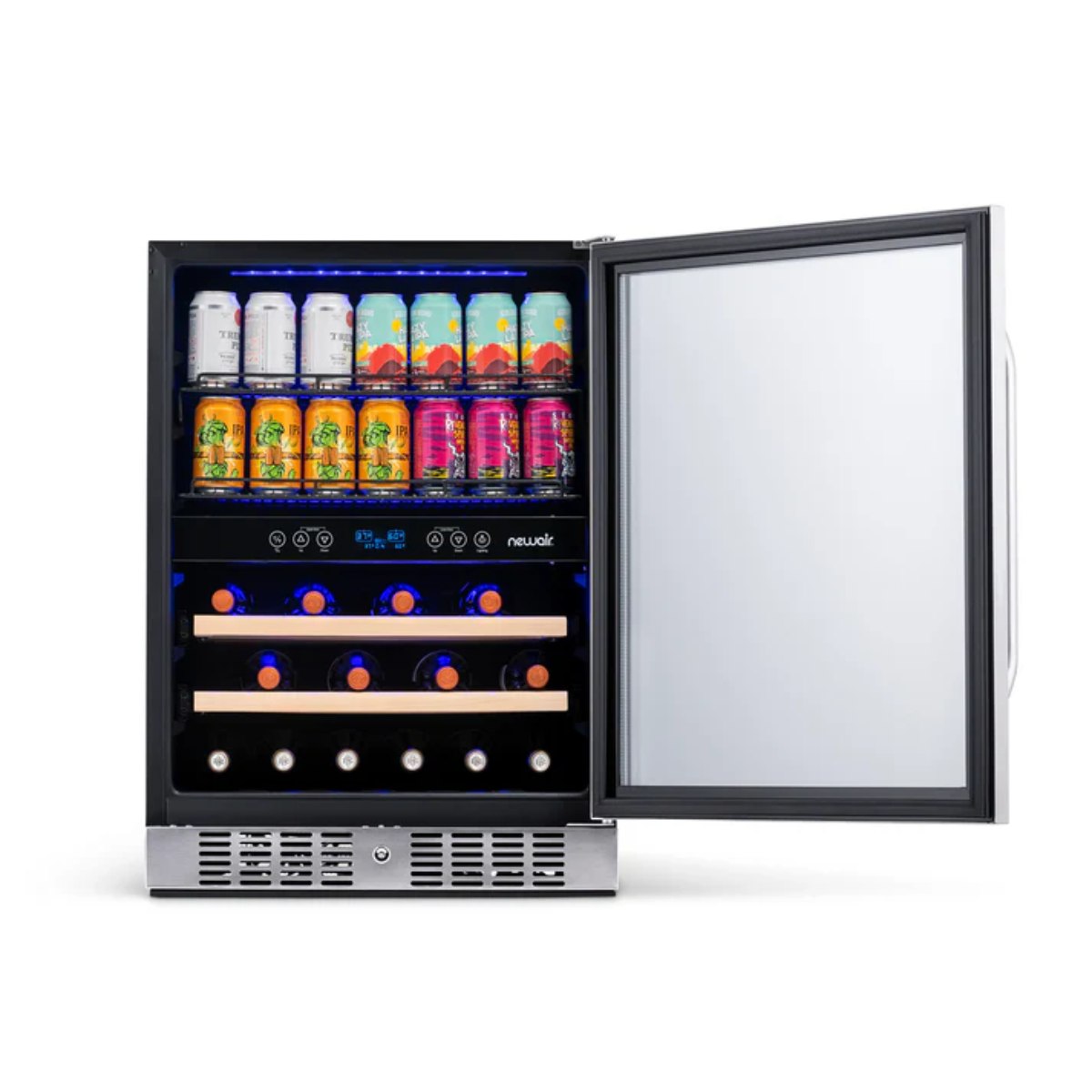

Store up to 20 wine bottles below and 70 standard cans above, each in its own temperature-controlled zone. The upper section cools cans between 37–50°F, while the lower zone preserves wine between 50–66°F for perfect serving temperatures.
The innovative SplitShelf™ configuration maximizes capacity—split shelves flat for cans, or reverse for wine bottles, and use easy-slide wine racks for smooth access.

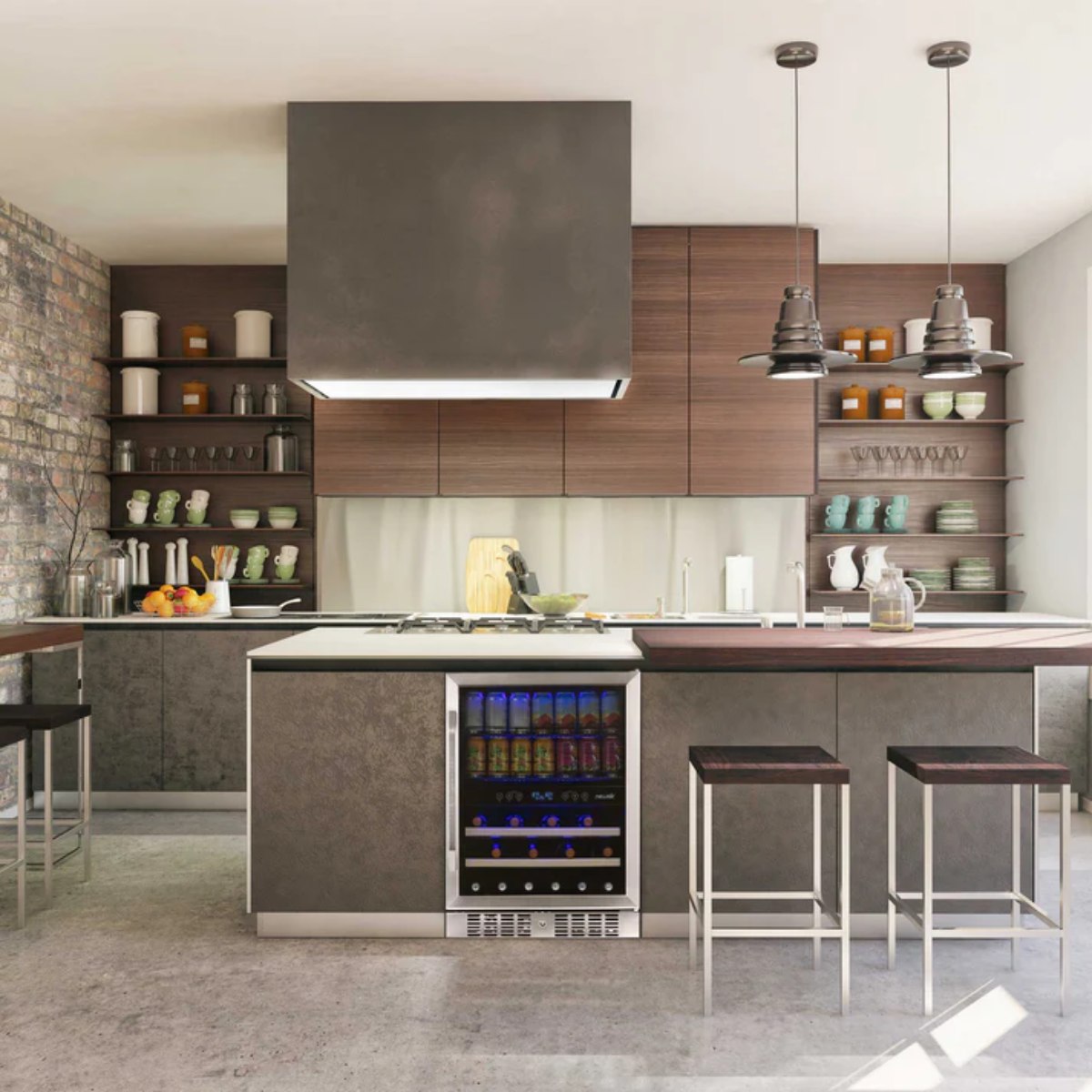

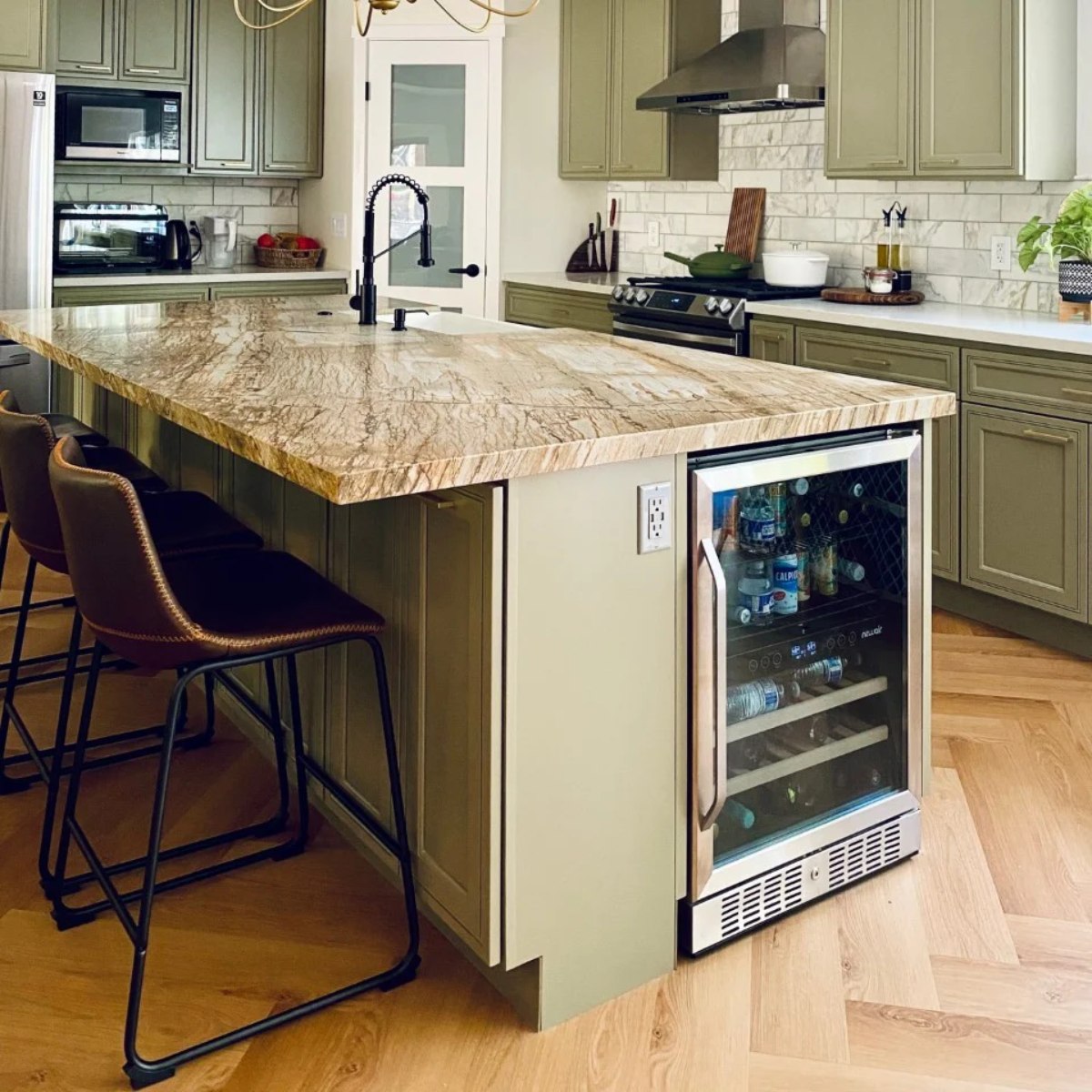

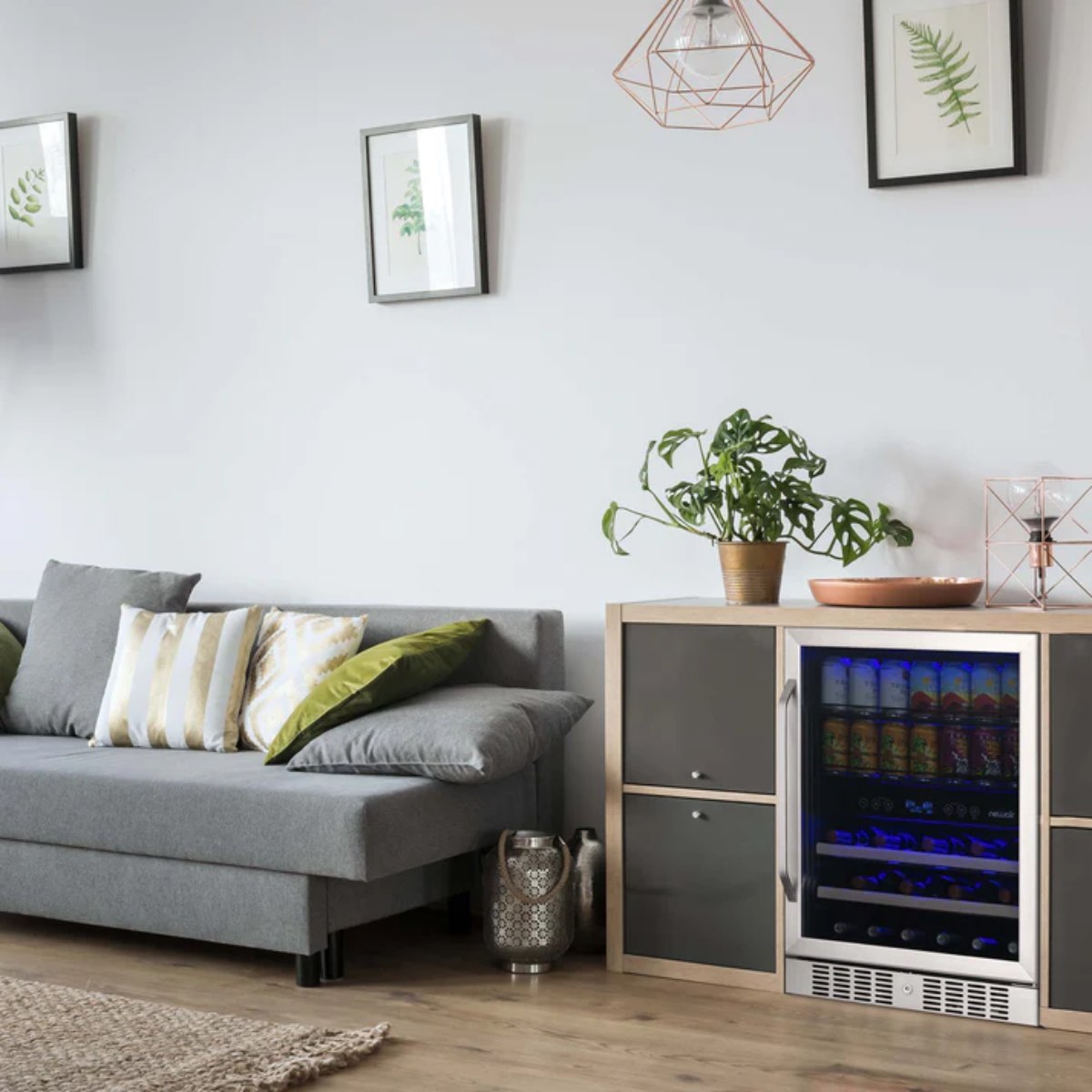

Built for convenience, it features a front-venting compressor system that fits neatly under counters or stands boldly free-standing.

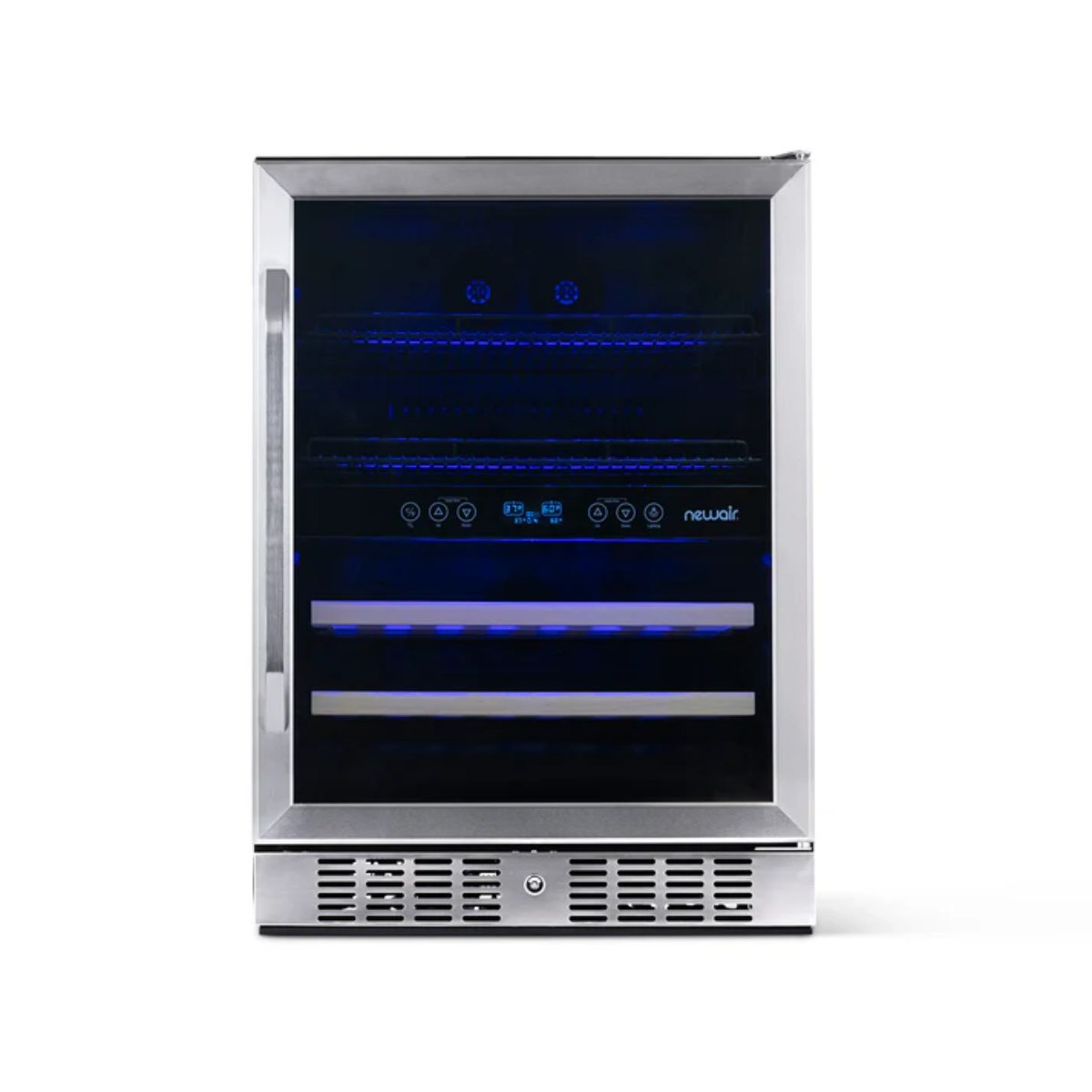

Designed with premium touches, this fridge includes a triple-pane glass door for superior insulation and efficiency, adjustable LED lighting to showcase contents, and a durable stainless steel exterior complete with a lock-and-key for security.
Newair SplitShelf 24" | Dual Zone Fridge Key Features
- Dual Temperature Zones – Store wines and beverages at precise serving or storage temperatures
- SplitShelf™ Configuration – Modular shelving design doubles your can storage capacity
- Smooth-Rolling Wine Racks – Keeps corks moist and minimises vibration for better preservation
- Front-Venting Compressor – Allows seamless under-counter installation or freestanding use
- Triple-Pane Glass Door – Provides excellent insulation while blocking harmful UV light
Newair SplitShelf 24" | Dual Zone Fridge: One Complete Package for Chilling All Your Drinks

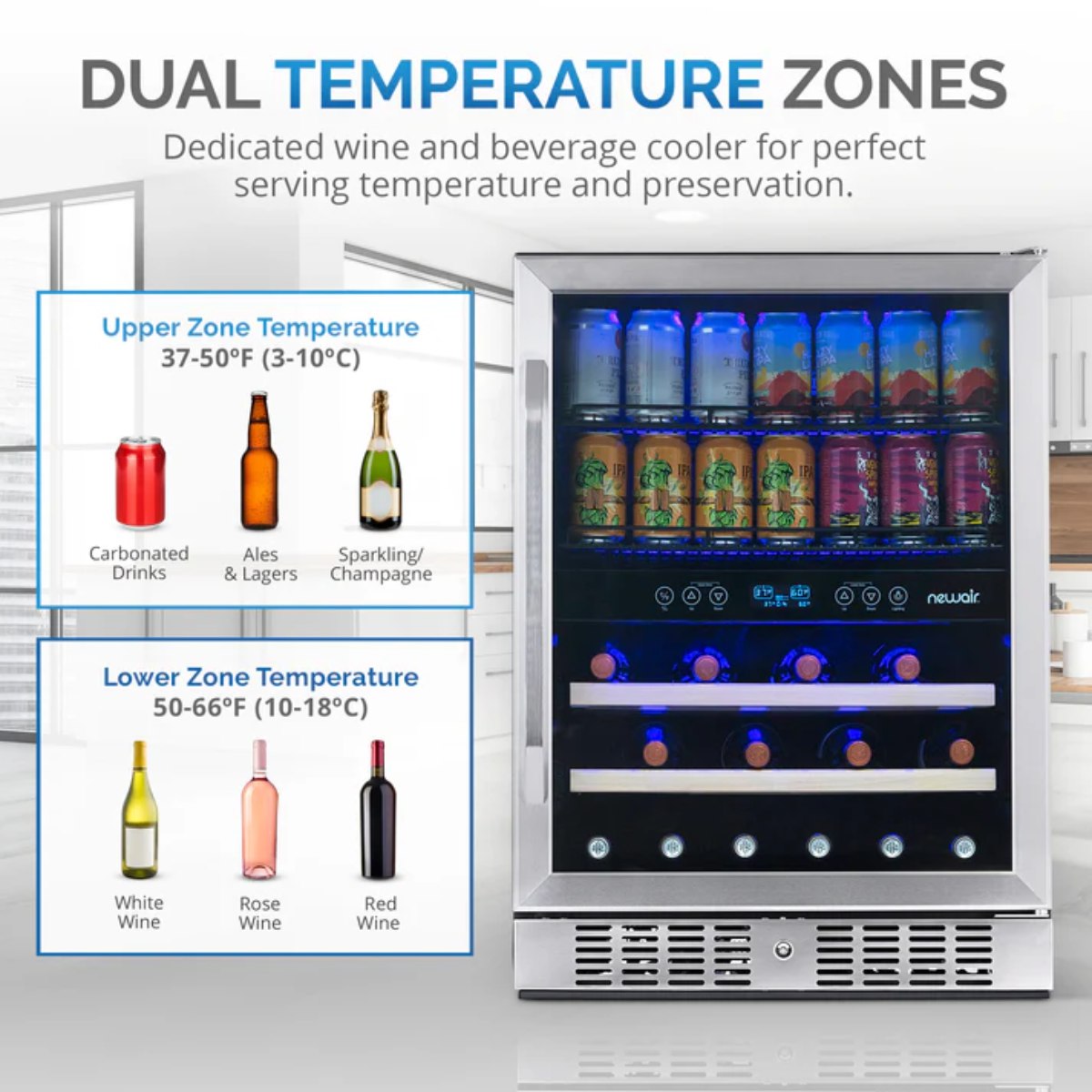

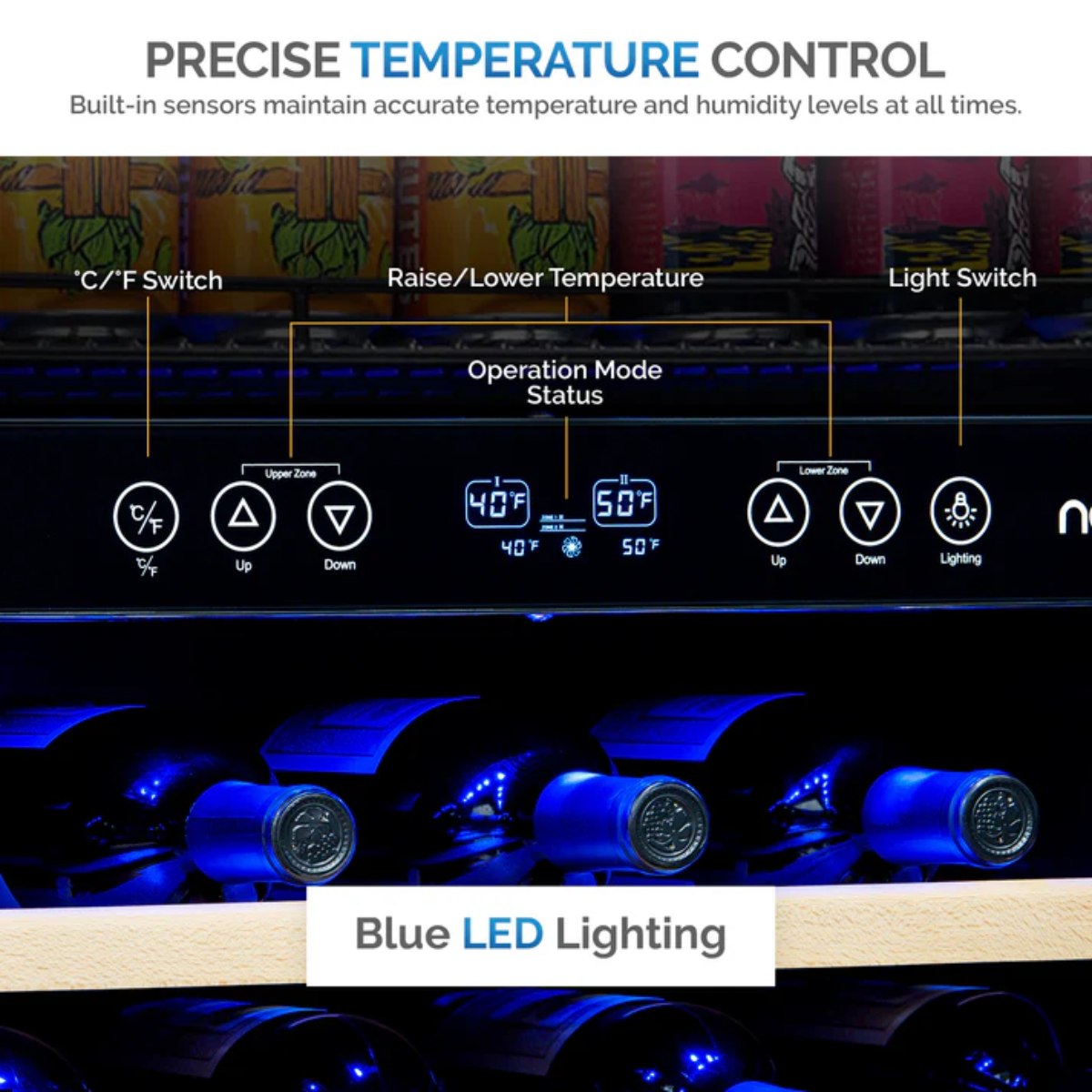

With dual temperature zones in one convenient fridge, you can store up to 20 wine bottles on the bottom and up to 70 standard beer or soda cans on the top. Digital controls let you fine-tune each zone—keep wine between 50–66°F and carbonated drinks at a refreshing 37–50°F, so every beverage is served at its best.
Newair SplitShelf 24" | Dual Zone Fridge: Maximize Space With SplitShelf Configuration

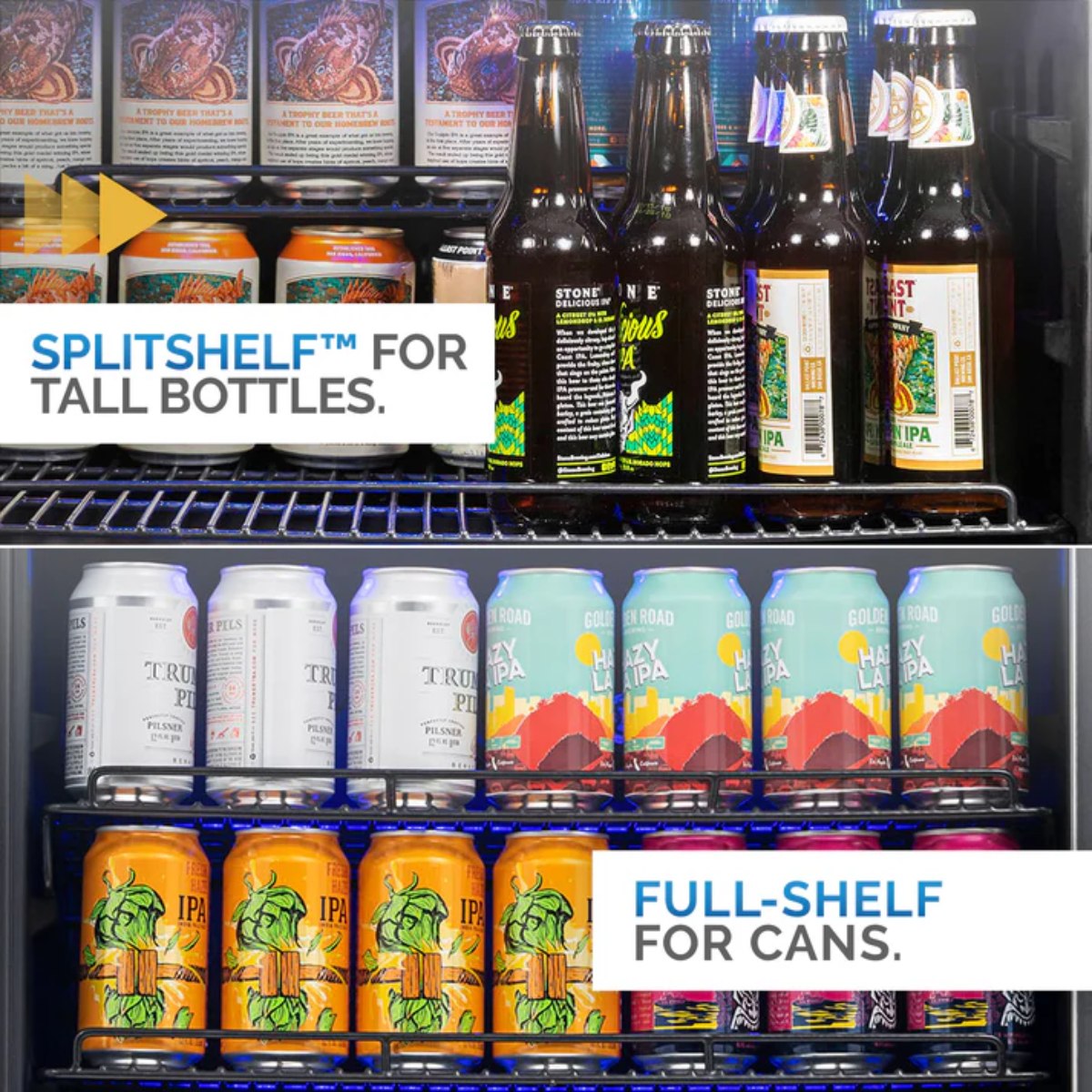

The AWB-400DB is designed with a smart SplitShelf™ configuration that maximises storage flexibility. The half-depth shelves let you stack cans of different sizes on top of one another, effectively doubling your storage space for drinks with varying footprints.
Prefer storing bottles? Simply place them in front of a half shelf so they can stand upright. With SplitShelf™, you have multiple ways to organise your collection to fit your needs.

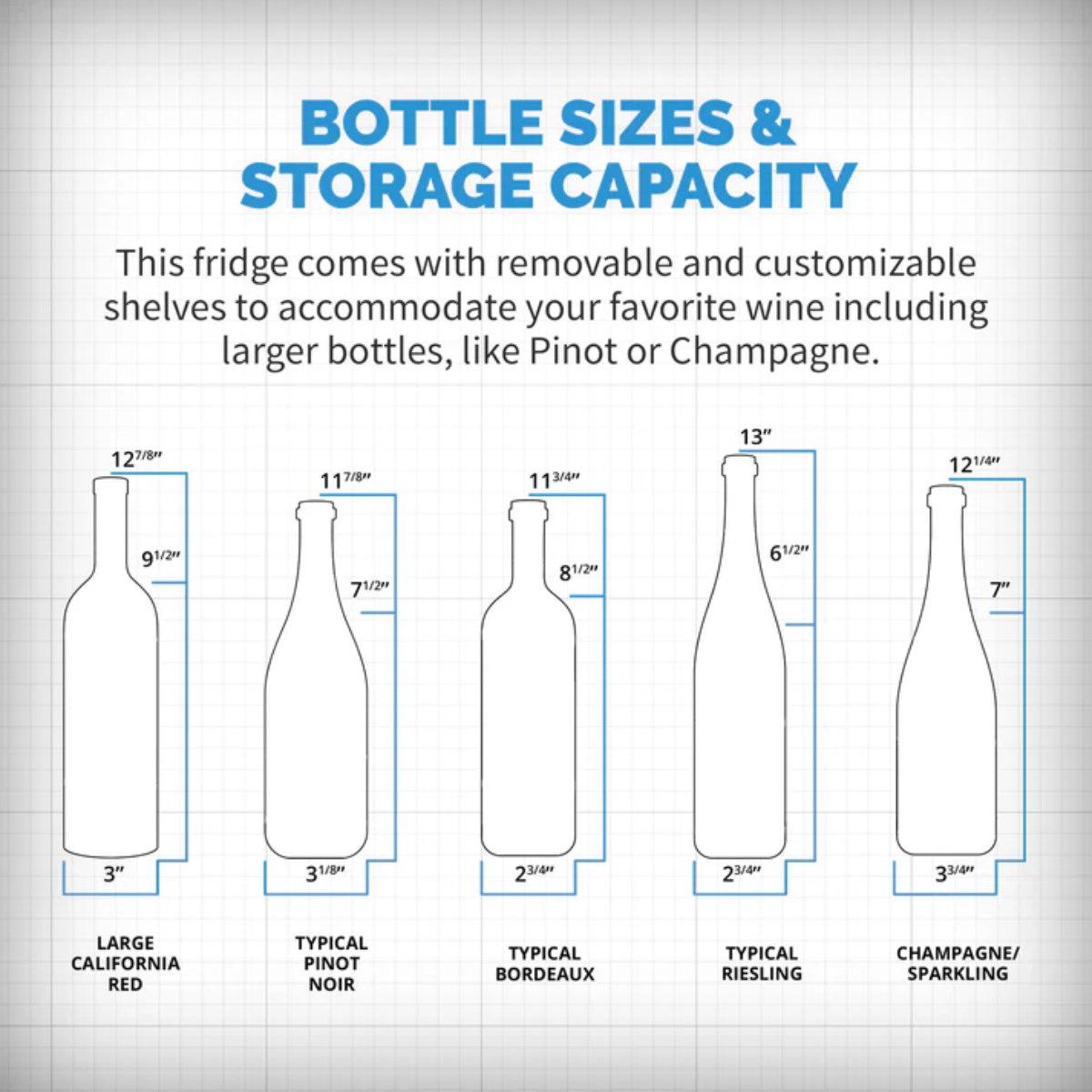

Newair SplitShelf 24" | Dual Zone Fridge: A Compact Wine Cellar for Your Favorite Bottles

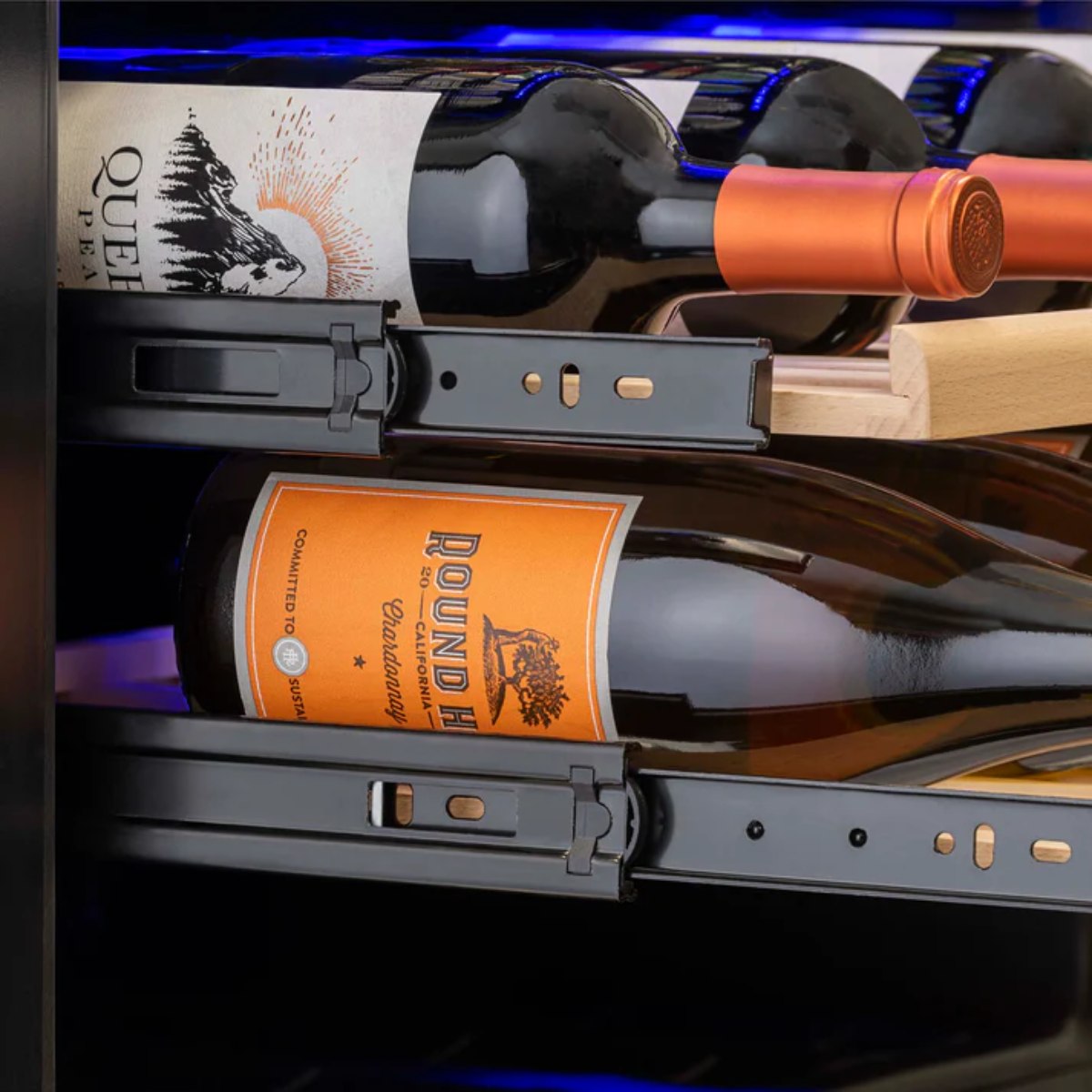

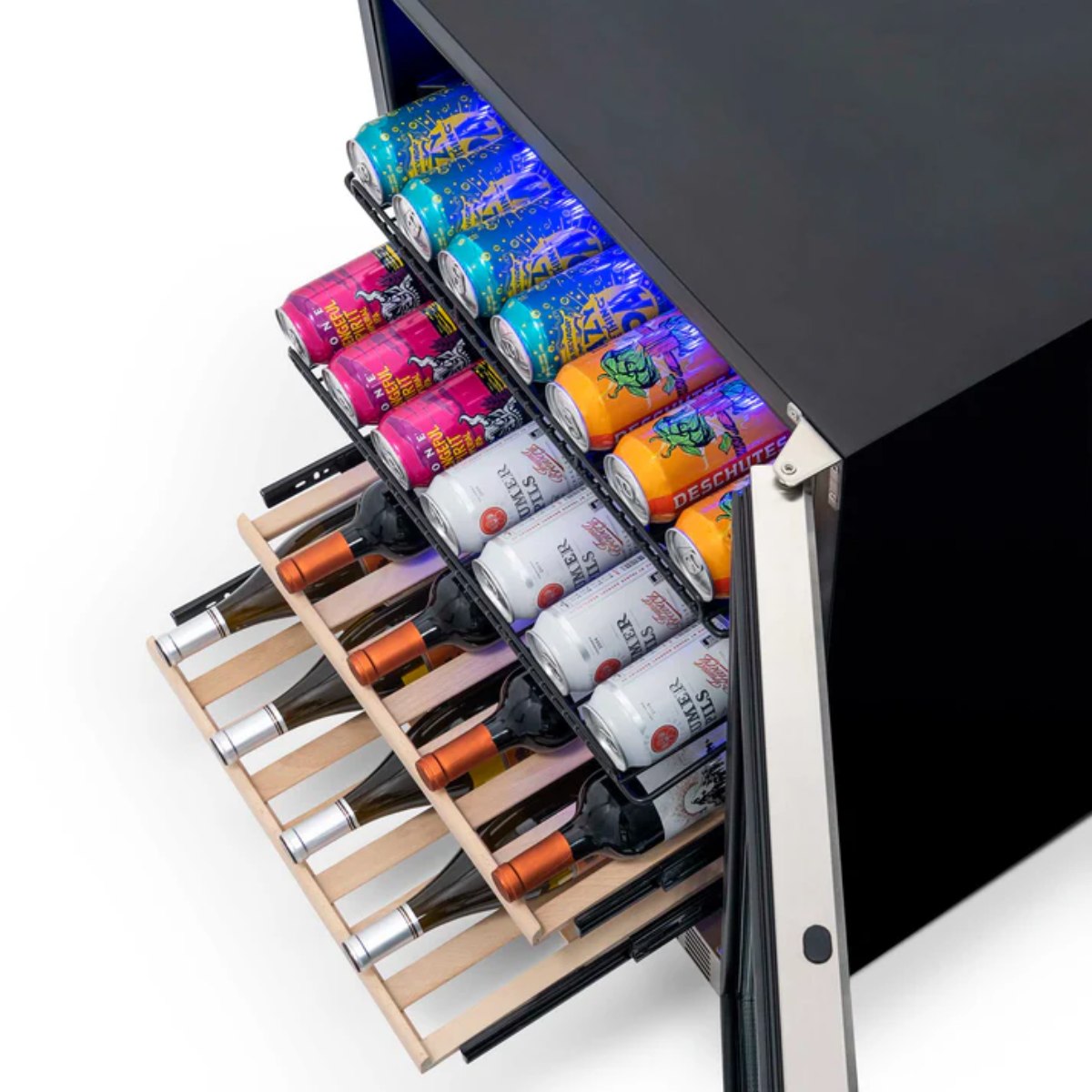

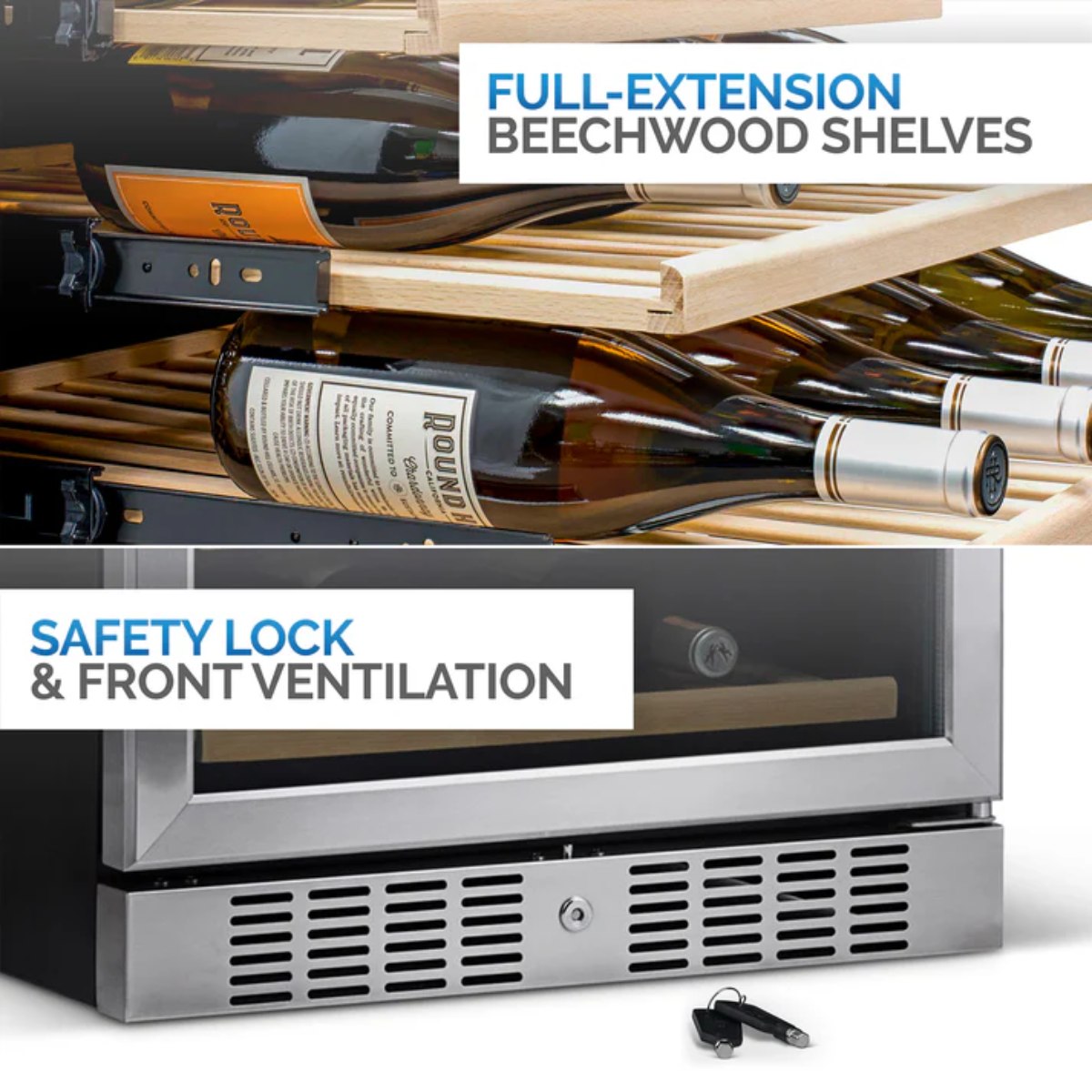

Keep your wine at the ideal temperature for both short-term enjoyment and long-term aging with dedicated wine racks. Smooth-gliding shelves minimise vibration to prevent sediment from stirring, while also letting you easily view labels as you select the perfect vintage.
Newair SplitShelf 24" | Dual Zone Fridge: Beautiful, Durable Design Touches

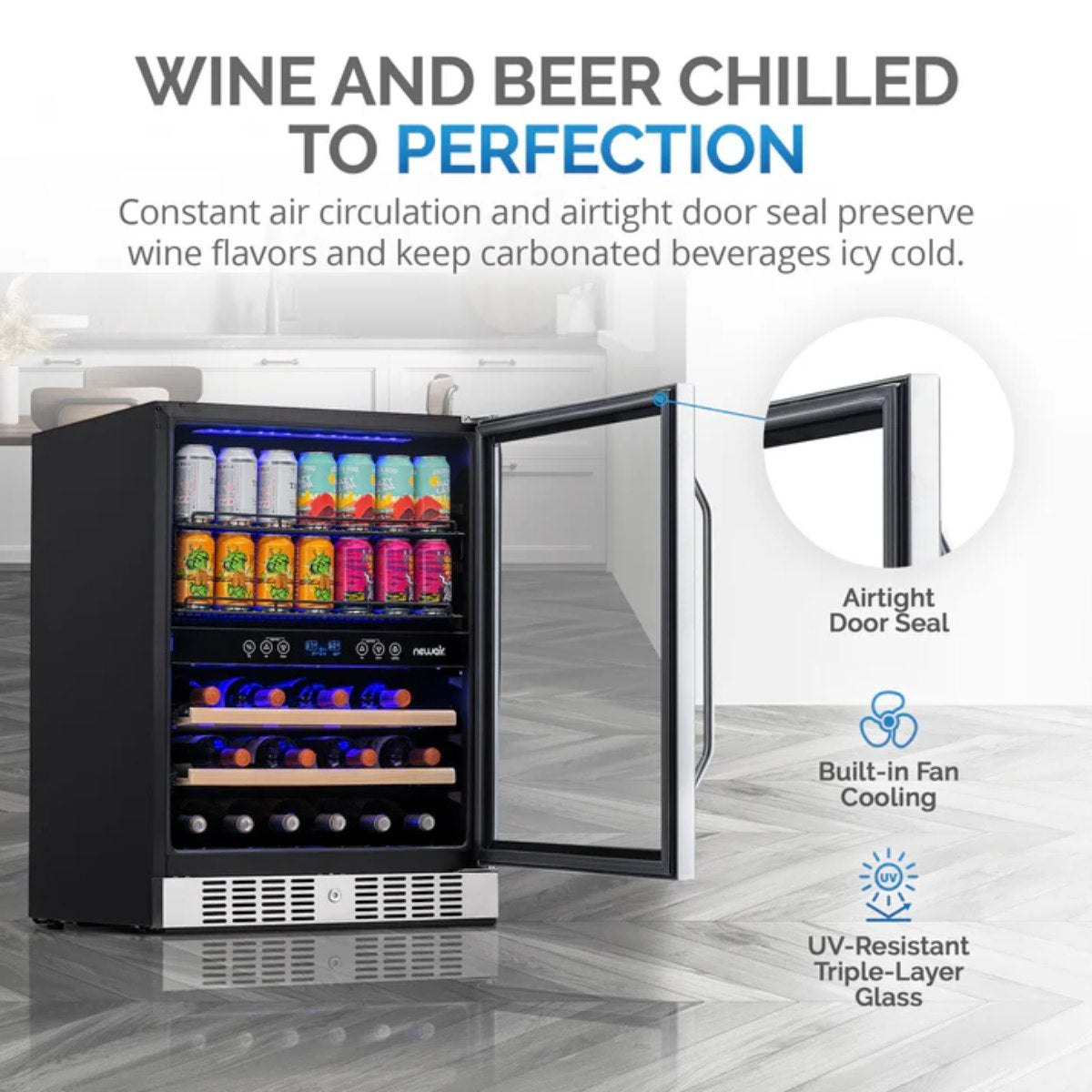

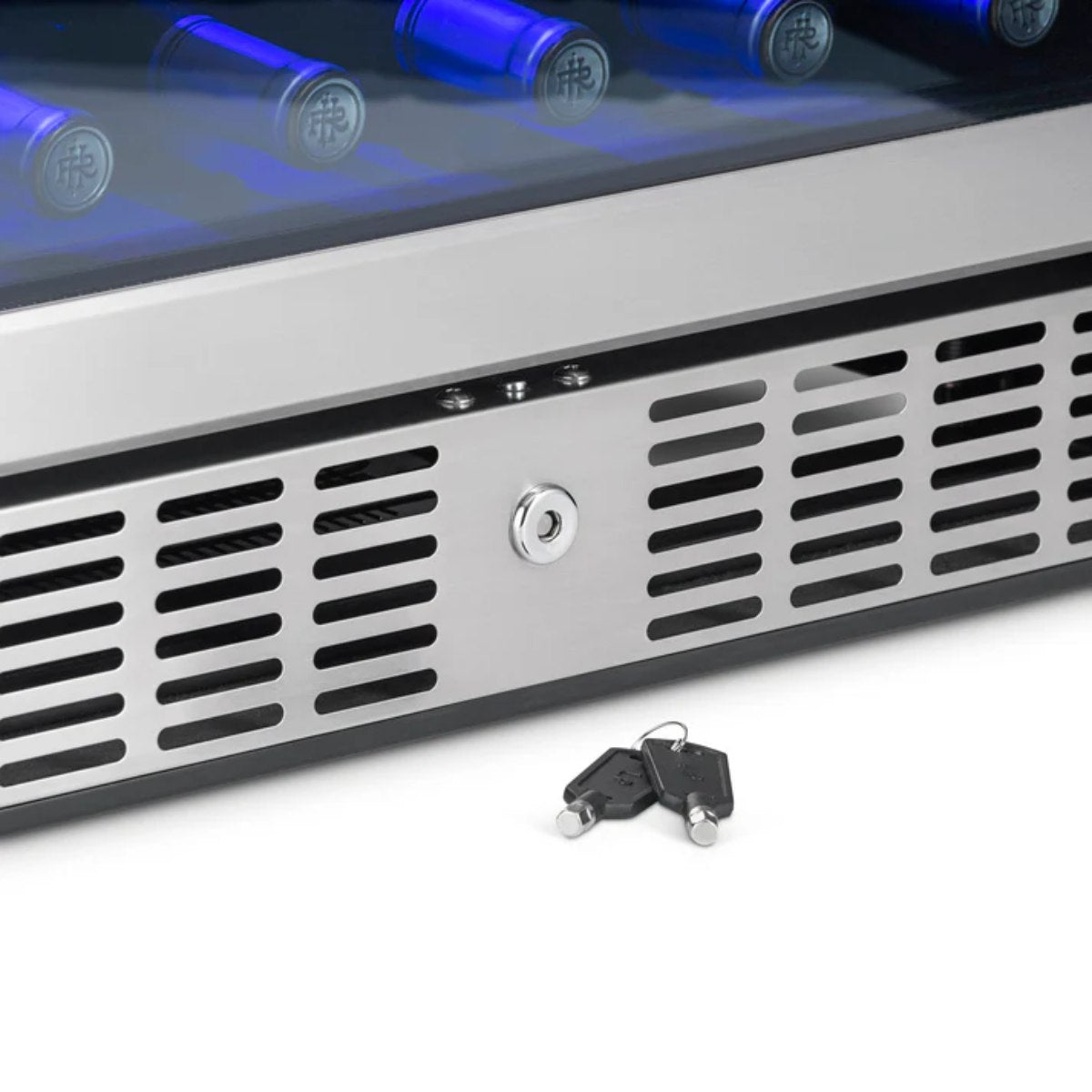

The triple-pane glass door locks in cold air for maximum efficiency, while adjustable interior LEDs cast a stylish blue glow over your collection. Scratch-resistant stainless steel doors add durability and elegance, and a lock-and-key feature keeps adult beverages safely out of reach from little hands.
Newair SplitShelf 24" | Dual Zone Fridge Technical Specifications
| Model | AWB-400DB |
| Product Type | Dual Zone Compressor Wine & Beverage Cooler |

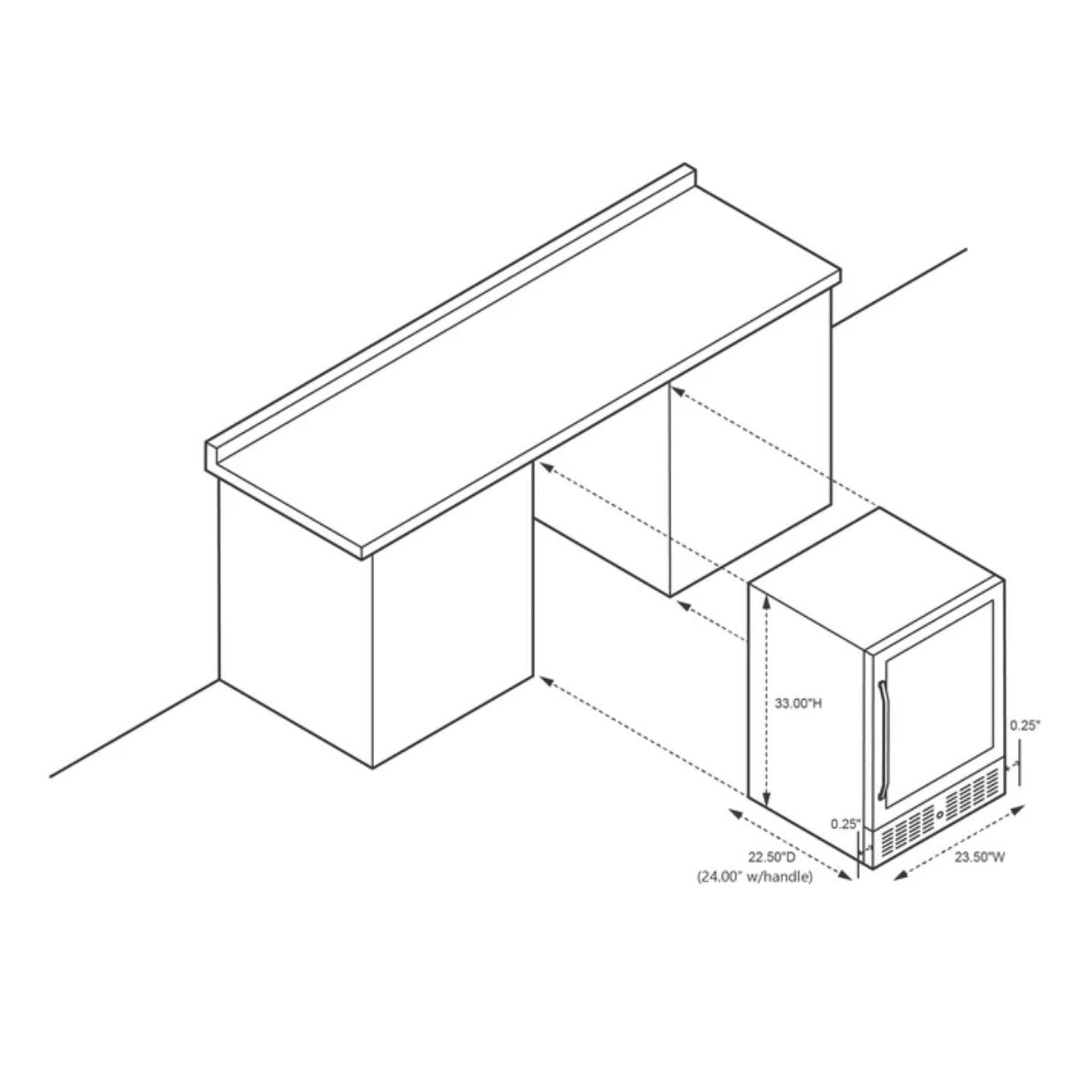

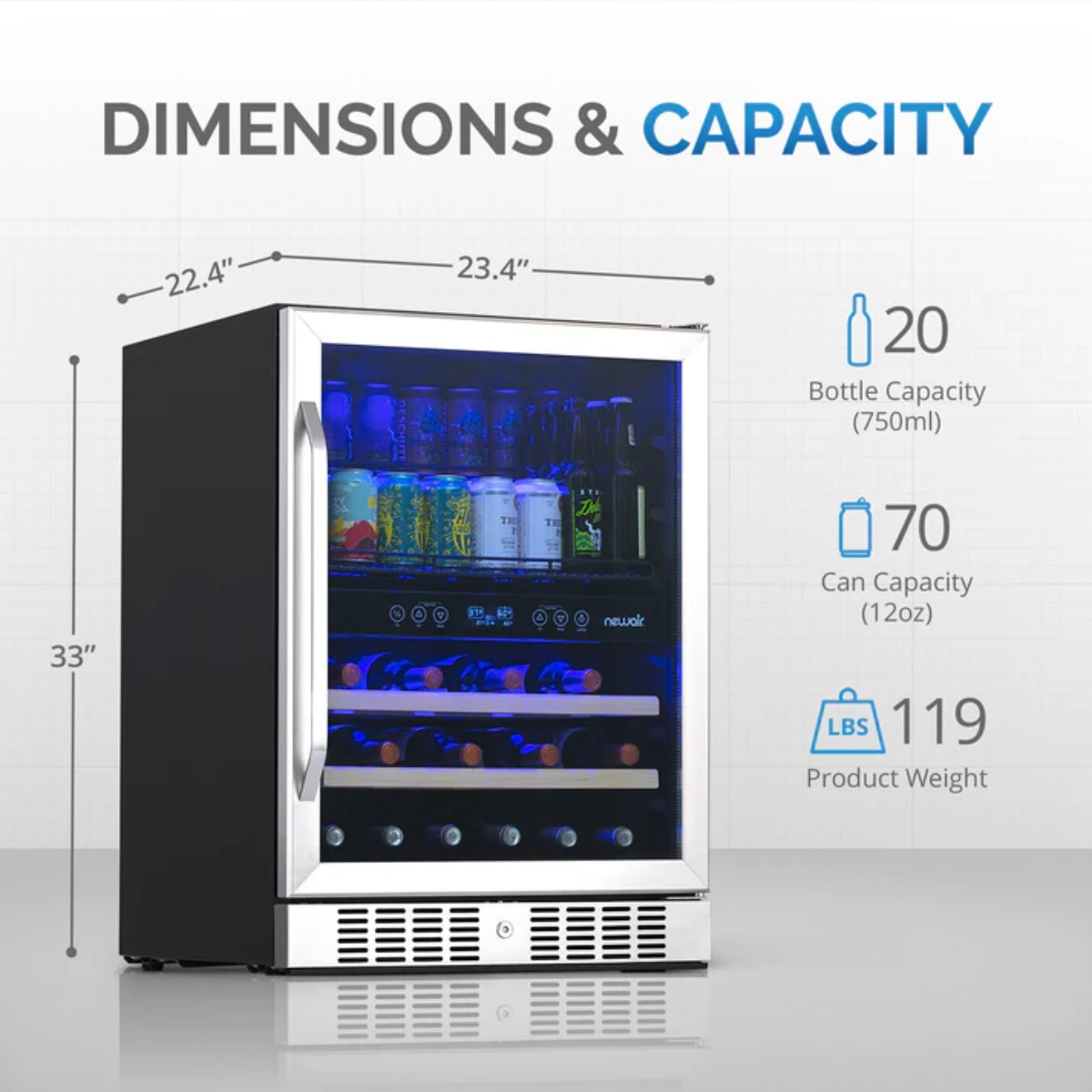

| Product Dimensions | 22.40"D (24.00" w/handle) x 23.40"W x 33.0"H |
| Internal Volume | 5.3 ft |
| Product Weight | 119 lbs |
| Voltage / Amps | 120 volts | 1.2 amps |
| Watts | 90W |
| Frequency | 60Hz |
| Noise Level | 39 dB |
| Certifications | ETL |
| Wine Cooler Style | Built-In |
| Type | Dual zone |
| Product Color | Stainless Steel & Black |
| Cooling Technology | Compressor |
| Temperature Control Type | Push Button |
| Digital Temperature Readout | Yes |
| Stainless Steel Doors | Yes |
| Interior LED Light | Yes |
| Rack Construction | Metal & wood |
| Removable Wine Racks | Yes |
| Locking Doors | Yes |
| Temperature Range | 37-50 F (upper zone) 50-66 F (lower zone) |
| Stemware Storage | No |
| Bottle Capacity | 20 |
| Refrigerant Type | R-600A |
| Application | Chills up to 20 wine bottles, 70 cans |
| Warranty | 2-Year Warranty |
Newair SplitShelf 70 Can, 20 Bottle Built In Dual Zone Fridge – 24" Product Manual
