WhisperKOOL Platinum Split 8000 Ducted Wine Cooling System

Name: WhisperKOOL Platinum Split 8000 Ducted Wine Cooling System
Brand: WhisperKOOL
SKU: S-WKPS8000-OMEGA-FD
Price: 7995.0 USD
Availability: InStock

$7,995.00

Authorized WhisperKOOL Dealer · Full manufacturer warranty · Learn more

Condenser Type: 110V (Omega Condenser)

Installation: this is a split system and requires a licensed HVAC-R technician to install and commission. WhisperKOOL states that failure to have the system installed by a qualified technician will void the warranty. Budget that labour alongside the unit.

Authorized Reseller

Secure Checkout

Free Shipping

Price Match

Free shipping in the US. In-stock orders ship within three business days.

Pay over time with Shop Pay Installments or Affirm

Product Details

WhisperKOOL Platinum Split 8000: Professional Wine Preservation Solution

The WhisperKOOL Platinum Split 8000 ducted system runs at 42 dBA at the evaporator and cools cellars up to 1,750 cu ft. Available now at Wine Cooler Collection.

This system features flare fittings that shorten the line-set work for your installing technician, and a 2-speed fan switch to adjust BTU output to your exact needs. Choose from standard or 24V thermostat options for flexible control.

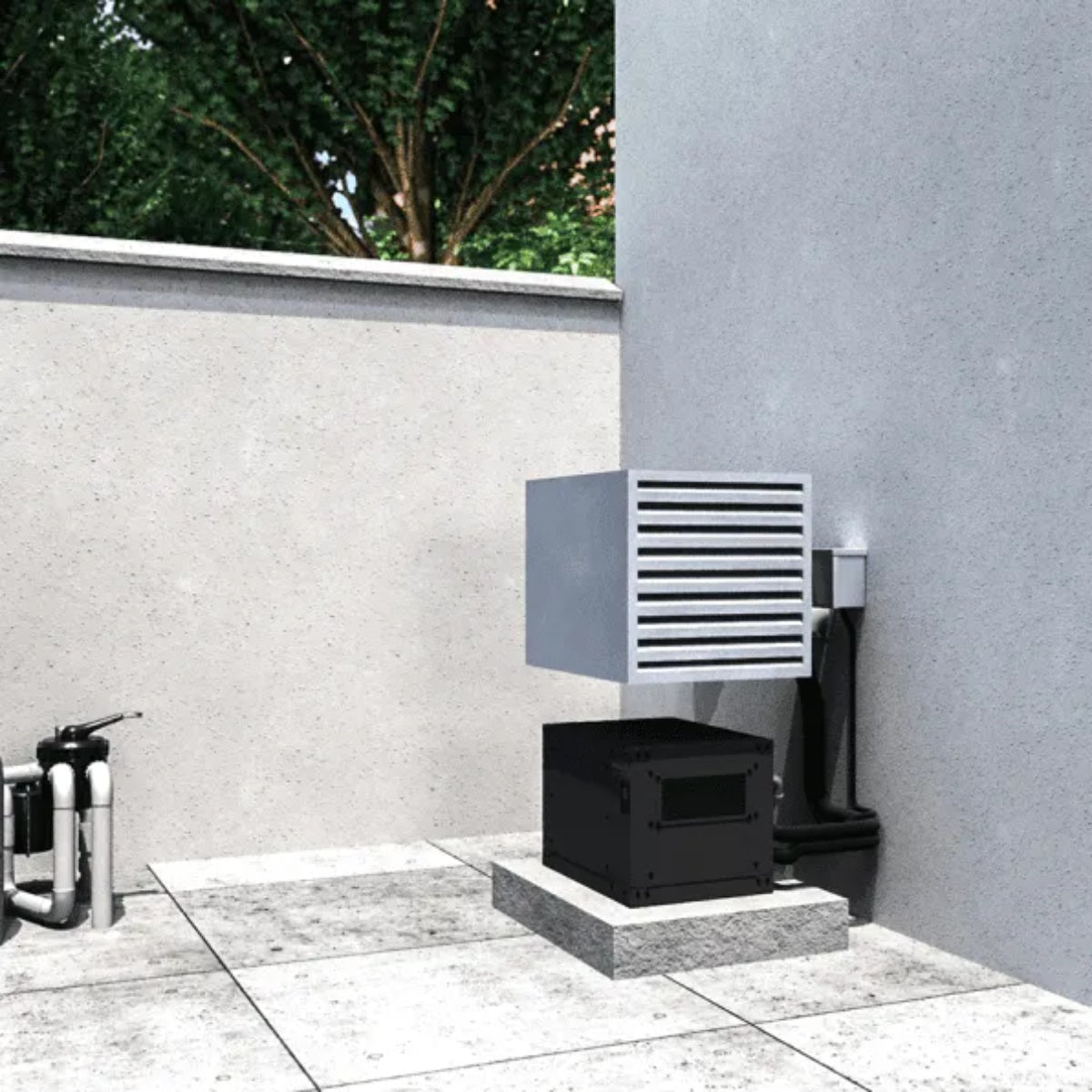

The evaporator runs at 42 dBA and the condenser at 46 dBA, with the option to install the condensing unit outdoors using exterior housing. A built-in pump system handles excess condensation, while a 55°F temperature differential ensures optimal cooling in demanding conditions.

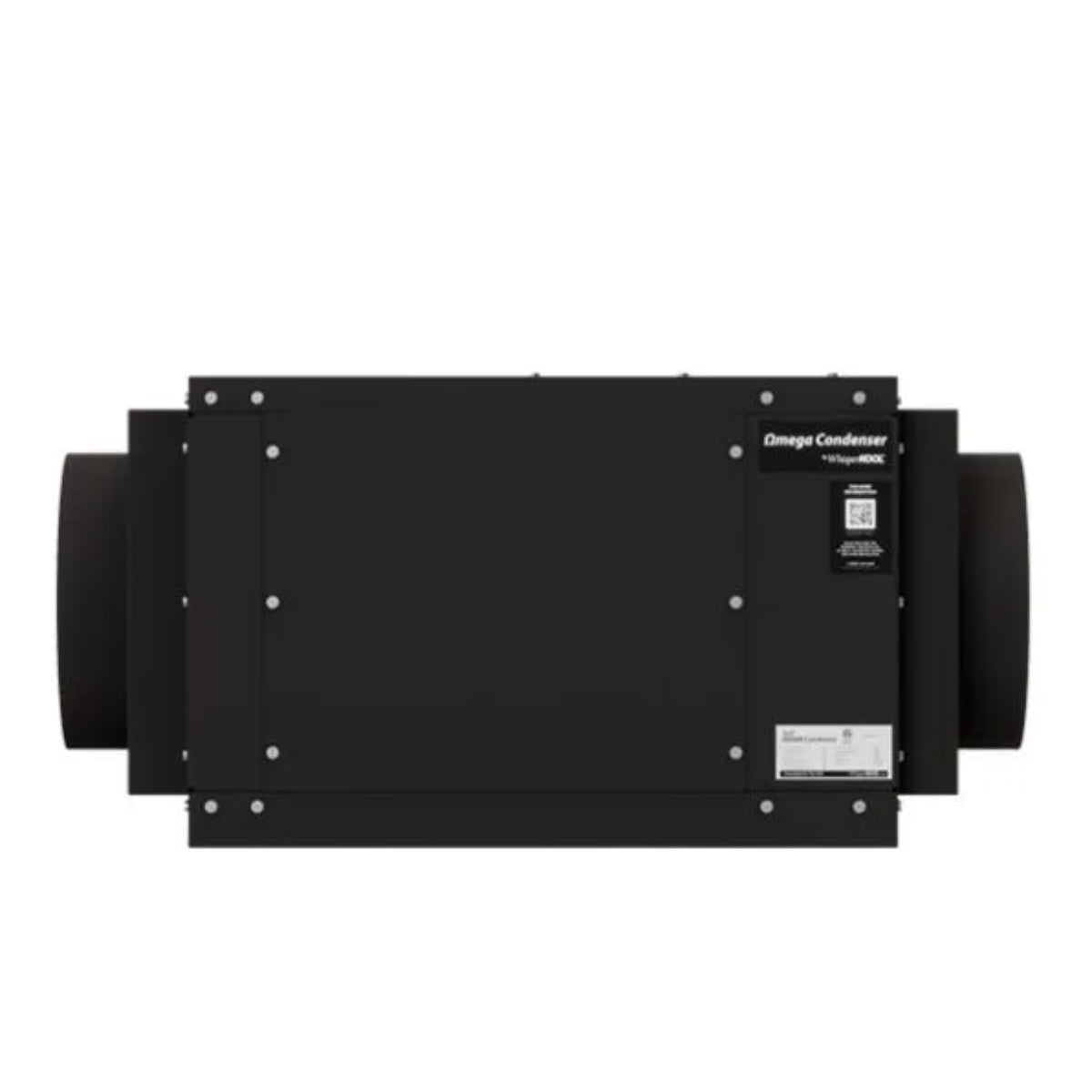

Enhance your system with optional UV-C lighting for UV protection and choose between two condenser types: the 110V Omega Condenser or the 220V High Efficiency (H.E.) Condenser, both engineered for reliable, energy-efficient performance.

BTU/h value range: 3073 – 4798

The WhisperKOOL Platinum Split 8000 is a fully ducted split system, with the condensing unit sited away from the cellar. Available only from Wine Cooler Collection.

Platinum Split 8000 Ducted System Features

42 dBA at the evaporator, 46 dBA at the condenser
Advanced electronic control system
Flare fittings, which shorten the line-set work for your installing technician
Standard and 24V thermostat options available

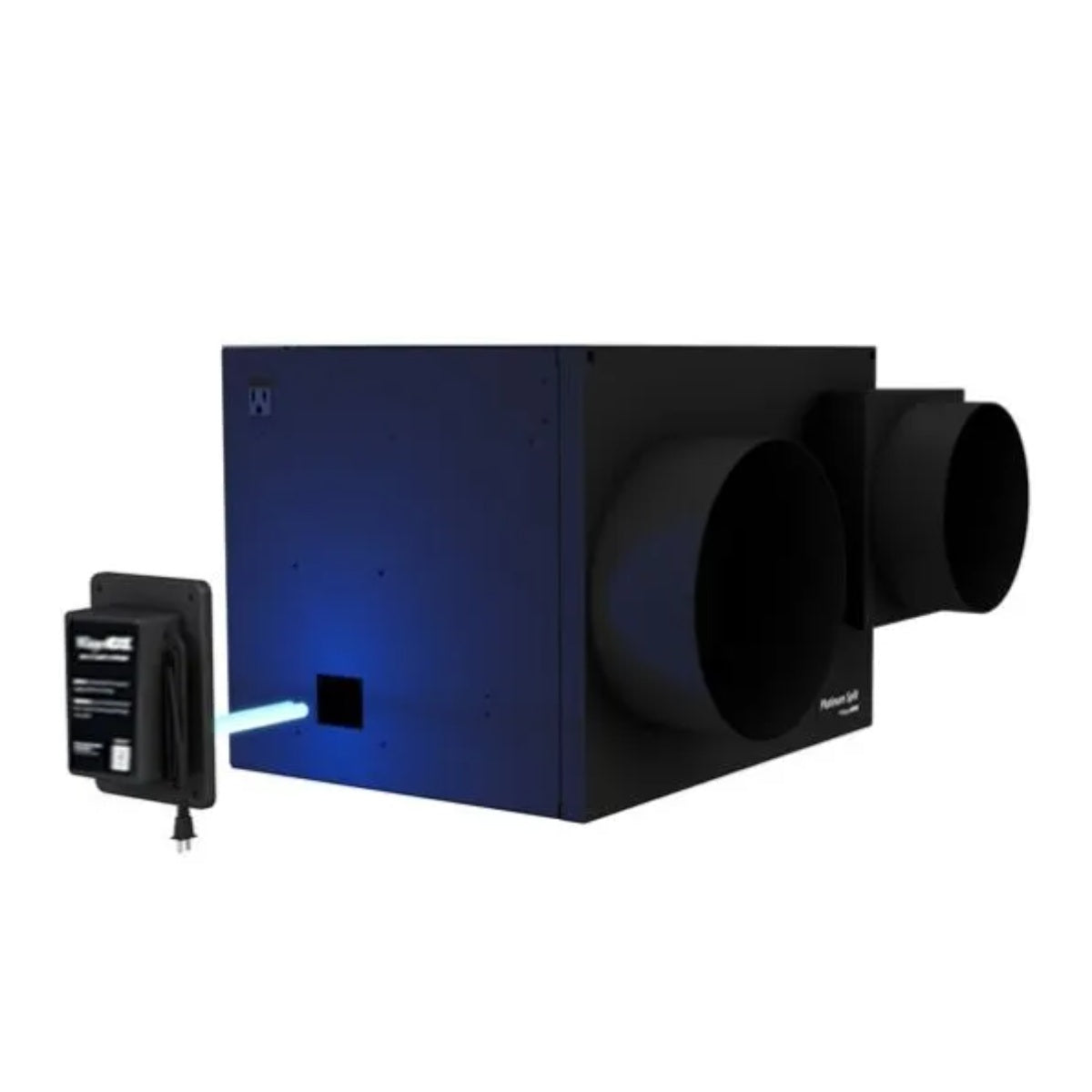

UV-C lighting system (add-on)
55°F temperature differential between the cellar and the condensing unit air intake temperature

Note: A qualified HVAC-R technician is required for the installation of your Ducted Platinum Split 8000. Failure to have the system installed by a qualified technician will void the warranty.

*PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.

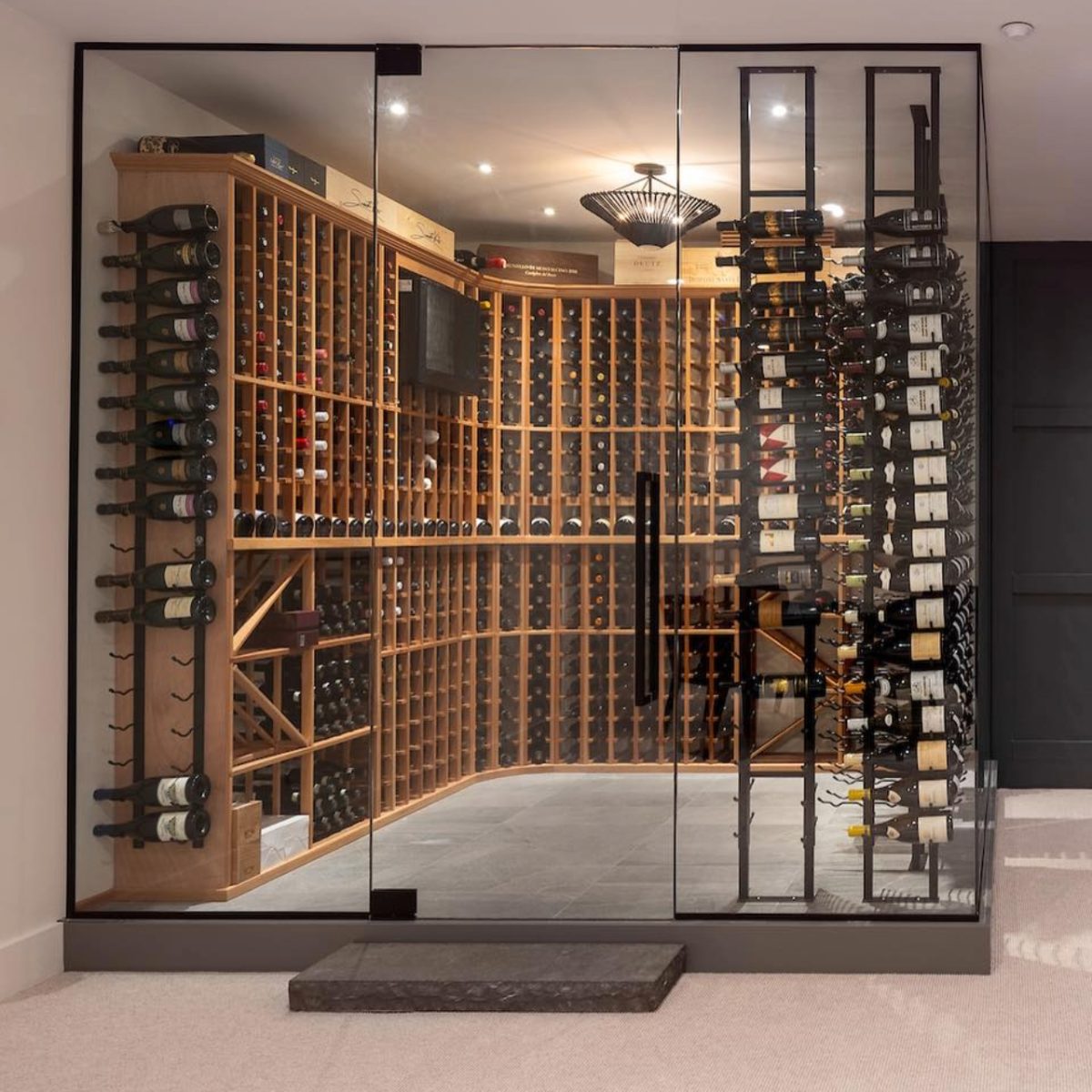

WhisperKOOL Platinum Split 8000 Ducted Wine Cooling System - Sample Image in Vancouver BC

Platinum Split 8000 Ducted System 3D Tour

Explore the wine cellars in detail with our 3D tour. Step inside a modern home and see how each unit sits within a finished living space.

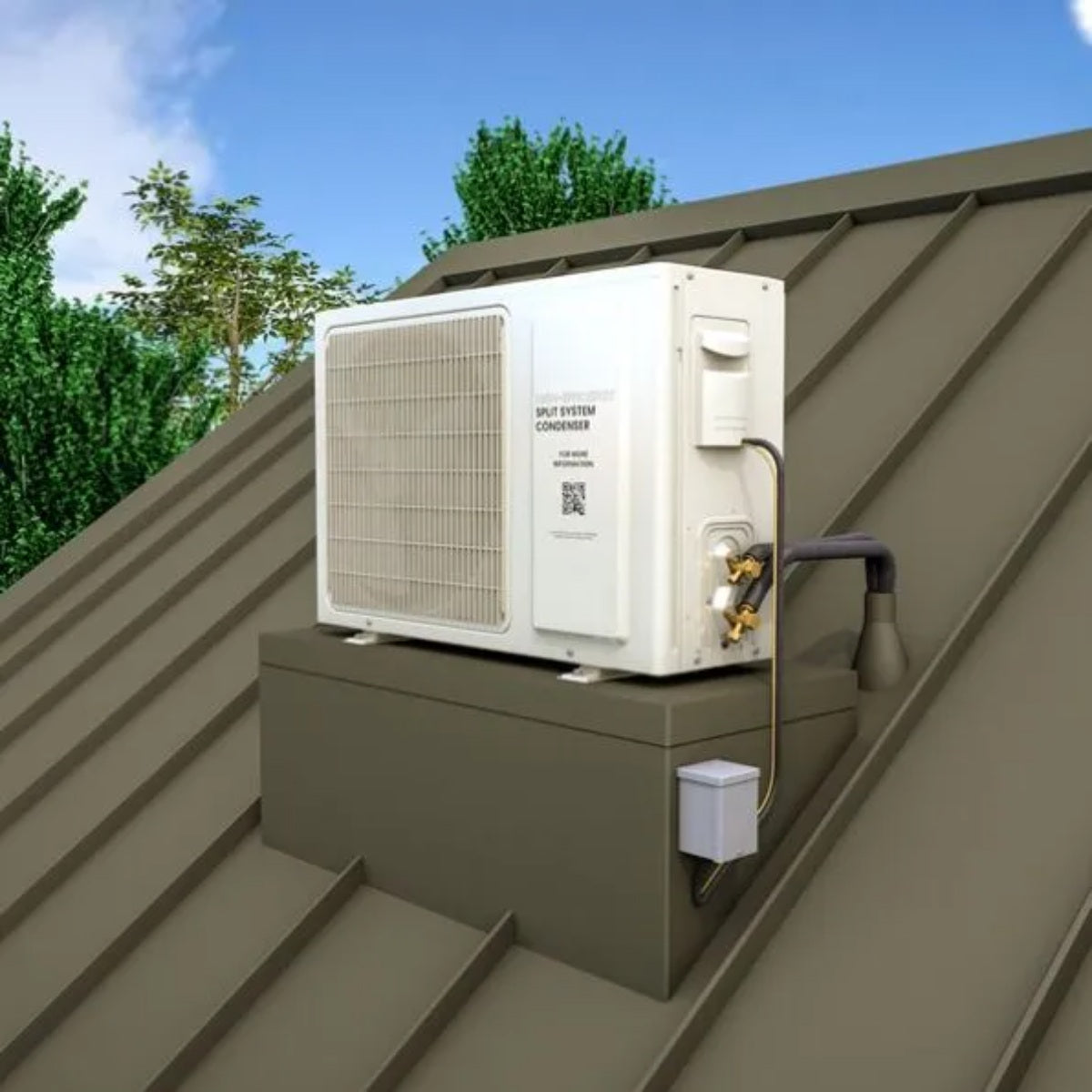

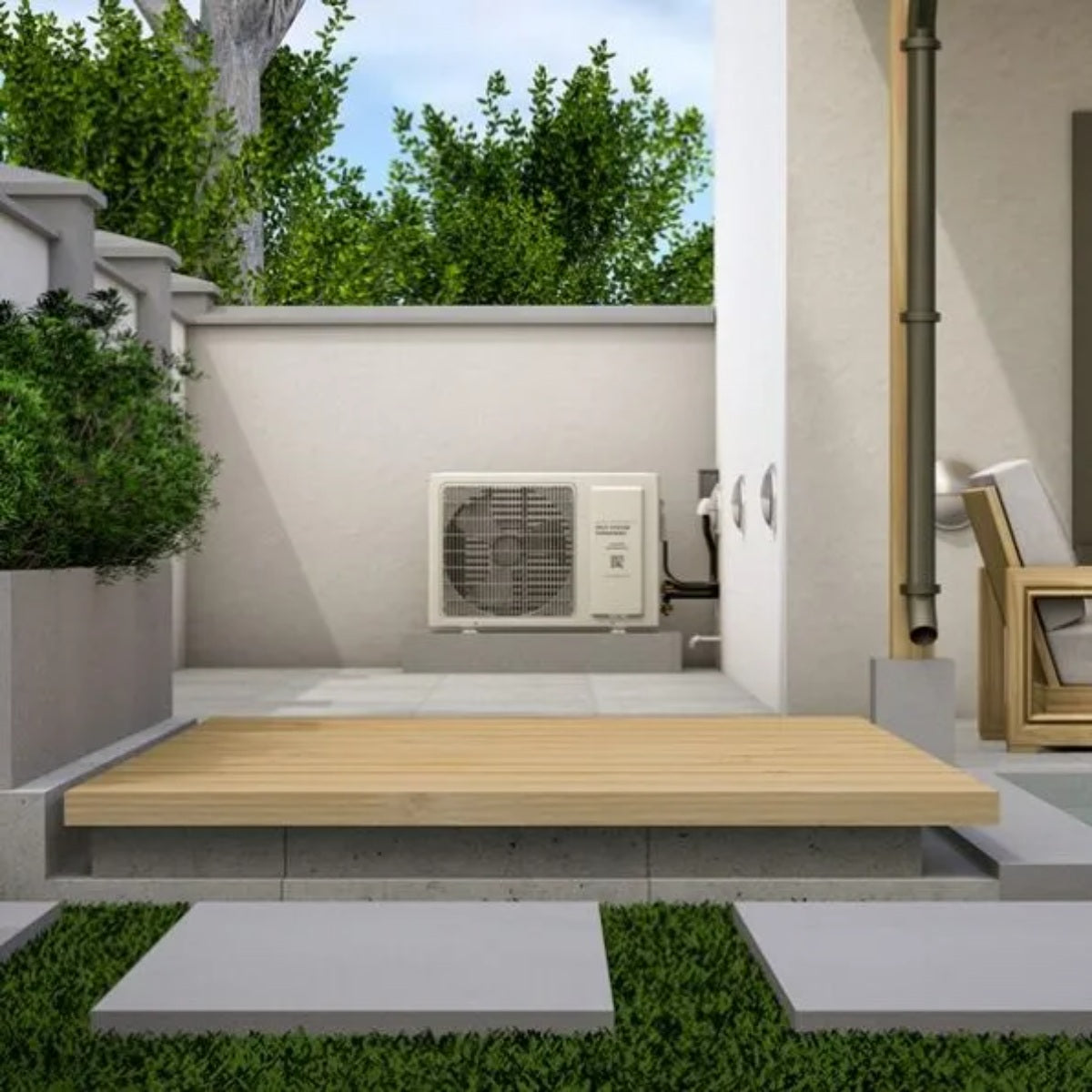

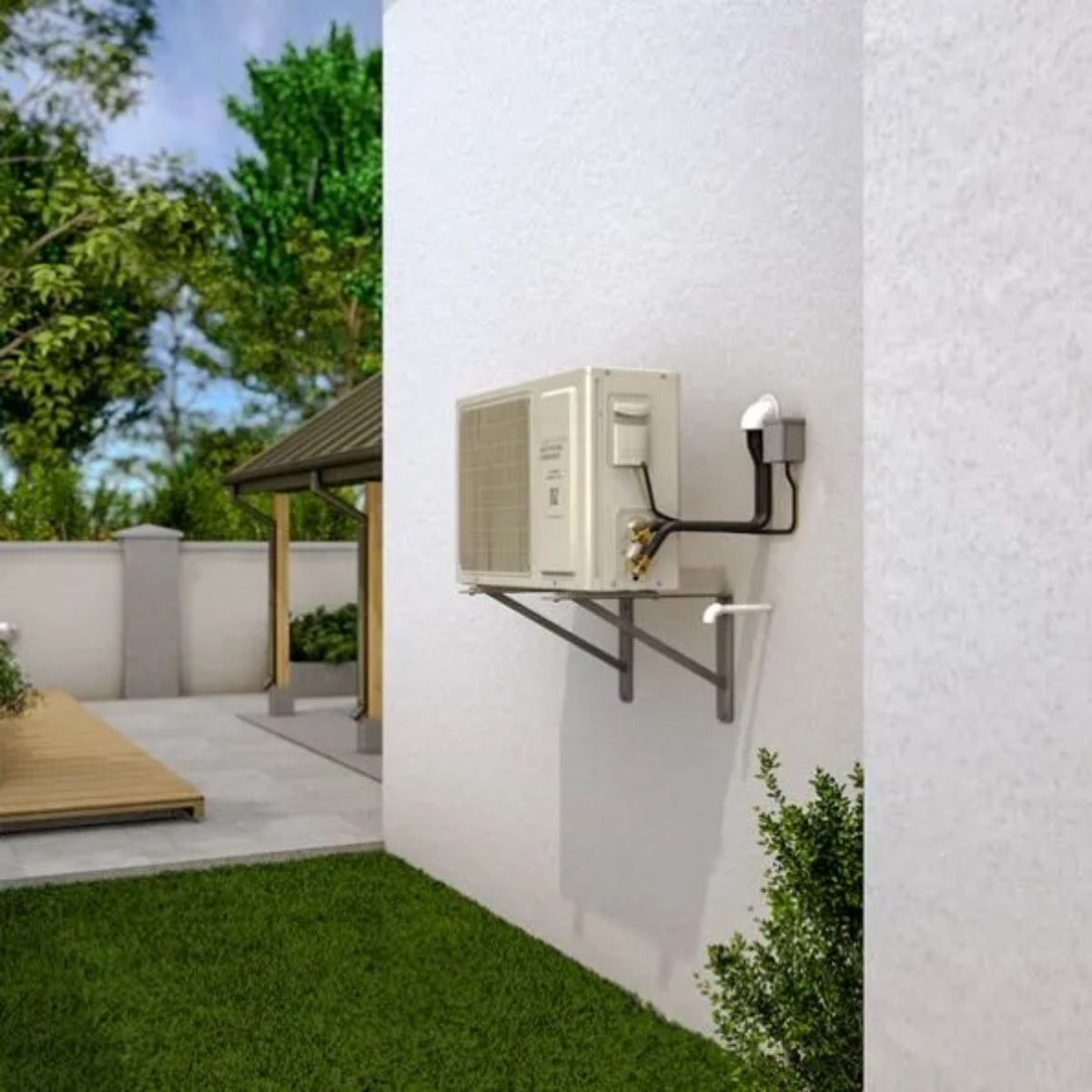

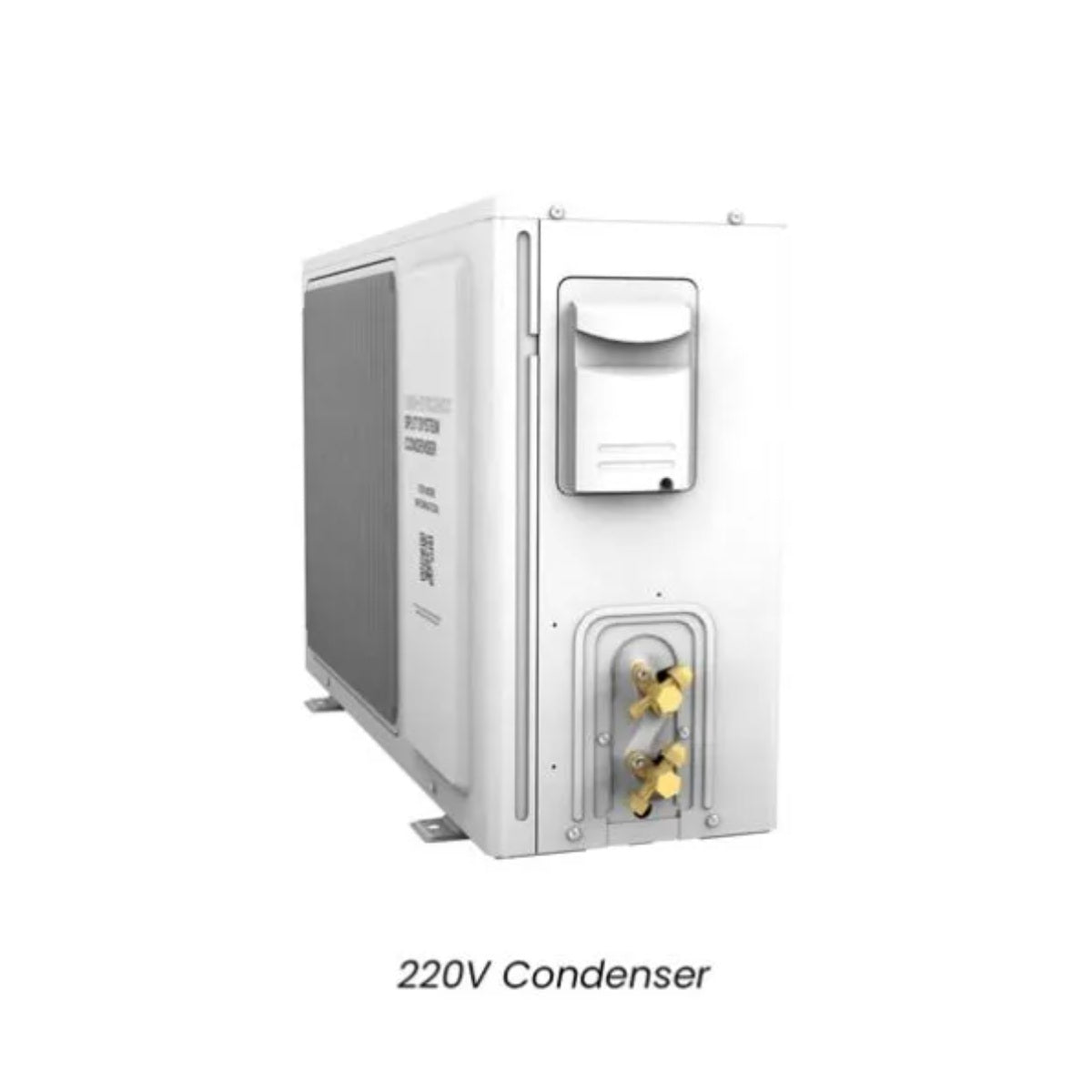

Comparing the 220V High Efficiency Condenser to the 110V Condensing Unit

The 220V High Efficiency Condensers offer a host of advantages over the traditional 110V condensers, including simplified installation, lower operating noise, energy efficiency, and the ability to operate in extreme climates.

For more information about the latest Split-System innovation, please watch the following video.

Platinum Split 8000 Ducted Wine Cooling System Technical Specifications

Model	Platinum Split 8000
Cellar Size	1750 cu. ft.
BTU/h (60°F condenser air intake temperature)	Medium: 4641 / 5415 • High: 5028 / 5521
BTU/h (75°F condenser air intake temperature)	Medium: 4427 / 4839 • High: 4580 / 4969
BTU/h (85°F condenser air intake temperature)	Medium: 4322 / 4798 • High: 4479 / 4879
CFM	200
dbA	EVAP - 42 • COND - 46
Dimensions	EVAPORATOR - 22.1”L x 22.5”W x 15.5”H CONDENSER - 23”L x 15.75”W x 15.3H
Refrigerant	R-134a
Horsepower	0.5+ HP
Voltage Rating	EVAPORATOR - 120V (15-amp dedicated circuit required) CONDENSER - 120V with the 110V H.E. Omega, or 220V with the Advanced H.E. Confirm which condenser your order includes before any electrical work is scheduled, as the warranty does not cover damage caused by an improper voltage supply.
Weight (lbs)	EVAPORATOR - 56 • CONDENSER - 86
Amps	EVAPORATOR - 2.2 (Running Amps) CONDENSER - 9.5
Line Set	Liquid line 1/4” OD; Suction line 1/2” OD (less than 50 ft.), 5/8” (greater than 50 ft.)
Drain Line	1/2" ID clear plastic tubing (not provided) - Rigid tube recommended
Installation	The evaporator unit is installed in the cellar. A condensing unit can be installed up to 100 ft of line set from the evaporator unit.

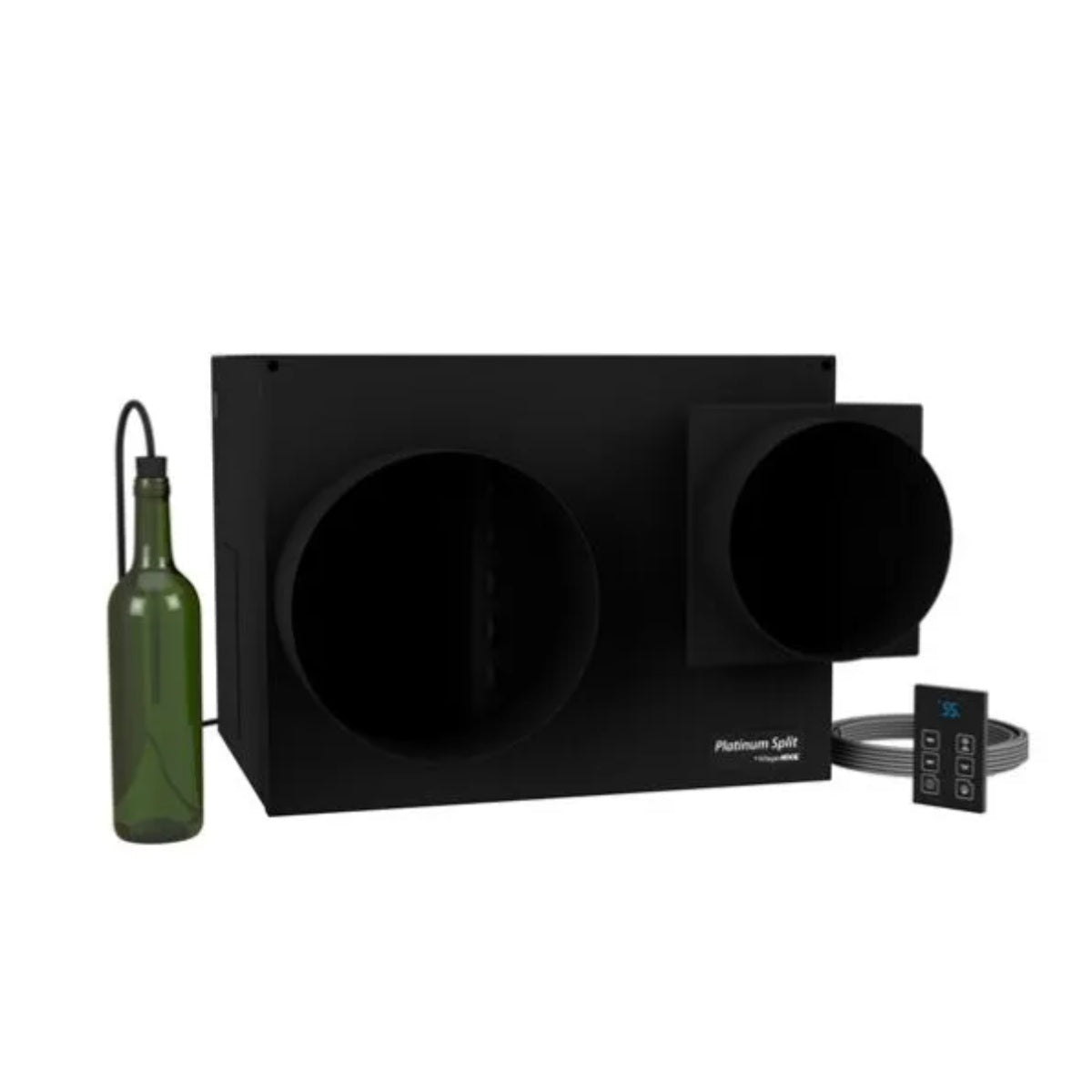

Thermostat	Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable)
Temp. Delta	Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature
Warranty	Two-year limited warranty with up to an additional (1) year grace period for installation. (parts and labor)

Platinum Split 8000 Ducted System Product Warranty

Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty.

A limited 2-year product warranty, with up to an additional 1-year grace period for installation, is offered with all split systems. Split systems do not carry a separate compressor warranty. The installing HVAC-R technician must complete their portion of the Split Startup Checklist, and you must return it to WhisperKOOL within 30 days of installation. The warranty starts at the date of purchase but is not activated until that checklist is approved. Warranty labor reimbursement is capped at $400.
