Maintain Wine Quality with WhisperKOOL SC PRO 4000 Cooling System
The WhisperKOOL Through The Wall SC PRO 4000 is a top-tier cooling solution designed to preserve your wine collection with precision and care. Perfect for mid-sized cellars, this system ensures stable temperature and humidity, helping your wine age gracefully.
It features an advanced condensate management system to control excess moisture, while the smart refrigerant metering boosts efficiency during cooling cycles. The result? A well-balanced environment for your valuable bottles.
Want even more protection? The optional UV-C Lighting System helps eliminate bacteria and microorganisms that can affect wine quality. It's a smart upgrade for collectors who want extra protection against airborne bacteria and microorganisms.
The system also includes powerful blower fans that distribute air evenly, along with a liquid-temperature-measuring bottle probe to ensure your wine is kept at the exact temperature you set. An intuitive digital controller makes adjustments simple and precise.
BTU/h value range: 2253
Installation is a breeze thanks to a coated evaporator coil, front or rear power switch, and a single-piece mounting bracket for added durability.
Choose the WhisperKOOL SC PRO 4000 and get through-the-wall cooling rated to 1,000 cu ft, backed by a 2-year parts and labor warranty.
Through The Wall SC PRO 4000 Features
- Advanced blower fans for improved air circulation
- Coated evaporator coil for enhanced durability and corrosion resistance
- Smart refrigerant metering for optimal system efficiency

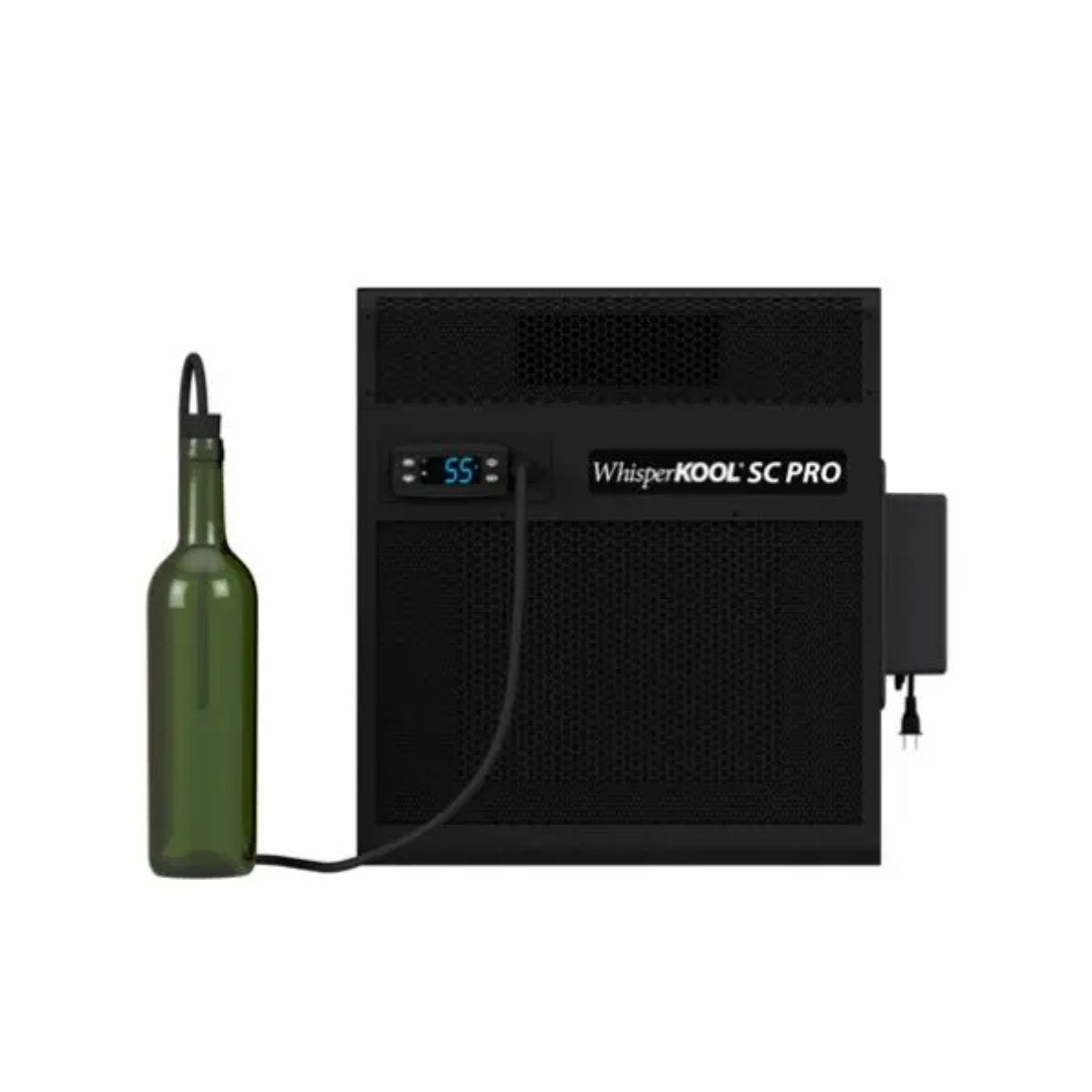

- Optional UV-C lighting system for added microbial protection
- Single-piece mounting bracket for simplified installation
- Integrated condensate management system

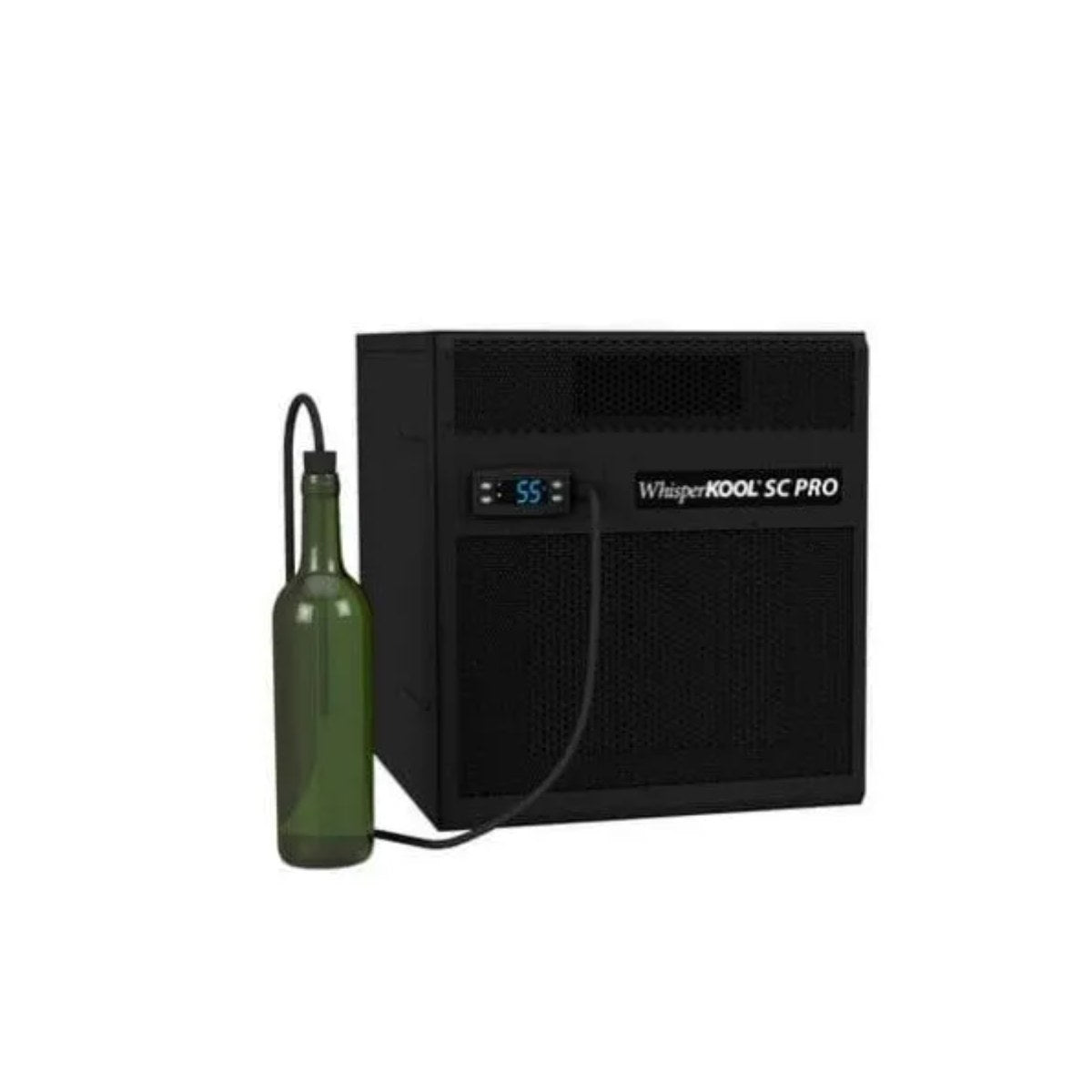

- Bottle probe for precise liquid temperature measurement
Through The Wall SC PRO 4000 3D Tour
Explore the wine cellars in stunning detail with our 3D tour and see how the through-the-wall vent panel fits into a real living space.
Through The Wall SC PRO 4000: Ventilation Requirements
This video explains the proper ducting setup needed for hot air exhaust and fresh air intake to keep your system running at peak efficiency.

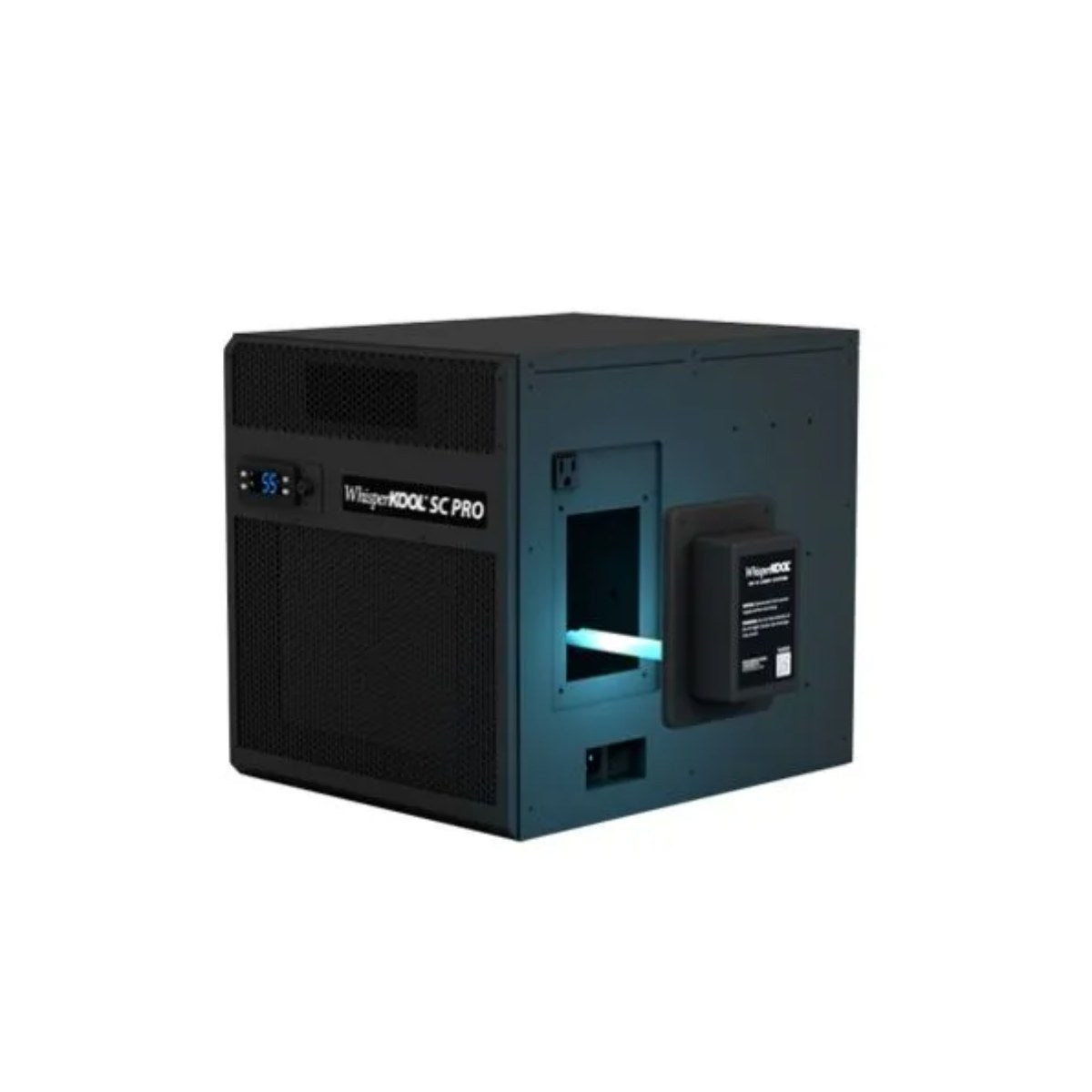

Through The Wall SC PRO 4000: UV-C Lighting System Option
Eliminate harmful microbes and enhance air quality with the UV-C Lighting System Option, an extra layer of protection for your wine cooling setup!
Through The Wall SC PRO 4000 Cooling System Technical Specifications
| Model | SC PRO 4000 |
| Cellar Size | 1000 cu. ft.* |
| BTU/h (85°F condenser air intake temperature) | 2253 |
| Dimensions | 17.5”L x 14.25”W x 15.75”H |
| Refrigerant | R-134a |
| Horsepower | 1/6+ HP |
| Voltage Rating | 115V (20 amp dedicated circuit required); 230V (subject to availability) |
| Weight (lbs) | 65 |
| Amps | 4.7 (running amps) |
| Ducting Options | Exhaust air can be ducted using the optional ducting kit |
| Drain Line | 1/2”ID clear plastic tubing |
| Installation | Through-the-wall, partially ducted |
| Thermostat | Advanced digital display, liquid-temperature-measuring bottle probe (retractable cable) |
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 85°F condenser air intake temperature |
| Warranty | 2 years parts and 2 years labor, from WhisperKOOL. |
Through The Wall SC PRO 4000 Cooling System Product Warranty
Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty.
Warranty: 2 years parts and 2 years labor, from WhisperKOOL. This warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
WhisperKOOL Through The Wall SC PRO 4000 Wine Cellar Cooling System Product Manuals
