WhisperKOOL Ceiling Mount 4000: Effortless Ceiling Cooling, Discreet Wine Preservation
If you're a wine connoisseur who appreciates form as much as function, the WhisperKOOL Ceiling Mount 4000 Wine Cellar Cooler System is made for you. Now available at Wine Cooler Collection, this unit is the perfect blend of performance and subtlety, delivering consistent climate control without distracting from the elegance of your cellar.

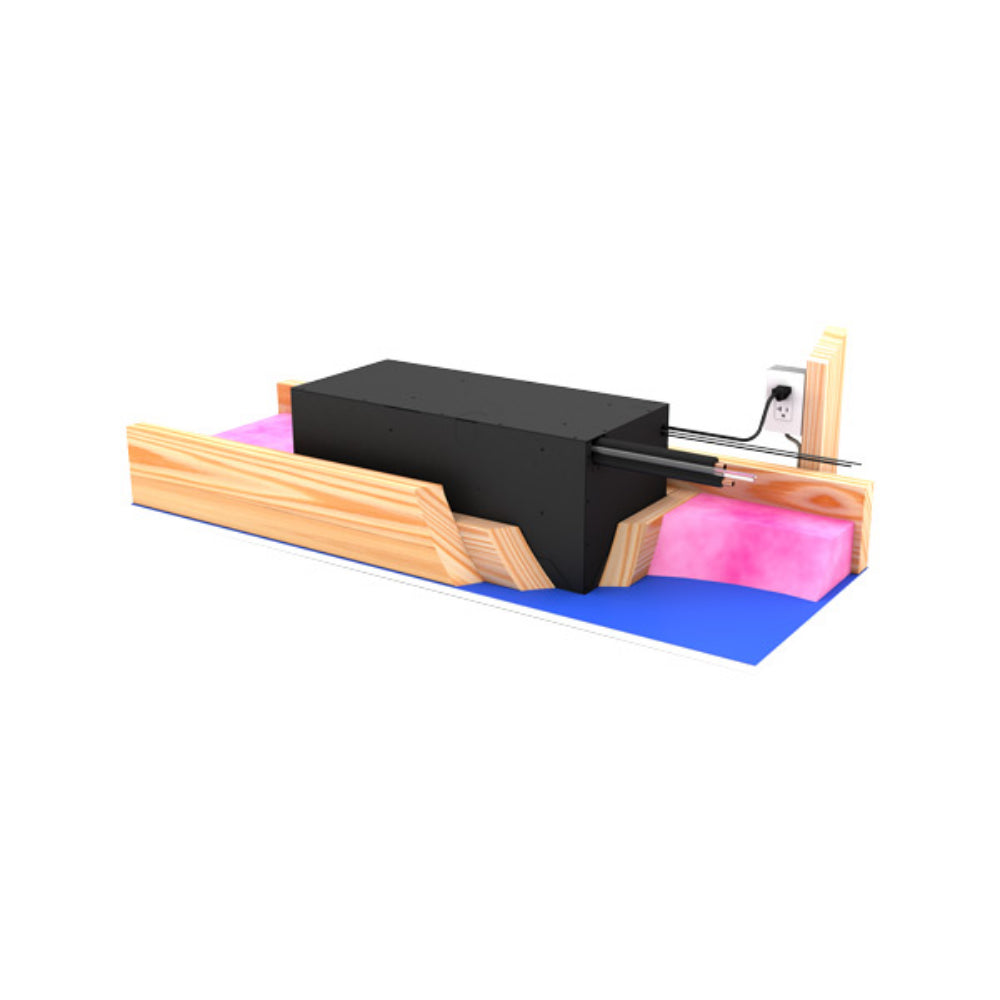

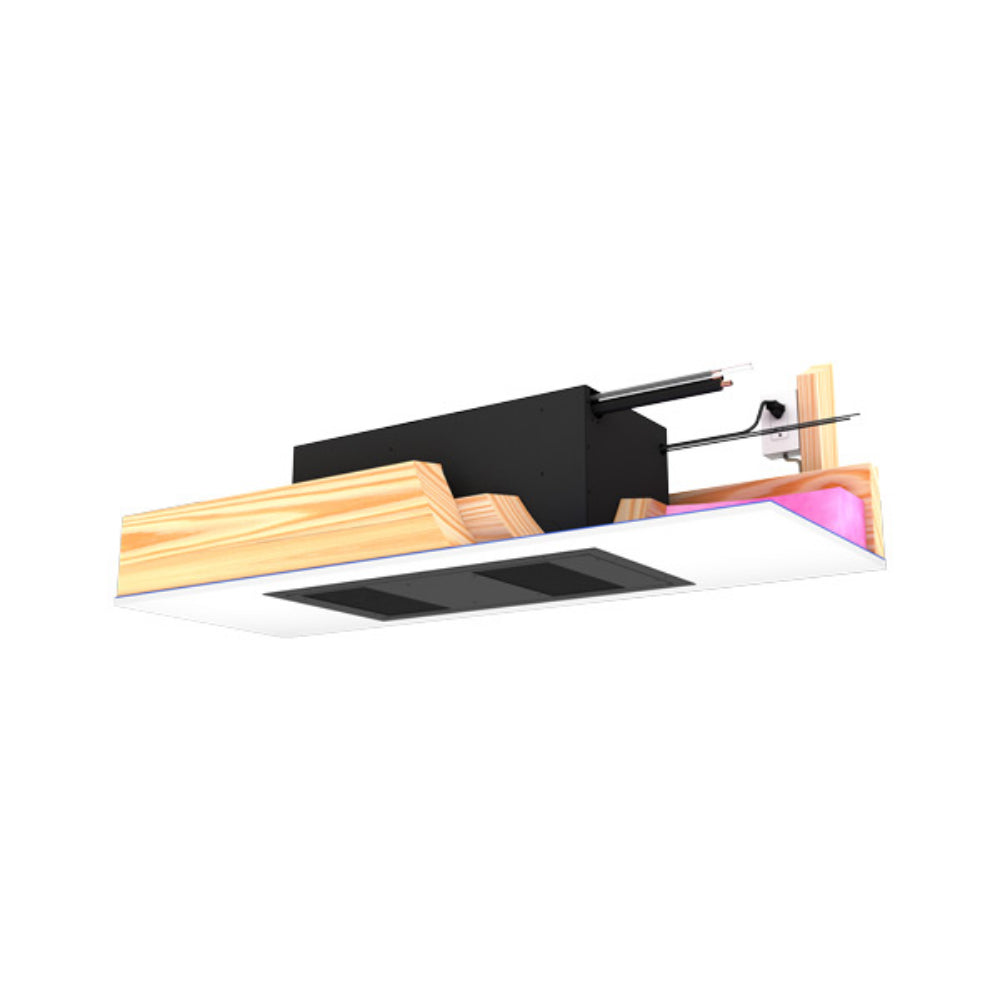

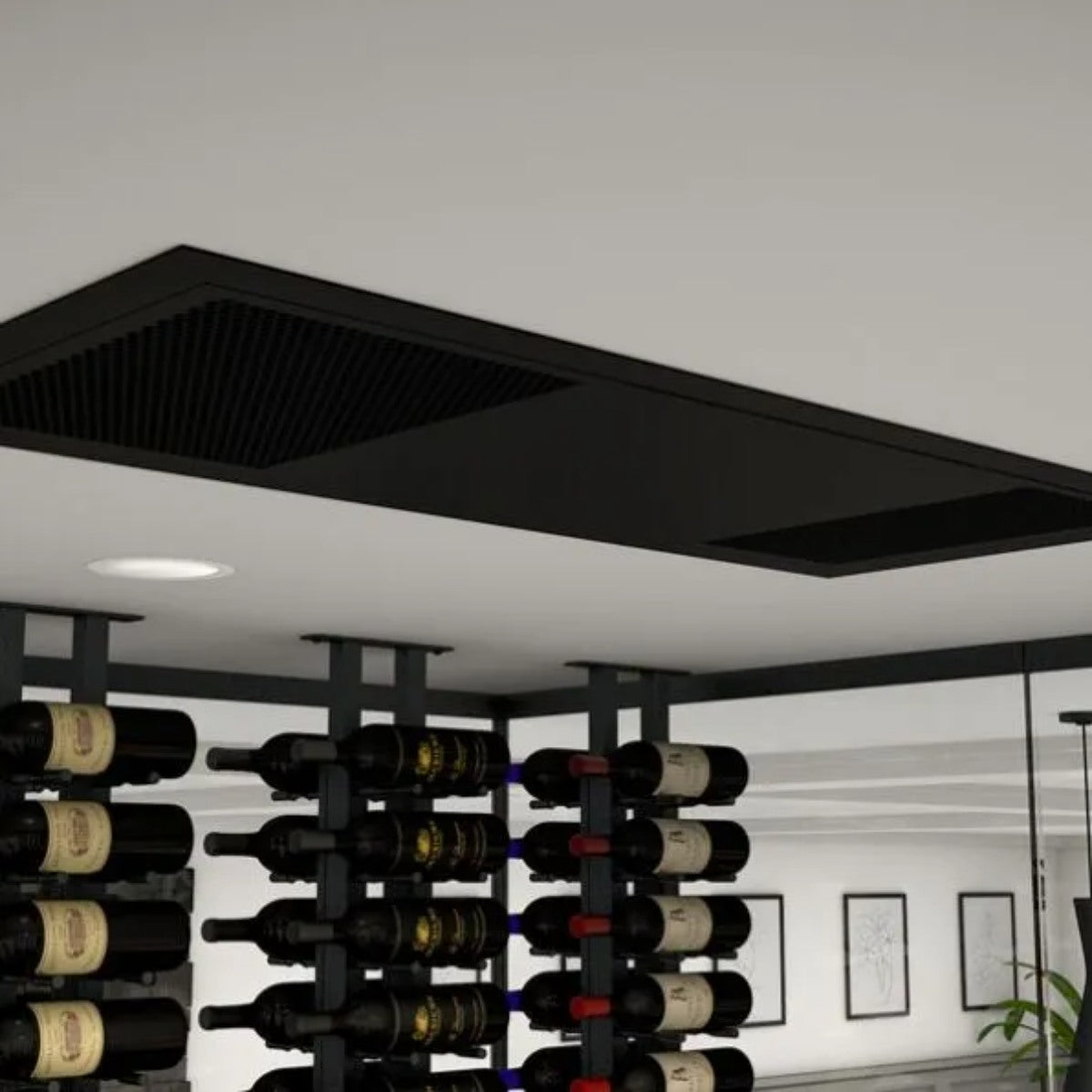

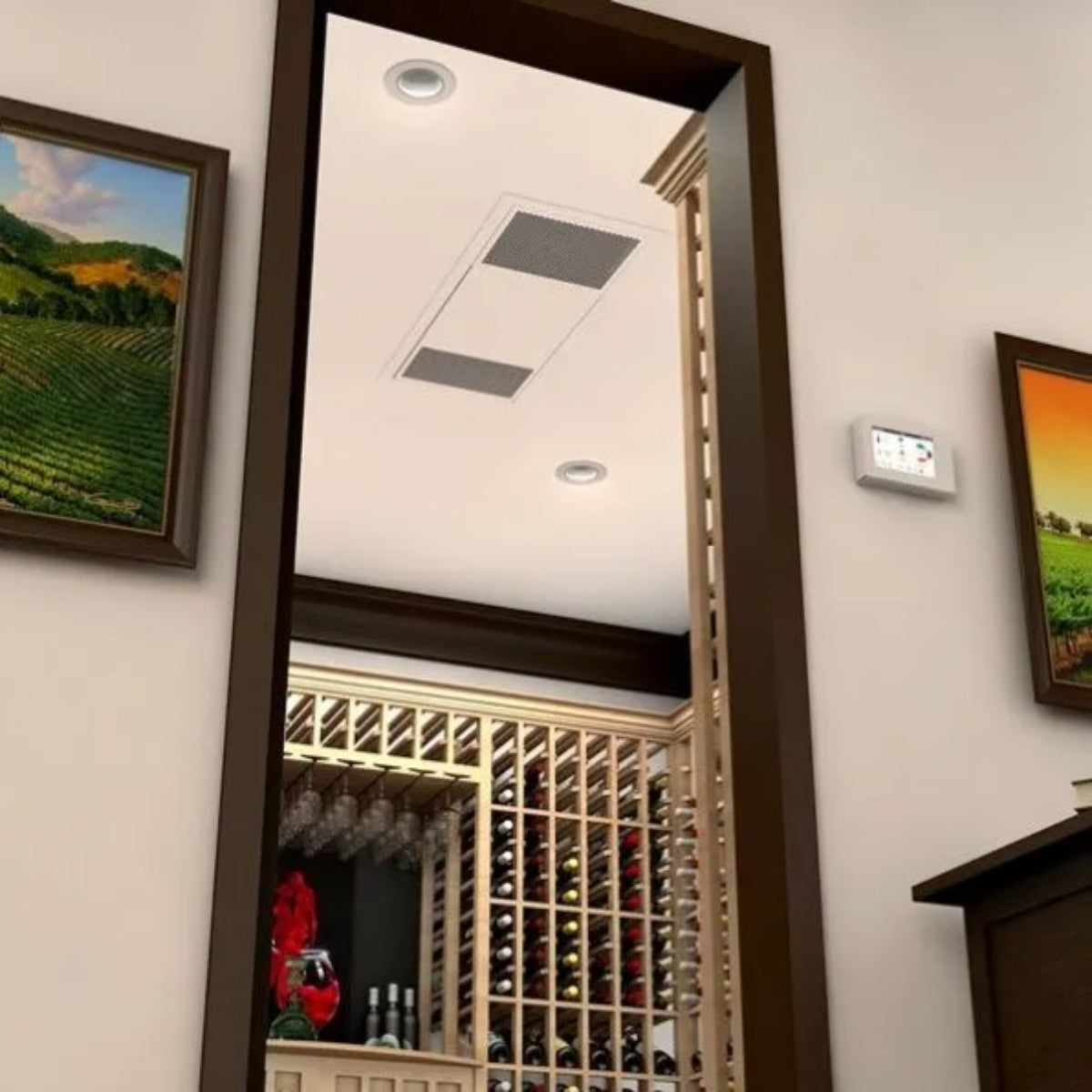

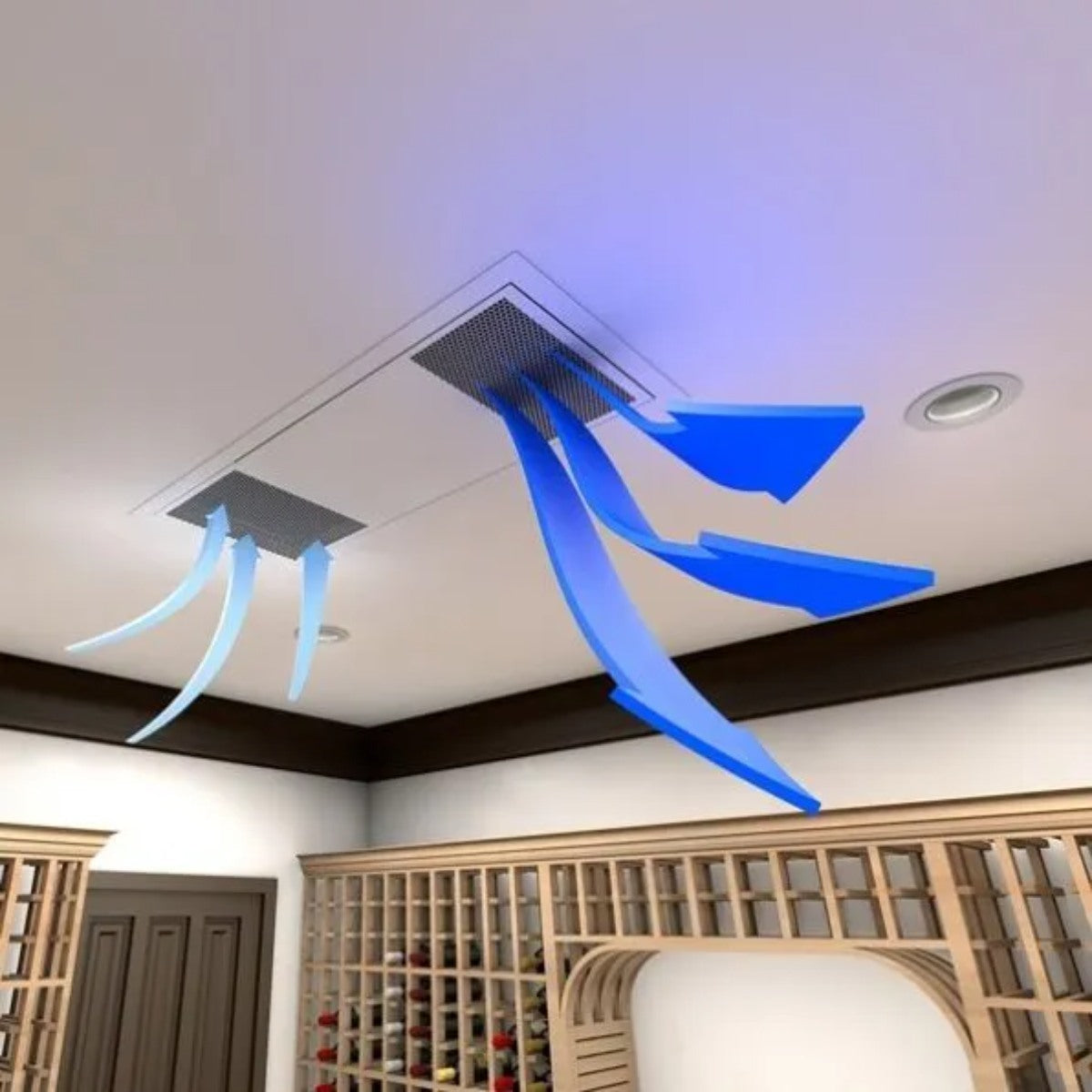

Crafted to pull in warm air from the ceiling and circulate cooled air evenly throughout your space, the Ceiling Mount 4000 ensures that your wine is stored in a stable, balanced environment. Its virtually invisible design keeps the focus where it belongs, on your wine, while the advanced cooling system works silently in the background.
Installation is straightforward thanks to flare fittings, with your choice of a standard or 24V thermostat. The system includes a two-speed fan switch and hex mesh grille with integrated air filter, contributing to optimal airflow and air purity. The KDT Digital Controller and Thermostat, paired with a generous 50-foot cable, allows you to fine-tune your cellar’s conditions with ease and convenience.

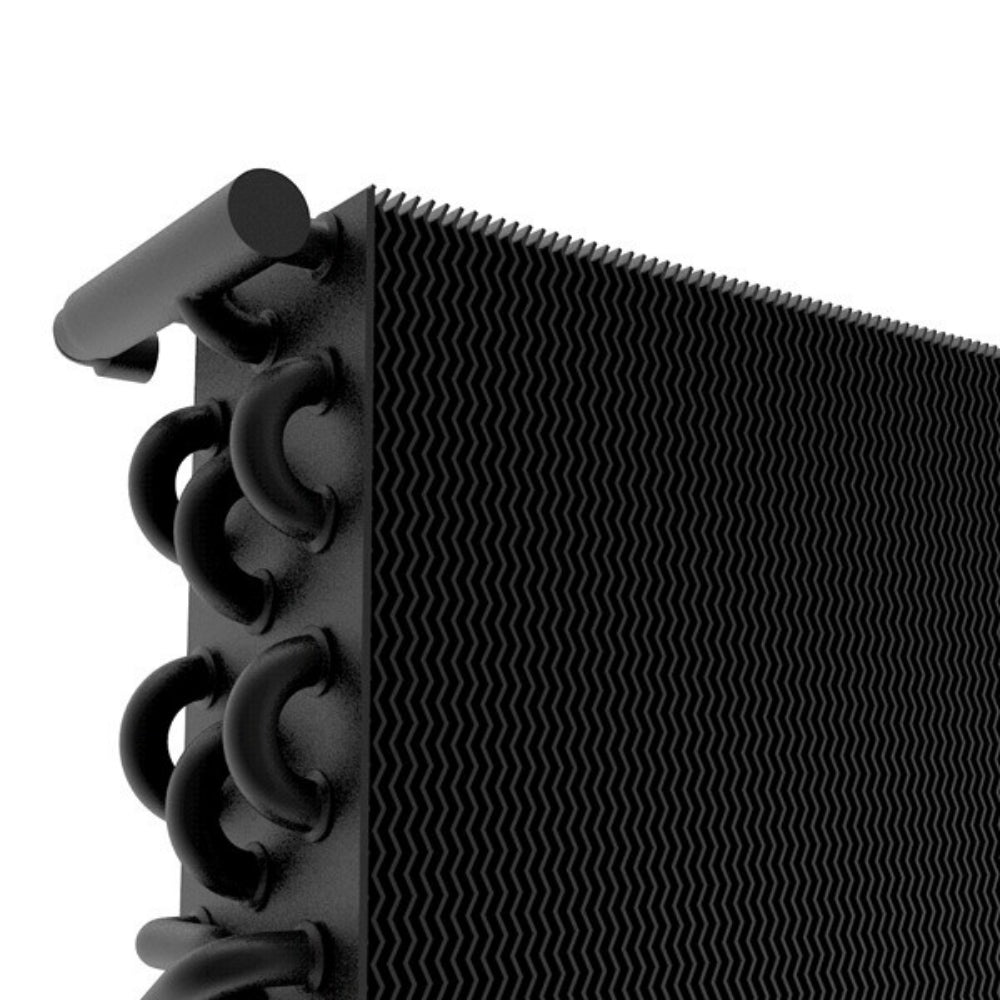

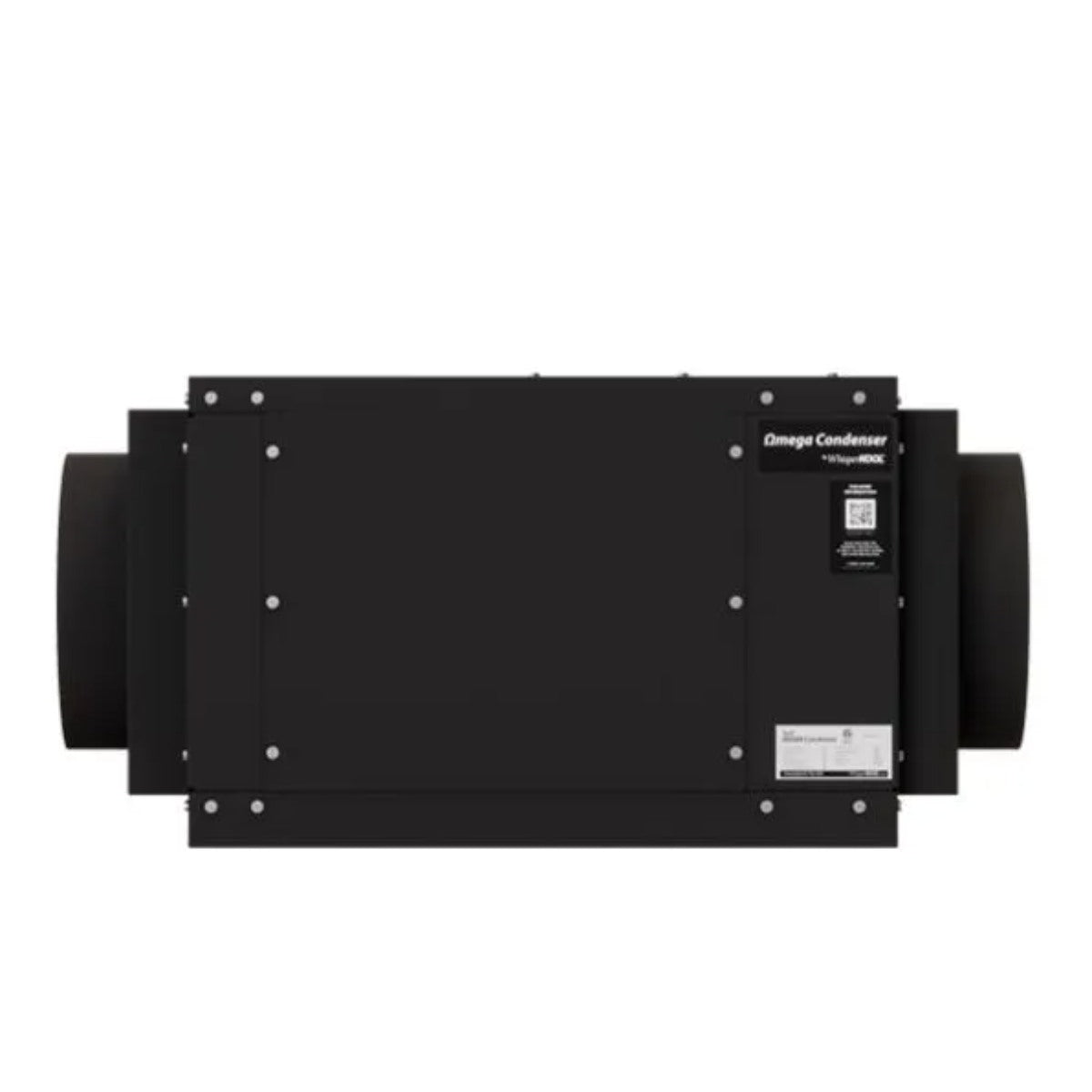

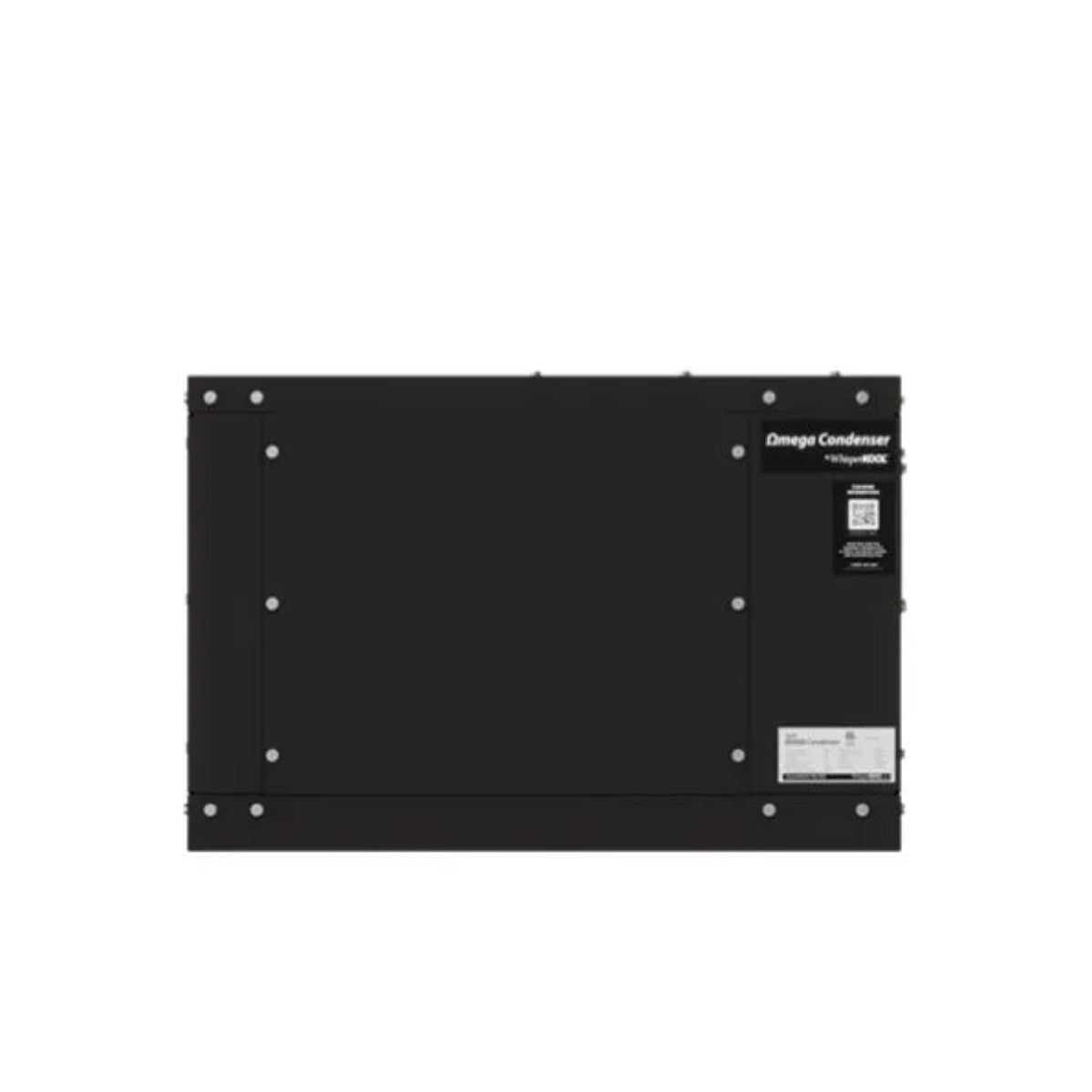

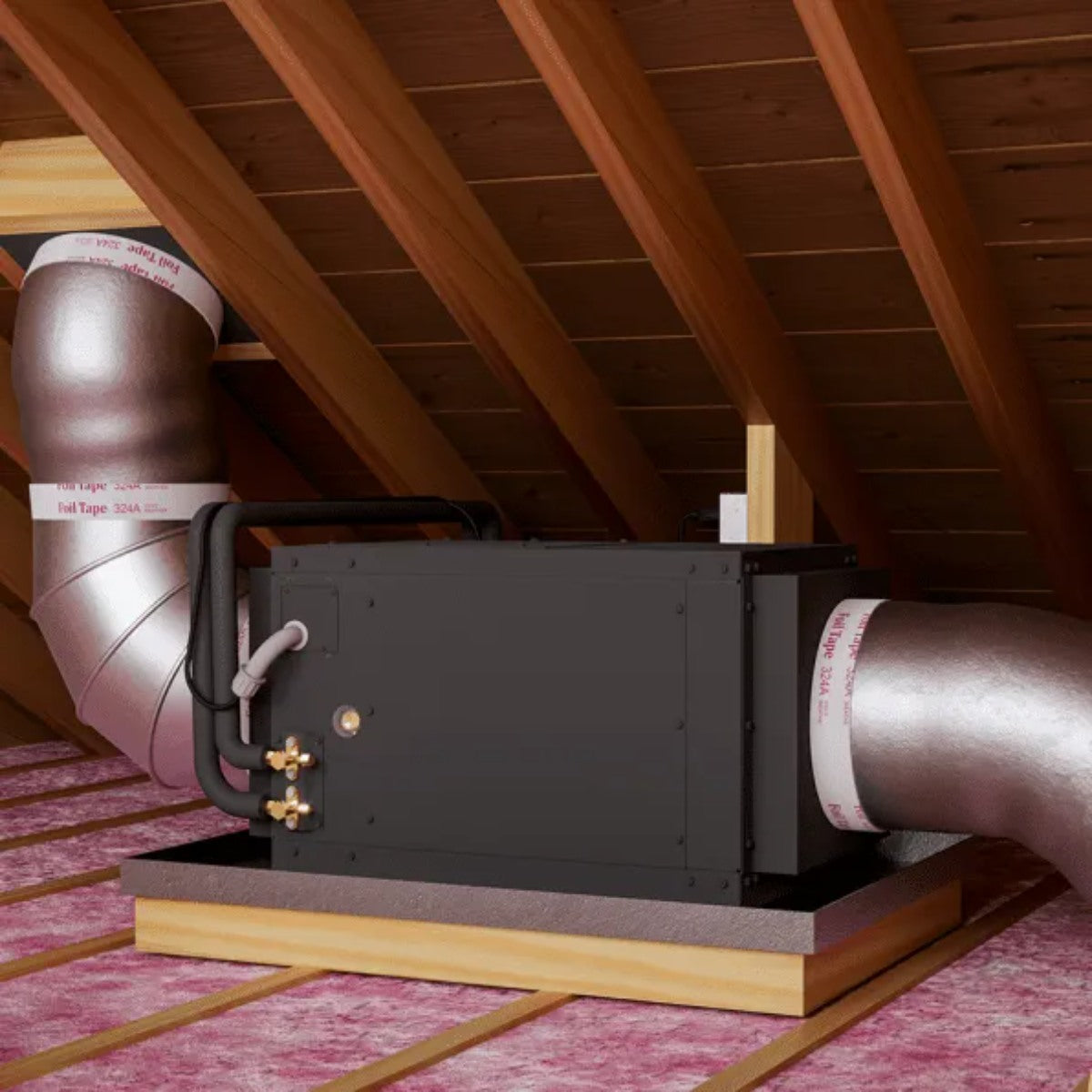

Engineered for long-term reliability, this model features Duramax evaporator coils and is compatible with both the 220V High Efficiency (H.E.) Condenser and the 110V Omega Condenser, giving you flexible installation options based on your cellar setup.
BTU/h value range: 4000 – 6087
Choose the WhisperKOOL Ceiling Mount 4000 for a low-profile, high-performance cooling solution that keeps your wine perfectly protected and beautifully showcased.
Ceiling Mount 4000 Wine Cellar Cooling System Features
- Enhances efficiency by drawing in warm air from the ceiling, cooling it, and distributing it evenly throughout the space
- Supports both standard and 24V thermostat configurations for flexible control
- Two-speed fan switch allows for adjustable airflow to suit your needs

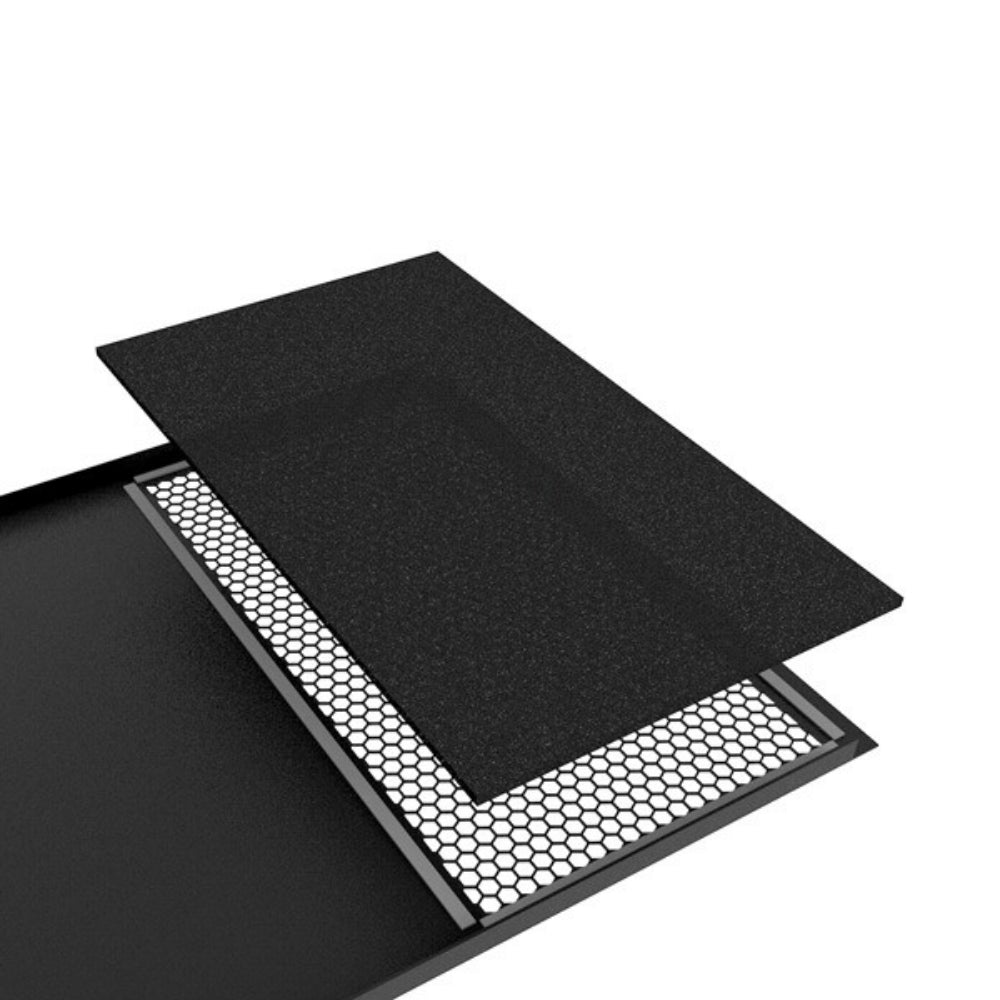

- Hex-mesh grille with built-in air filter improves overall air quality

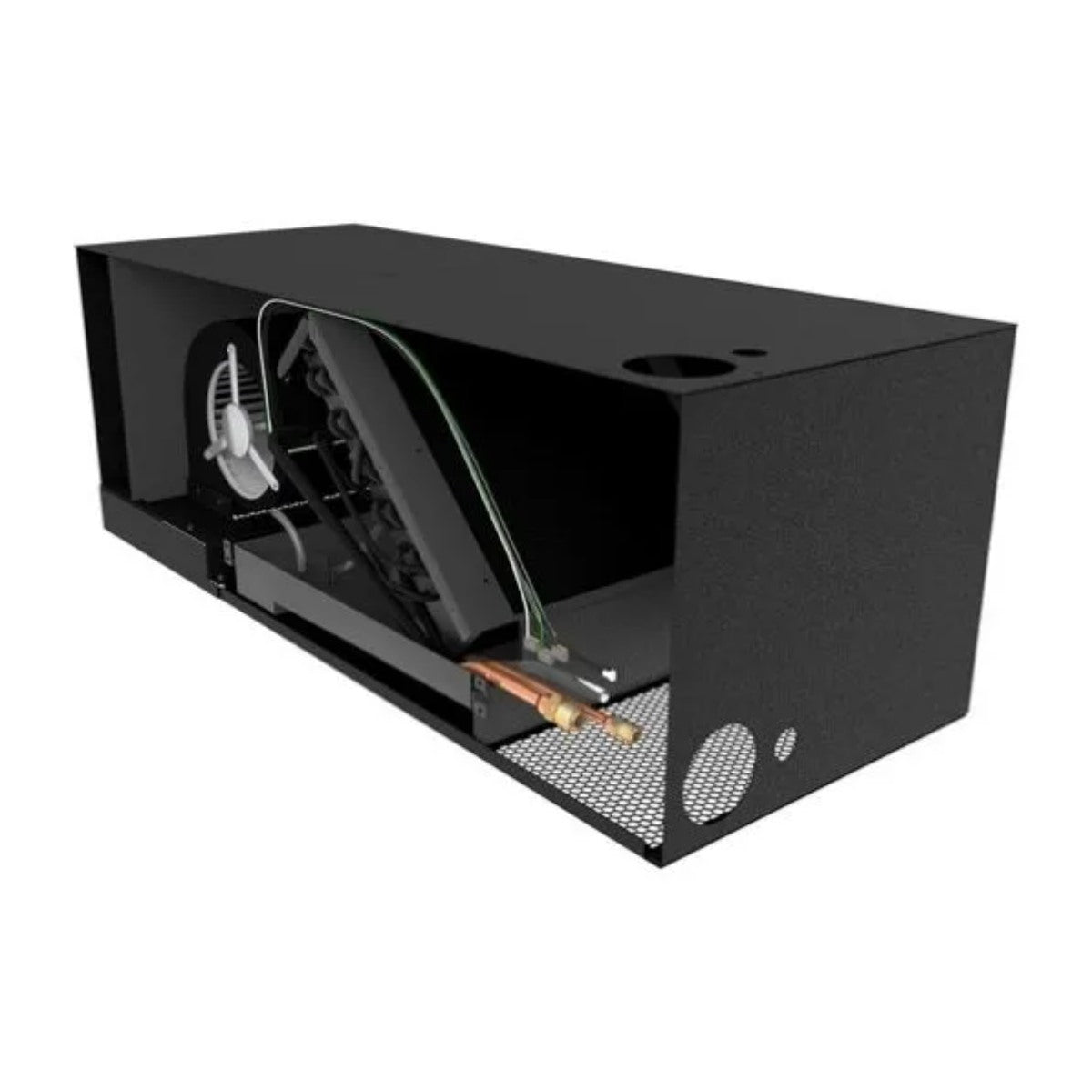

- Flare fittings ensure fast, secure, and straightforward installation
Note: A qualified HVAC-R technician is required for the installation of your Ceiling Mount 8000. Failure to have the system installed by a qualified technician will void the warranty.
*PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
Ceiling Mount 4000 Wine Cellar Cooling System 3D Tour
Explore the wine cellars in stunning detail with our 3D tour, step inside a modern home and see how each unit blends seamlessly into stylish living spaces.

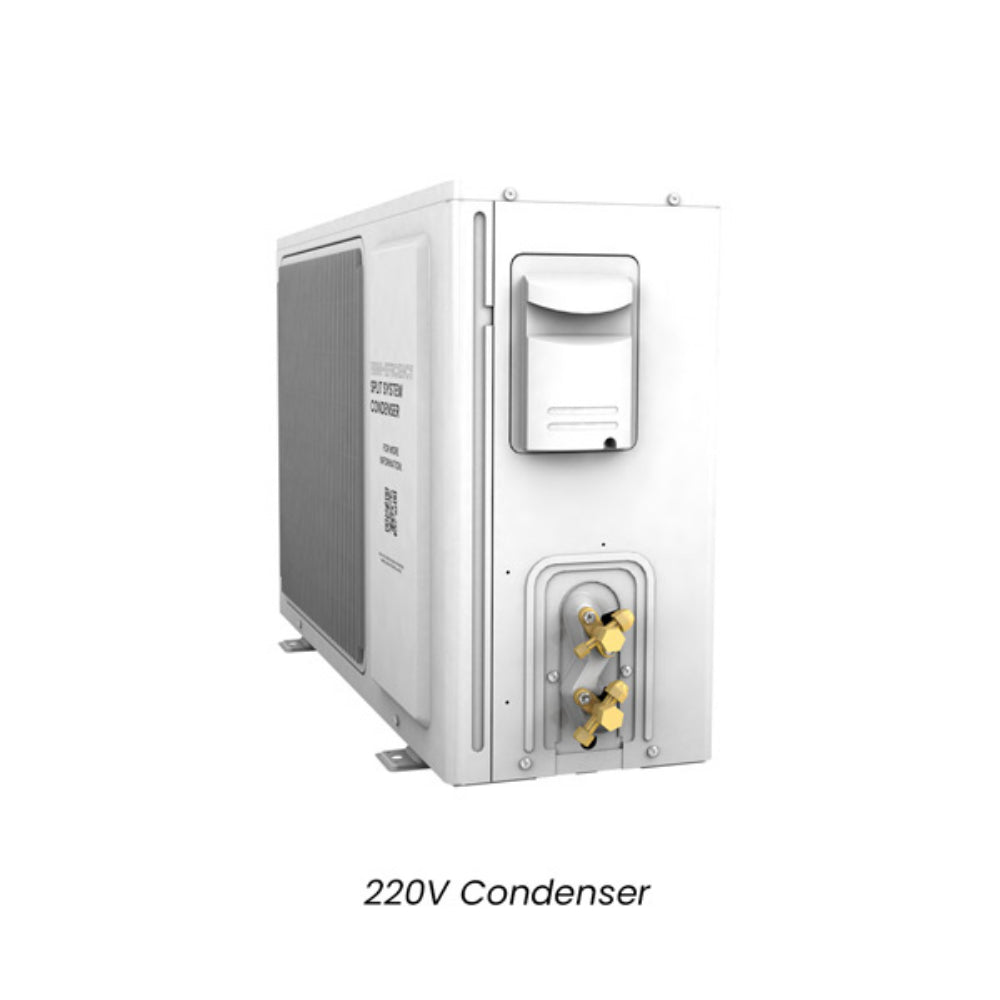

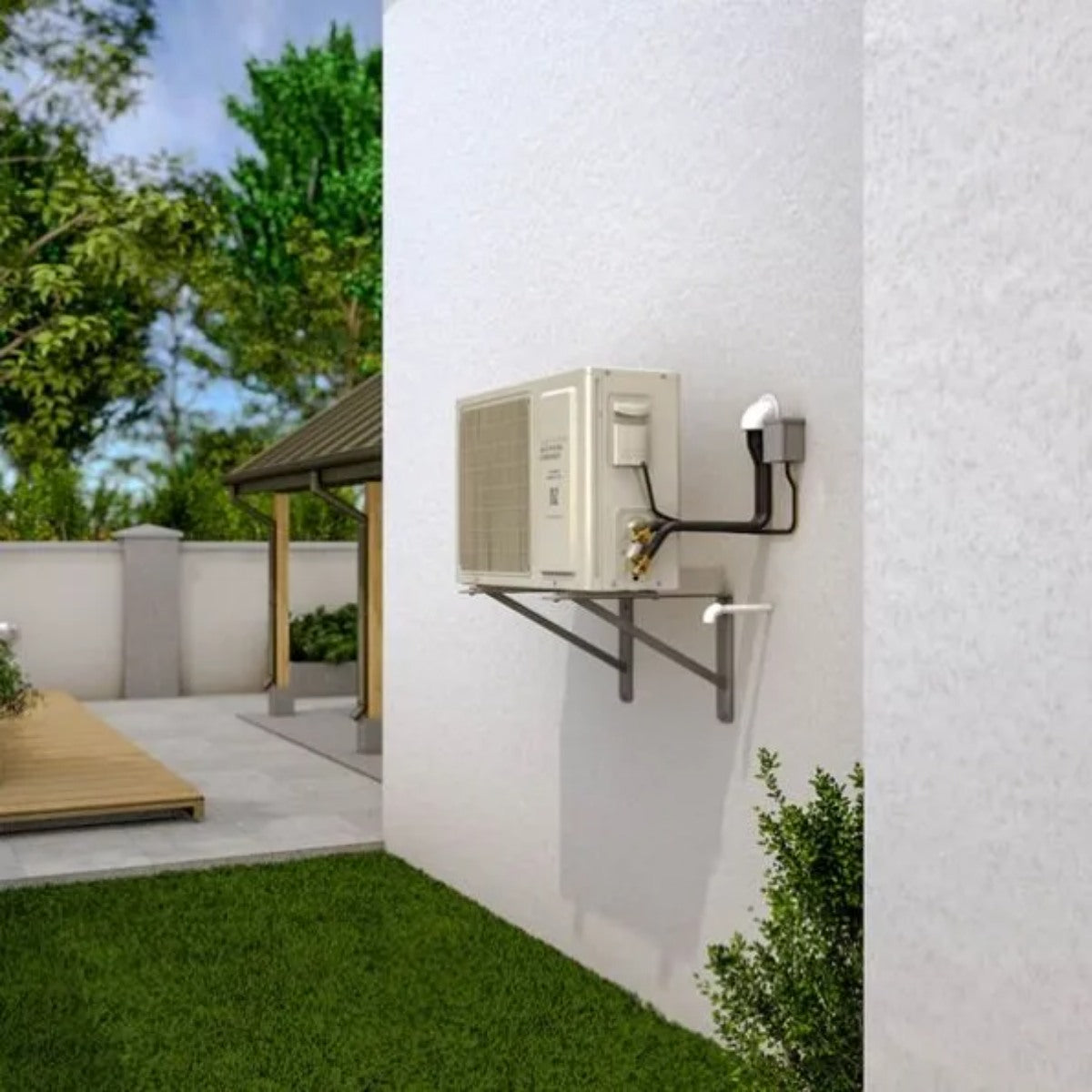

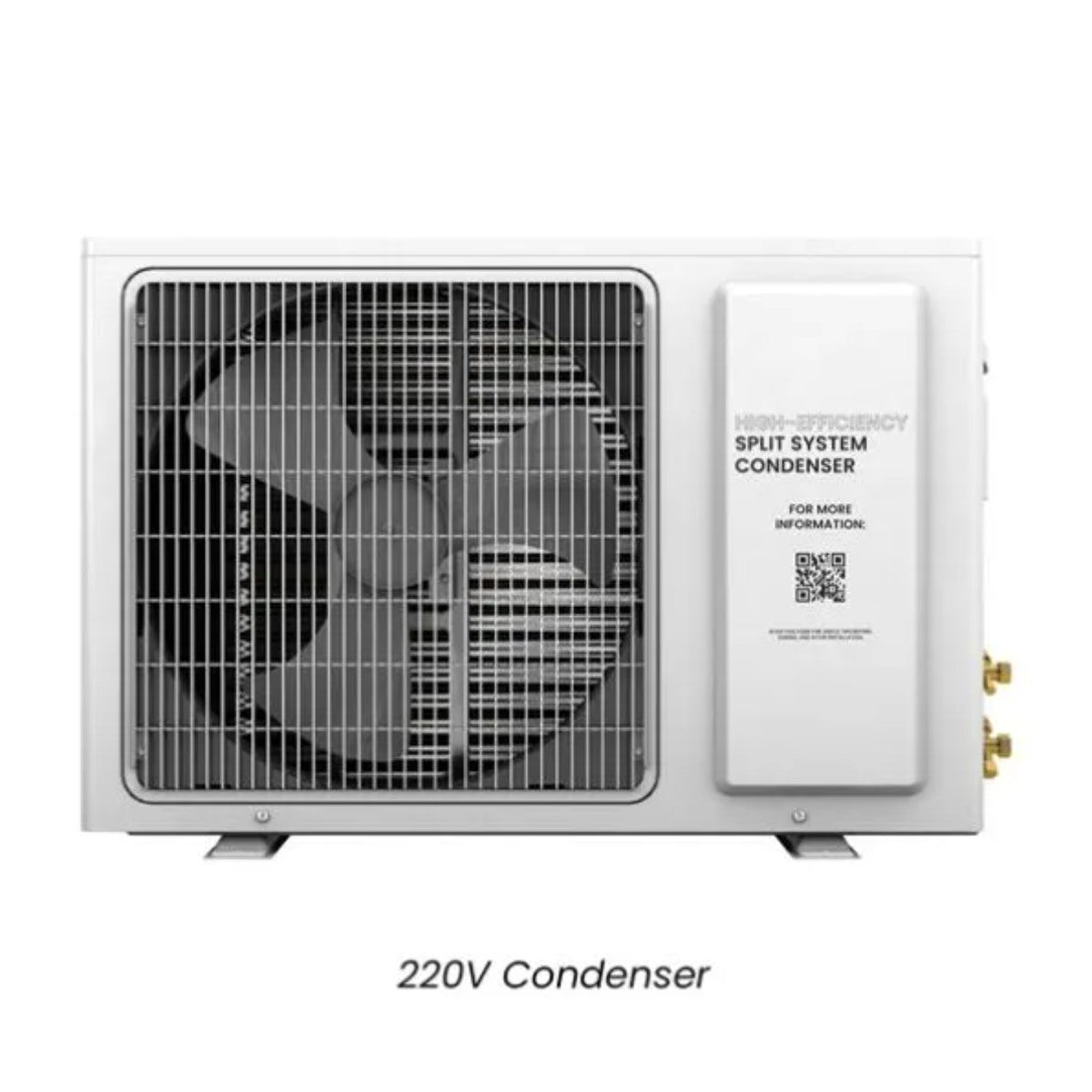

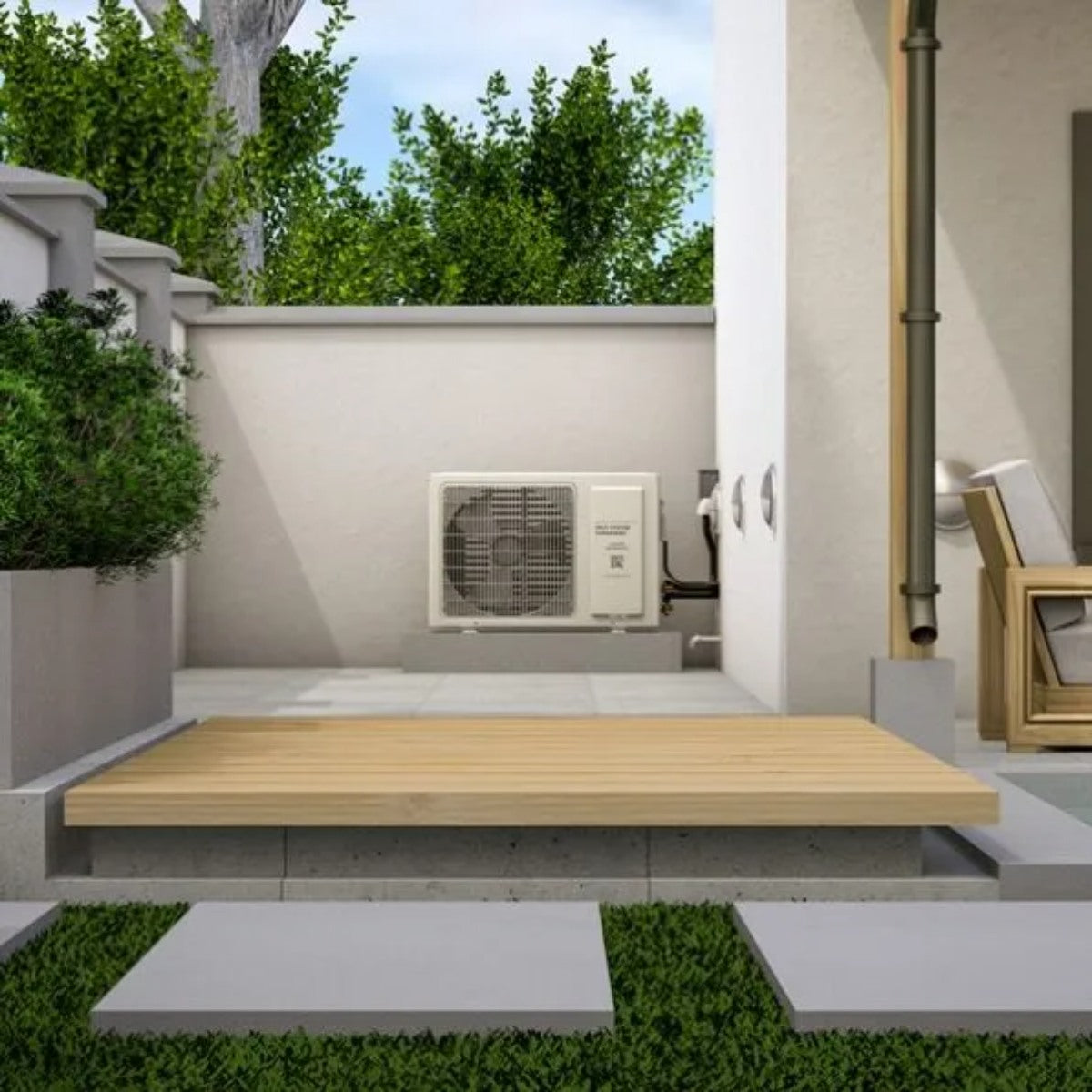

Comparing the 220V High Efficiency Condenser to the 110V Condensing Unit
The 220V High Efficiency Condensers offer a host of advantages over the traditional 110V condensers, including simplified installation, ultra-quiet operation, energy efficiency, & ability to operate in extreme climates.
For more information about the latest Split-System innovation, please watch the following video.
Ceiling Mount 4000 Wine Cellar Cooling System Technical Specifications
| Model | Ceiling Mount 4000 |
| Cellar Size | 1000 cu. ft * |
| BTU/h (60°F condenser air intake temperature) | Medium: 4871 / 5430 | High: 5324 / 6087 |
| BTU/h (75°F condenser air intake temperature) | Medium: 4752 / 5291 | High: 5198 / 5914 |
| BTU/h (85°F condenser air intake temperature) | Medium: 4631 / 5147 | High: 4945 / 5351 |
| CFM | 321 |
| dbA | Medium: EVAP - 48 • COND - 46 | EVAP - 53 • COND - 52 |
| Dimensions | EVAPORATOR - 35.75”L x 14.5”W x 12.75”H | CONDENSER - 23”L x 15.75”W x 15.3H |
| Refrigerant | R-134a |
| Horsepower | 0.5 HP |
| Voltage Rating | EVAPORATOR - 120V (15-amp dedicated circuit required) | CONDENSER - 120V |
| Weight (lbs) | EVAPORATOR - 66 | CONDENSER - 75 |
| Amps | EVAPORATOR - 1.4 (Running Amps) | CONDENSER - 8.5 Amps |
| Line Set | Liquid line 1/4” OD; Suction line 1/2” OD (less than 50 ft.), 5/8” (greater than 50 ft.) |
| Drain Line | 1/4" ID clear plastic tubing (not provided) - Rigid tube recommended |
| Installation | Evaporator unit is installed in the cellar. Condensing unit can be installed up to 100 ft of line set from the evaporator unit. |

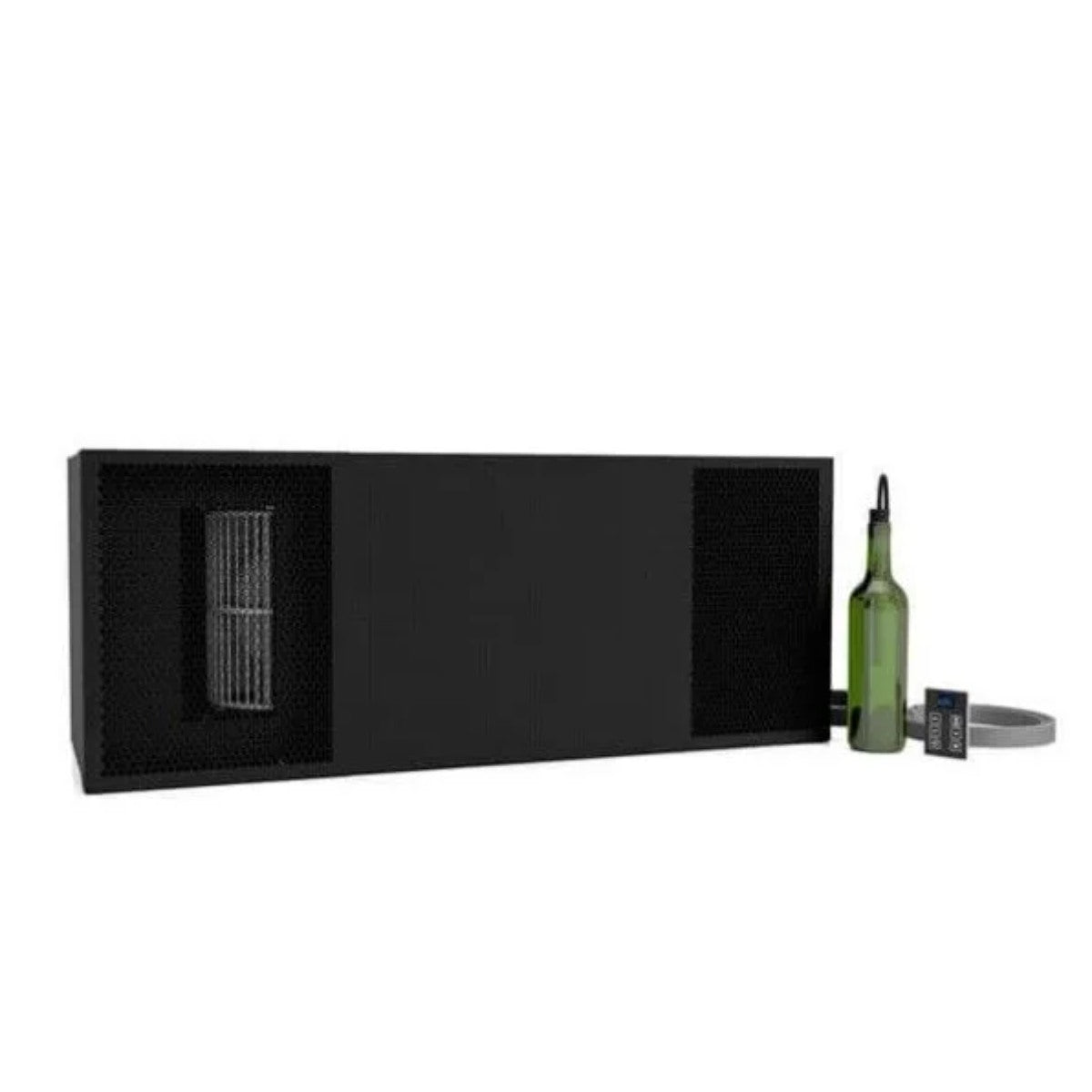

| Thermostat | Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable) |
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature |
| Warranty | Two-year limited warranty with up to an additional (1) year grace period for installation. (parts and labor) |
Ceiling Mount 4000 Wine Cellar Cooling System Product Warranty
Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty.
A limited 2-year product warranty is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
WhisperKOOL Ceiling Mount 4000 Wine Cellar Cooler System Product Manuals
