WhisperKOOL
WhisperKOOL Ceiling Mount 8000 Wine Cellar Cooler System

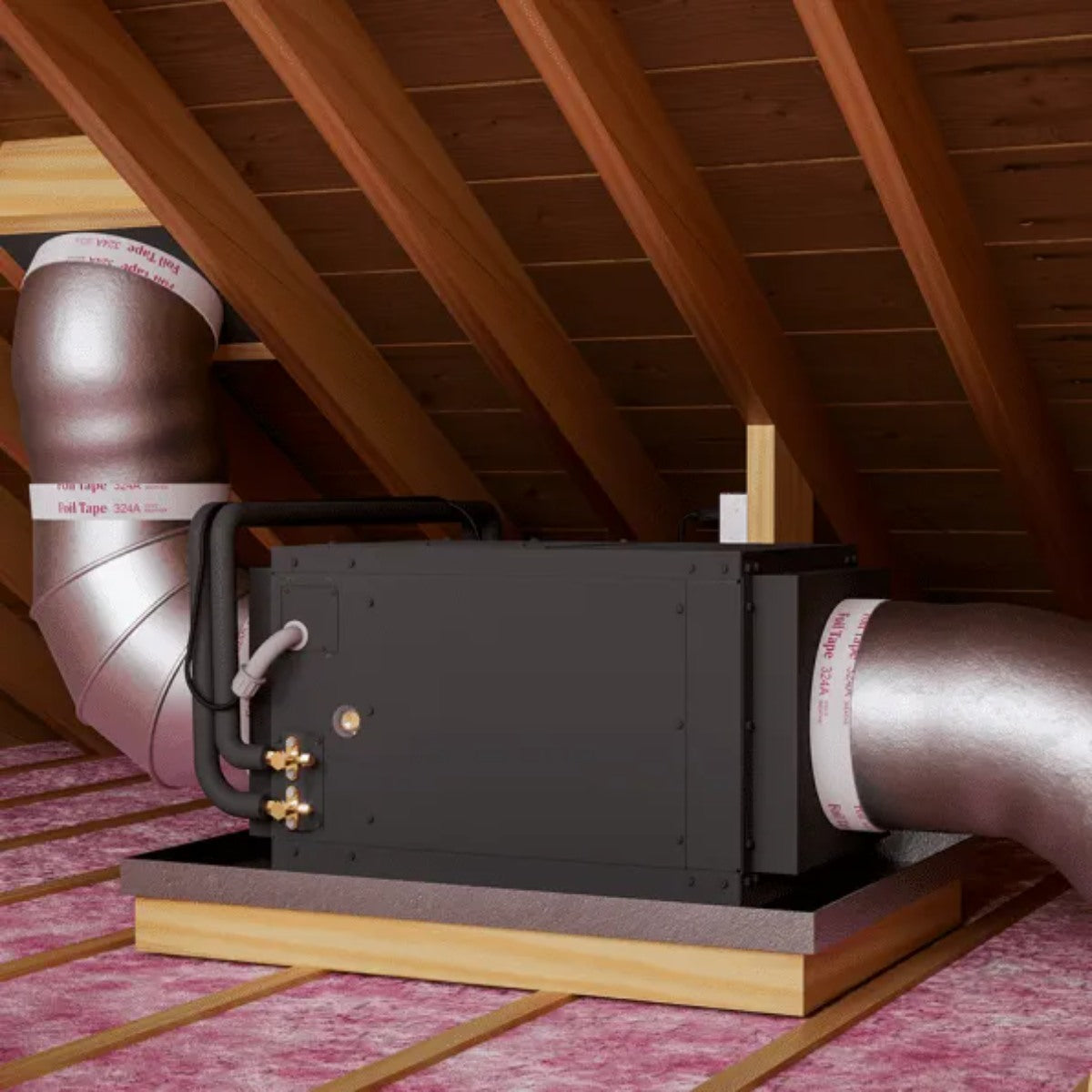

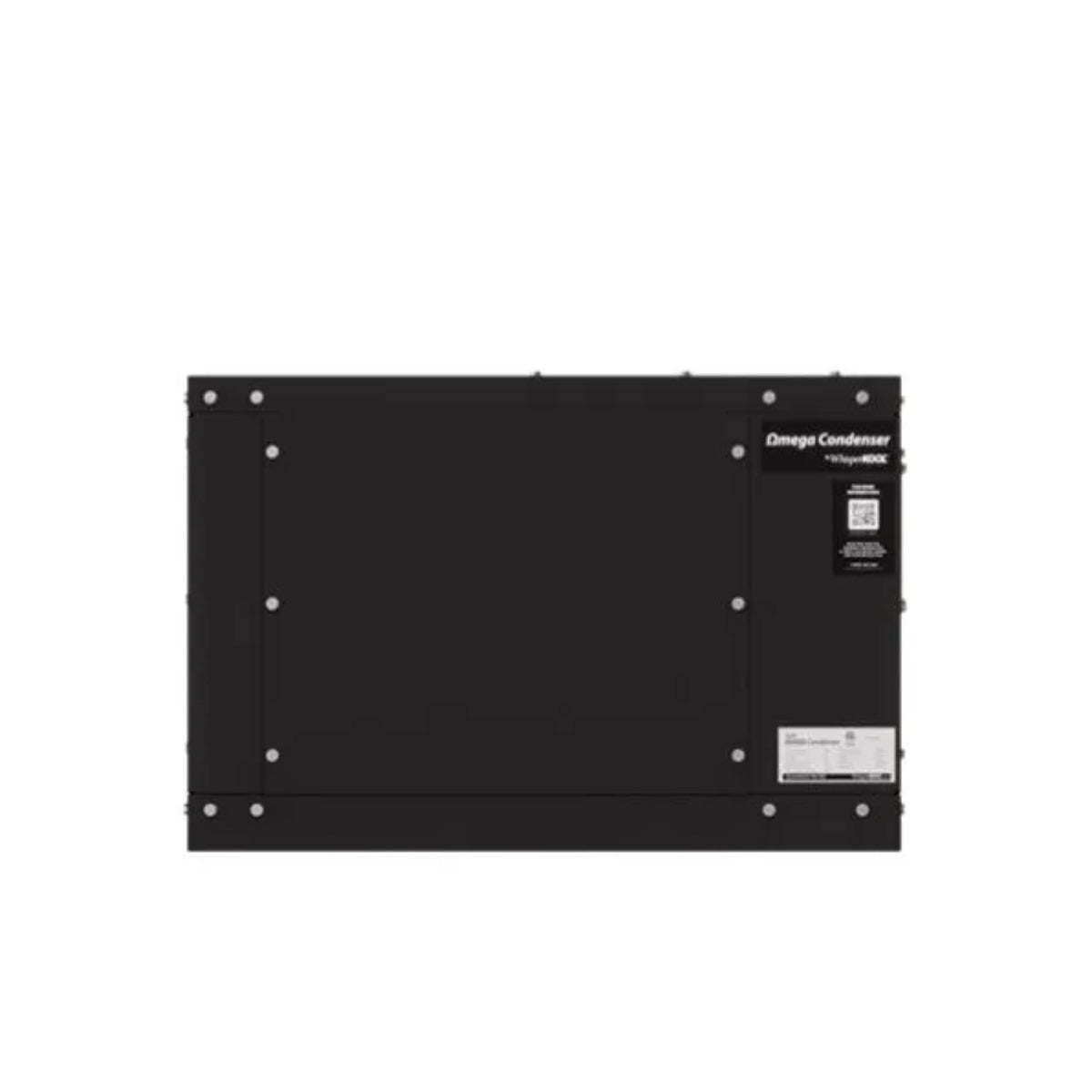

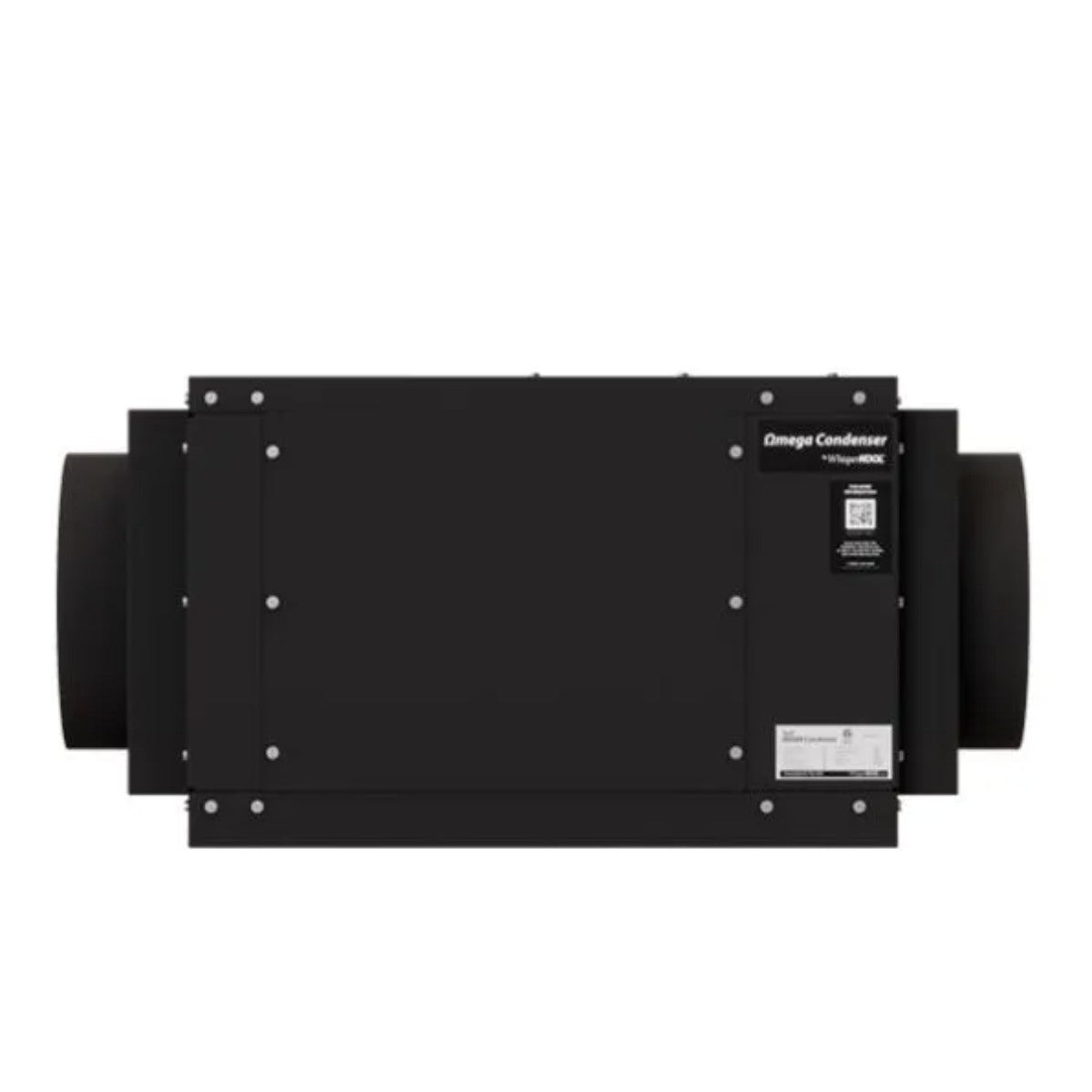

Condenser Type: 110V (Omega Condenser)
Installation: this is a split system and requires a licensed HVAC-R technician to install and commission. WhisperKOOL states that failure to have the system installed by a qualified technician will void the warranty. Budget that labour alongside the unit.
Free shipping in the US. In-stock orders ship within three business days.
Pay over time with Shop Pay Installments or Affirm
Product Details
Space-Saving Wine Cooling: WhisperKOOL Ceiling Mount 8000 System
Take wine storage to the next level with the WhisperKOOL Ceiling Mount 8000 Wine Cellar Cooler System, now available at Wine Cooler Collection. Mounted in the ceiling to keep floor and wall space clear, this unit offers powerful cooling without compromising your cellar’s look.

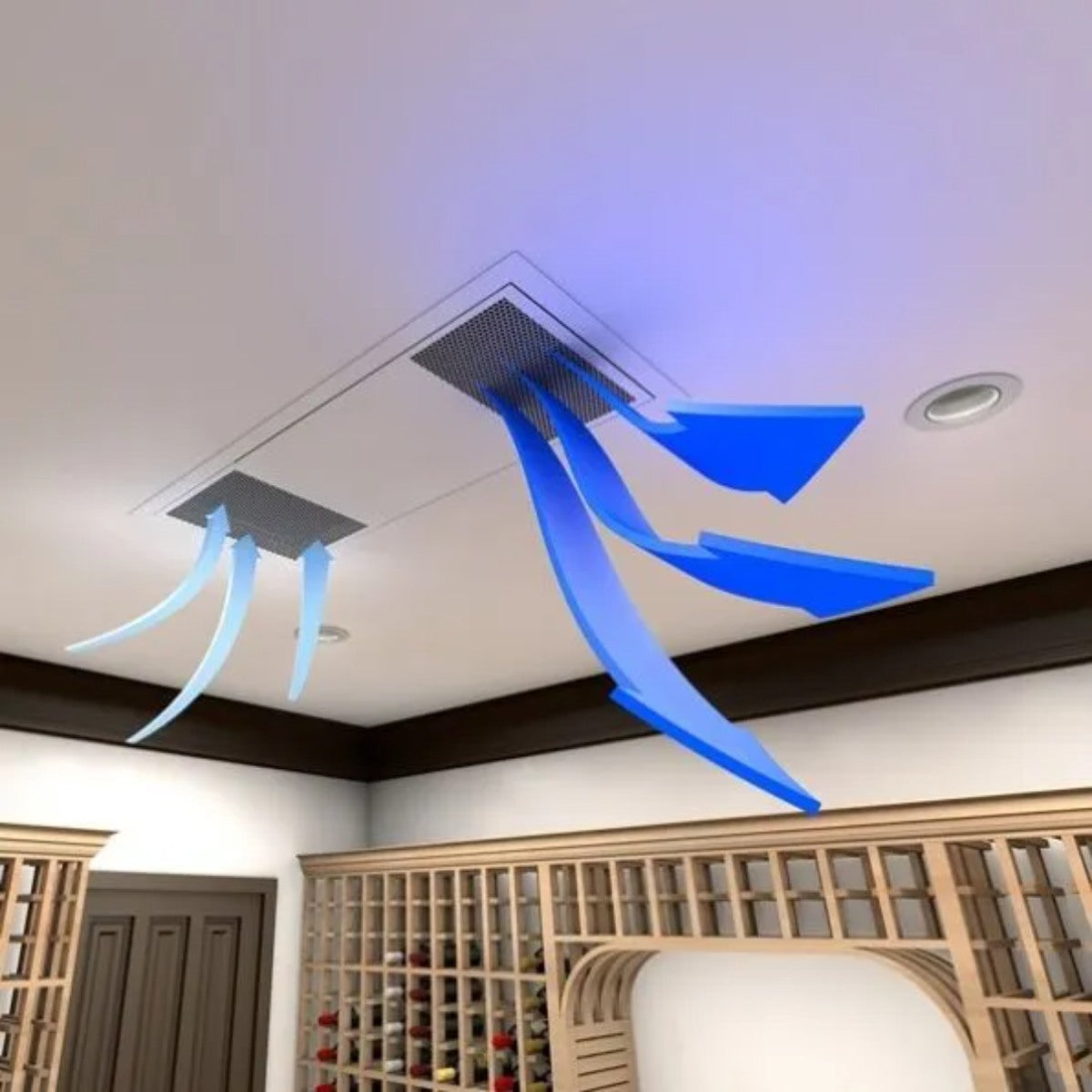

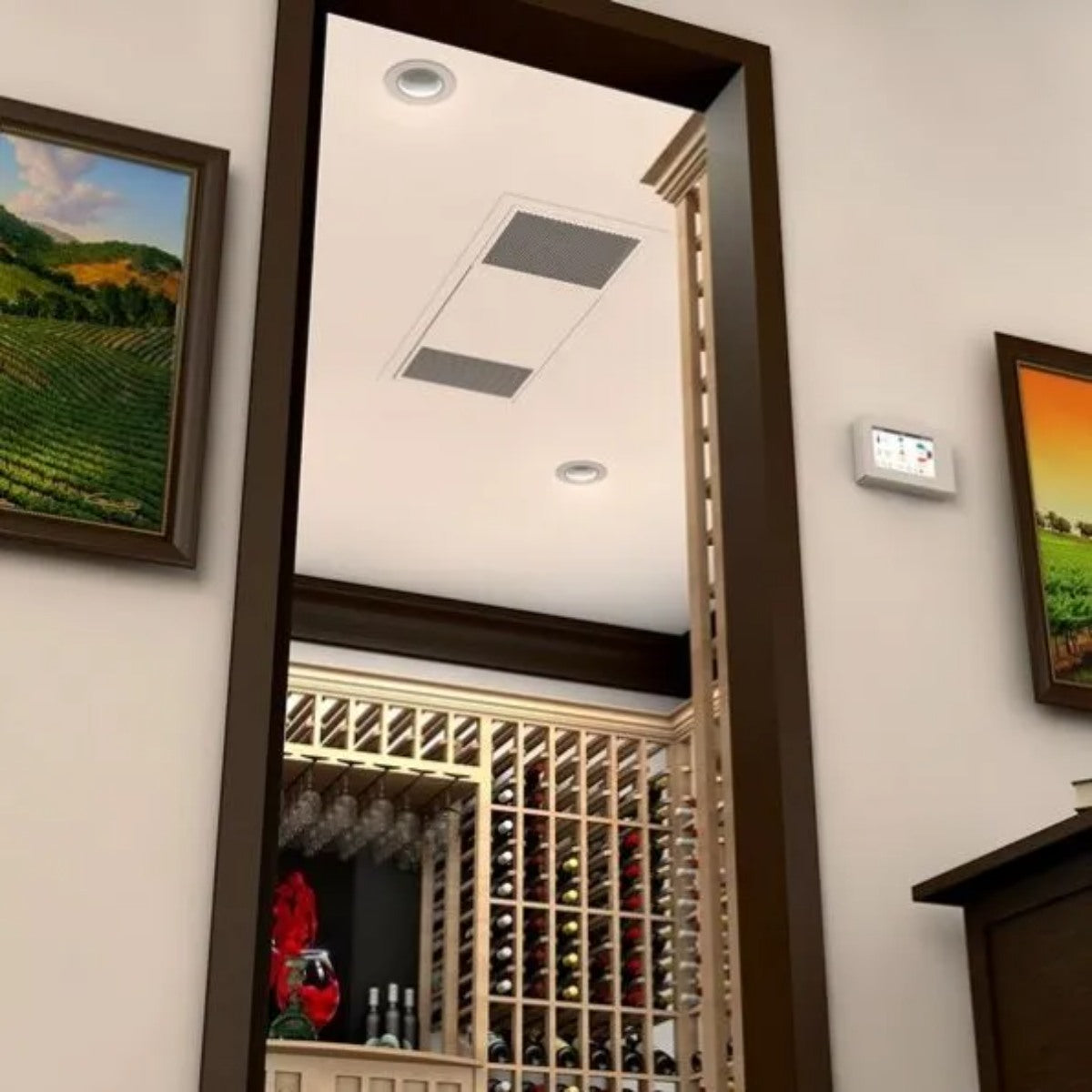

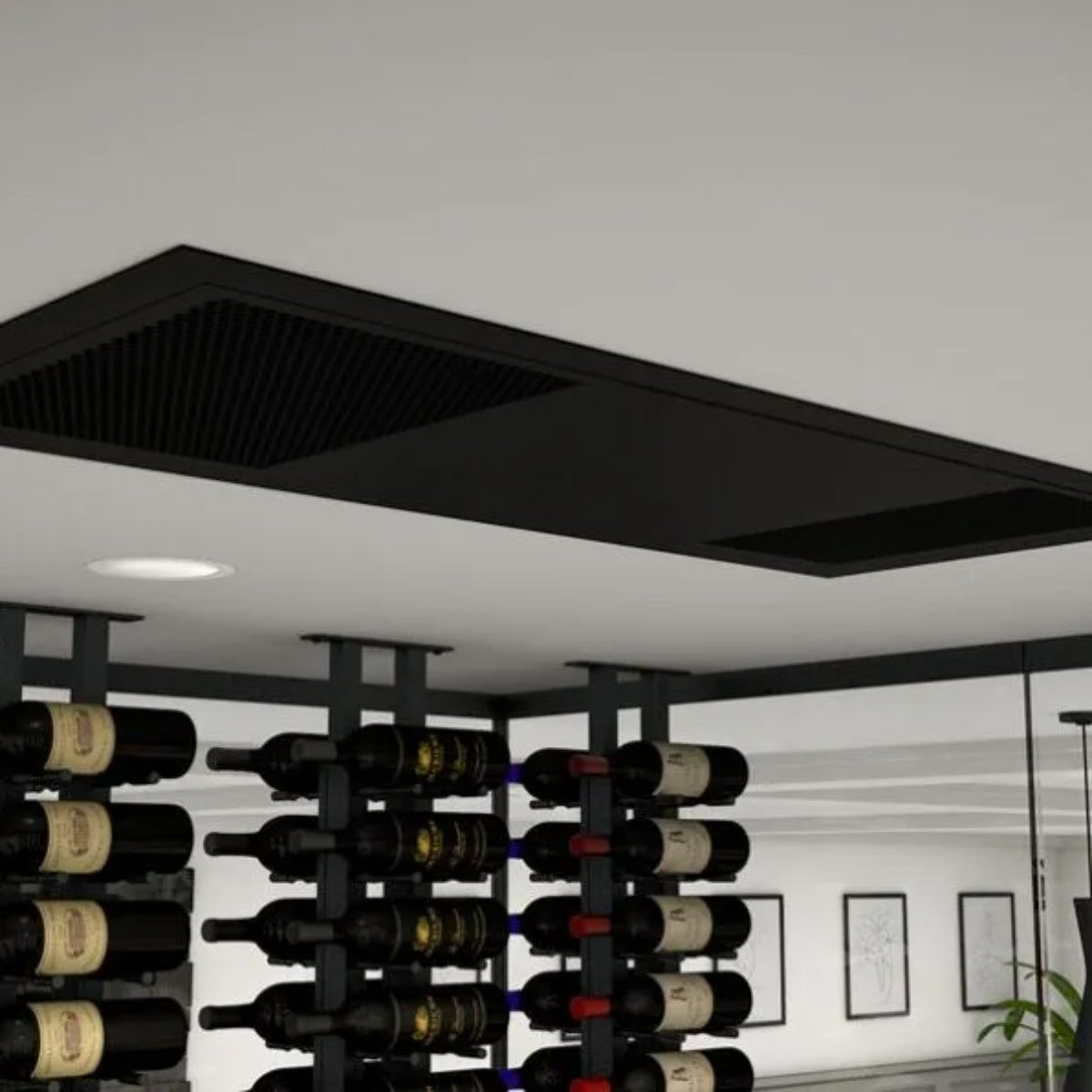

Unlike traditional systems, the Ceiling Mount 8000 draws in warm air from the ceiling, where heat naturally rises, and evenly disperses cooled air throughout the space to maintain a consistent environment. Its low-profile design keeps the unit virtually hidden, allowing your wine collection to shine without bulky equipment in view.

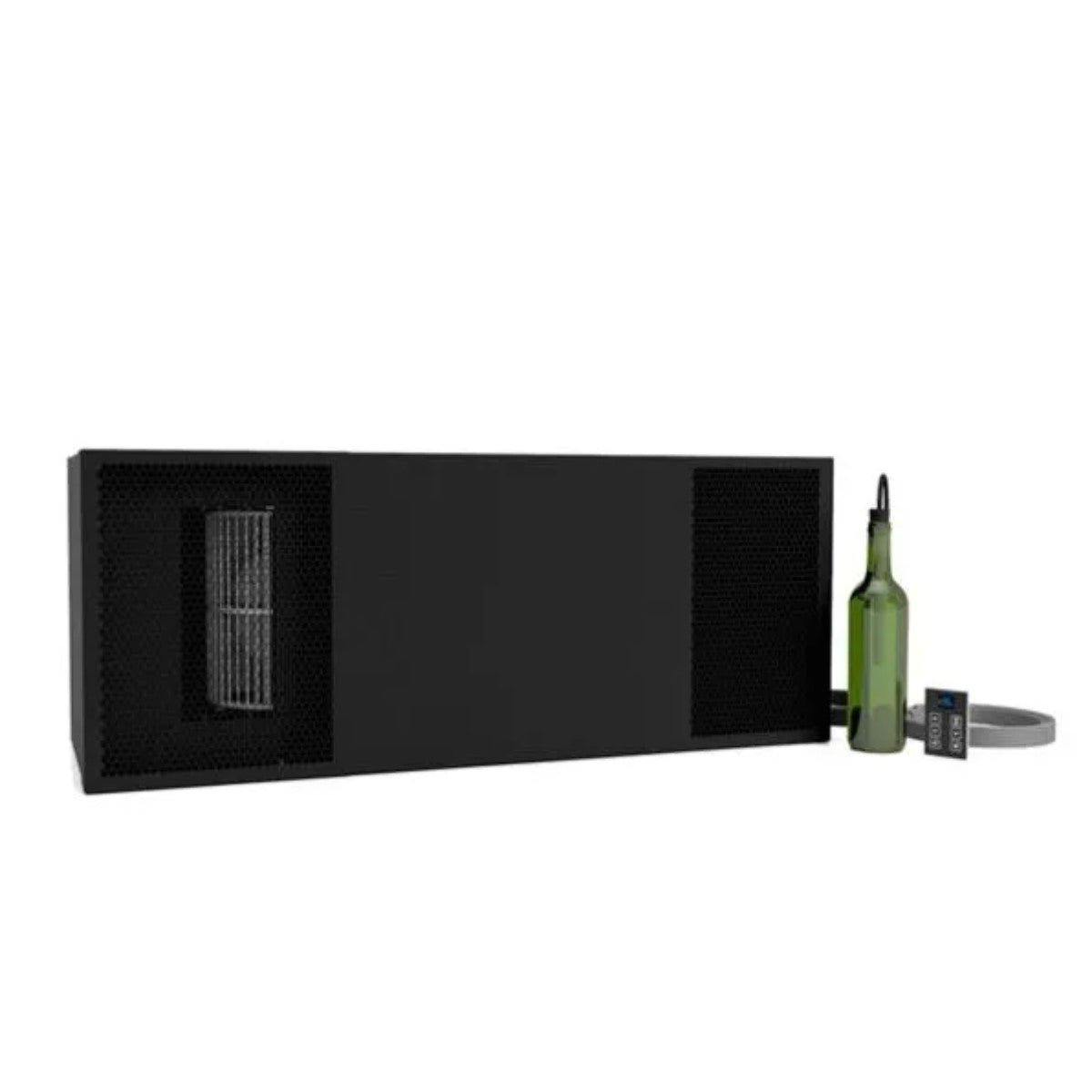

The system uses flare fittings, which shorten the line-set work for your installing technician, and offers compatibility with either a standard or 24V thermostat. It also includes a KDT Digital Controller and Thermostat with a 50-foot cable, giving you convenient control over your cellar’s climate.
Equipped with two-speed fan control and a hex mesh grille with an integrated air filter, it ensures optimal air quality and circulation. Built to last, the system features Duramax evaporator coils and is available with either the 220V High Efficiency (H.E.) Condenser or the 110V Omega Condenser, allowing you to choose the setup that best suits your space and power supply.
BTU/h value: 5254 – 6411
For a ceiling-mounted system that cools up to 2,000 cu ft while staying out of the way, the WhisperKOOL Ceiling Mount 8000 is the ideal choice.
Ceiling Mount 8000 Wine Cellar Cooling System Features
- Maximizes efficiency by drawing in warm air that accumulates near the ceiling, then cooling and evenly distributing it throughout the space
- Compatible with both standard and 24V thermostat options
- Two-speed fan switch for customizable airflow
- Hex-mesh grille with integrated air filter for improved air quality

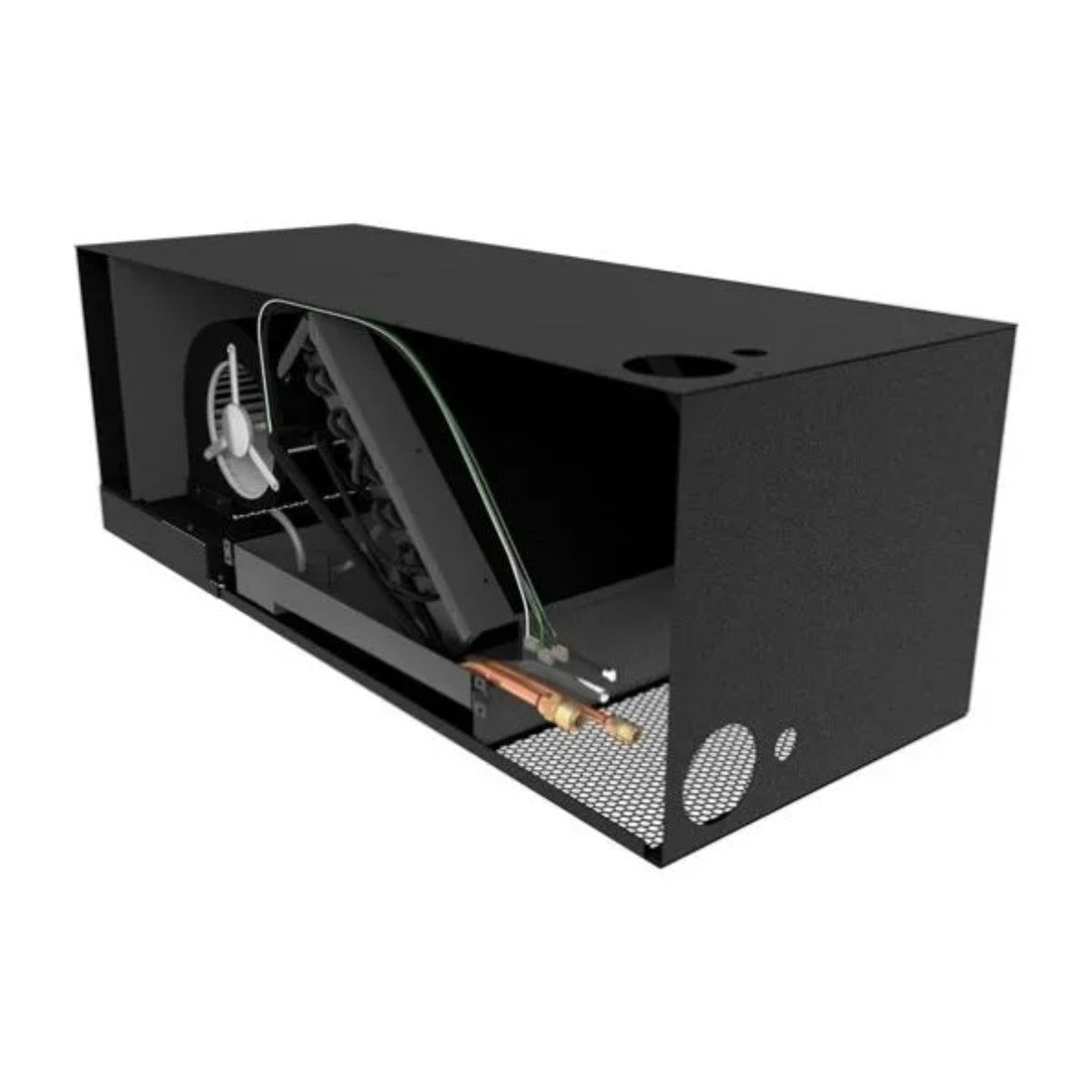

- Flare fittings, which shorten the line-set work for your installing technician
Note: A qualified HVAC-R technician is required for the installation of your Ceiling Mount 8000. Failure to have the system installed by a qualified technician will void the warranty.
*PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
Ceiling Mount 8000 Wine Cellar Cooling System 3D Tour
Explore the wine cellars in detail with our 3D tour. Step inside a modern home and see how each unit sits within a finished living space.

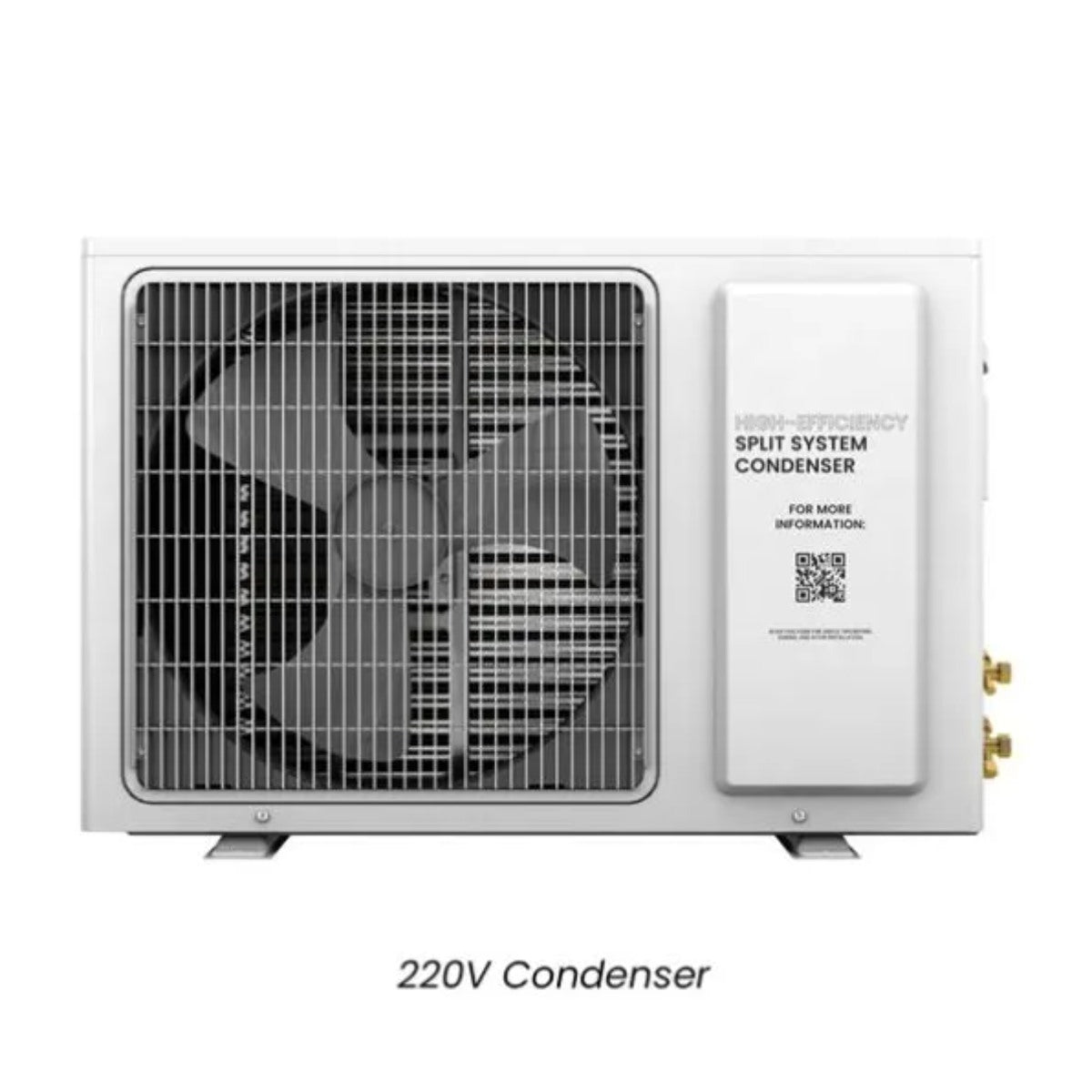

Comparing the 220V High Efficiency Condenser to the 110V Condensing Unit
The 220V High Efficiency Condensers offer a host of advantages over the traditional 110V condensers, including simplified installation, lower operating noise, energy efficiency, and the ability to operate in extreme climates.
For more information about the latest Split-System innovation, please watch the following video.
Ceiling Mount 8000 Wine Cellar Cooling System Technical Specifications
| Model | Ceiling Mount 8000 |
| Cellar Size | 2000 cu. ft * |
| BTU/h (60°F condenser air intake temperature) | Medium: 5305 / 6264 | High: 5411 / 6411 |
| BTU/h (75°F condenser air intake temperature) | Medium: 5114 / 5498 | High: 5217 / 5615 |
| BTU/h (85°F condenser air intake temperature) | Medium: 5064 / 5358 | High: 5157 / 5544 |
| CFM | 321 |
| dbA | Medium: EVAP - 48 • COND - 46 | EVAP - 53 • COND - 52 |
| Dimensions | EVAPORATOR - 35.75”L x 14.5”W x 12.75”H | CONDENSER - 23”L x 15.75”W x 15.3H |
| Refrigerant | R-134a |
| Horsepower | 0.5+ HP |
| Voltage Rating | EVAPORATOR - 120V (15-amp dedicated circuit required) | CONDENSER - 120V with the 110V H.E. Omega, or 220V with the Advanced H.E. Confirm which condenser your order includes before any electrical work is scheduled, as the warranty does not cover damage caused by an improper voltage supply. |
| Weight (lbs) | EVAPORATOR - 66 | CONDENSER - 86 |
| Amps | EVAPORATOR - 1.4 (Running Amps) | CONDENSER - 9.5 Amps |
| Line Set | Liquid line 1/4” OD; Suction line 1/2” OD (less than 50 ft.), 5/8” (greater than 50 ft.) |
| Drain Line | 1/4" ID clear plastic tubing (not provided) - Rigid tube recommended |
| Installation | Evaporator unit is installed in the cellar. Condensing unit can be installed up to 100 ft of line set from the evaporator unit. |
| Thermostat | Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable) |
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature |
| Warranty | Two-year limited warranty with up to an additional (1) year grace period for installation. (parts and labor) |
Ceiling Mount 8000 Wine Cellar Cooling System Product Warranty
Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty.
A limited 2-year product warranty, with up to an additional 1-year grace period for installation, is offered with all split systems. Split systems do not carry a separate compressor warranty. The installing HVAC-R technician must complete their portion of the Split Startup Checklist, and you must return it to WhisperKOOL within 30 days of installation. The warranty starts at the date of purchase but is not activated until that checklist is approved. Warranty labor reimbursement is capped at $400.
