WhisperKOOL UV-C Lighting System
$205.00
WhisperKOOL
WhisperKOOL Extreme TiR 5000 Fully Ducted Wine Cooling System
$7,305.00
Authorized WhisperKOOL Dealer · Full manufacturer warranty · Learn more
Free shipping in the US. In-stock orders ship within three business days.
Pay over time with Shop Pay Installments or Affirm
Product Details
Fully Ducted Cellar Cooling: WhisperKOOL Extreme TiR 5000 System
The WhisperKOOL Extreme TiR 5000 is a fully ducted cooling system for cellars up to 1,250 cubic feet. The Extreme line is built for exhaust spaces that swing hot or cold beyond what standard lines tolerate: garages, attics and unconditioned utility rooms.

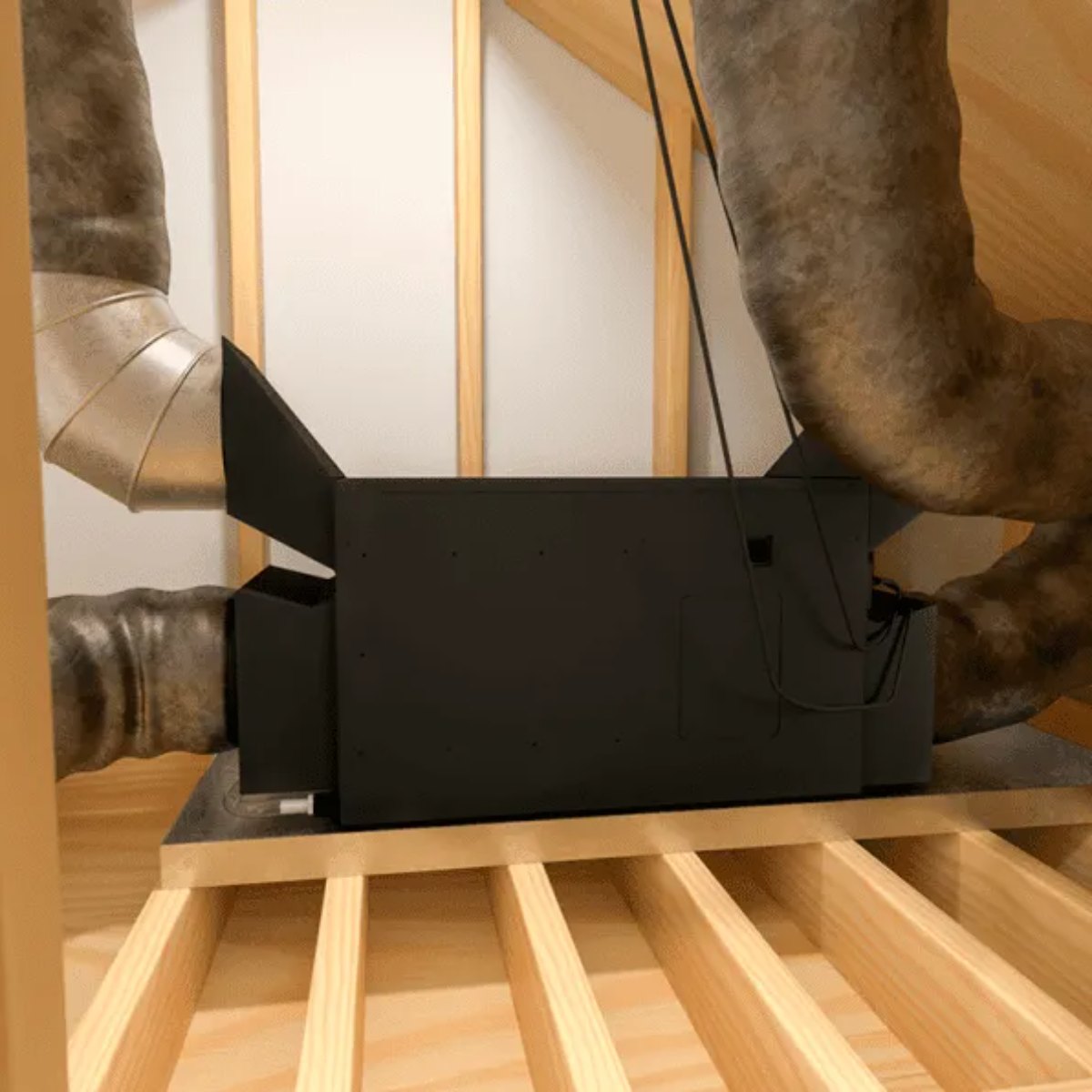

It holds a 55°F cellar with condenser air intake as high as 110°F. Install the unit up to 25 ducted feet from the cellar, so nothing mechanical sits in the wine room.
The refrigeration circuit is sealed and factory charged, so there is no field refrigerant work and no licensed HVAC-R technician required. You will need a dedicated 115V 20 amp circuit, duct runs and a drain line.
The remote digital display with 50-ft. cable lets you read and set the cellar from outside the room, and standard and 24V thermostat options are available. Variable-speed fans match airflow to load.
A UV-C Lighting System is available as an option for added defense against bacteria and mold.
Cooling capacity: 3,794 BTU/h at 85°F condenser air intake.
Sound level: 51 dBA.
Extreme TiR 5000 FD Wine Cooling System Features
- Fully ducted, so the unit installs up to 25 feet of duct from the cellar
- Published sound level of 51 dBA, measured by WhisperKOOL
- Rated to run with condenser air intake as high as 110°F
- No field refrigerant work, so no licensed HVAC-R technician is needed

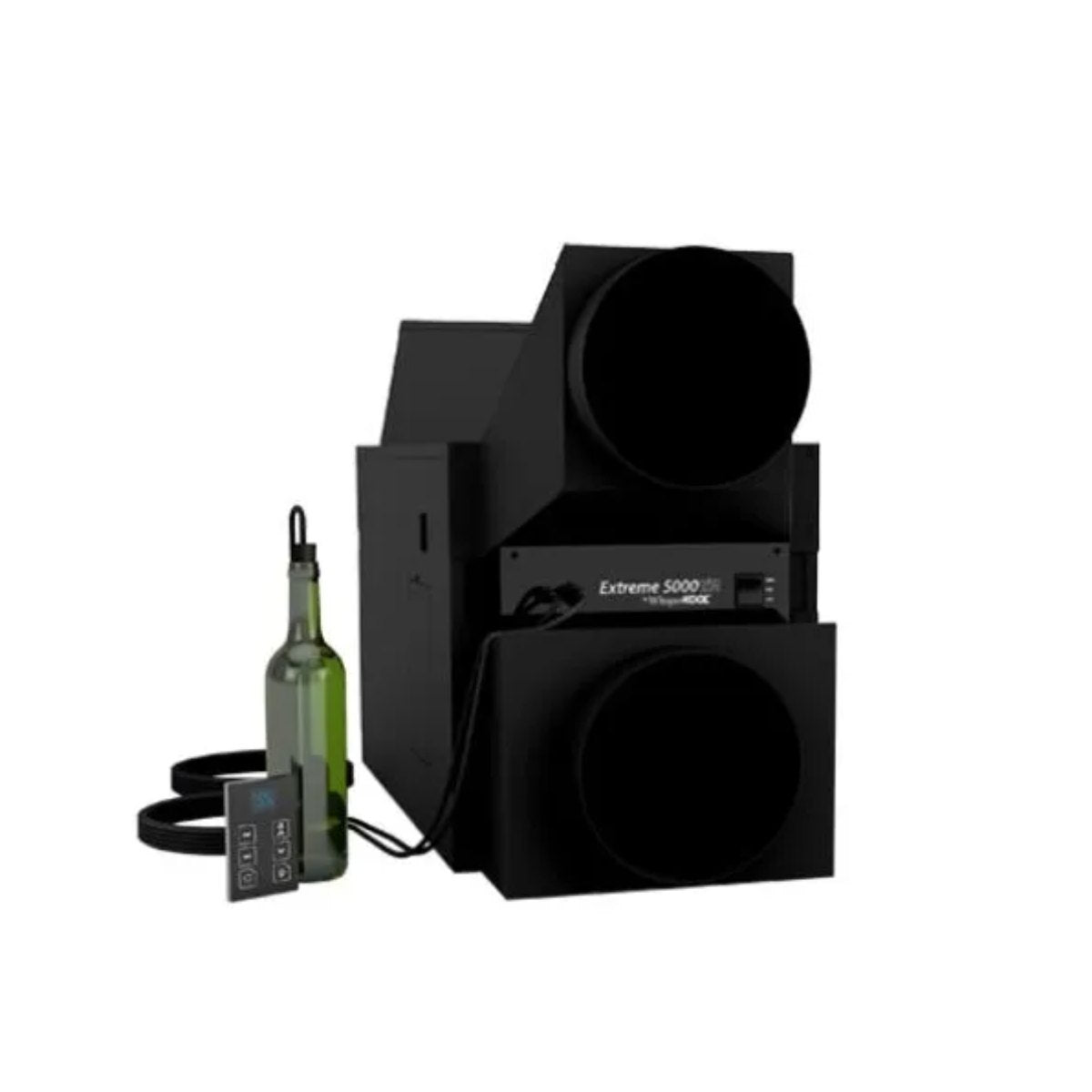

- Includes a remote digital display with a 50-ft. communication cable
- Features a bottle probe for precise liquid temperature readings
- Delivers a 55°F temperature differential between the cellar and condensing unit air intake
- Compatible with both standard and 24V thermostat options
*PLEASE NOTE: WhisperKOOL does not provide smart thermostat upon purchase of your Extreme TiR 5000. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment.
The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
Extreme TiR 5000 FD Wine Cooling System 3D Tour
Step inside a finished cellar in the 3D tour and see where a ducted unit sits relative to the wine room.
Extreme TiR 5000 FD Wine Cooling System: UV-C Lighting System Option
The UV-C Lighting System is an optional add-on that reduces airborne microbes in the cellar.
Extreme TiR 5000 FD Wine Cooling System Technical Specifications
| Model | Extreme TiR 5000 |
| Cellar Size | 1250 cu. ft.* |
| BTU/h (85°F condenser air intake temperature) | 3794 |
| Sound Level | 51 dBA |
| CFM | 333 |
| Dimensions | 39.5”L x 22.5”H x 14.25”W (w/ duct plenums) |
| Refrigerant | R-134a |
| Horsepower | 1.5 HP |
| Voltage Rating | 115V (20 amp dedicated circuit required); 230V (subject to availability) |
| Weight (lbs) | 115 |
| Amps | 9 (running amps) |
| Duct Size | 8” Return • 8” Supply (evaporator and condenser) |
| Drain Line | 1/2” ID clear plastic tubing (not provided) |
| Installation | Can be installed up to 25 duct feet away from cellar. No licensed HVAC-R technician required. |
| Thermostat | Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable) |
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature |
| Outside Venting | Can be done if the outside temperature does not exceed 110°F, the external grille cover is highly recommended. |
| Warranty | 2-year limited warranty & up to an additional (6) month grace period for install / 5-year limited warranty (compressor) |
Extreme TiR 5000 FD Wine Cooling System Product Warranty
Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty.
The Extreme TiR 5000 is a self-contained ducted system, not a split system. It carries a limited 2-year product warranty with up to an additional six month grace period for installation, plus a 5-year limited warranty on the compressor. The warranty starts at the date of purchase and is activated once a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
