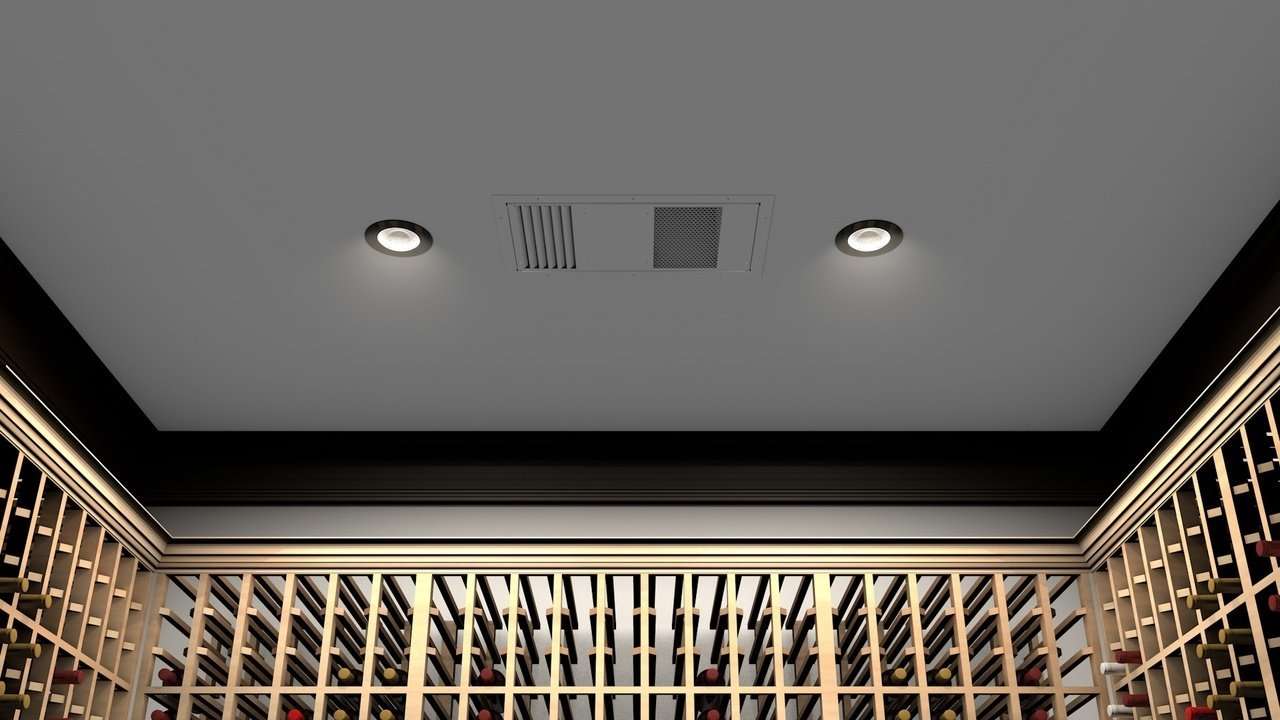

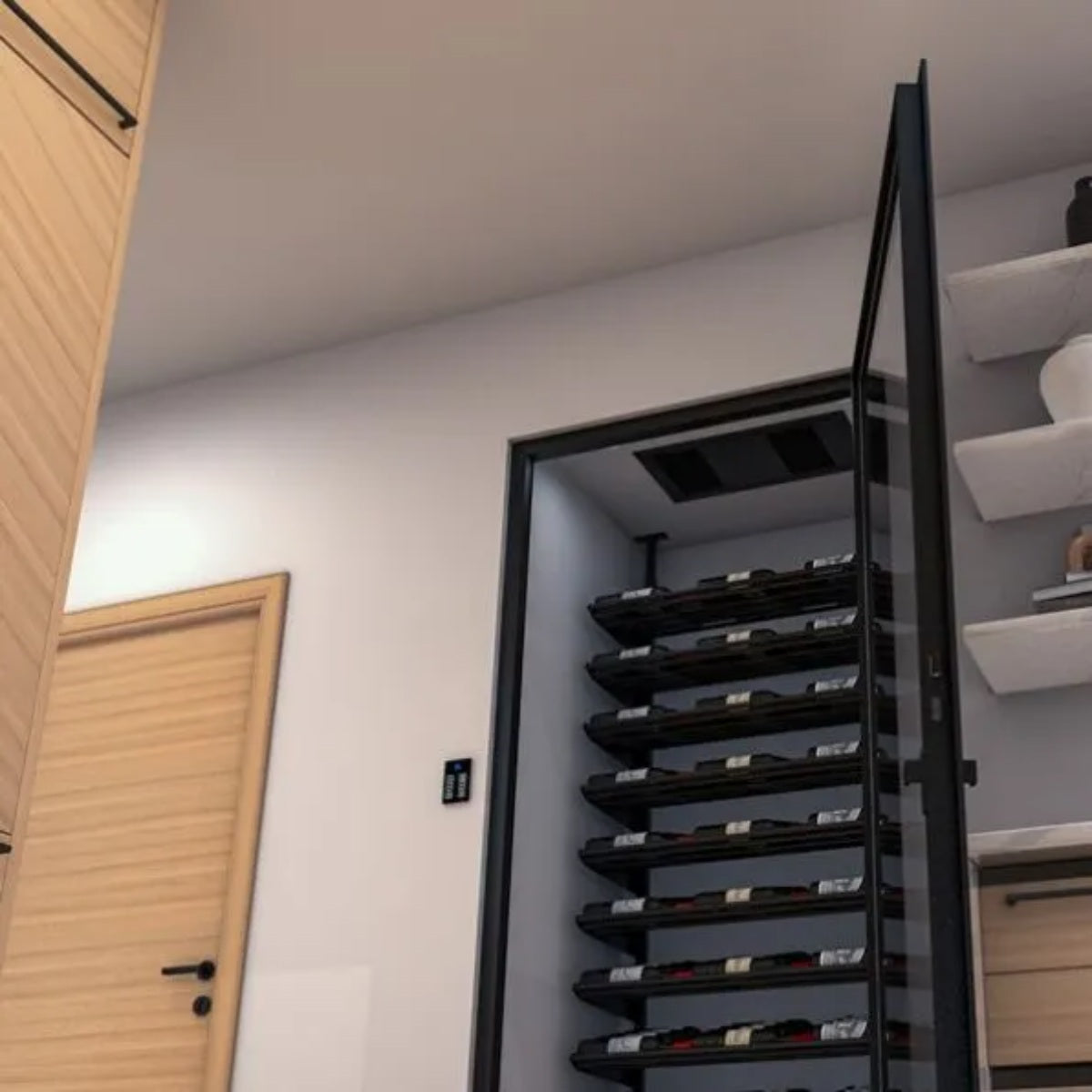

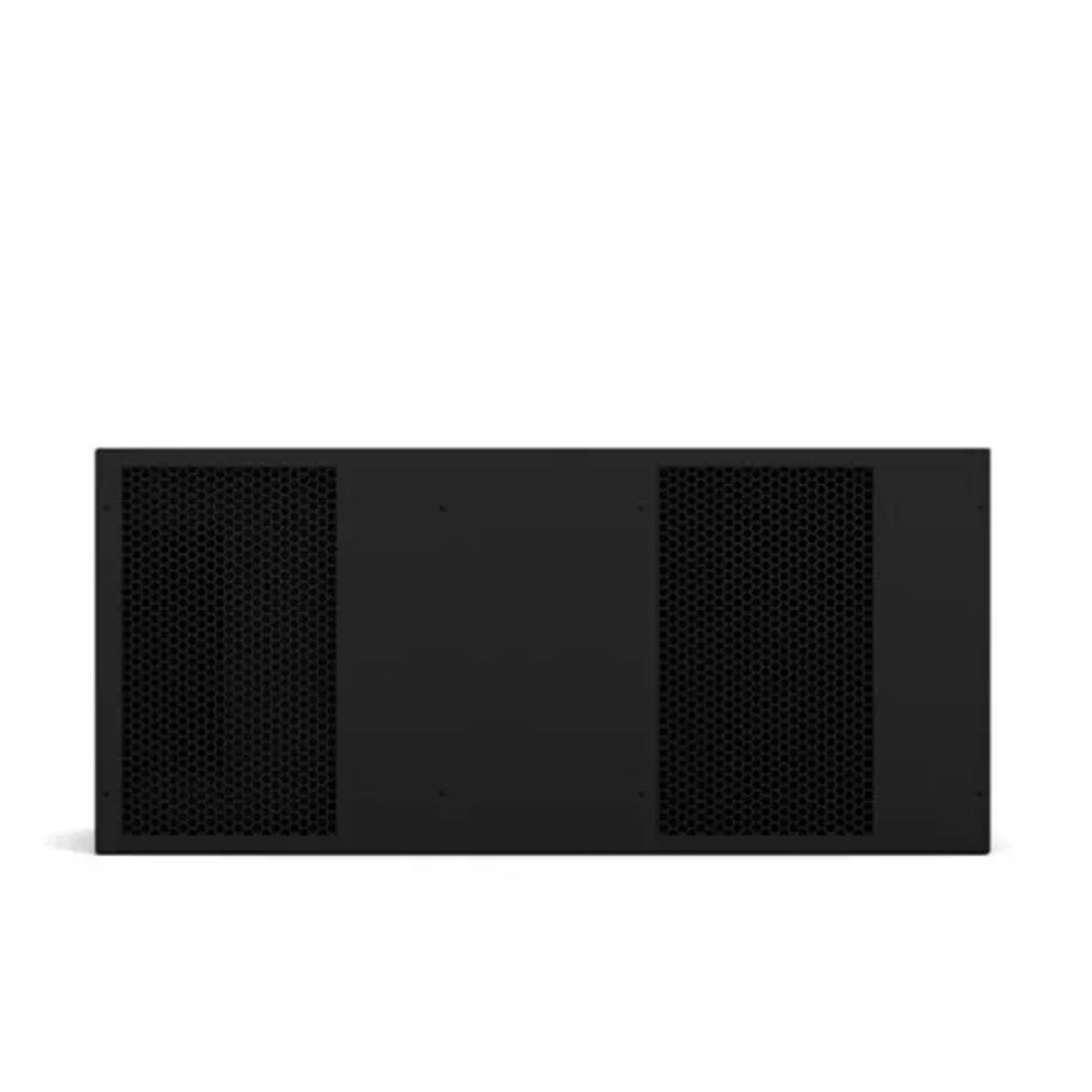

WhisperKool have created a Ceiling Mount split system evaporator. Cellar contractors have asked for a design that does not take away from the racking capacity and is virtually invisible in the cellar. Utilizing our Ceiling Mounted evaporator has many benefits: It offers excellent efficiency by drawing in the warmer air which accumulates at the ceiling, cools and disperses the air throughout the environment, allows for maximum racking space, and is virtually invisible in the cellar. Designed with the highest quality, professional grade parts for longevity and performance, it also offers ease of installation and accessibility. It includes a condensate pump system, and is available with our Active Humidity option. The grille of unit comes with a smooth, primered finish, excellent for painting and color matching. Creating a cellar environment with our new Ceiling Mount Split System will offer the flexibility to design a beautiful environment for the aging of fine wines with a virtually invisible cooling system. Included is the quality and reliability that contractors have come to know from WhisperKOOL.

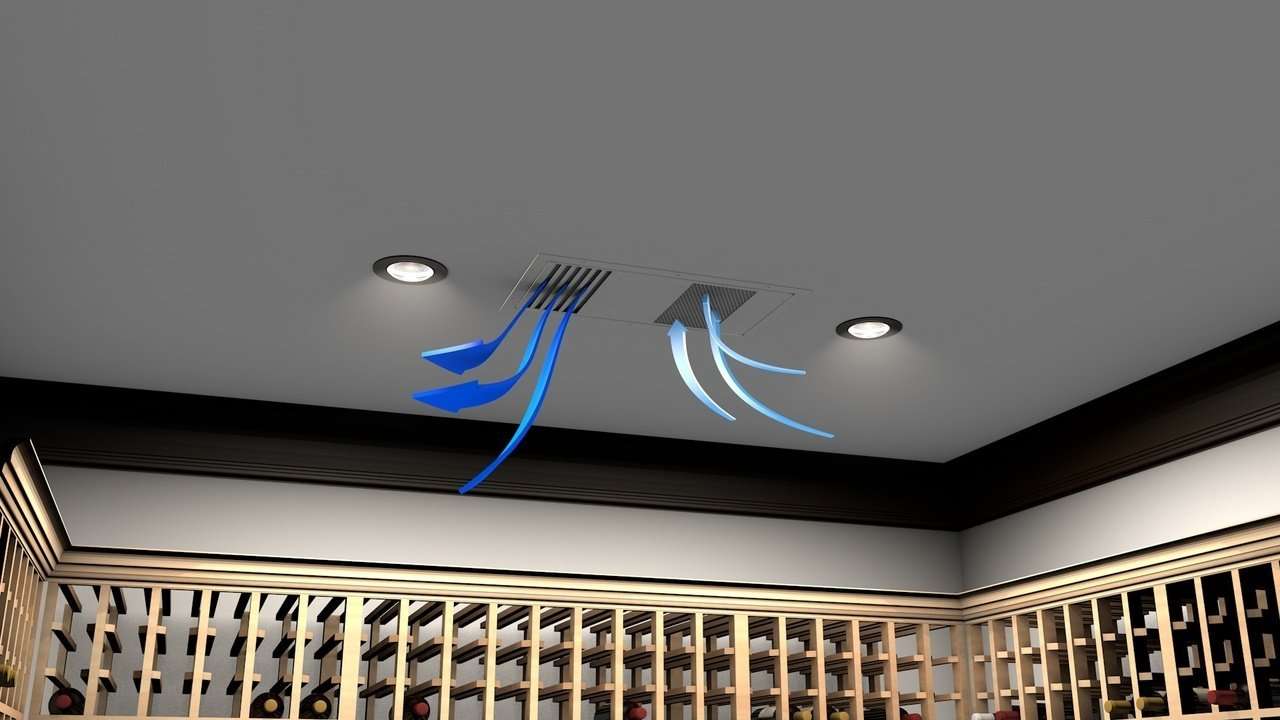

• Offers excellent efficiency by drawing in the warmer air which accumulates at the ceiling, cooling and dispersing the air throughout the environment
• Standard and 24V thermostat options available
• No ducting required
• Allows for maximum racking space
• Includes a pump system to remove excess condensation
• Includes cold weather start kit
• The grille of the unit comes with a durable black powder-coated finish, which can be painted to match the cellar

• Cellar Size: 500 cu. ft (Properly Insulated Cellar)
• dBA: 52
• Dimensions: 22.05" L x 11.08" H x 11.34" D
• Weight: Evaporator: 40.6lbs Condenser: 40.4lbs
• AMPS (starting/running): Evaporator: 2/1  Condenser: 11/3.81
• Lineset: Suction: 3/8" OD, Liquid: 1/4" OD
• Drainline: 1/4" ID

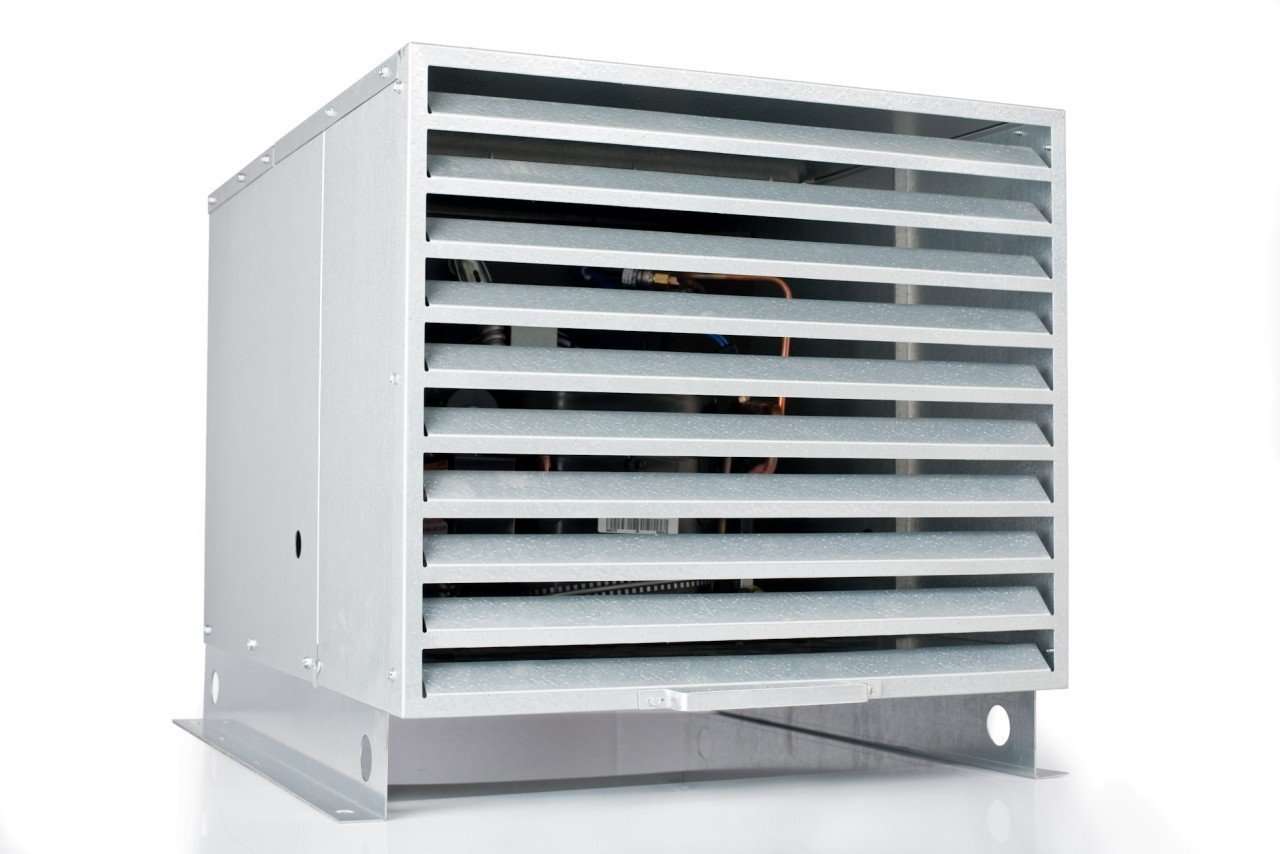

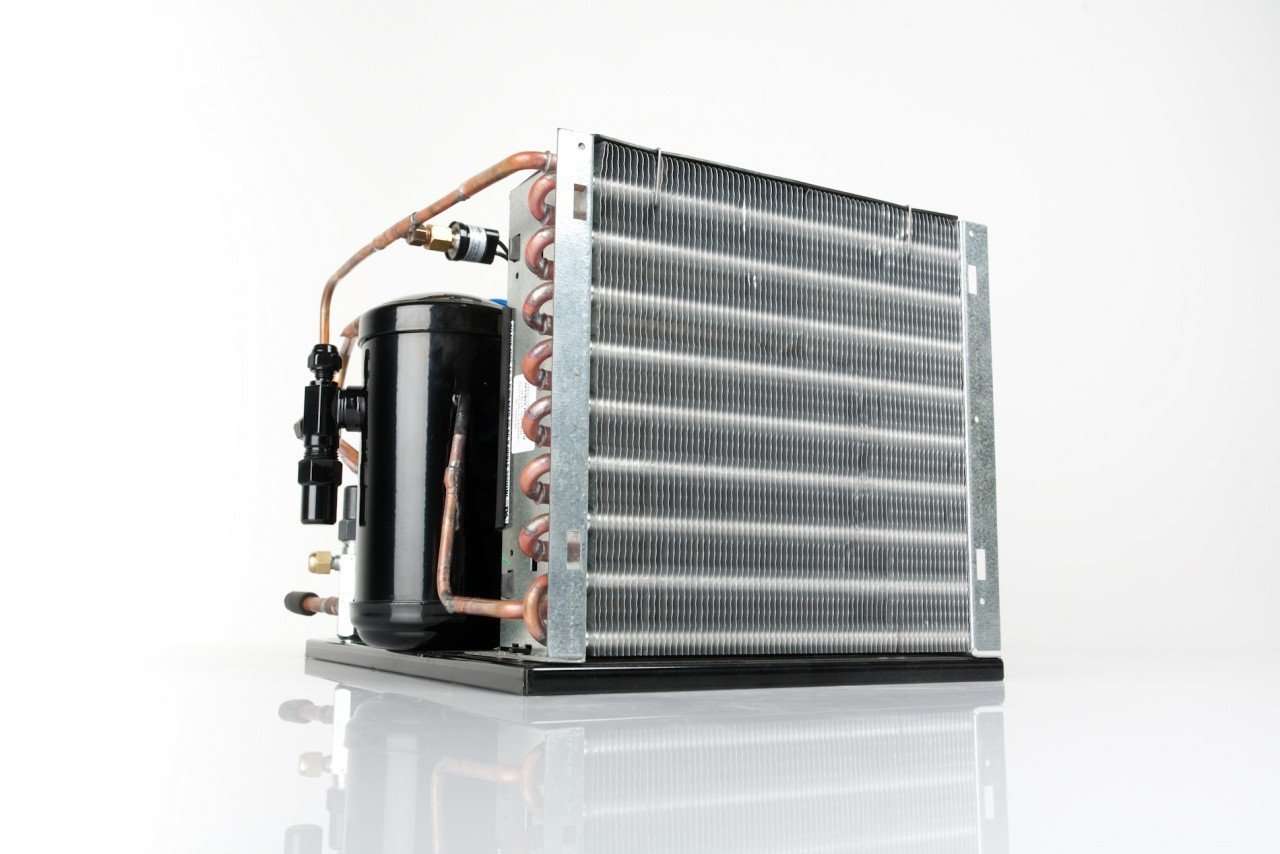

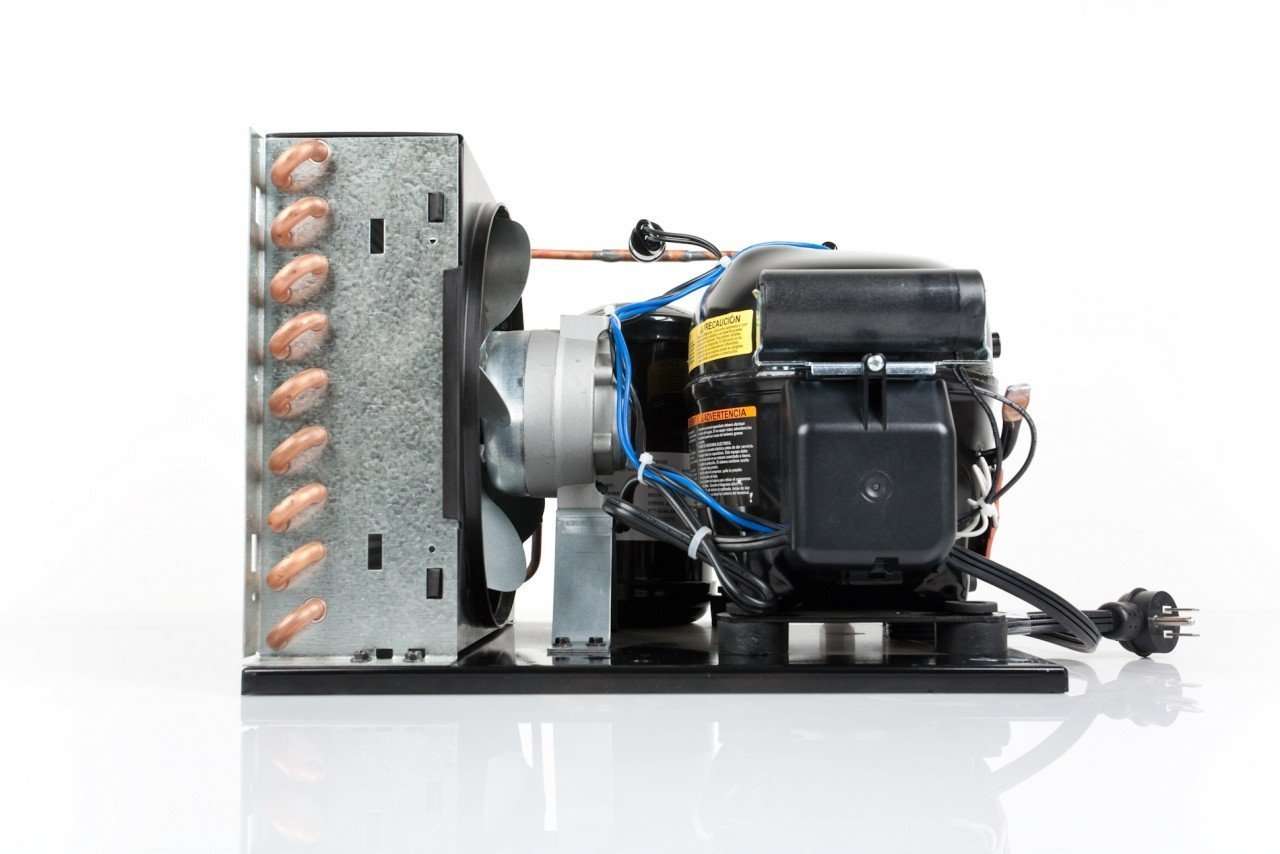

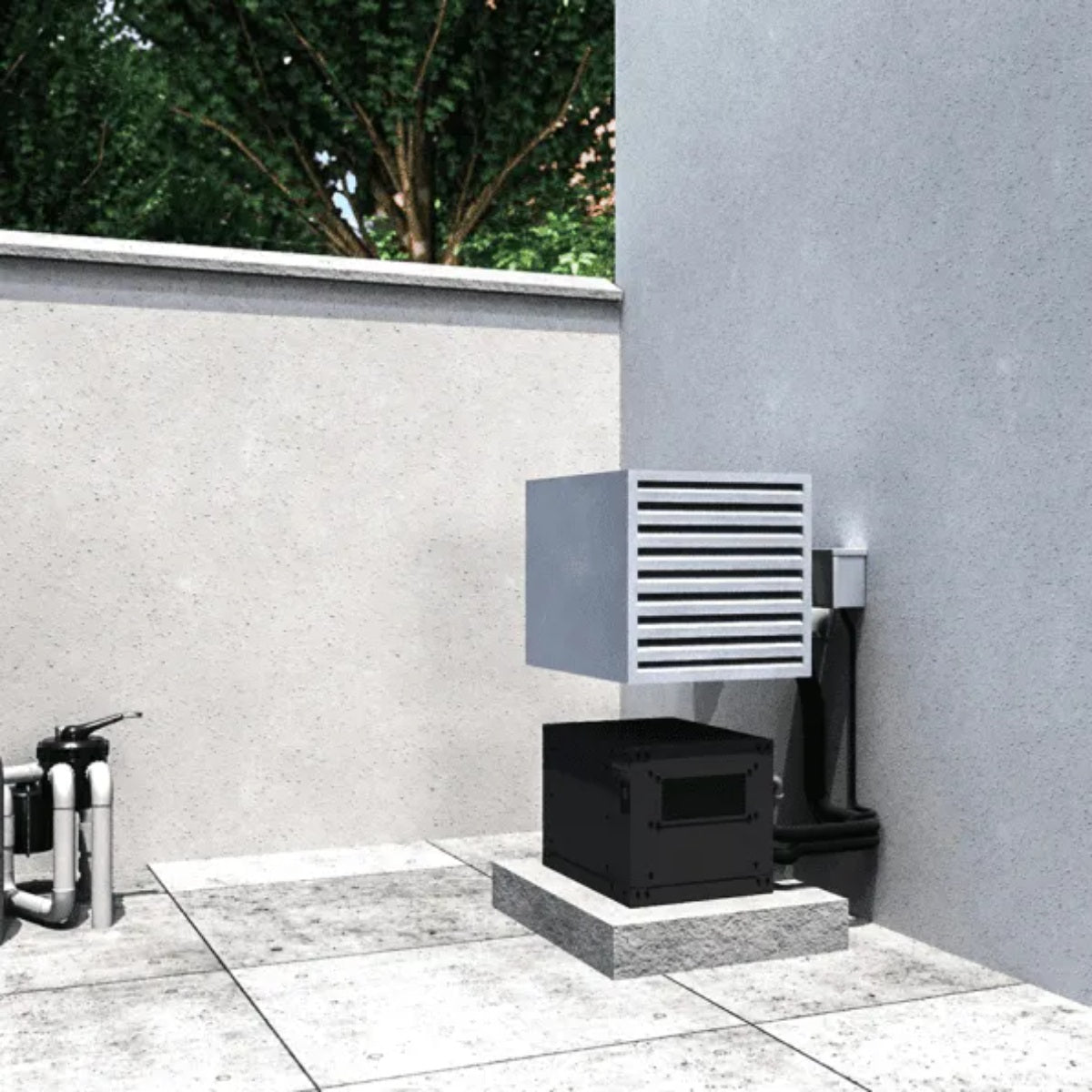

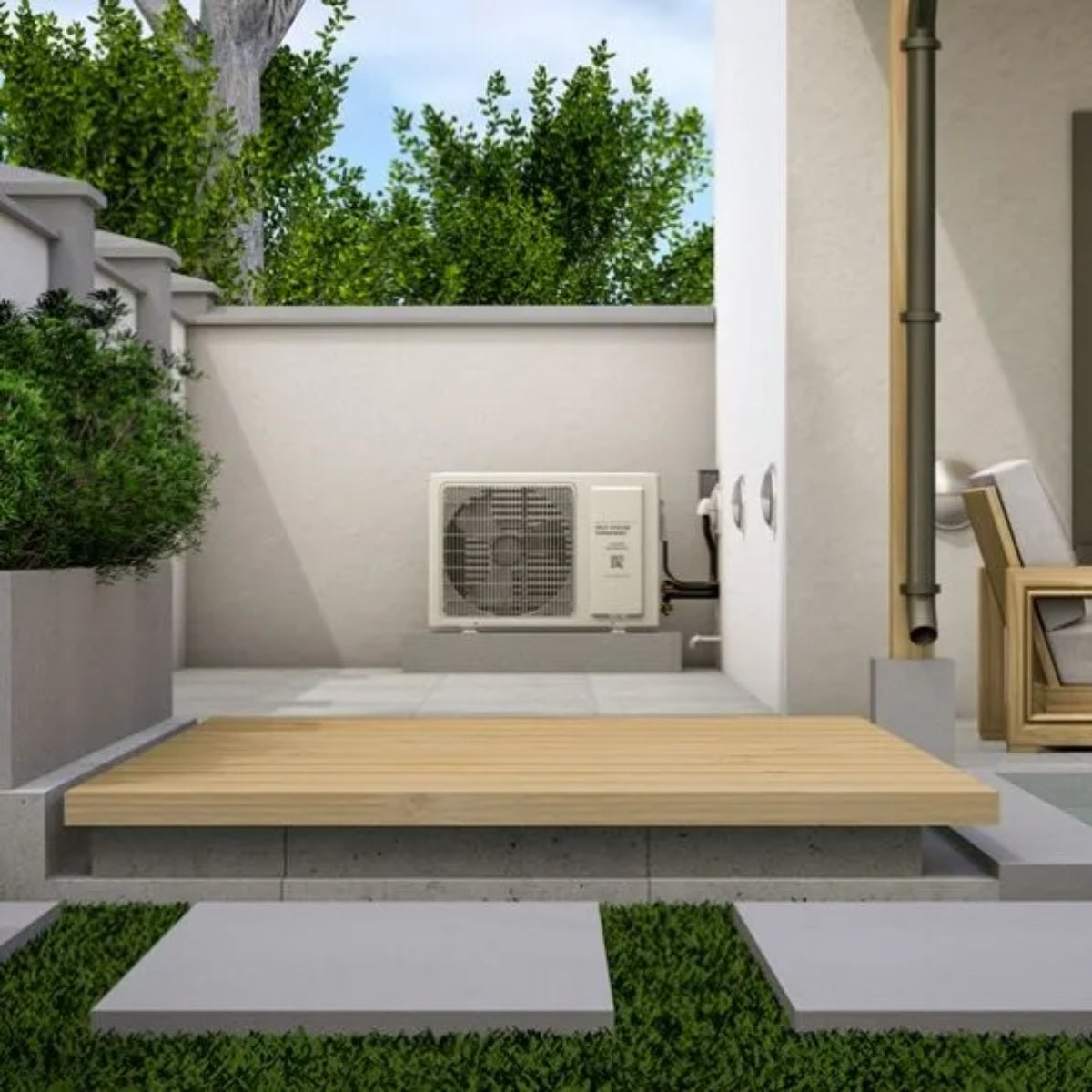

• Installation: Evaporator is installed in the cellar, Condenser is installed up to 100 line ft. away.
• Temp. Delta: 55°F temperature differential

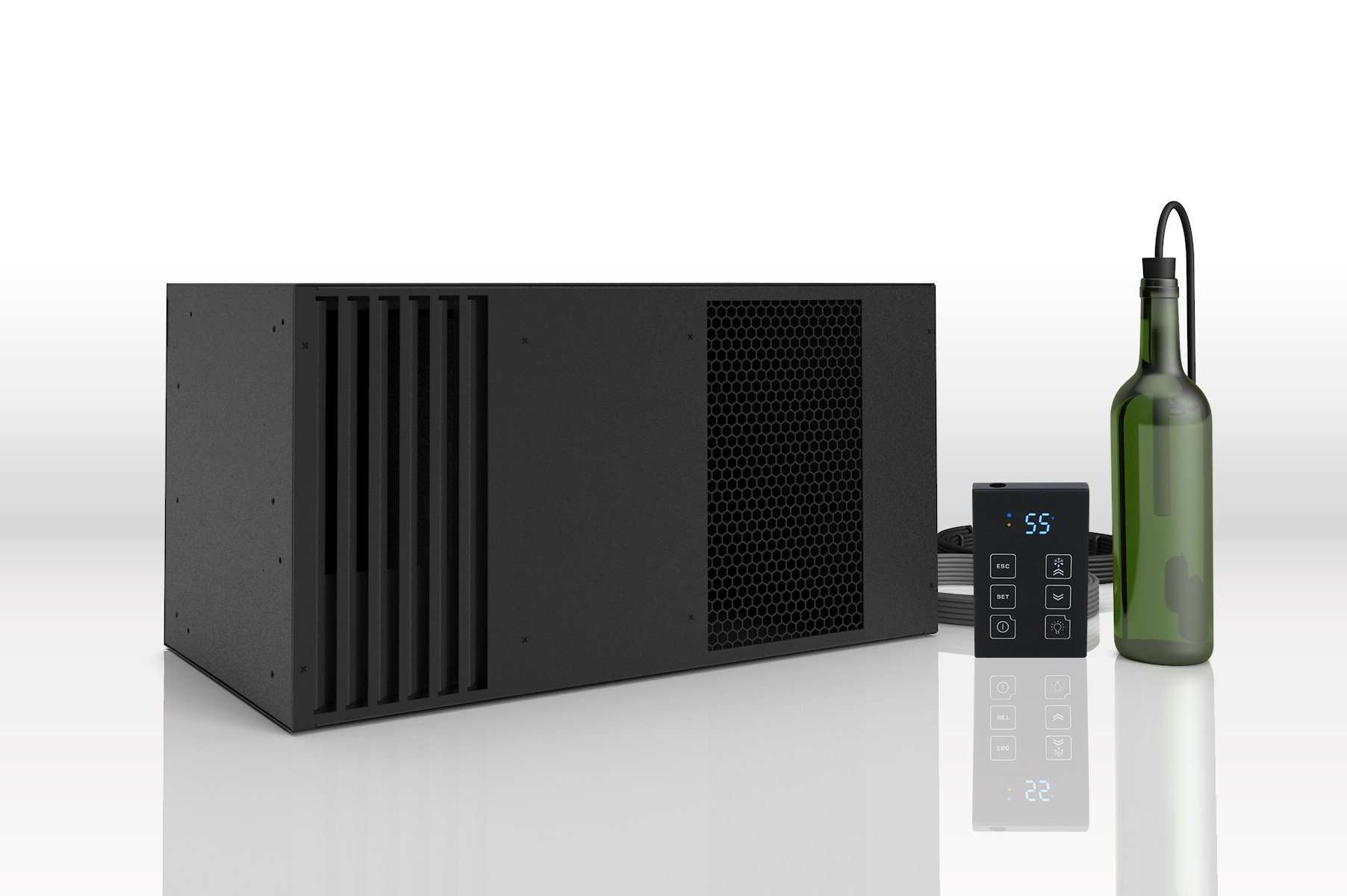

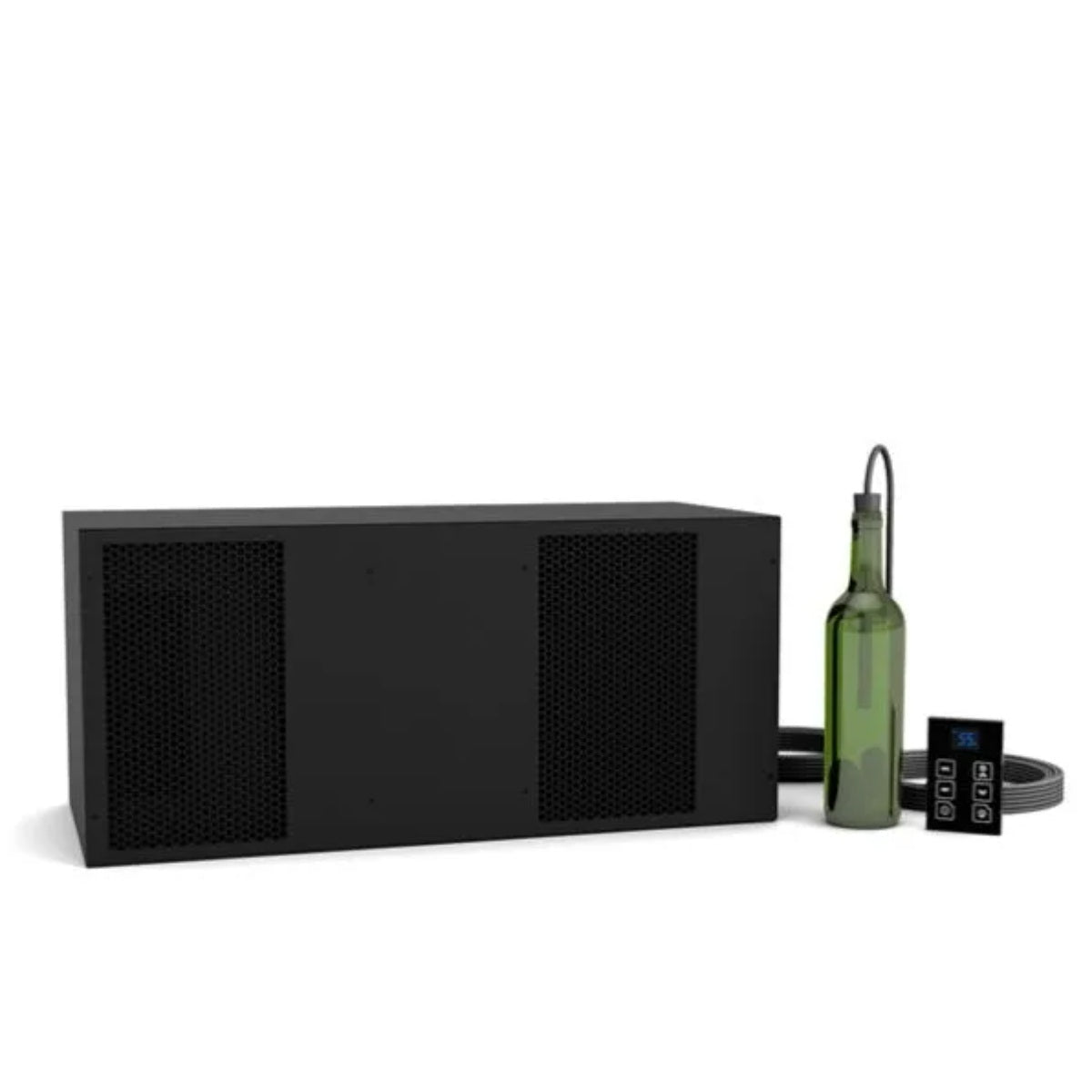

• Thermostat: Digital Control Display
• Warranty: 2 year parts and labor

Note: The systems do not include a line set.

Owners Manual

Detail Sheet

Installation Manual

2 Years Parts and Labor
