WhisperKOOL Phantom 3500 Fully Ducted Wine Cooling System
$6,265.00
Authorized WhisperKOOL Dealer · Full manufacturer warranty · Learn more
In stock · Free shipping in the US. In-stock orders ship within three business days.
Pay over time with Shop Pay Installments or Affirm
Product Details
WhisperKOOL Phantom 3500 for Compact Fully Ducted Wine Cooling
At Wine Cooler Collection, we offer the WhisperKOOL Phantom 3500 Fully Ducted Wine Cooling System, an advanced, fully ducted, self-contained system rated for cellars up to 800 cu ft, delivering reliable, year-round wine storage.

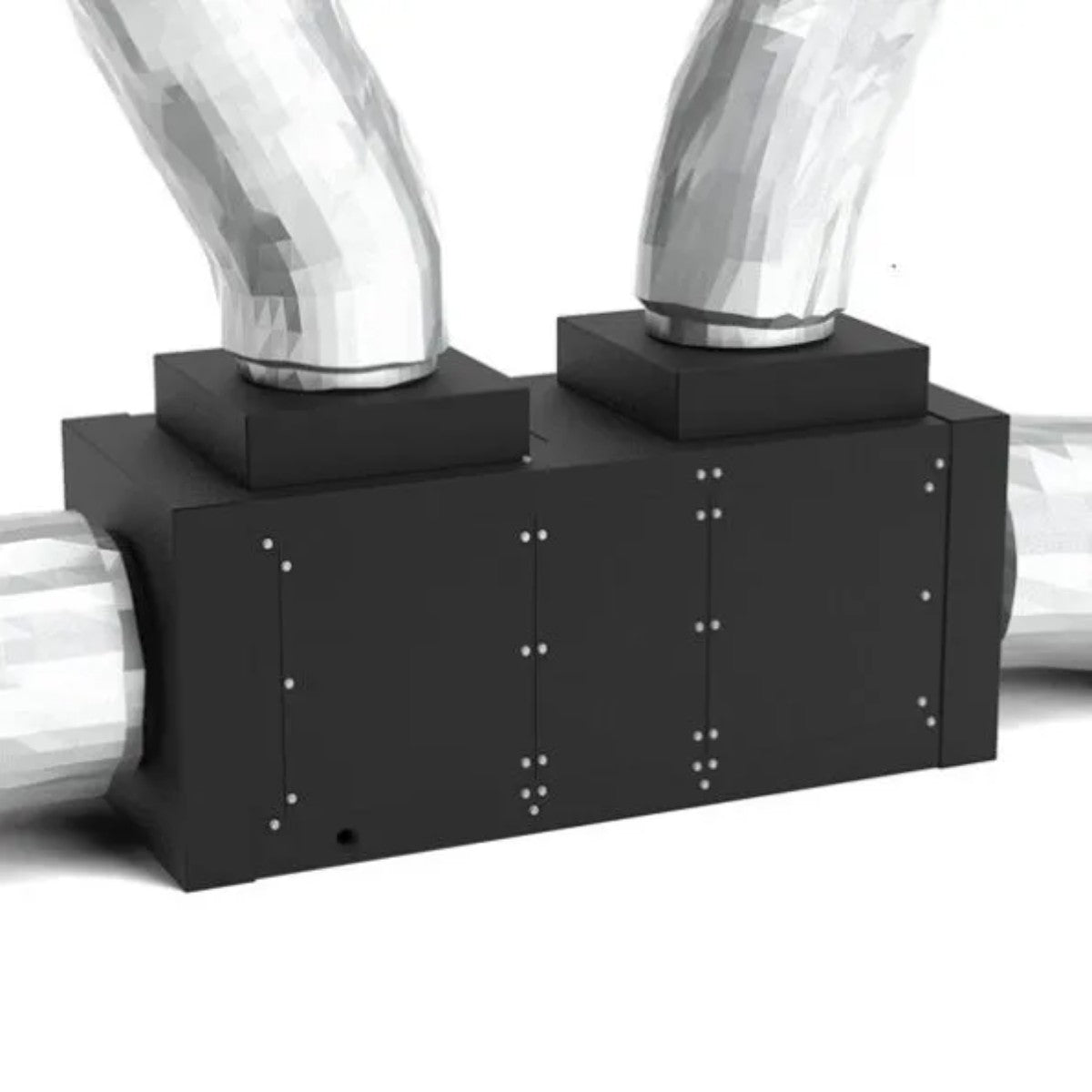

This high-performance system offers an optional UV-C lighting system that helps protect your wine from bacteria and airborne contaminants. With a range of ducting options, the Phantom 3500 offers flexible installation to suit a variety of cellar configurations, making it an ideal choice for both residential and commercial use.
With the included remote KDT Plus controller, you can easily manage and monitor your cellar environment without being on site. The sleek, black powder-coated finish and corrosion-resistant drip tray add a sophisticated touch to the system’s durable construction.
Designed to operate in ambient temperatures up to 110°F, the Phantom 3500 is especially suited for warmer climates or challenging installation conditions. It provides efficient cooling, helping you maintain the ideal wine storage environment without compromising on aesthetics or performance.
BTU/h value range: 4060
<
Phantom 3500 Wine Cooling System Features
- Sound level: WhisperKOOL does not publish a decibel rating for the Phantom line. Ask us and we will put the question to the manufacturer in writing.
- Corrosion-resistant drip tray ensures lasting durability
- Optional UV-C lighting system enhances microbial protection

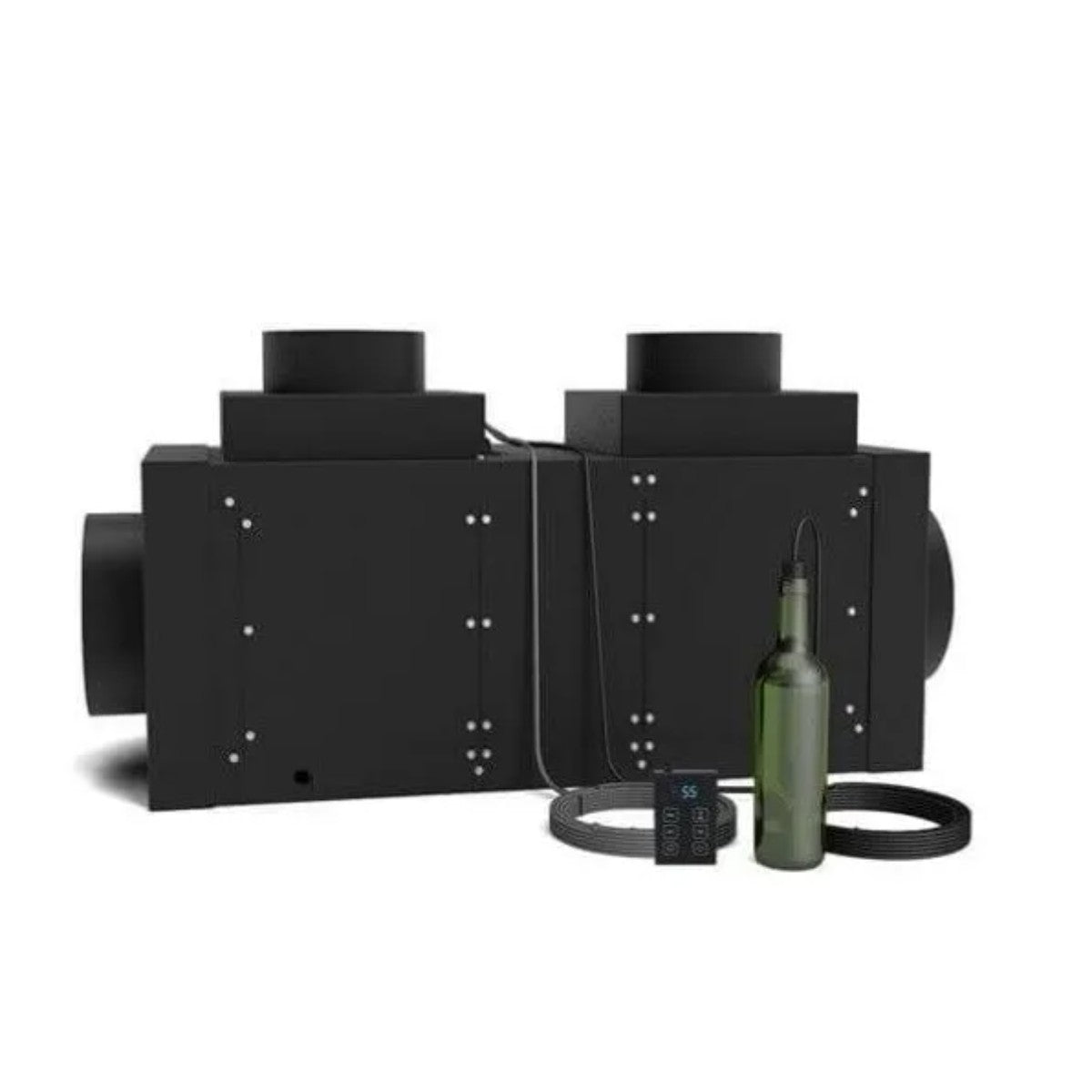

- Includes a bottle probe for precise liquid temperature monitoring
- Quick-access components simplify maintenance and servicing
- Engineered to perform reliably in ambient temperatures up to 110°F
Note: No licensed HVAC-R technician is required. The Phantom 3500 is self-contained, with supply and return ducted to the cellar, so there is no field refrigerant work.

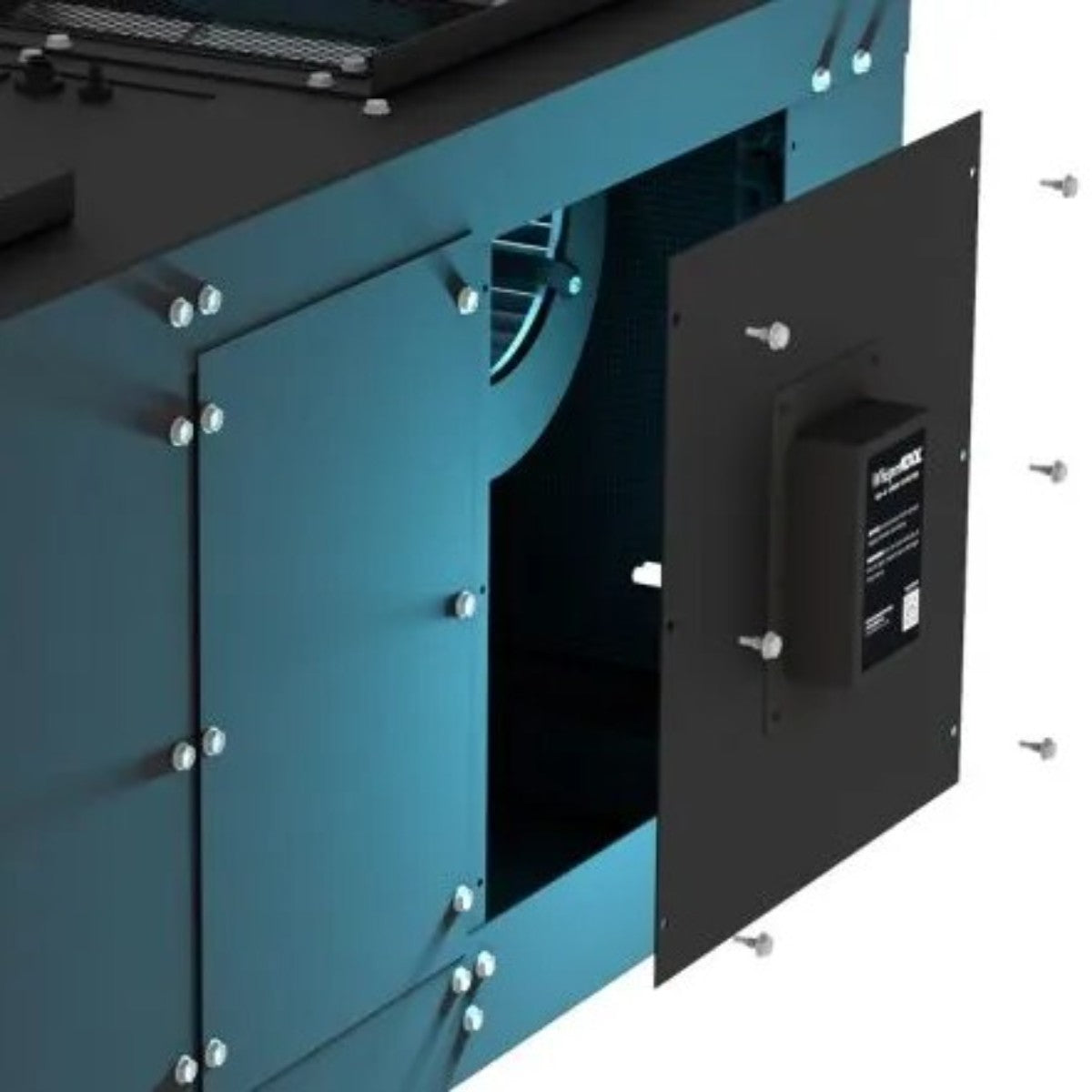

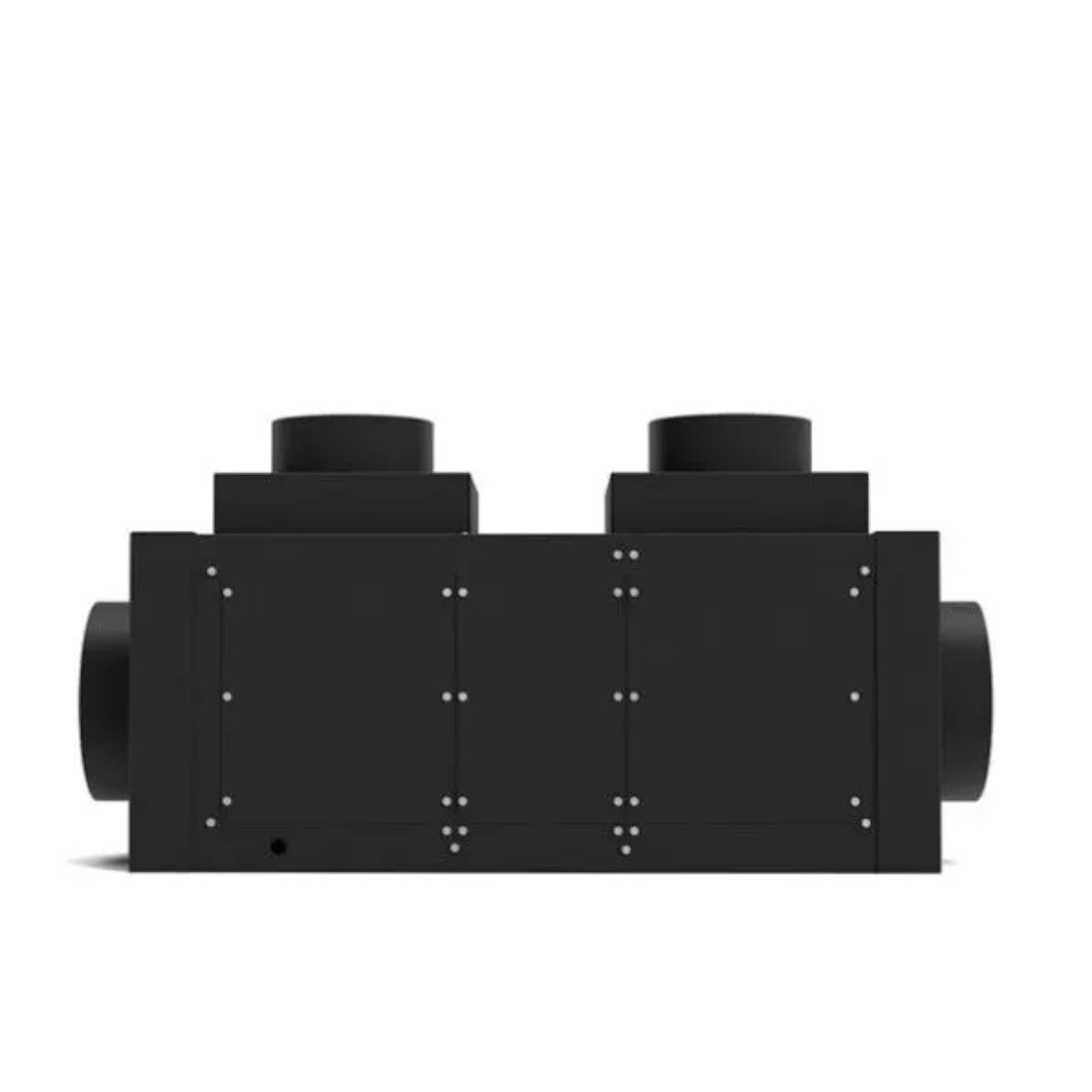

*PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
Phantom 3500 Wine Cooling System 3D Tour

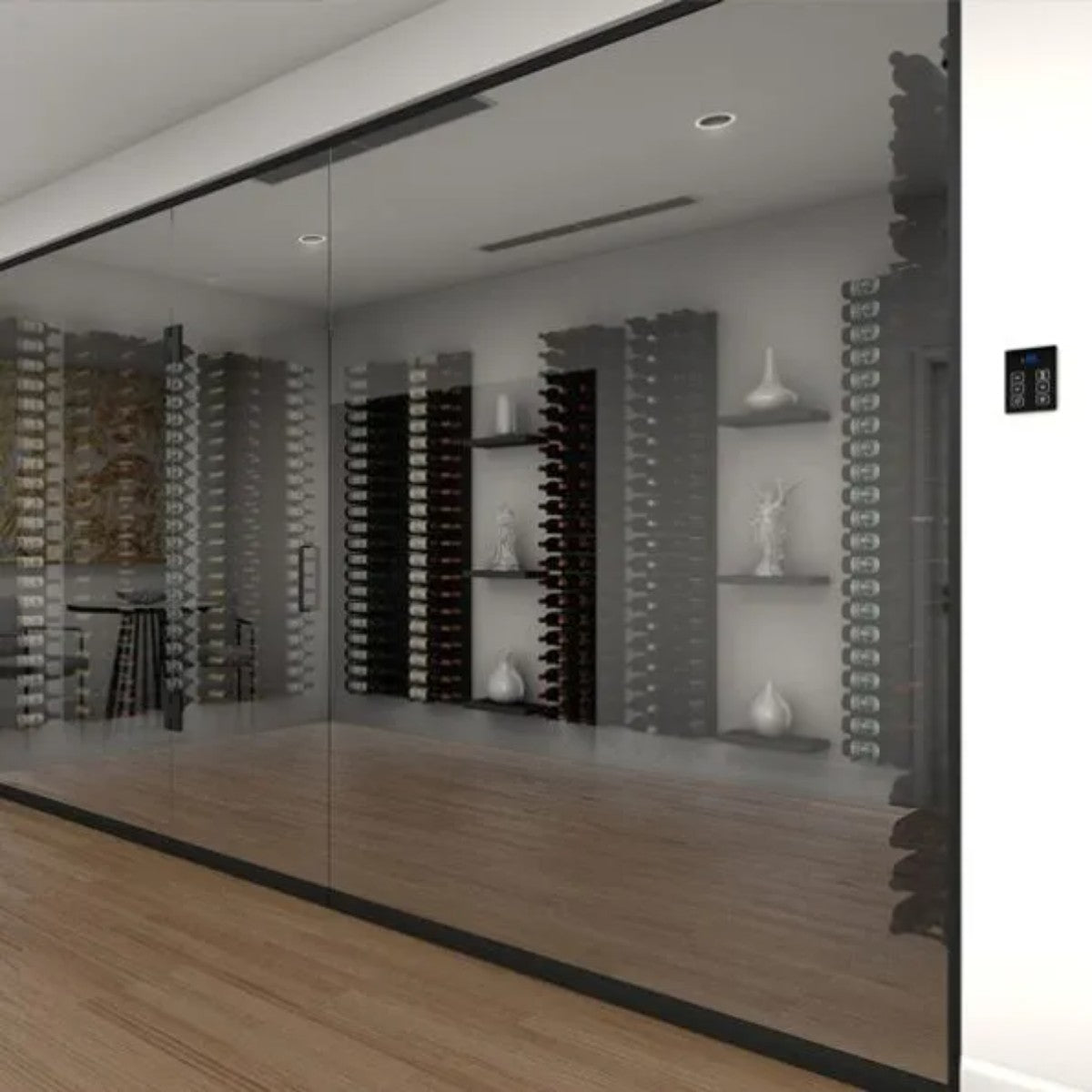

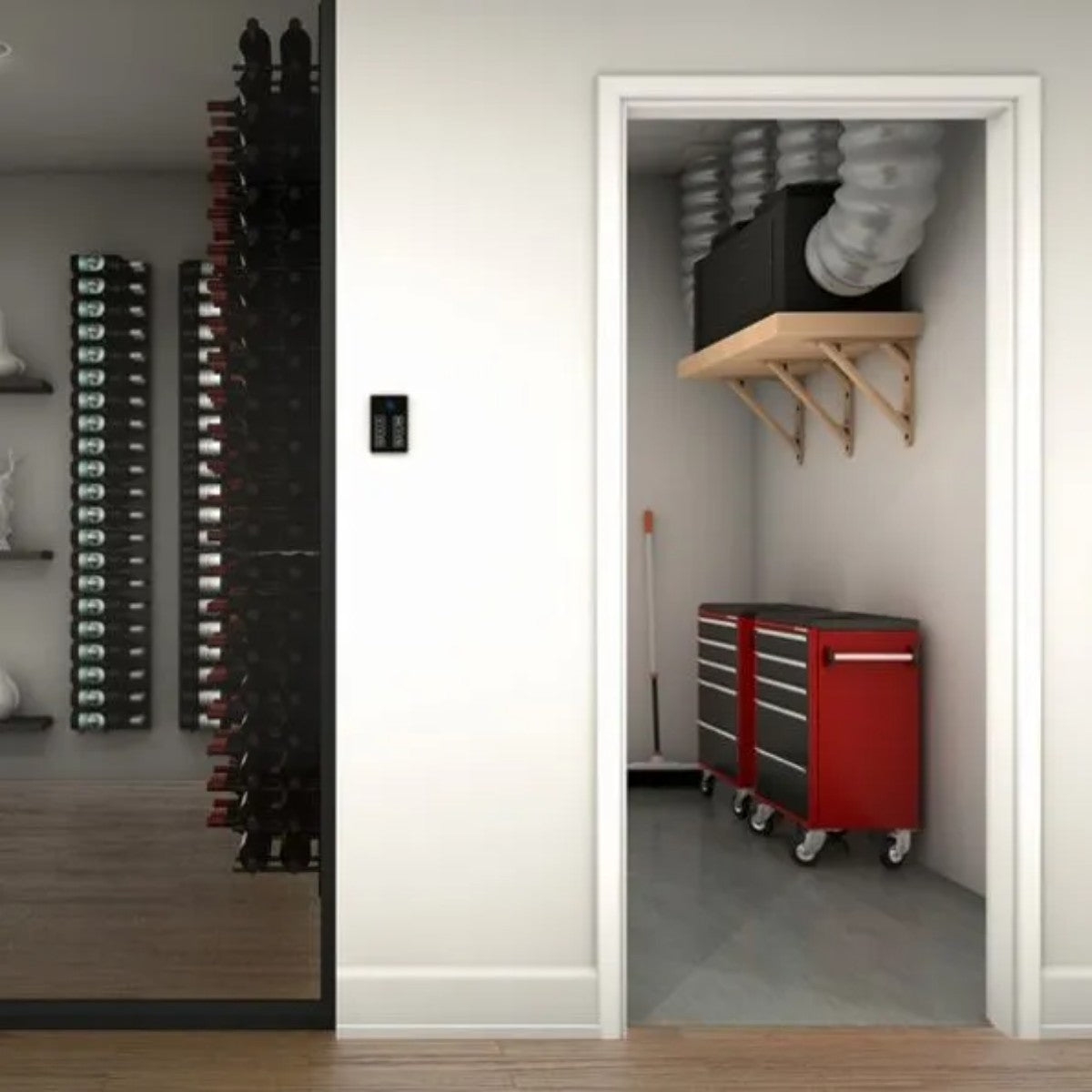

Explore the wine cellars in stunning detail with our 3D tour, step inside a modern home and see how each cabinet sits out of sight in a mechanical room, connected to the cellar by ducting run up to 25 feet away.
Phantom 3500 Wine Cooling System: UV-C Lighting System Option
Eliminate harmful microbes and enhance air quality with the UV-C Lighting System Option, an extra layer of protection for your wine cooling setup!
*Please note: This feature will need an additional 4 inches of clearance on the side of the unit. See the owner manual for more information.
Phantom 3500 Wine Cooling System Technical Specifications
| Model | Phantom 3500 |
| Cellar Size | 800 cu. ft.* |
| BTU/h (85°F condenser air intake temperature) | 4060 |
| CFM | 326 with blowers in top orientation | 312 with blowers in side orientation |
| Dimensions | 37”L x 15.75”H x 15.75”W (without duct plenums); 48”L x 22.75” H x 15.75”W (duct plenums on top of unit); 15.75” H x 22.75”W (duct plenums on side of unit) |
| Refrigerant | R-134a |
| Horsepower | 1/4 HP |
| Voltage Rating | 115V (20 amp dedicated circuit required) |
| Weight (lbs) | 115 |
| Amps | 6 (running amps) |
| Duct SIze | 10” return | 8” supply (evaporator and condenser) |
| Drain Line | 1/2” ID clear plastic tubing (10 feet provided) |
| Installation | Can be installed up to 25 duct feet away from cellar |
| Thermostat | Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable) |
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature |
| Warranty | 2 years parts and 2 years labor, from WhisperKOOL. |
Phantom 3500 Wine Cooling System Product Warranty
Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty.
Warranty: 2 years parts and 2 years labor, from WhisperKOOL.
WhisperKOOL Phantom 3500 Fully Ducted Wine Cooling System Product Manuals
Need Expert Advice?
Our team is here to help. Reach out by phone or email for personalized assistance.
Phone: 1-866-430-2877
Email: support@winecoolercollection.com
Shipping & Returns
Shipping
- Free shipping on all orders within the United States.
- In-stock orders ship within three business days of the order date.
- Shipping confirmation is emailed within 24 hours of your order leaving the warehouse.
- If an item is on back-order or unavailable, we void the pre-authorization and email you before any charge is taken.
- Delivery is Standard Door to Door Freight Service.
- Free shipping does not cover White Glove service, where the crew unpacks the unit, places it, and removes the packaging. Ask at checkout to upgrade.
- We cannot ship to a P.O. box.
- Alaska, Hawaii, Puerto Rico, APO/FPO and international: email support@winecoolercollection.com for current rates.
Returns & damage
- 30 days from receipt, for any reason.
- Items must arrive back in “Like New” condition with all original packaging and accessories.
- Return shipping is the customer’s responsibility. Defective, damaged or incorrect items ship back at our cost.
- Inspect the packaging at delivery. Note any damage when you sign, and email photos to support@winecoolercollection.com the same day.
Reviews
Complete the install
Recommended with this system
Parts listed by the manufacturer for this series. Specify them with the unit order so they ship together.

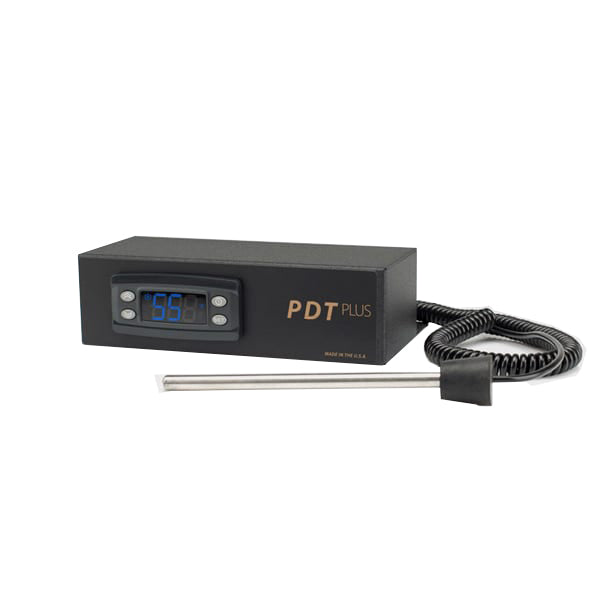

WhisperKOOL PDT Plus
