WhisperKOOL Platinum Split 8000 Wall Mounted Wine Cellar System
$7,995.00
Authorized WhisperKOOL Dealer · Full manufacturer warranty · Learn more
Condenser Type: 110V (Omega Condenser)
Installation: this is a split system and requires a licensed HVAC-R technician to install and commission. WhisperKOOL states that failure to have the system installed by a qualified technician will void the warranty. Budget that labour alongside the unit.
In stock · Free shipping in the US. In-stock orders ship within three business days.
Pay over time with Shop Pay Installments or Affirm
Product Details

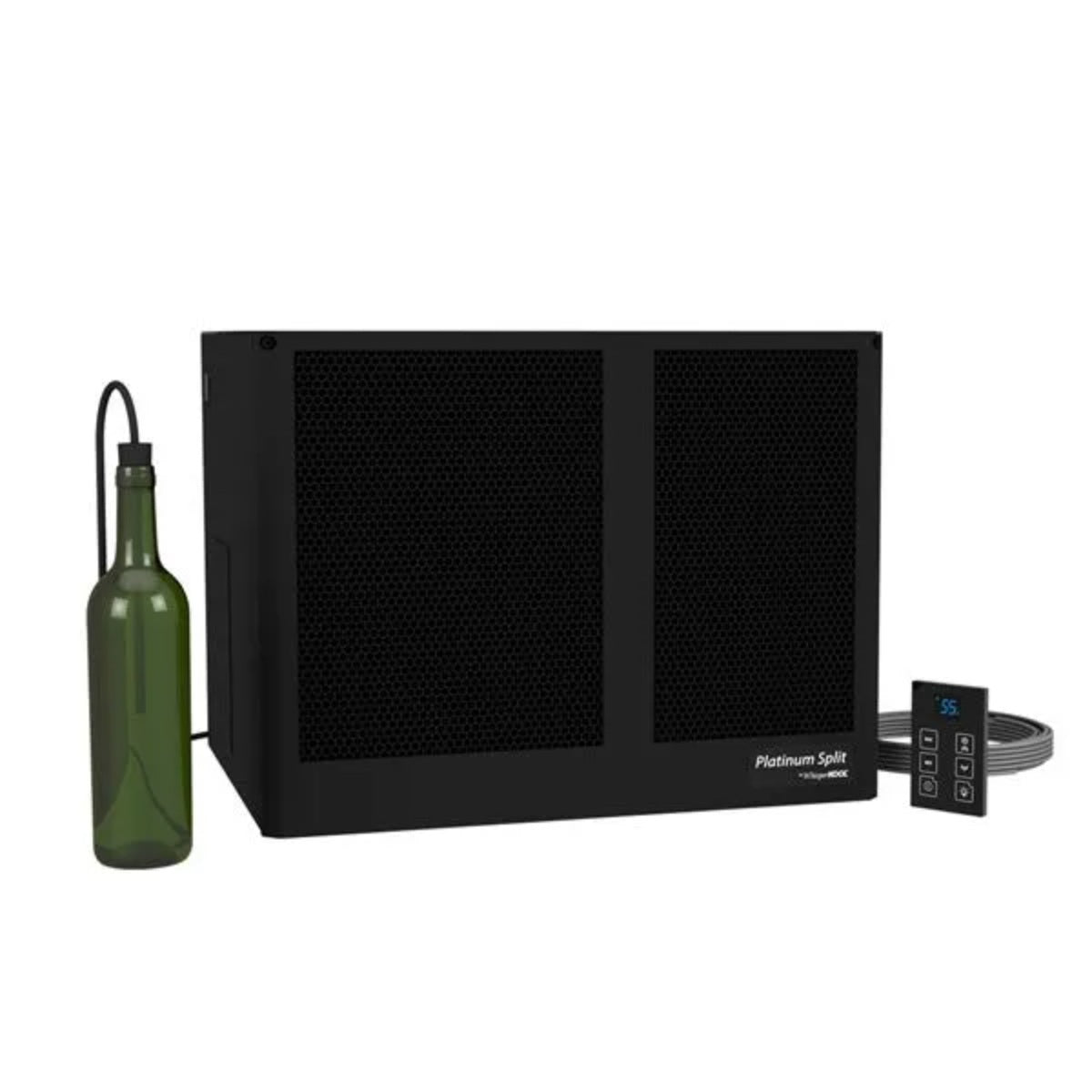

WhisperKOOL Platinum Split 8000: Premium Wall-Mounted Wine Cellar Cooling
The WhisperKOOL Platinum Split 8000 Wall Mounted Cooling System cools cellars up to 1,750 cu ft, available now at Wine Cooler Collection.
Engineered for reliable, efficient cooling, this system features an advanced electronic control system and a 2-speed fan switch, giving you full control over BTU output. The included KDT Digital Controller with 50-ft. cable lets you monitor and manage your cellar from a distance.

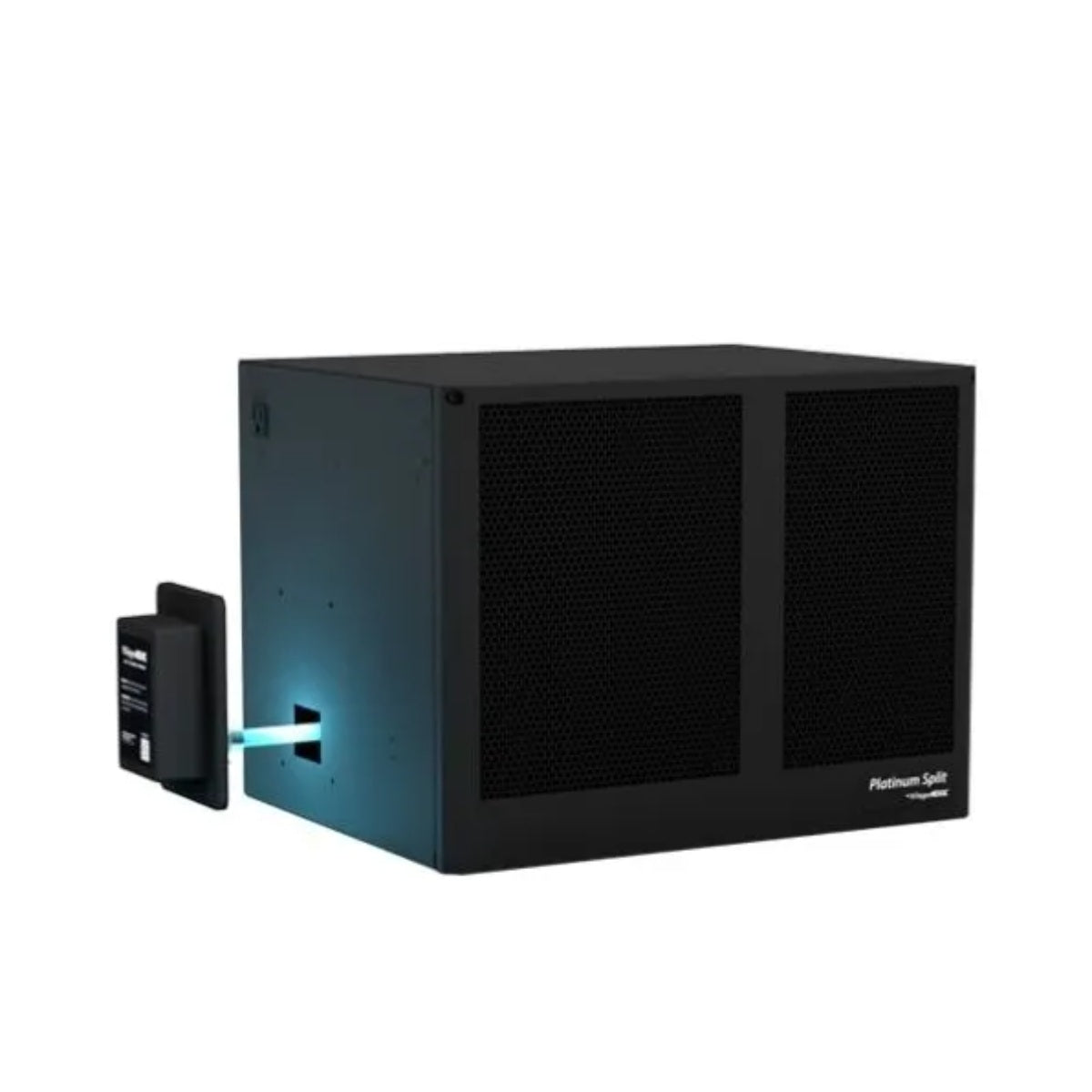

Designed for wall-mounted installation, this system ensures optimal air circulation, running at 56 dBA at the evaporator on medium and 62 dBA on high. Add the optional UV-C lighting to guard against bacteria and microorganisms, ensuring your wine matures in a clean, stable environment.

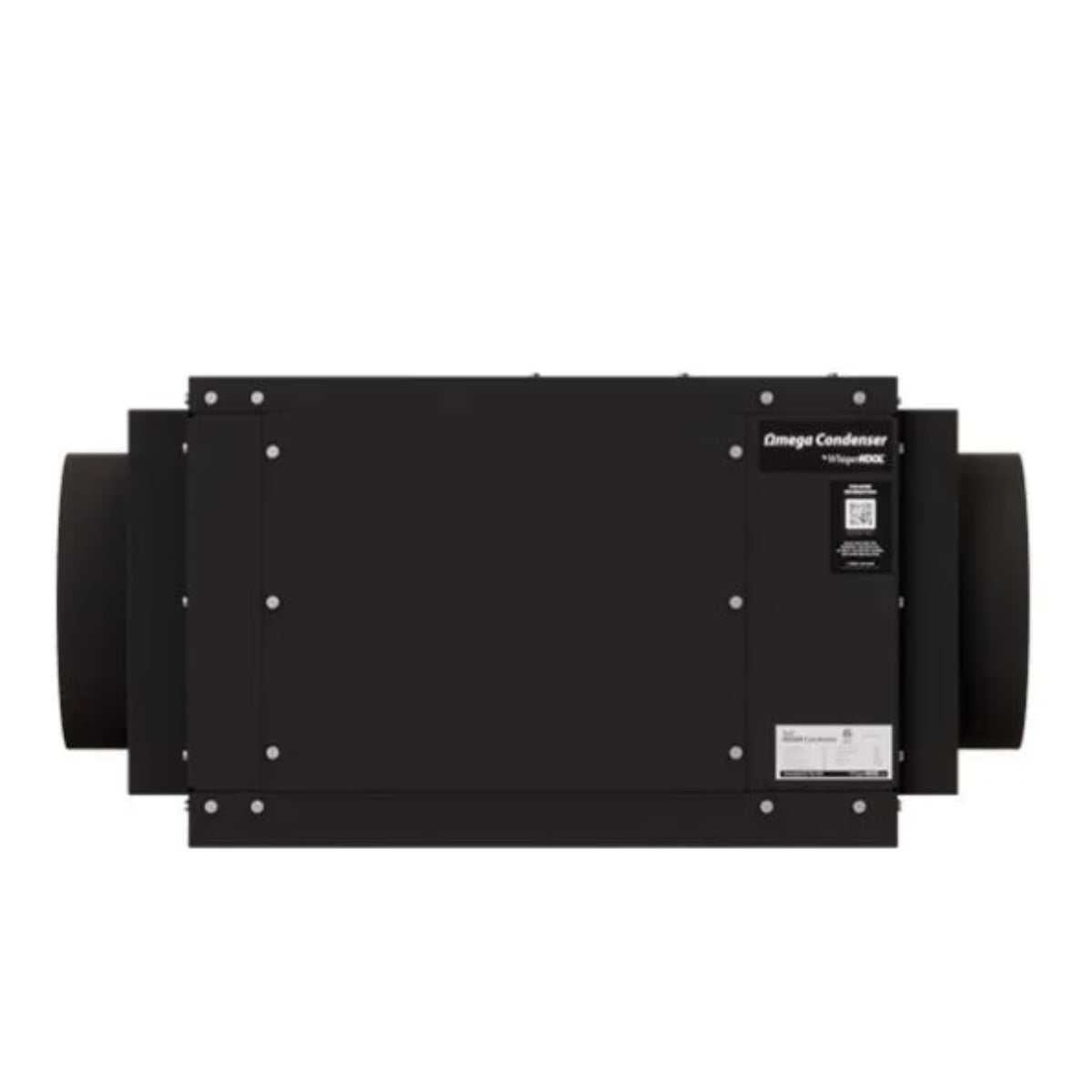

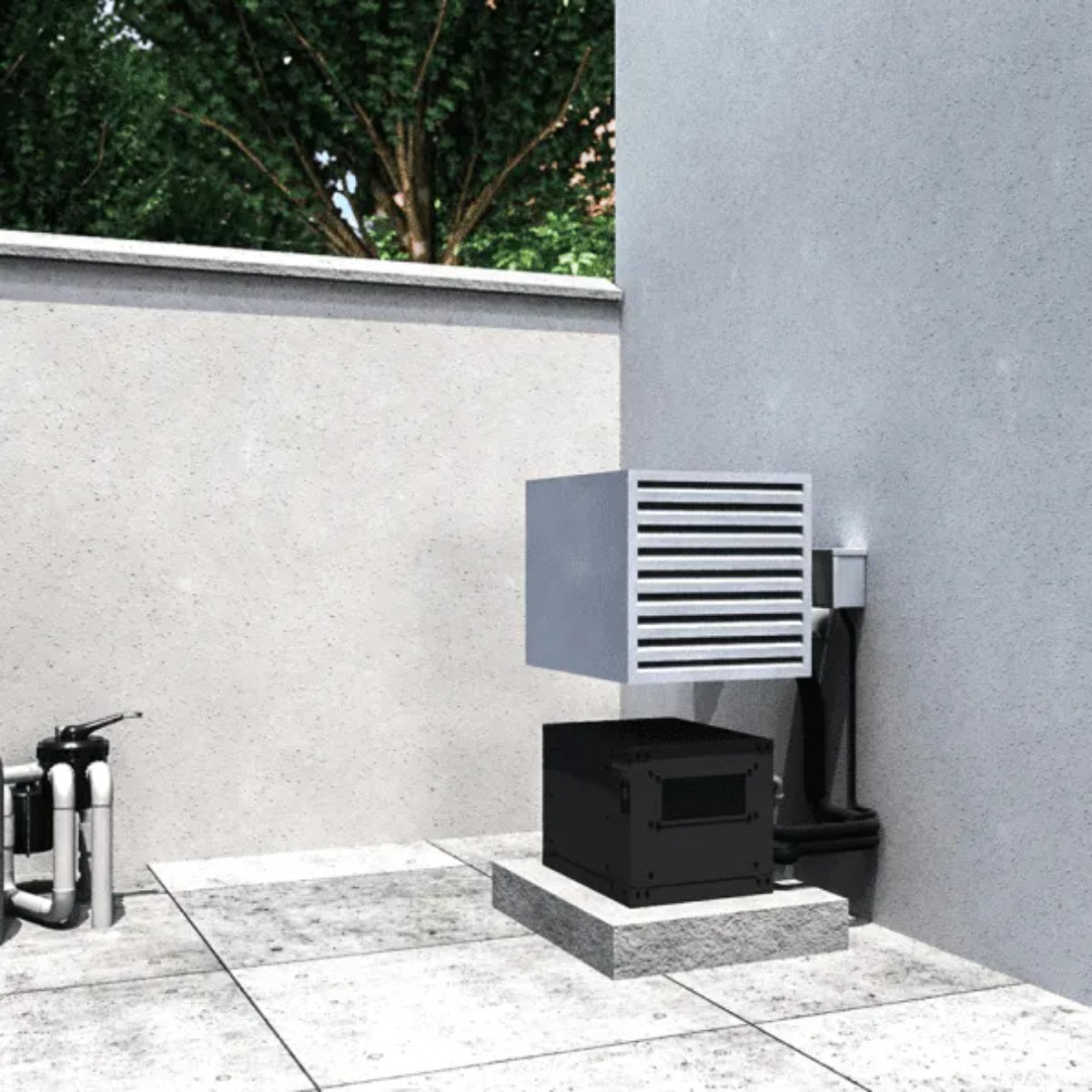

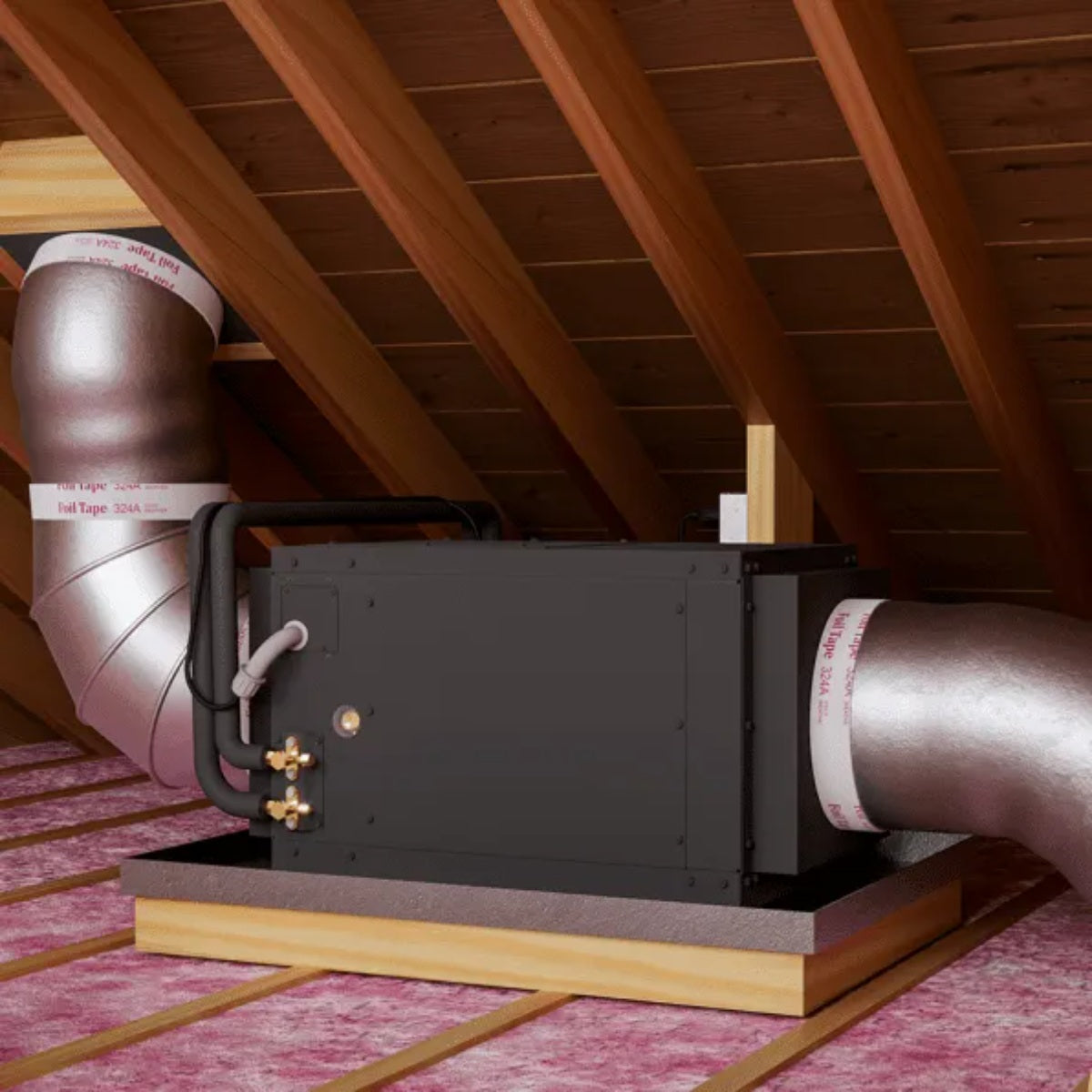

Choose the 110V Omega Condenser for versatile performance or upgrade to the 220V High Efficiency (H.E.) Condenser for enhanced energy savings and cooling power. Both options offer dependable operation, keeping your wine in pristine condition year-round.
BTU/h value range: 3576 – 4834
The WhisperKOOL Platinum Split 8000 Wall Mounted pairs a compact evaporator with a condenser sited up to 100 feet of line set away. Available only at Wine Cooler Collection.
Platinum Split 8000 Wall Mounted System Features
- 56 dBA at the evaporator on medium, 62 dBA on high
- Flare fittings, which shorten the line-set work for your installing technician
- Standard and 24V thermostat options available
- Optimized efficiency by drawing in warmer air that accumulates near the ceiling, then cooling and circulating it evenly throughout the environment
- 55°F temperature differential between the cellar and the condensing unit’s air intake
Note: A qualified HVAC-R technician is required for the installation of Platinum Split 8000 systems. Failure to have the system installed by a qualified technician will void the warranty.
*PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.

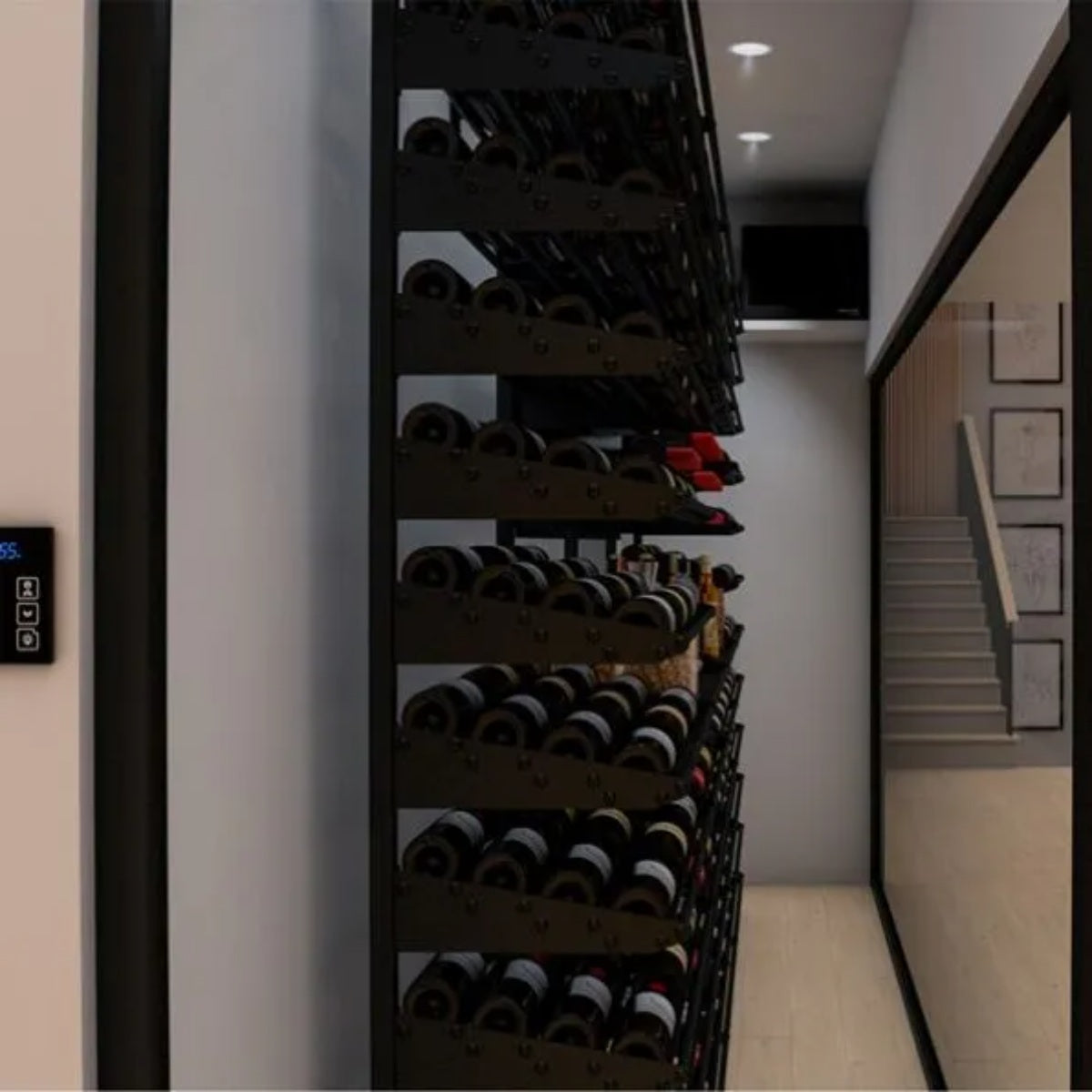

WhisperKOOL Platinum Split 8000 Wall Mounted System 3D Tour

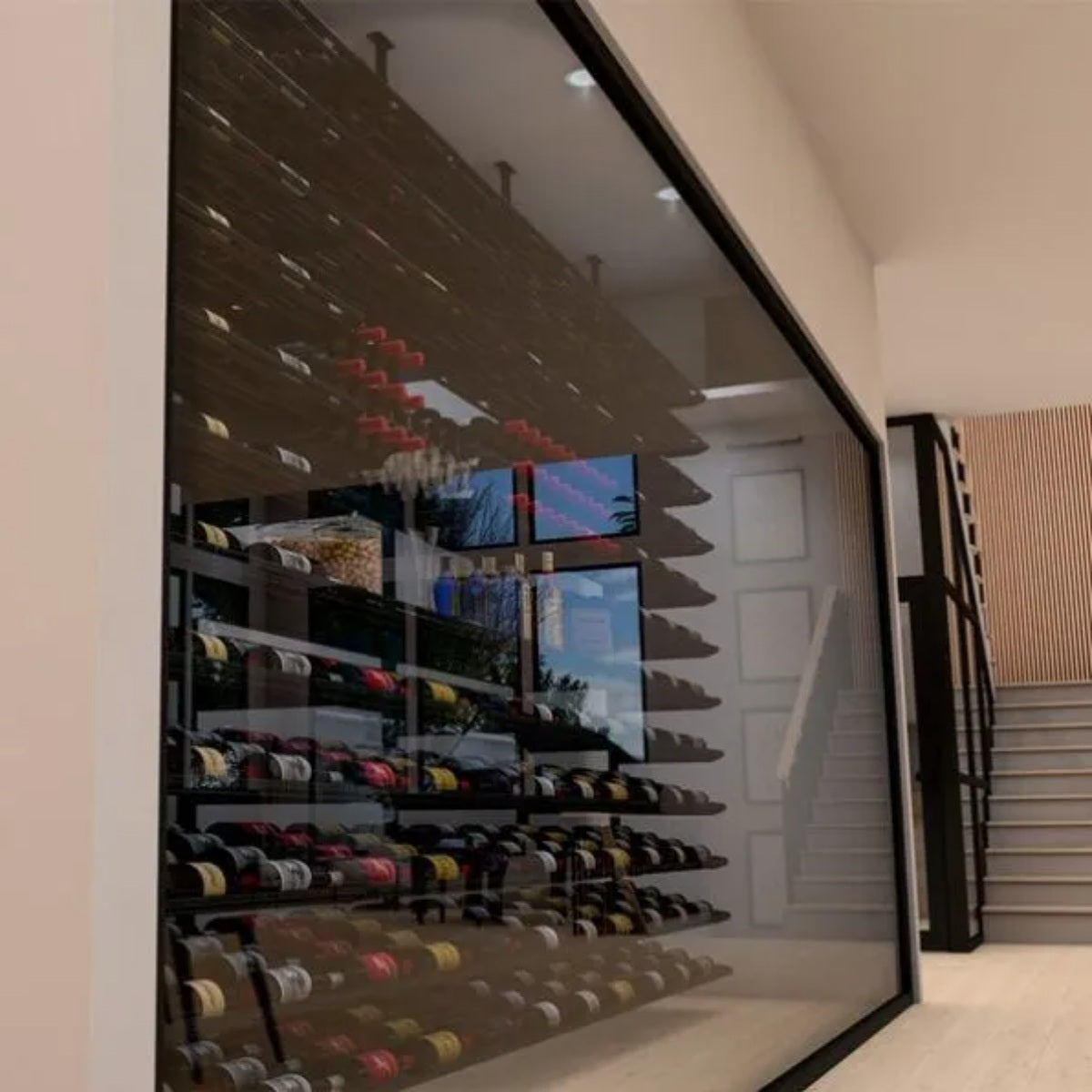

Explore the wine cellars in detail with our 3D tour. Step inside a modern home and see how each unit sits within a finished living space.

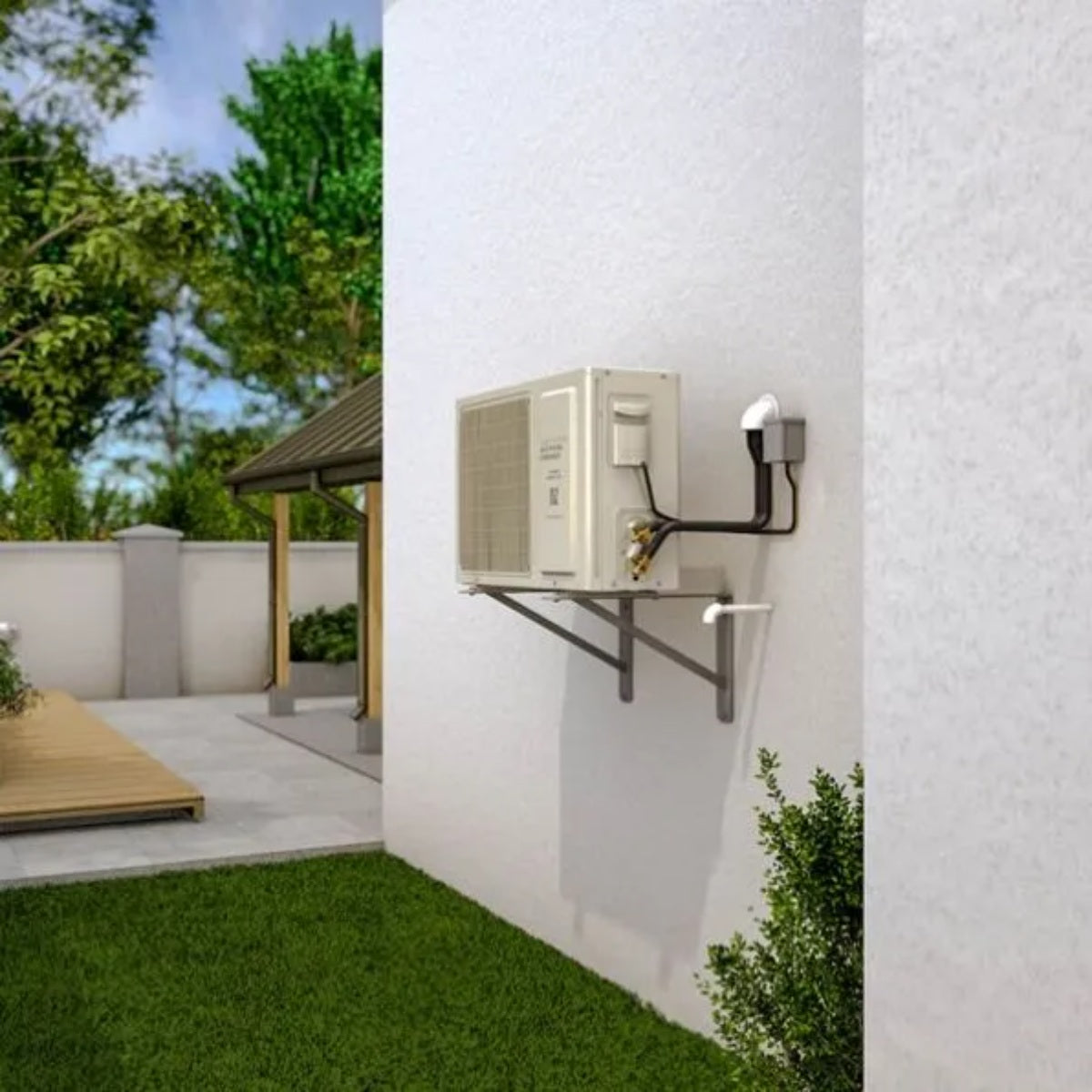

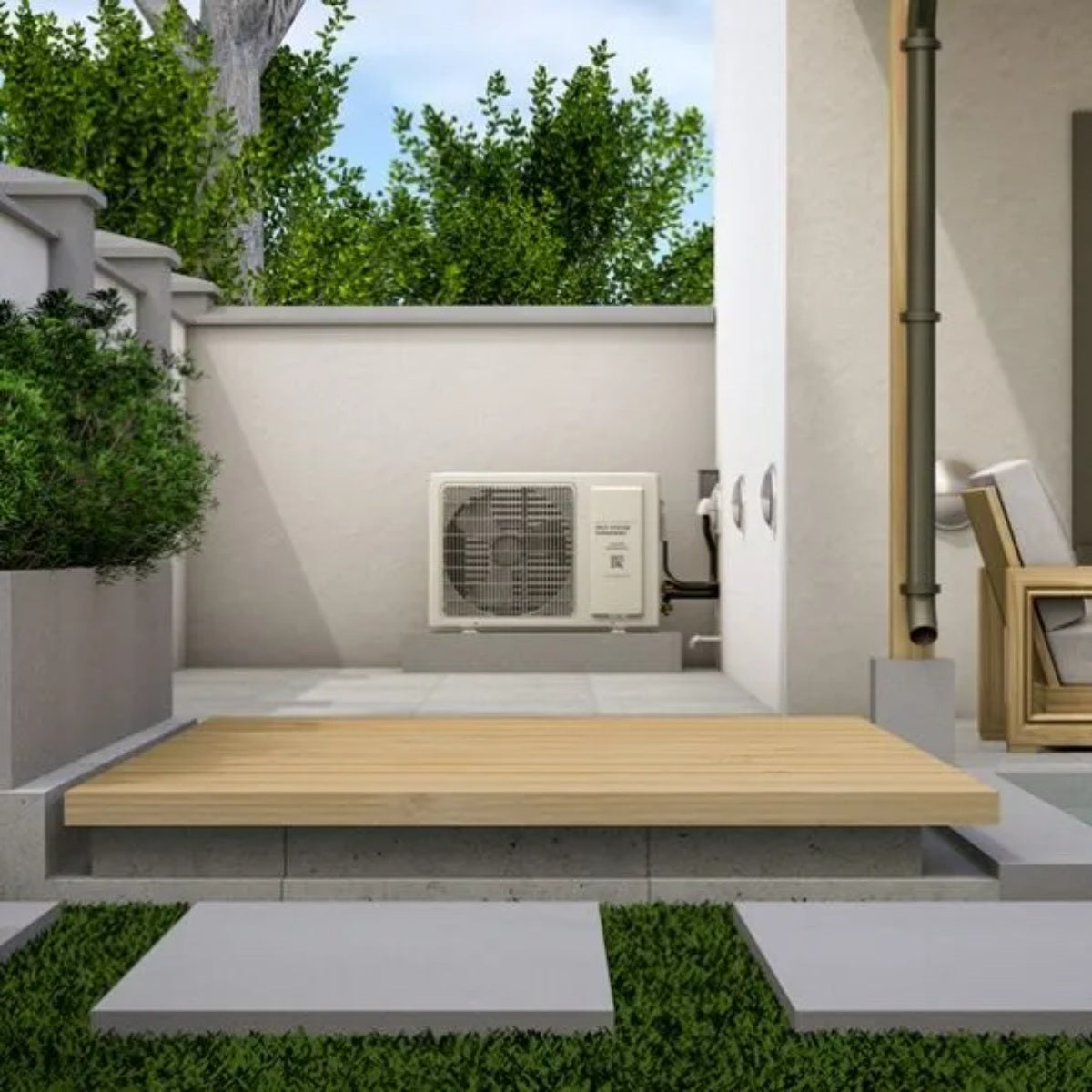

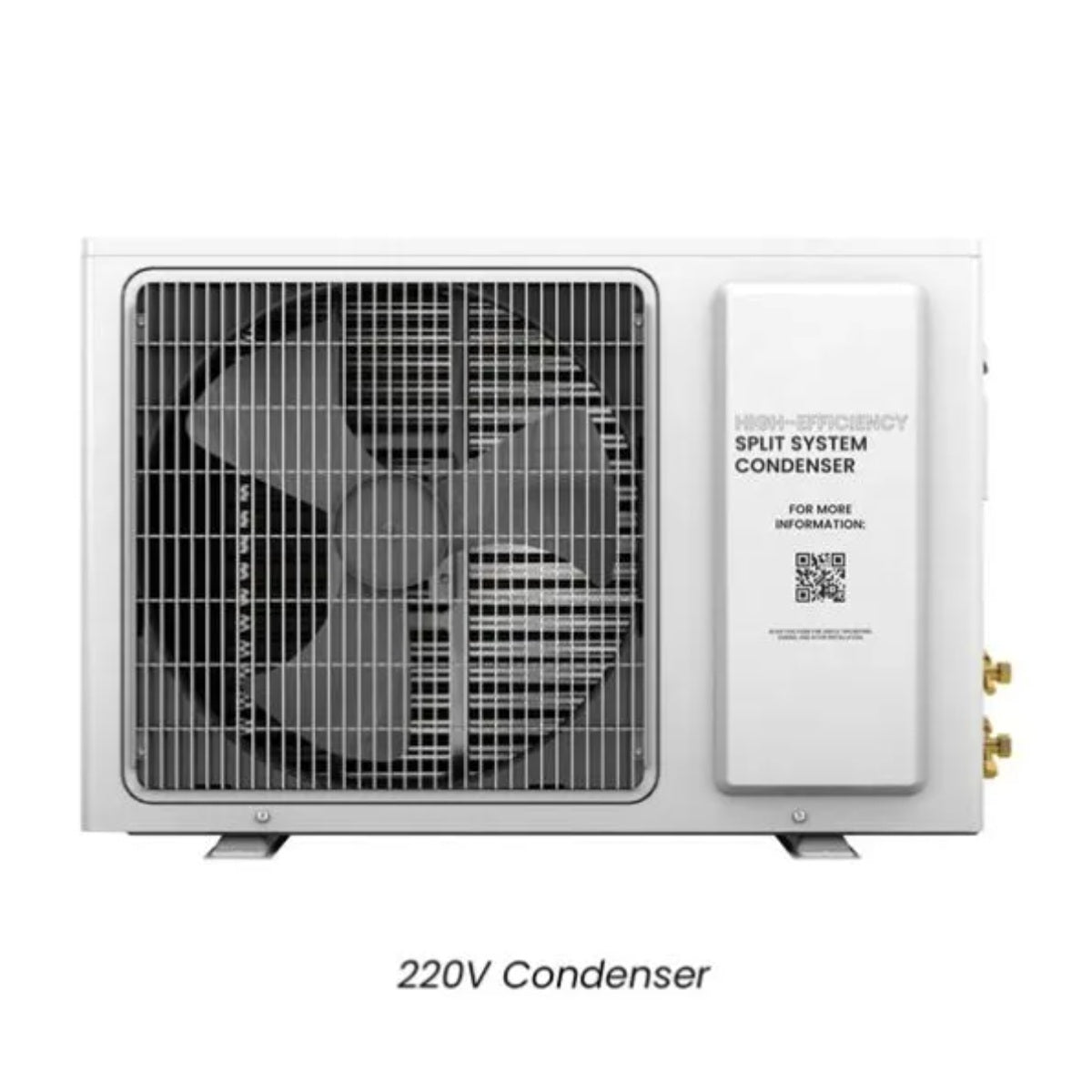

Comparing the 220V High Efficiency Condenser to the 110V Condensing Unit
The 220V High Efficiency Condensers offer a host of advantages over the traditional 110V condensers, including simplified installation, lower operating noise, energy efficiency, and the ability to operate in extreme climates.
For more information about the latest Split-System innovation, please watch the following video.
Platinum Split 8000 Wall Mounted System Technical Specifications
| Model | Platinum Split 8000 |
| Cellar Size | 1750 cu. ft * |
| BTU/h (60°F condenser air intake temperature) | Medium: 4814 / 5687 • High: 5133 / 5777 |
| BTU/h (75°F condenser air intake temperature) | Medium: 4455 / 4997 • High: 4607 / 5012 |
| BTU/h (85°F condenser air intake temperature) | Medium: 4370 / 4834 • High: 4577 / 4982 |
| CFM | 270 |
| dbA | (Medium) EVAP - 56 • COND - 46, (High) EVAP - 62 • COND - 52 |
| Dimensions | Evaporator: 16.1”L x 20.5”W x 15.5”H • Condenser: 23”L x 15.75”W x 15.3H |
| Refrigerant | R-134a |
| Horsepower | 0.5+ HP |
| Voltage Rating | Evaporator: 120V (15-amp dedicated circuit required) • Condenser: 120V with the 110V H.E. Omega, or 220V with the Advanced H.E. Confirm which condenser your order includes before any electrical work is scheduled, as the warranty does not cover damage caused by an improper voltage supply. |
| Weight (lbs) | Evaporators: 54 • Condensing Unit: 86 |
| Amps | Evaporator: 2.2 (Running Amps) • Condenser: 9.5 |
| Line Set | Liquid line 1/4” OD; Suction line 1/2” OD (less than 50 ft.), 5/8” (greater than 50 ft.) |
| Drain Line | 1/2" ID clear plastic tubing (not provided) - Rigid tube recommended |

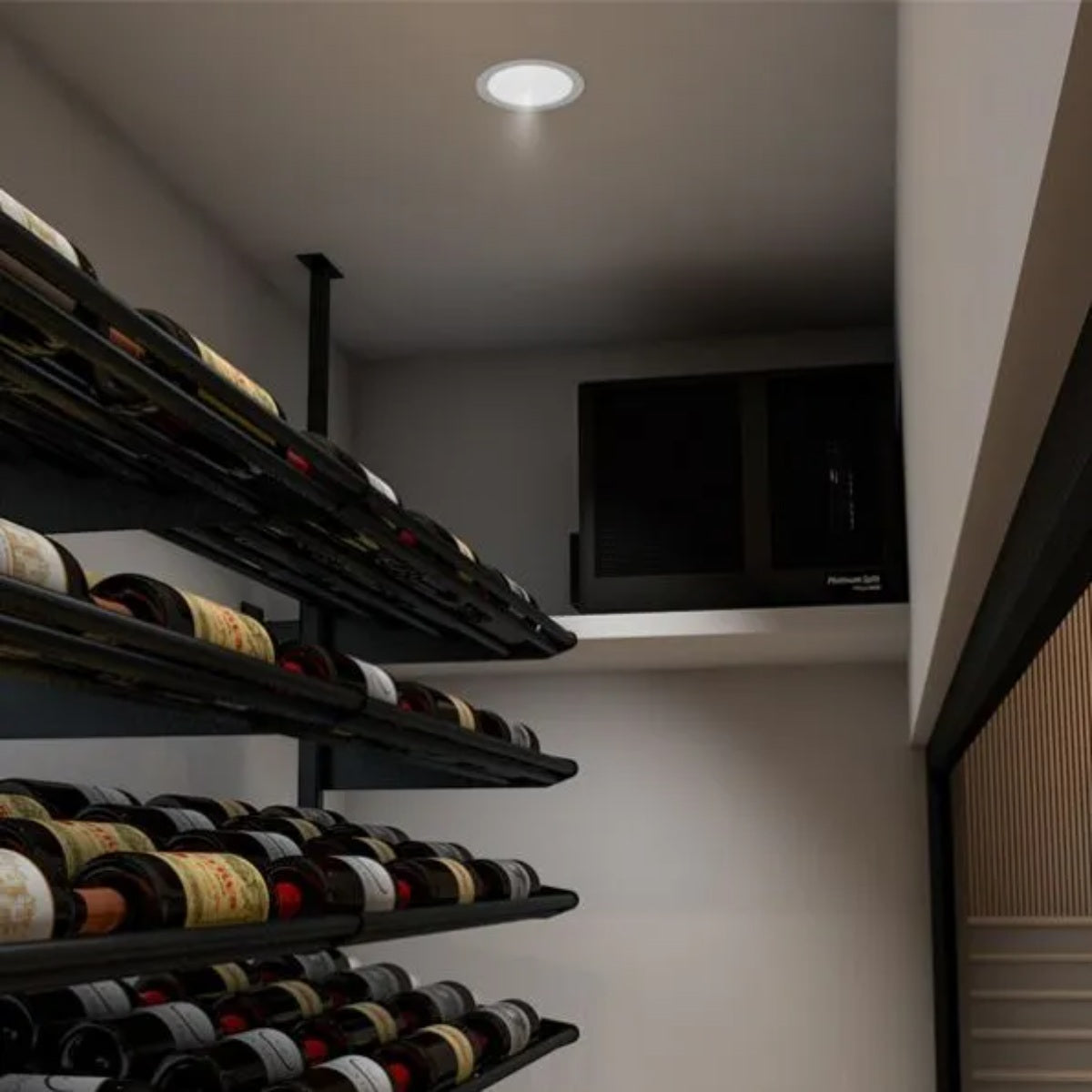

| Installation | The evaporator unit is installed in the cellar. A condensing unit can be installed up to 100 ft of line set from the evaporator unit. |
| Thermostat | Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable) |
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature |
| Warranty | Two-year limited warranty with up to an additional (1) year grace period for installation. (parts and labor) |
Platinum Split 8000 Wall Mounted System Product Warranty
Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty.
A limited 2-year product warranty, with up to an additional 1-year grace period for installation, is offered with all split systems. Split systems do not carry a separate compressor warranty. The installing HVAC-R technician must complete their portion of the Split Startup Checklist, and you must return it to WhisperKOOL within 30 days of installation. The warranty starts at the date of purchase but is not activated until that checklist is approved. Warranty labor reimbursement is capped at $400.
