WhisperKOOL Platinum Split Twin 9000 Wall Mounted Wine Cooling System
$12,609.00
Authorized WhisperKOOL Dealer · Full manufacturer warranty · Learn more
Condenser Type: 220V (Copeland Condenser)
Installation: this is a split system and requires a licensed HVAC-R technician to install and commission. WhisperKOOL states that failure to have the system installed by a qualified technician will void the warranty. Budget that labour alongside the unit.
In stock · Free shipping in the US. In-stock orders ship within three business days.
Pay over time with Shop Pay Installments or Affirm
Product Details

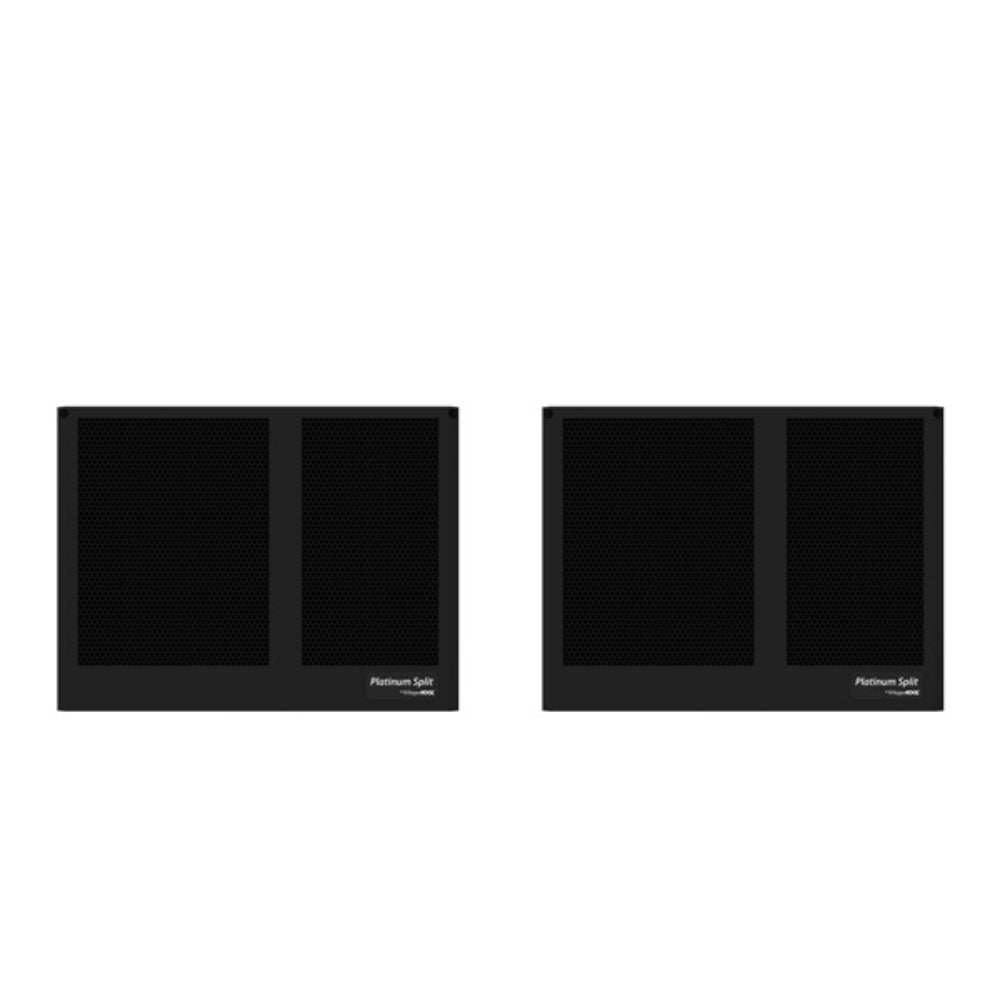

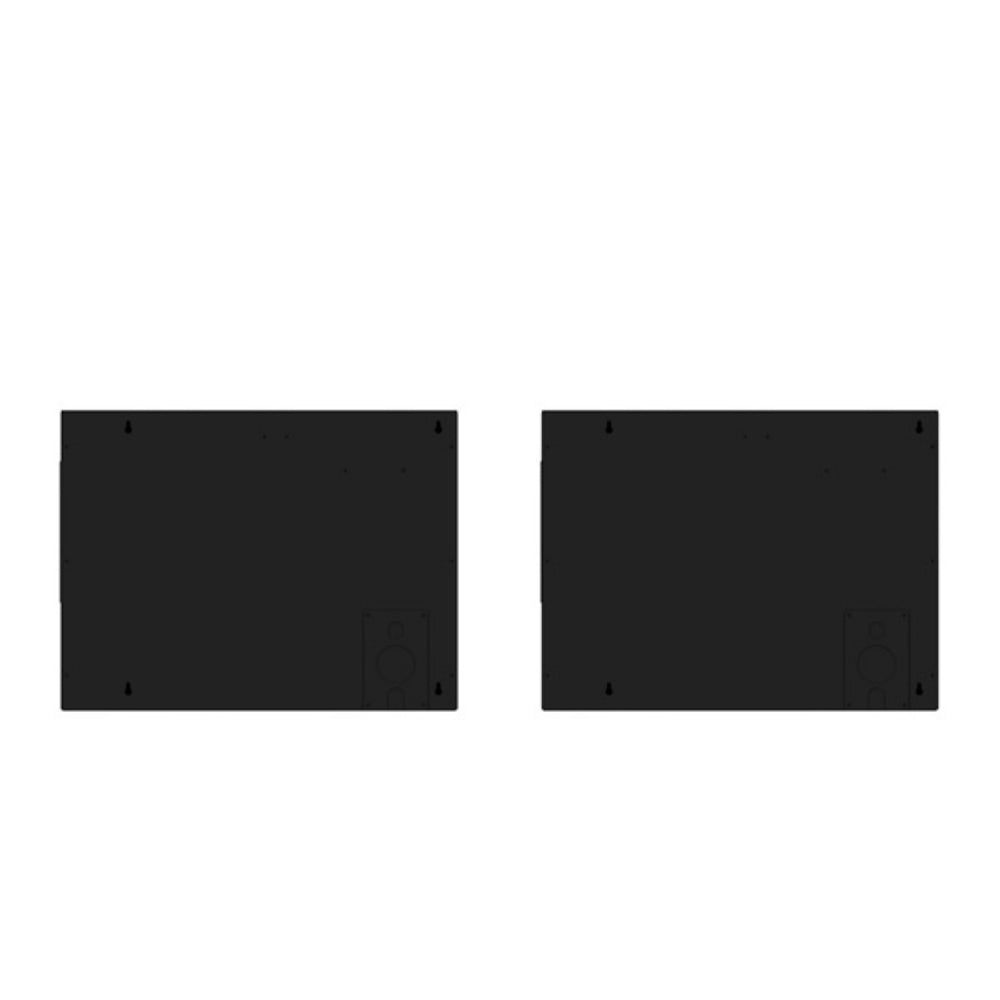

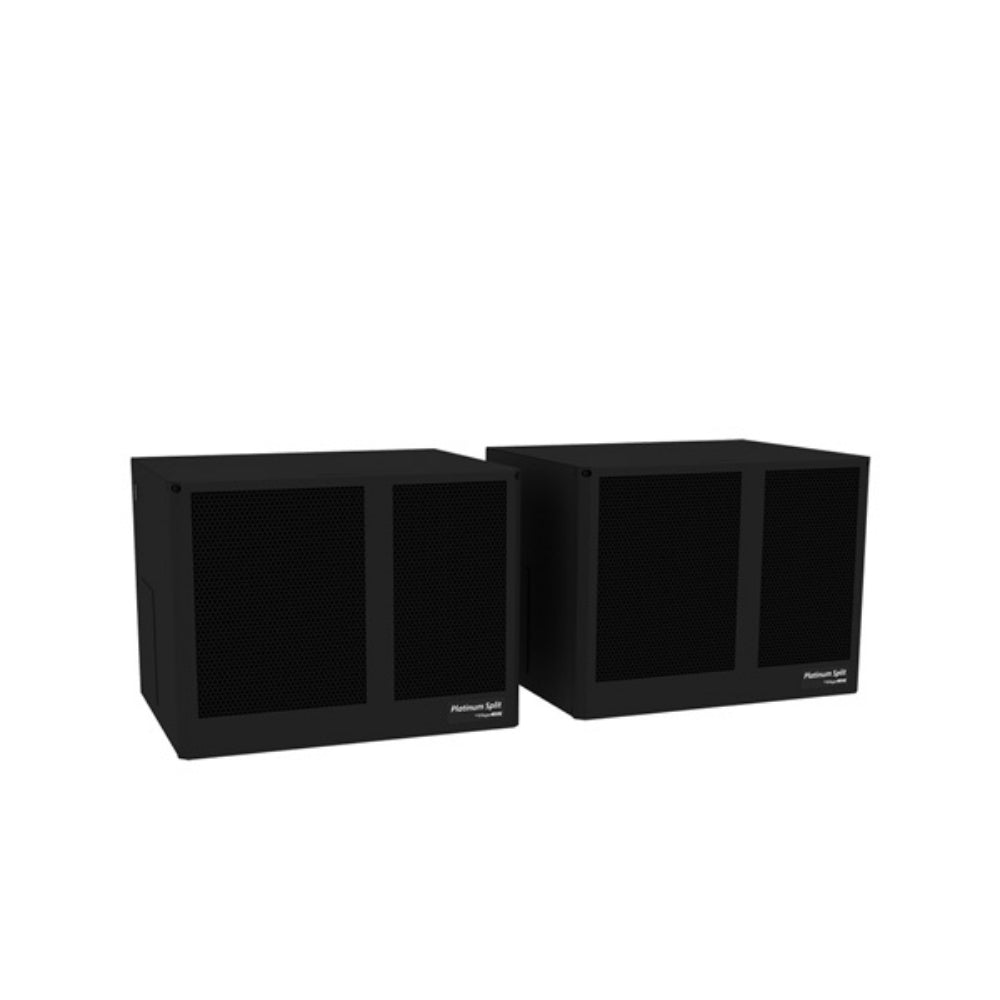

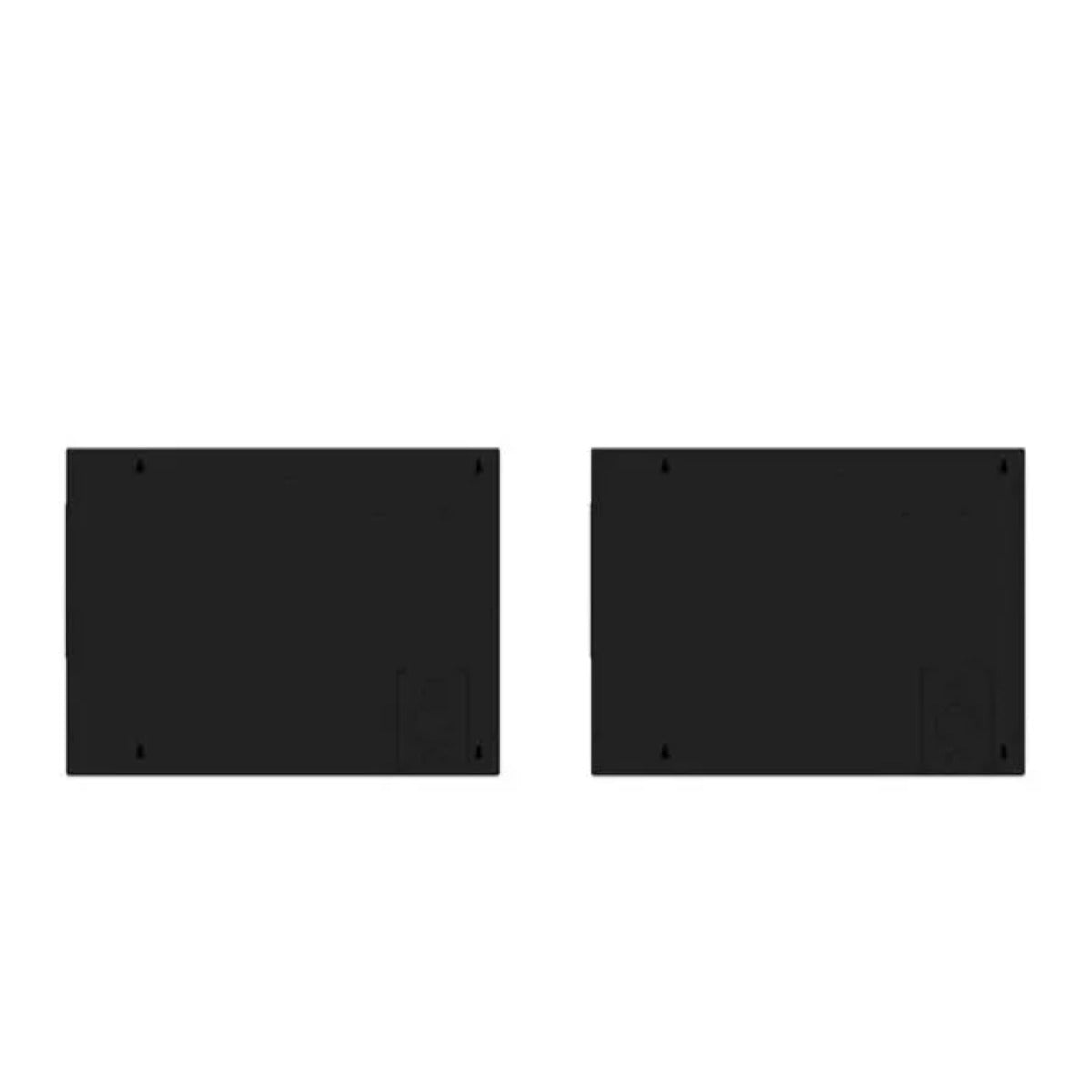

WhisperKOOL Platinum Split Twin 9000: Dual-Zone Wall-Mounted Wine Cooling

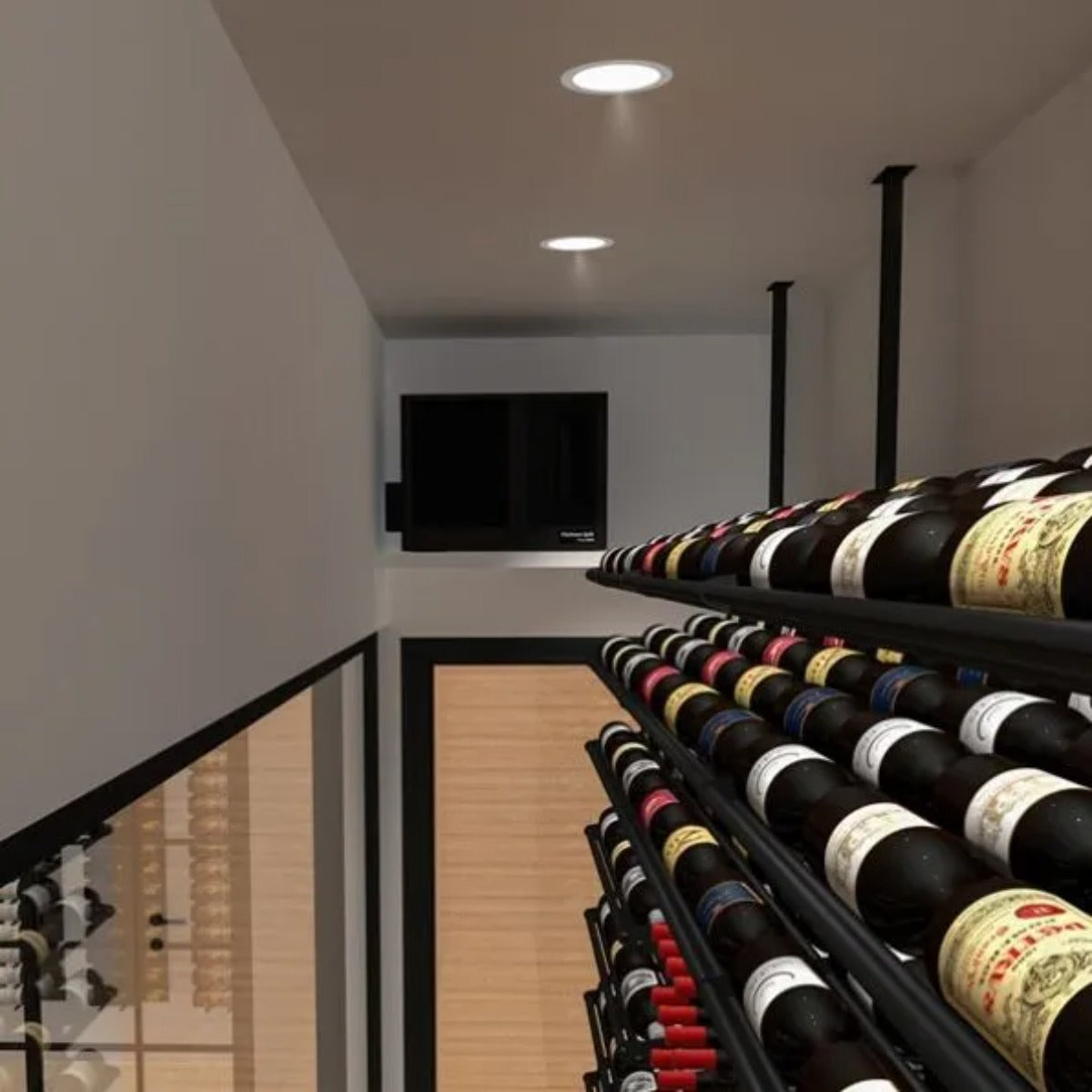

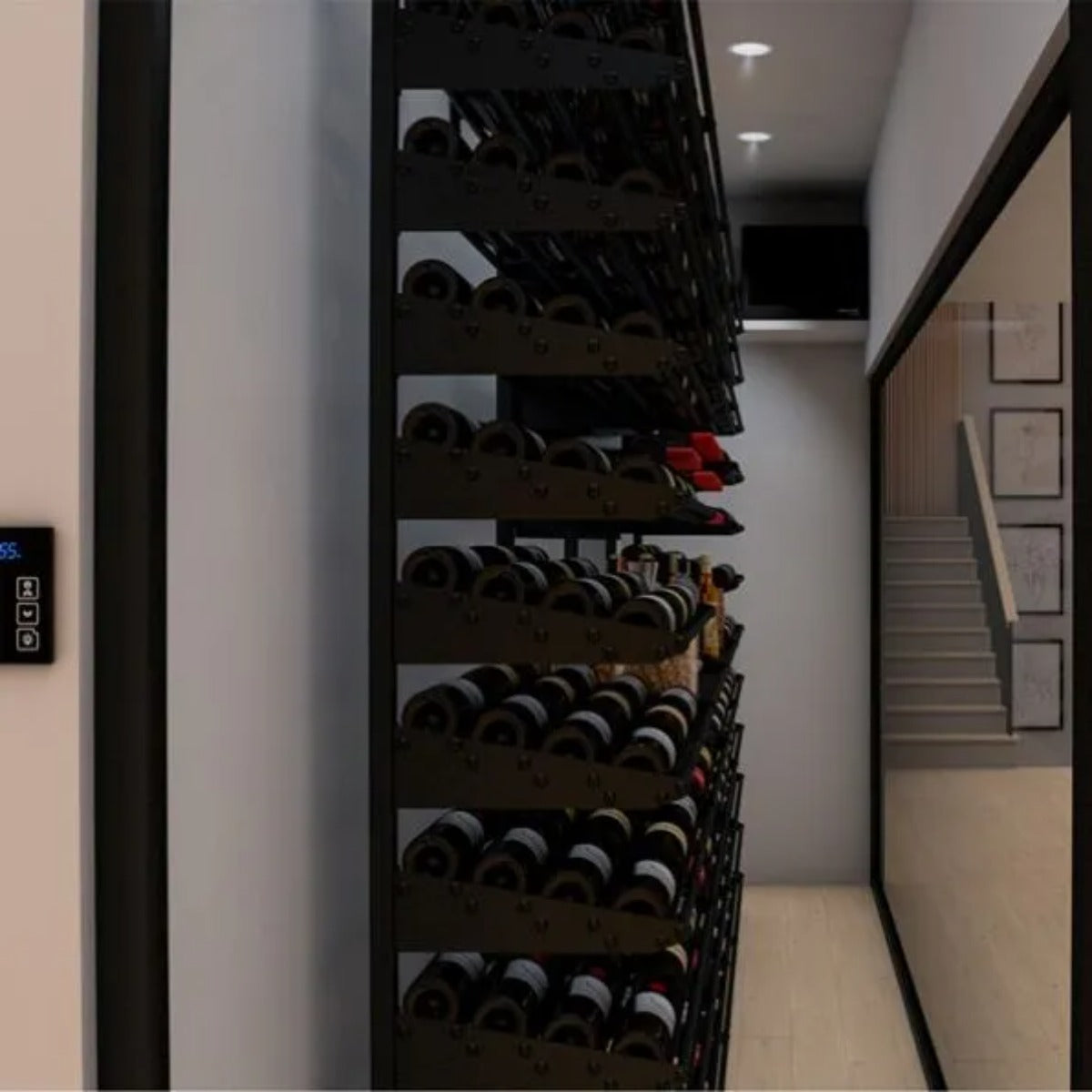

The WhisperKOOL Platinum Split Twin 9000 Wall Mounted system uses dual evaporators to cool cellars up to 3,000 cu ft, and is available now at Wine Cooler Collection.

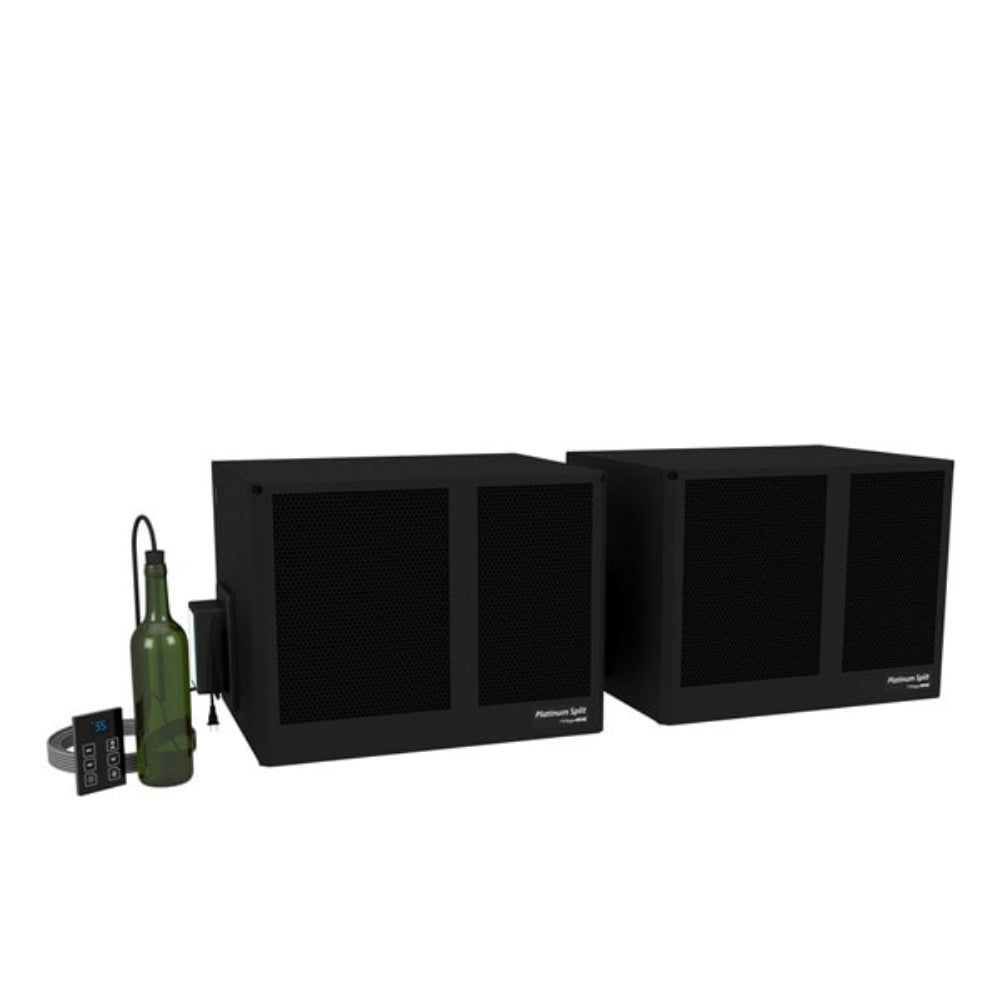

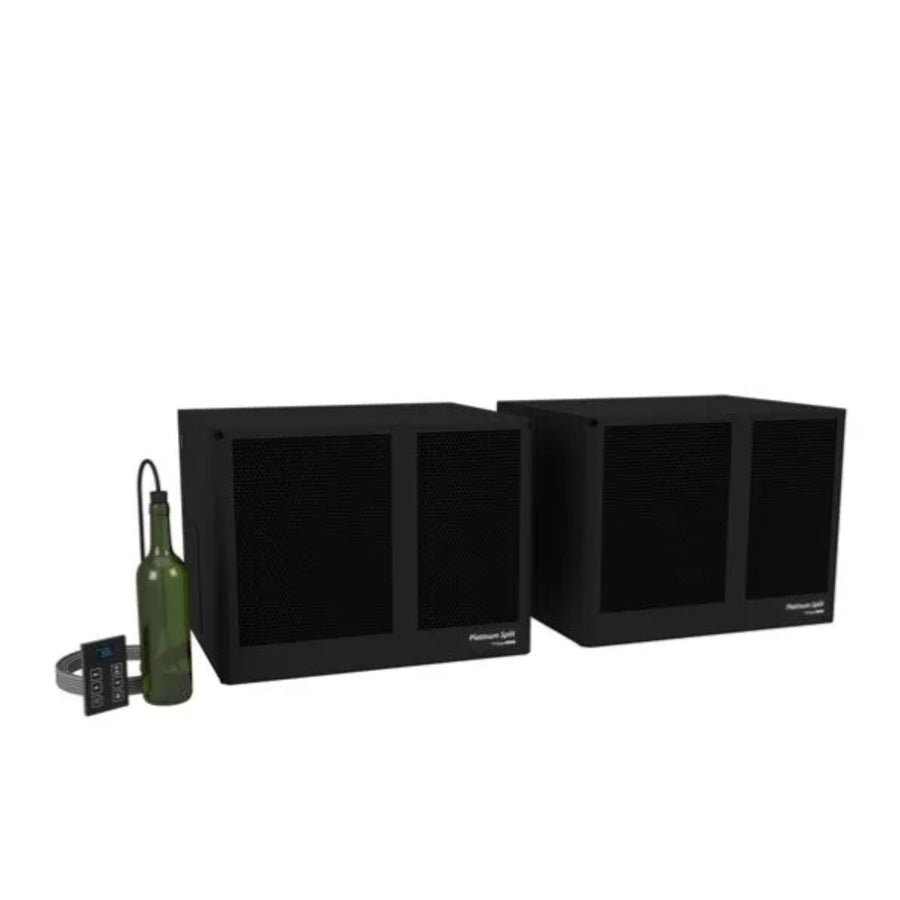

Featuring dual evaporators and a 3-speed fan switch, this system delivers high-capacity cooling with full control over BTU output. The advanced electronic controls and KDT digital thermostat with 50-ft. cable allow you to monitor and manage your cellar conditions remotely. Choose between standard or 24V thermostat options to fit your setup.

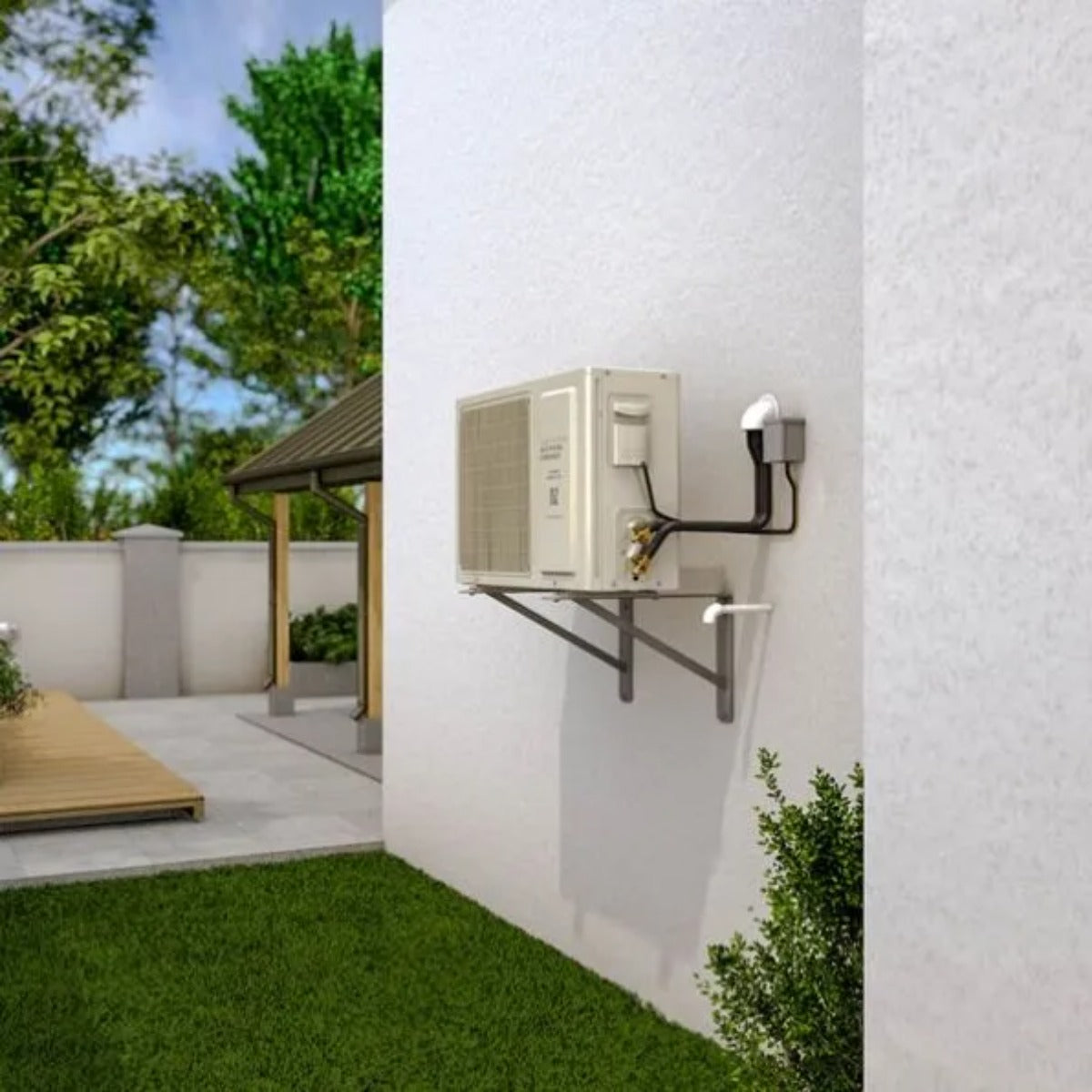

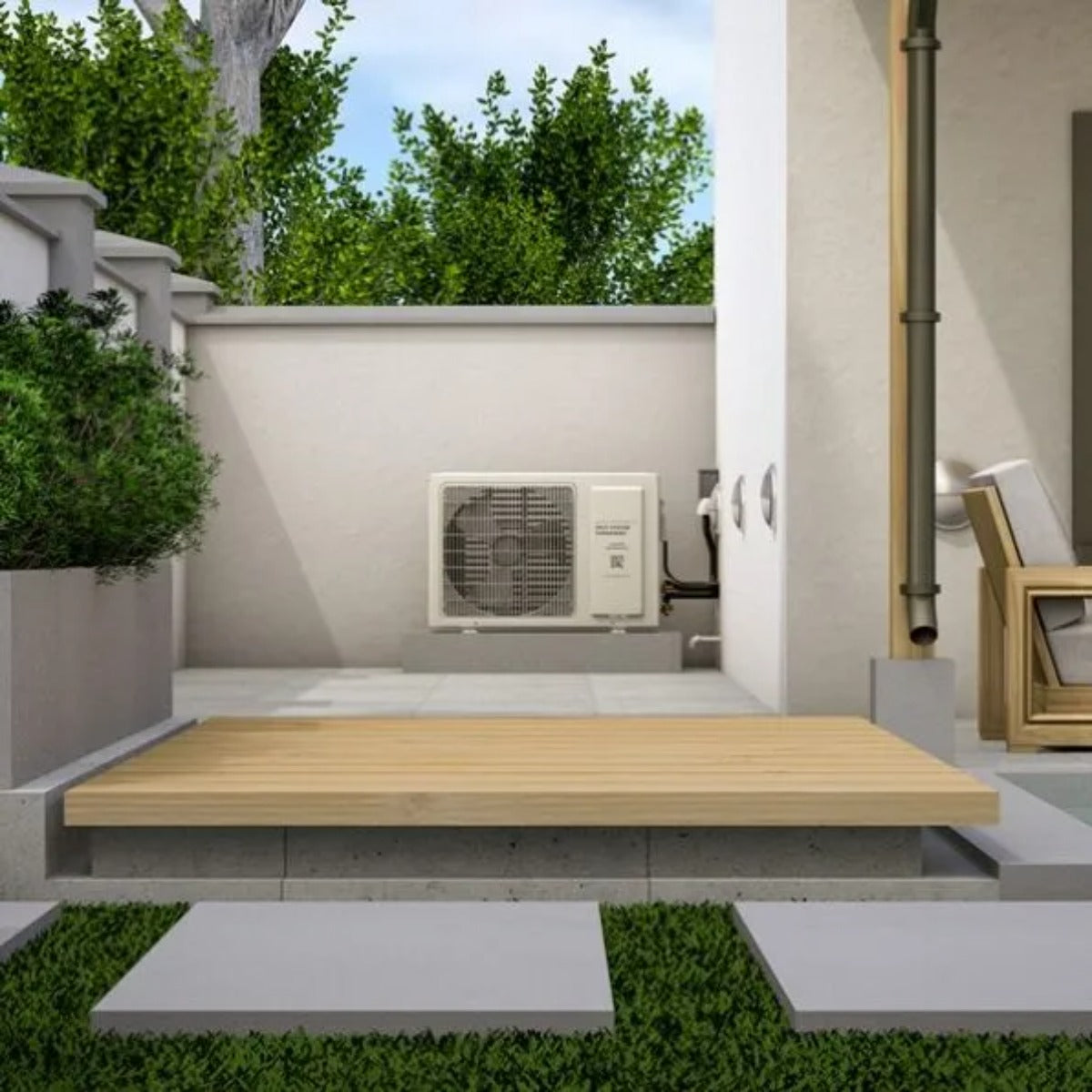

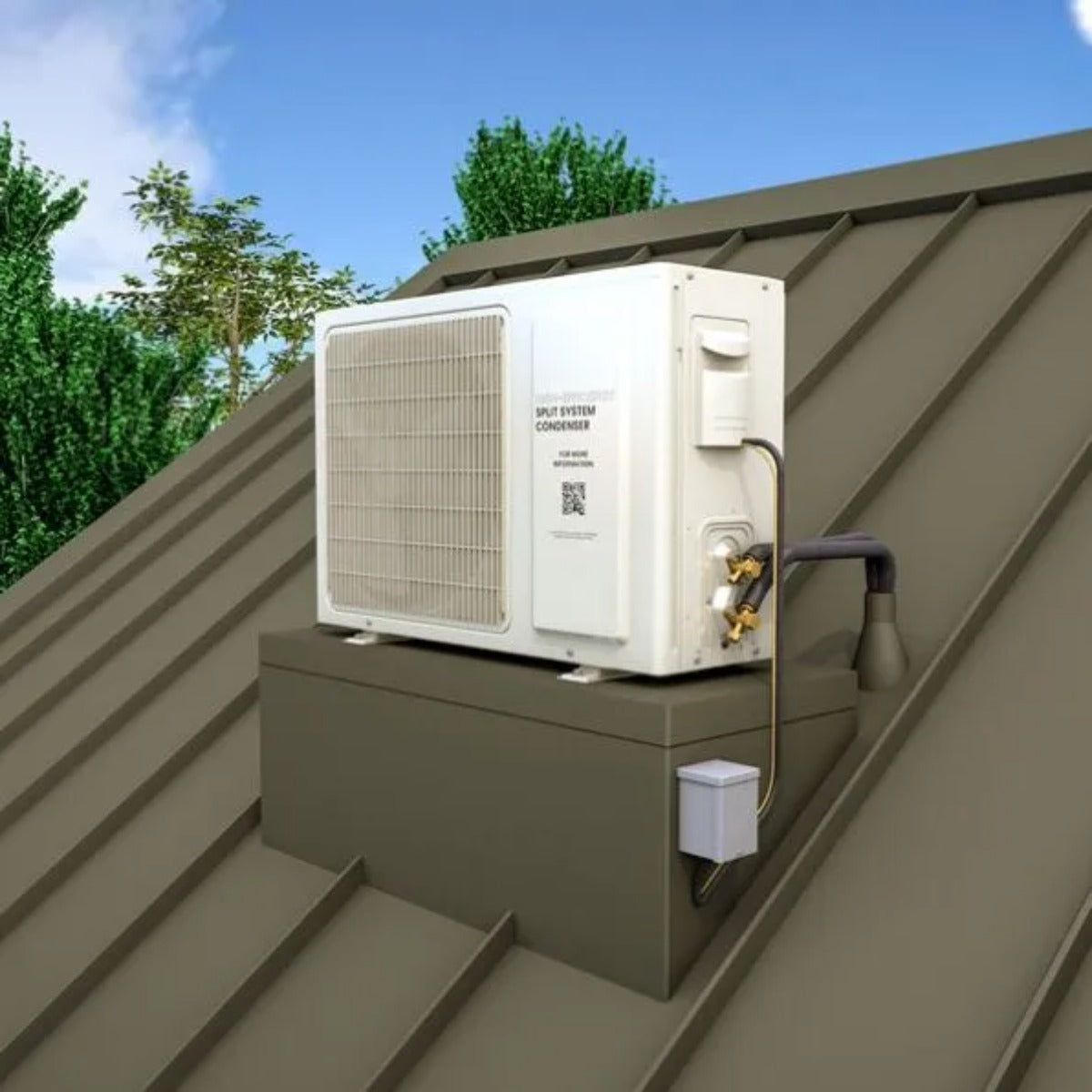

Built for performance in extreme climates, this unit operates reliably in ambient temperatures ranging from -15°F to 110°F. The condensing unit can be installed outdoors with optional exterior housing for quieter, space-saving operation.

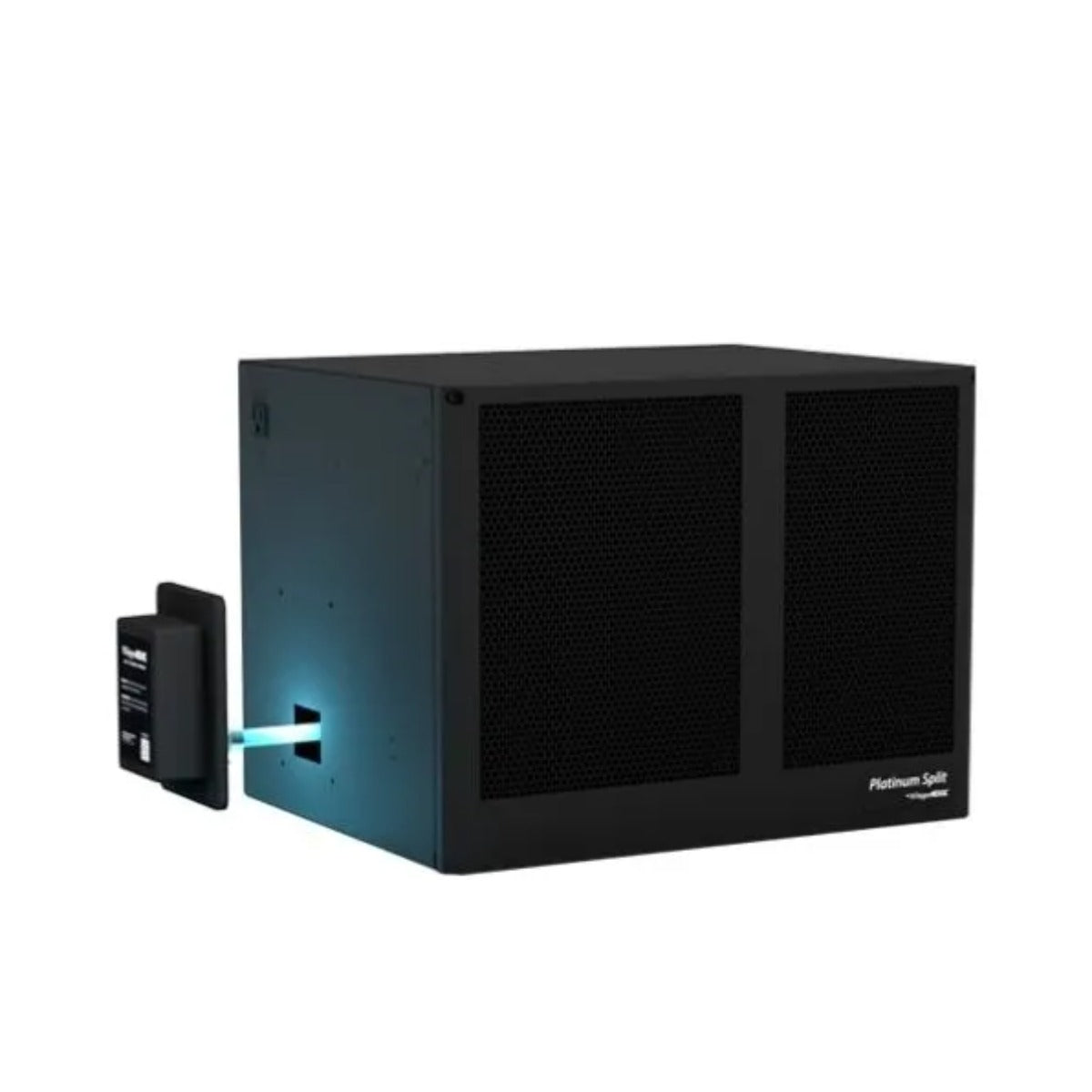

Add the optional UV-C lighting to protect your wine from UV exposure and ensure graceful aging. For efficient, high-performance cooling, choose from the 220V High Efficiency (H.E.) Condenser or the rugged 220V Copeland Condenser, both designed to maintain optimal storage temperatures with lower energy use.
The WhisperKOOL Platinum Split Twin 9000 Wall Mounted System places its condensing unit up to 100 line feet from the evaporators, and is offered exclusively at Wine Cooler Collection.
Platinum Split Twin 9000 Wall Mounted System Features
- Greater cooling capacity
- Dual evaporators
- Standard 24V or thermostat option available
- Liquid-temperature-measuring bottle probe
- 55°F temperature differential between the cellar environment and the condensing unit intake air
- Multi-speed fan switch
Note: A qualified HVAC-R technician is required for installation. Failure to have the system installed by a qualified technician will void the warranty.
*PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
Platinum Split Twin 9000 Wall Mounted System: 220V Copeland Condenser Operation
The 220V Copeland Condensers operate on a pump-down system. For more information on how the pump-down cycle works, please watch the following video:

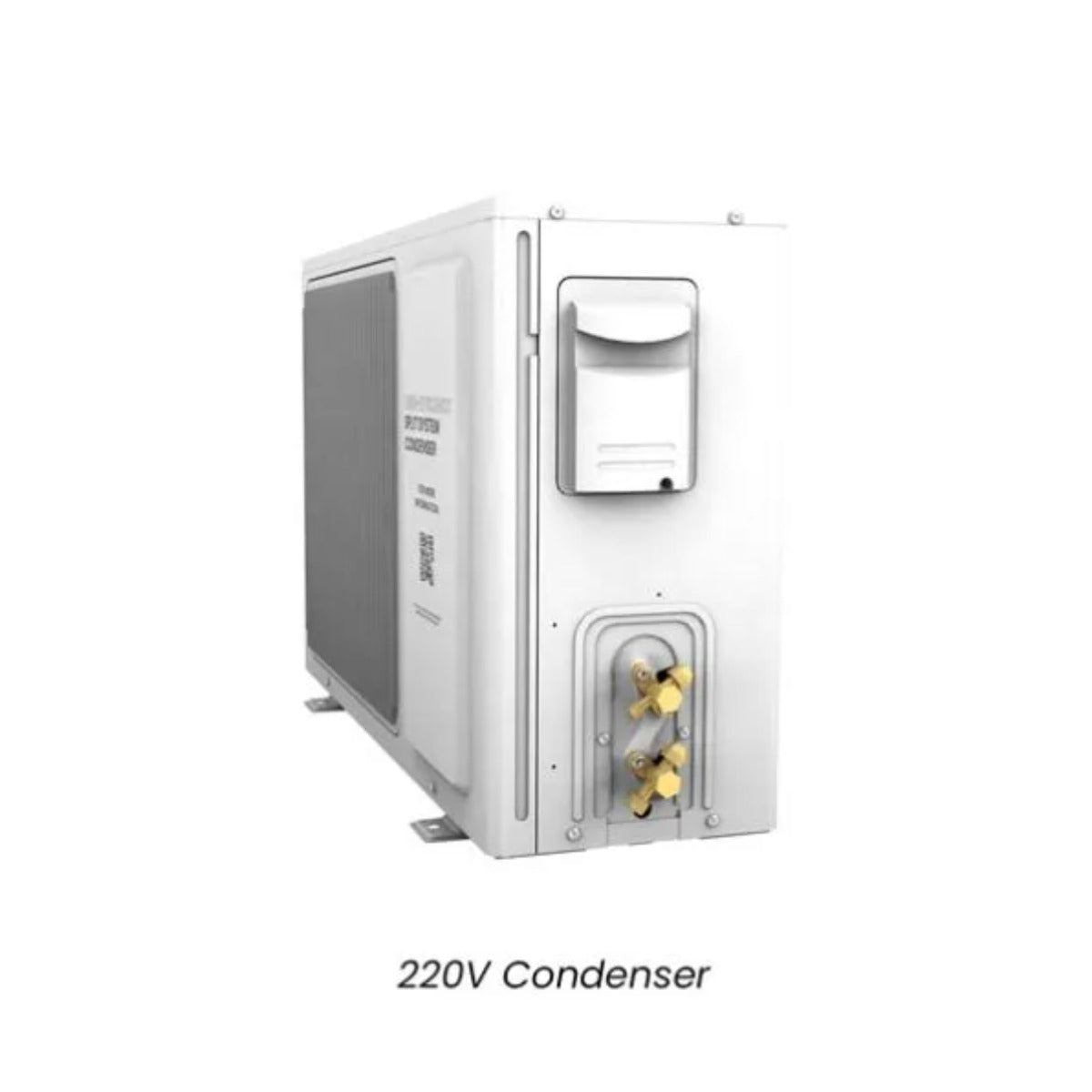

Twin Platinum Split 9000 System: 220V High Efficiency (H.E.) Condenser Operation

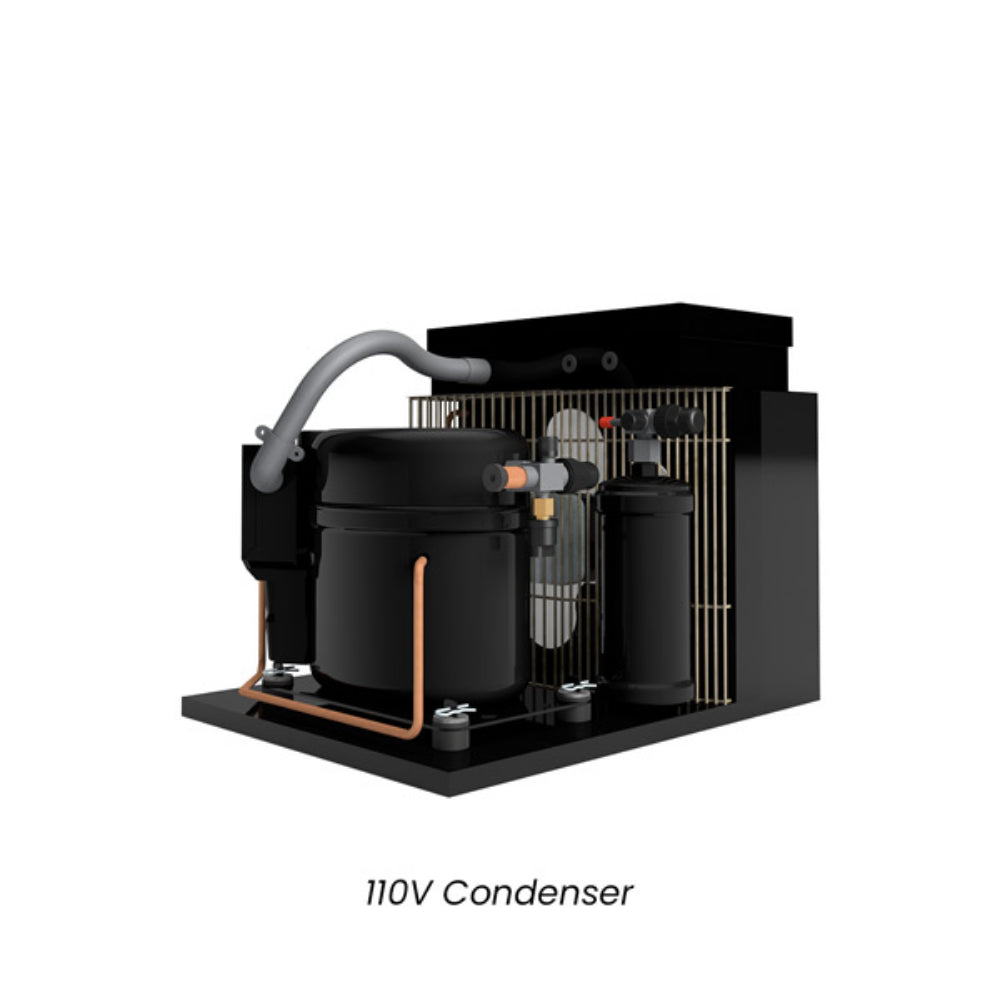

The 220V High Efficiency Condensers offer a host of advantages over our traditional 110V condensers, including simplified installation, lower operating noise, energy efficiency, and the ability to operate in extreme climates. For more information about our latest Split-System innovation, please watch the following video.
Platinum Split Twin 9000 Wall Mounted System Technical Specifications
| Model | Platinum Split Twin 9000 |
| Cellar Size | 3000 cu. ft. |
| BTU/h (85°F condenser air intake temperature) | Low: 7536 • Medium: 7850 • High: 8164 |
| CFM | 200 (per unit) |
| Dimensions | Evaporator: 16.1”L x 20.5”W x 15.5”H • Condenser: 24”L x 18.98”W x 16.16”H |
| Refrigerant | R-134a |
| Voltage Rating | Evaporator: 115V (15 amp dedicated circuit required) • Condenser: 230V (15 amp dedicated circuit required) |
| Weight (lbs) | Evaporators: 57 (per unit) • Condensing Unit: 67 |
| Amps | Evaporator: 1 (running amps) (per unit) • Condenser: LRA 50/RLA 9.3 |
| Line Set | Liquid Line 3/8” • Suction Line (Less than 50ft. 3/4”) (Greater than 50ft. 7/8”) |
| Drain Line | ½” ID clear plastic tubing (not provided) |
| Installation | The evaporator is installed in the cellar. A condensing unit can be installed up to 100 line feet from the evaporator unit. |
| Thermostat | Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (retractable cable) |
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature |
| Warranty | Two-year limited warranty (parts and labor) |
Platinum Split Twin 9000 Wall Mounted System Product Warranty
Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty.
A limited 2-year product warranty, with up to an additional 1-year grace period for installation, is offered with all split systems. Split systems do not carry a separate compressor warranty. The installing HVAC-R technician must complete their portion of the Split Startup Checklist, and you must return it to WhisperKOOL within 30 days of installation. The warranty starts at the date of purchase but is not activated until that checklist is approved. Warranty labor reimbursement is capped at $400.
