High-Capacity Cooling with WhisperKOOL Quantum 12000 Split Ducted System
At Wine Cooler Collection, we know your wine collection is more than just bottles, it's a legacy worth protecting. That’s why we offer the WhisperKOOL Quantum 12000 Split Ducted Wine Cooling System, a powerful, efficient solution designed to handle large cellars and demanding conditions.
The Quantum 12000 features interchangeable evaporator airflow panels, giving you complete control over air direction. This ensures even cooling throughout your cellar, protecting every bottle from temperature fluctuations.
To manage humidity, the system includes a built-in pump to remove excess condensation, keeping your cellar dry and free from moisture damage. You’ll also enjoy flexibility with standard or 24V thermostat compatibility, making it easy to integrate with your preferred control system.

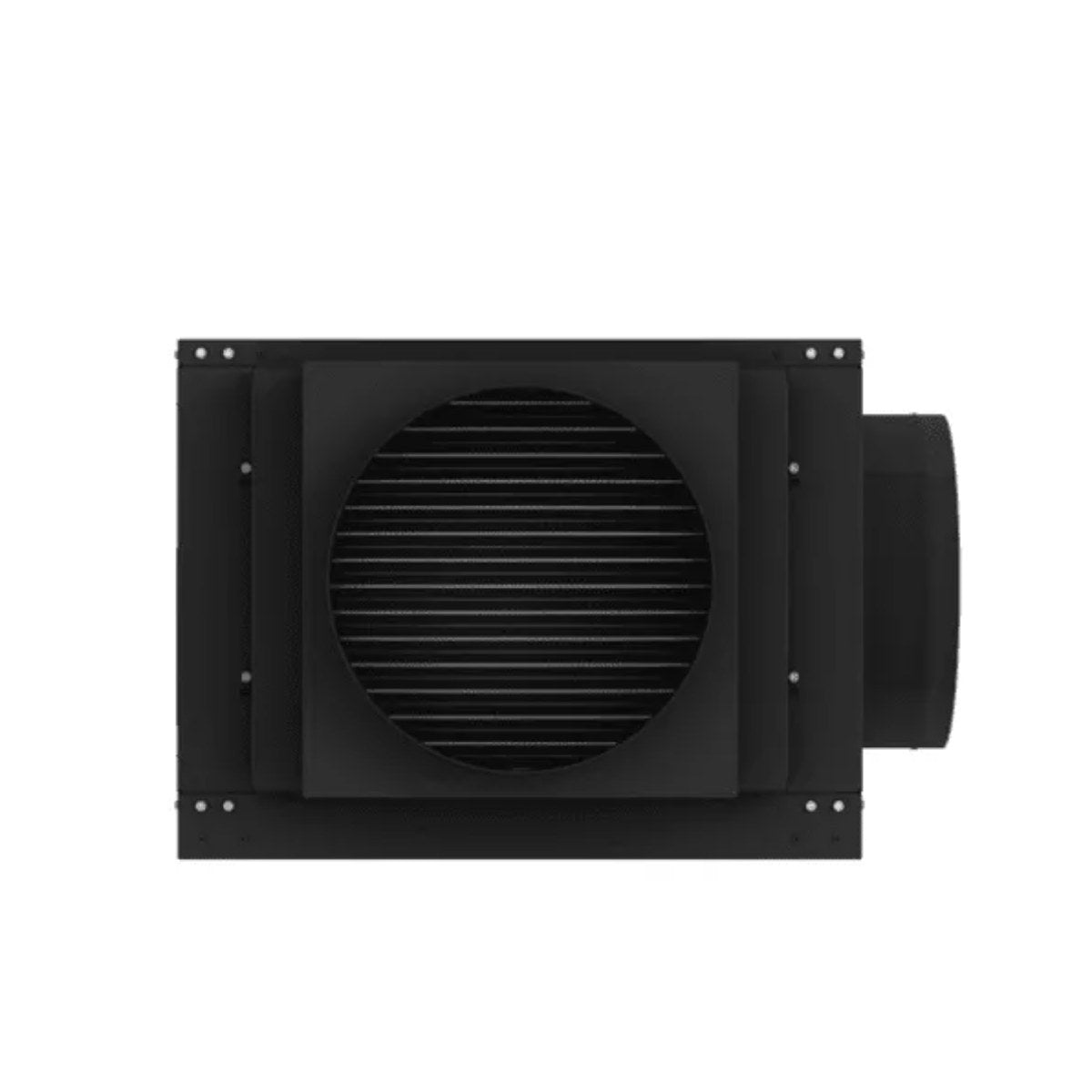

This unit is also equipped with electro-fin coated coils, which provide excellent resistance against outgassing and corrosion, especially important in humid or chemically active environments.

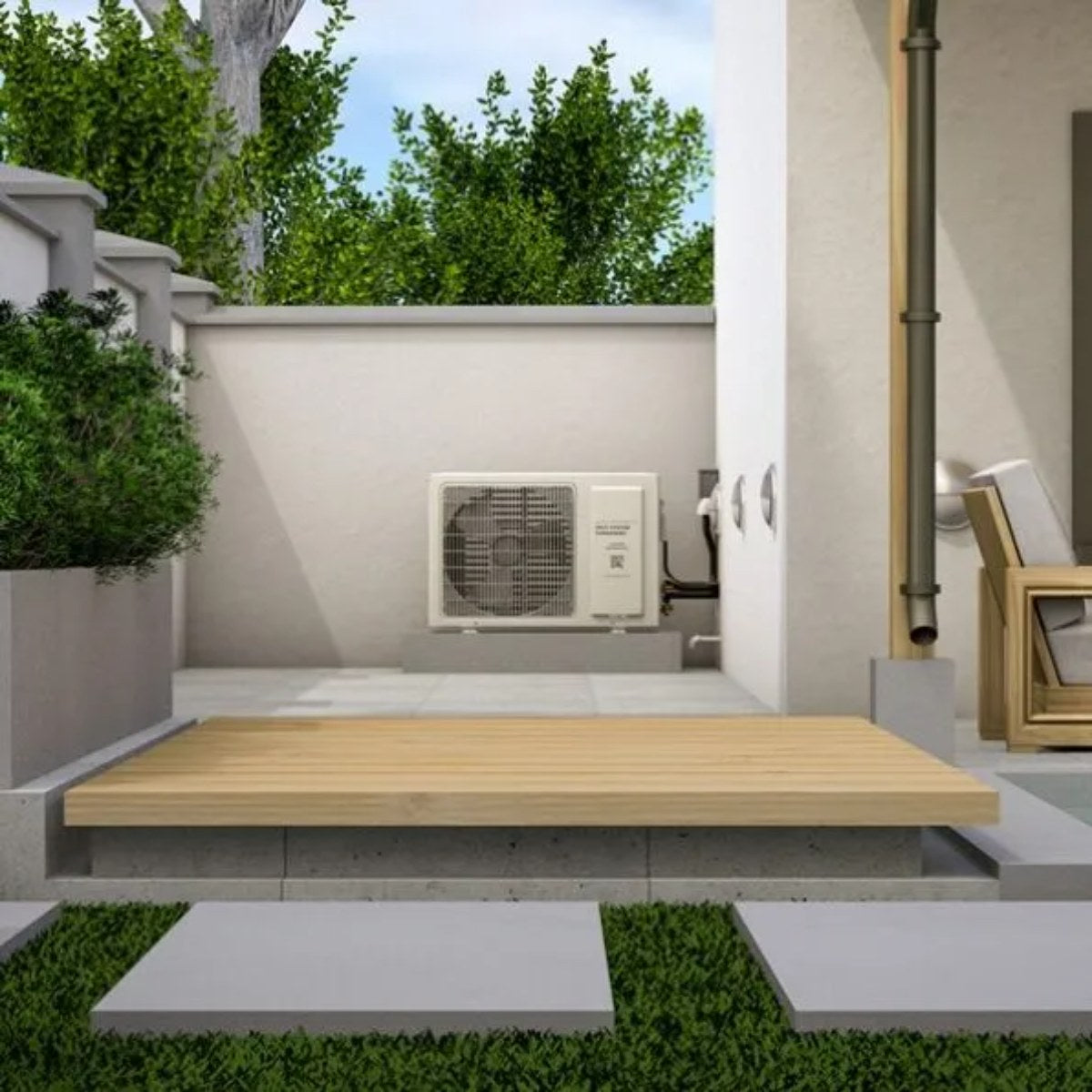

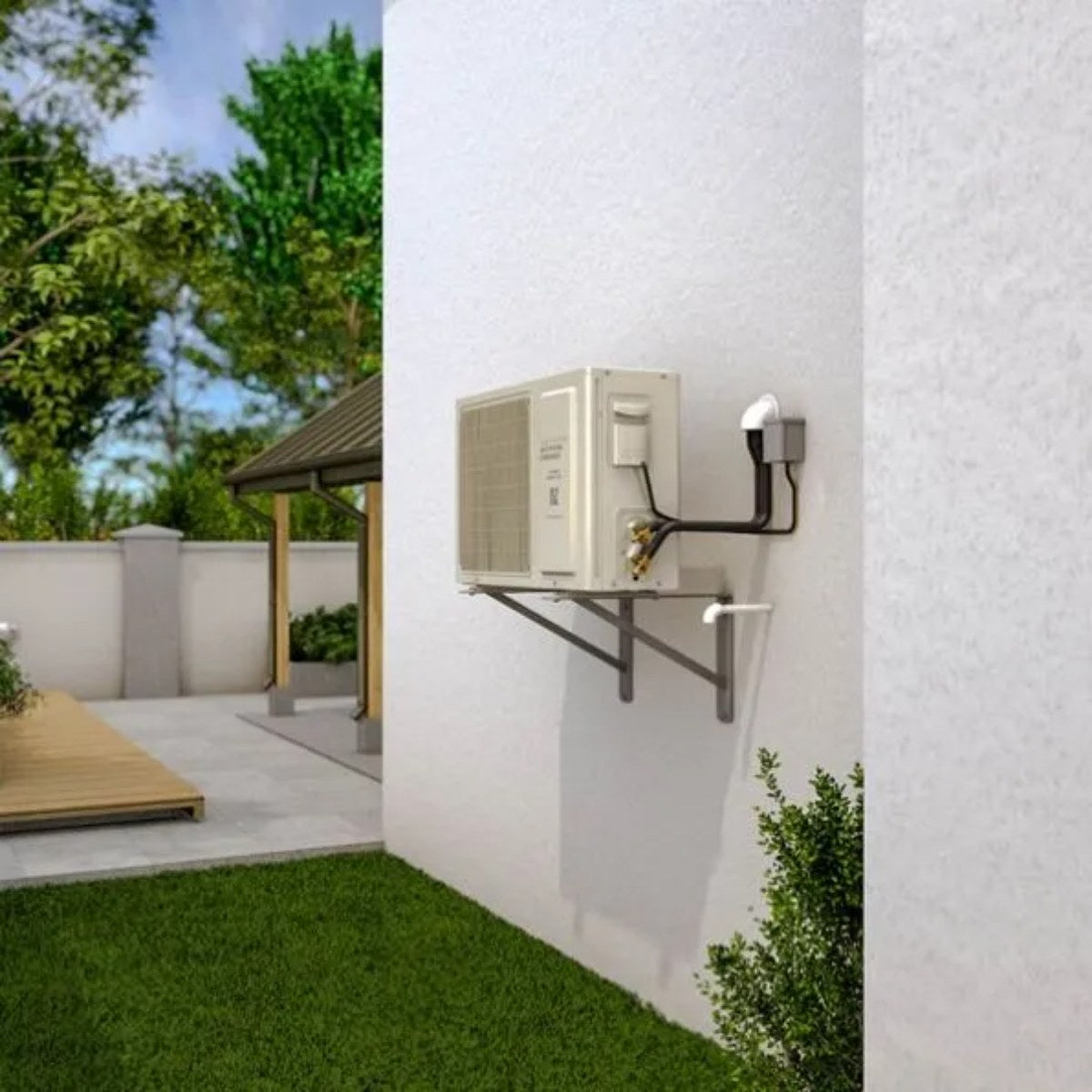

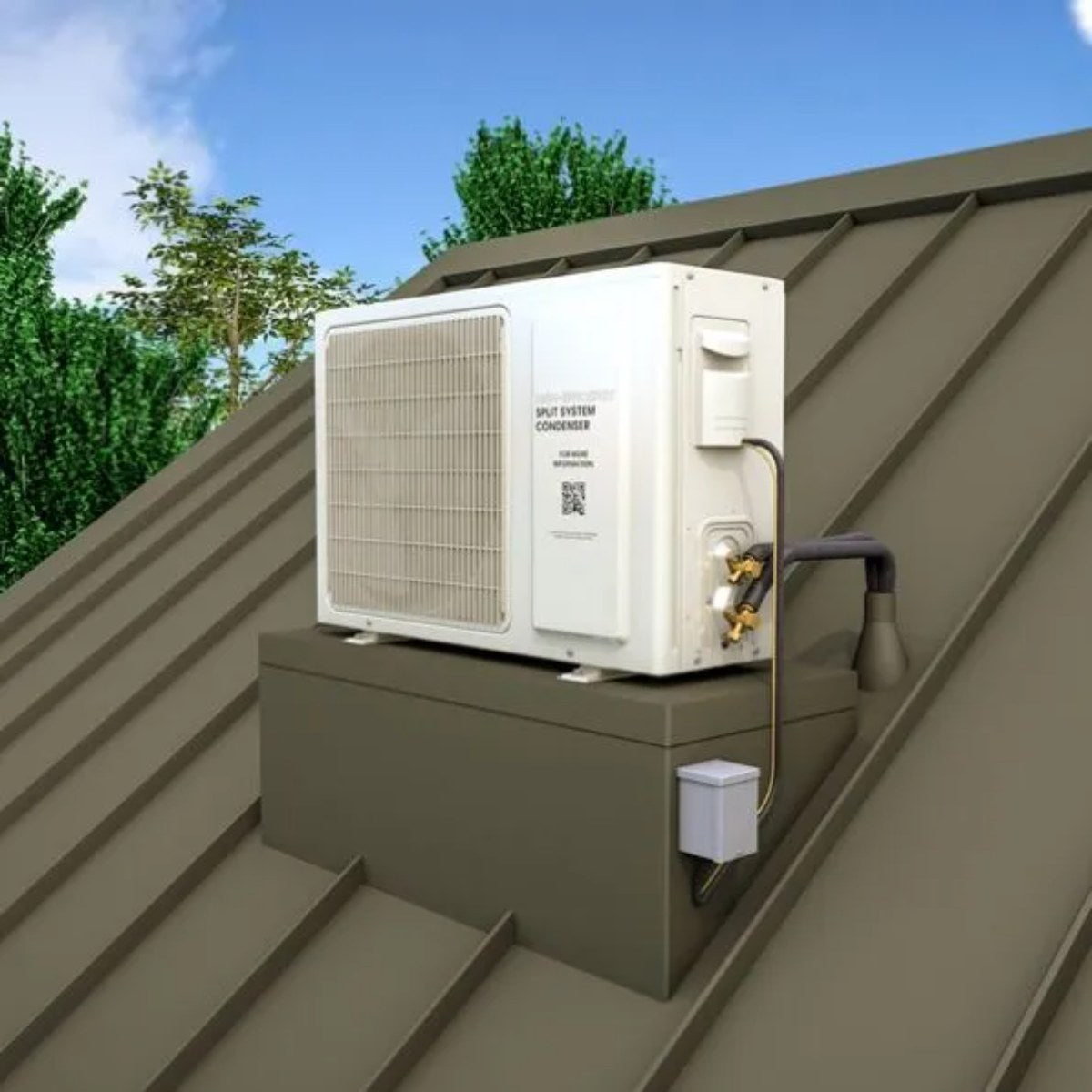

Want to keep the system out of sight? The condensing unit can be placed outdoors when paired with optional exterior housing, helping preserve both cellar aesthetics and interior space.
Powered by a 220V High Efficiency (H.E.) Condenser, the Quantum 12000 delivers powerful yet efficient cooling, ideal for larger cellars or high-heat environments.
BTU/h value range: 12,530 – 13,844
At Wine Cooler Collection, we’re committed to premium solutions for serious collectors. The WhisperKOOL Quantum 12000 is built to deliver performance, flexibility, and peace of mind for years to come.
Quantum 12000 Split Ducted Wine Cooling System Features
- Fully ducted split system for efficient, concealed installation
- Interchangeable evaporator airflow panels for flexible configuration
- Pump-down system technology for safe and efficient servicing
- Designed to operate in cold weather climates down to -15°F
- Electro-fin coated coils for enhanced protection against outgassing
- Advanced electronic control keypad for precise system management

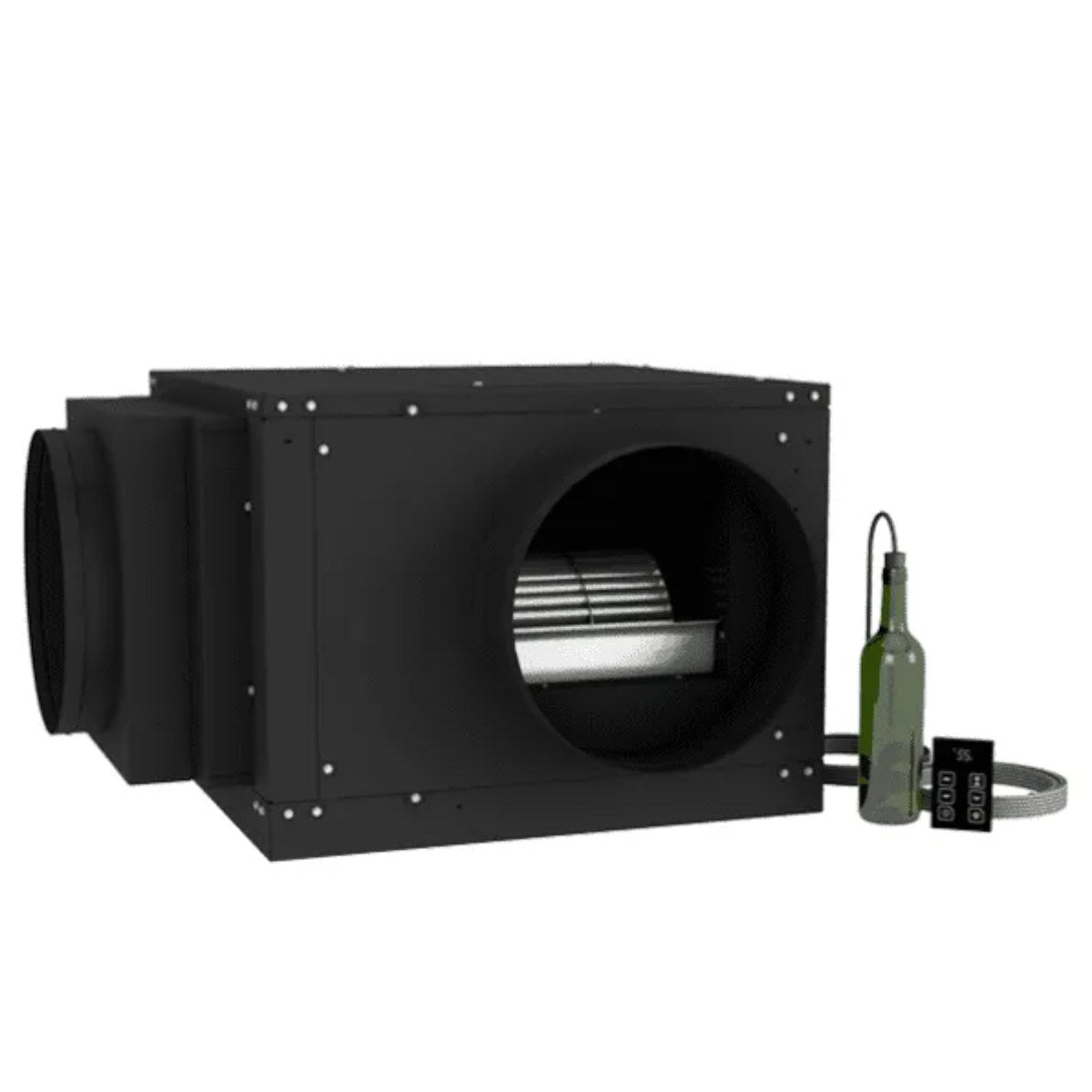

- Includes a 50-ft. control cable and liquid-temperature bottle probe
- Durable galvanized steel housing for long-lasting performance
- Secondary drain pan included as a mandatory safety feature
Note: A qualified HVAC-R technician is required to install the Quantum 12000. Failure to have the system installed by a qualified technician will void the warranty.
*PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
Quantum 12000 Split Ducted Wine Cooling System 3D Tour

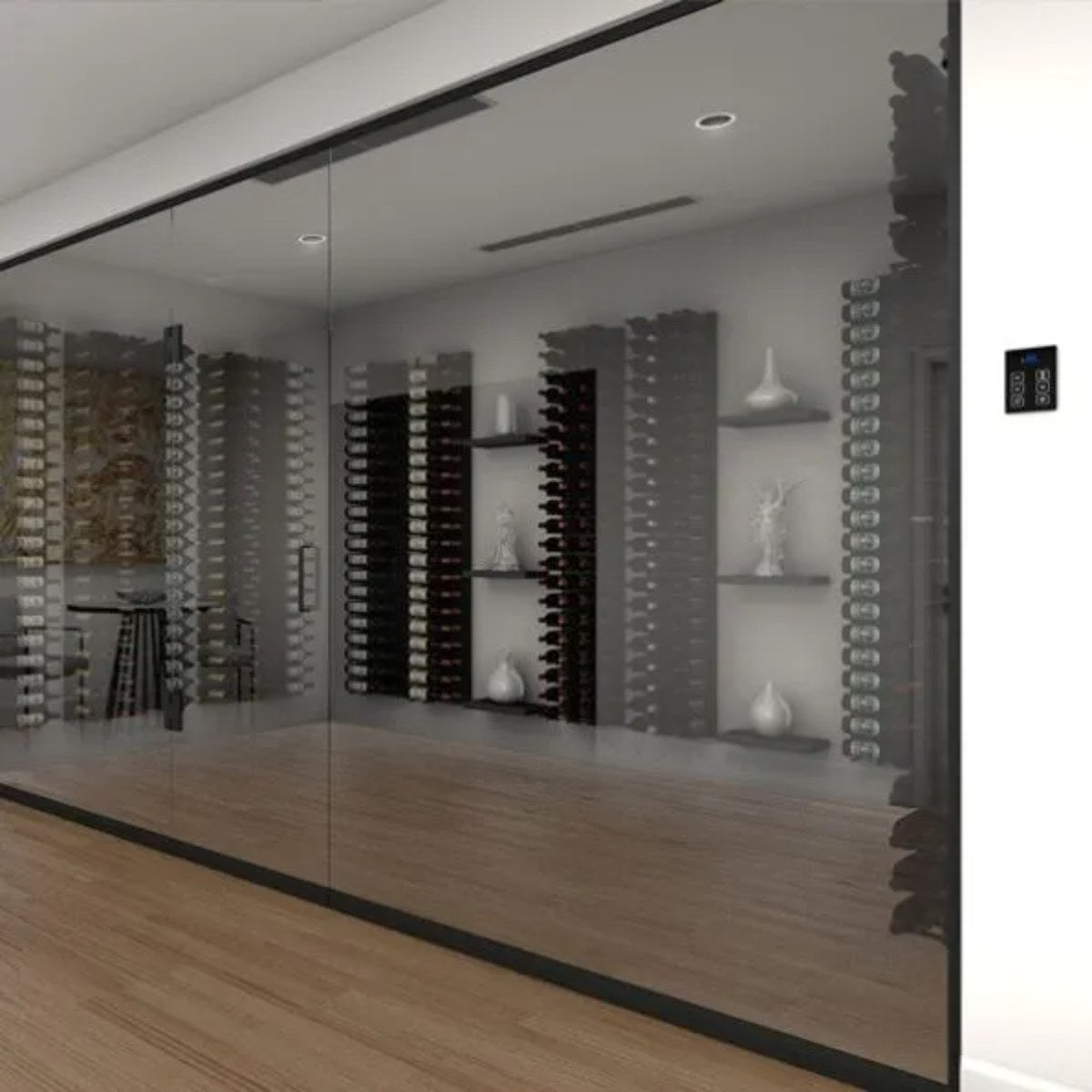

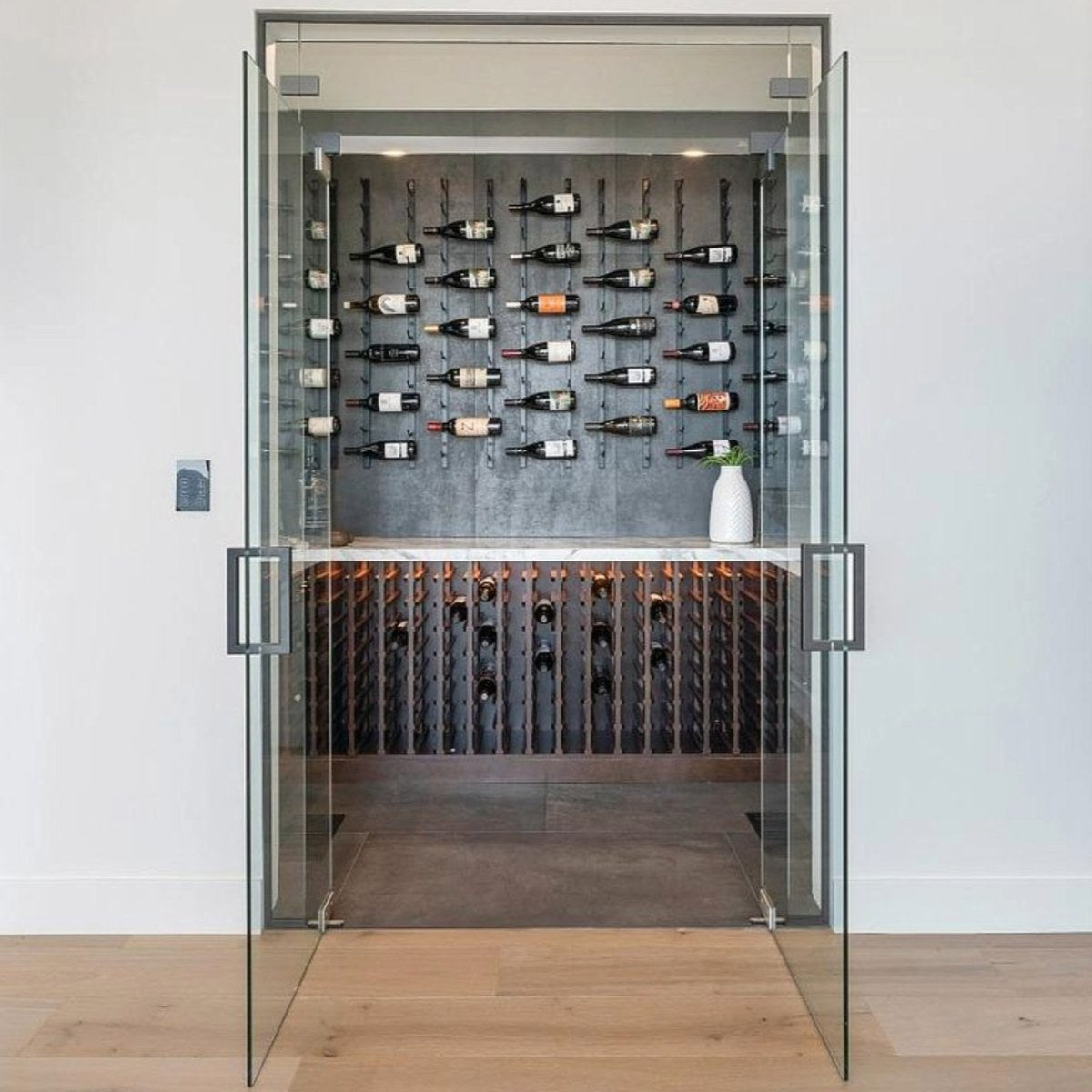

Explore the wine cellars in stunning detail with our 3D tour, step inside a modern home and see how each unit blends seamlessly into stylish living spaces.

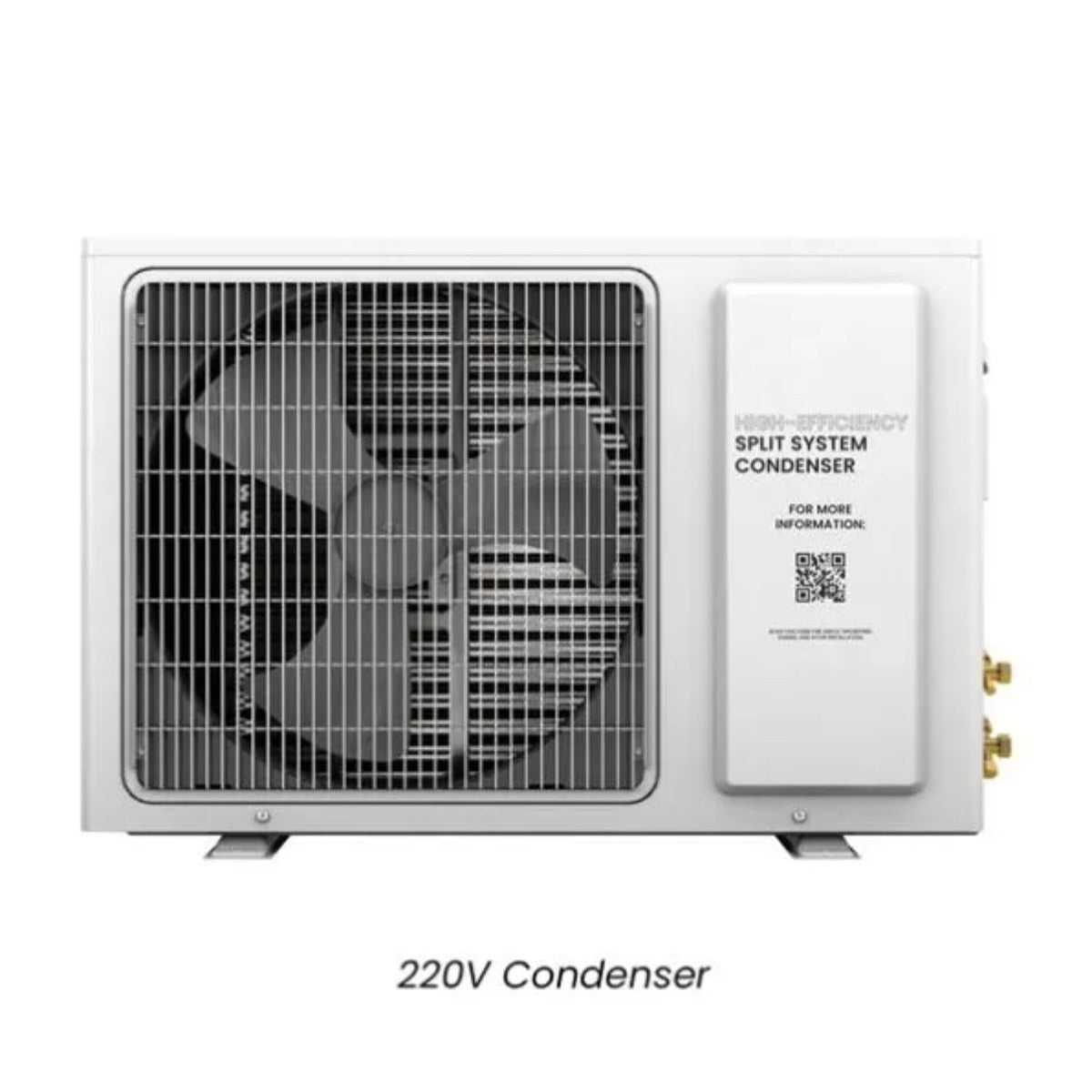

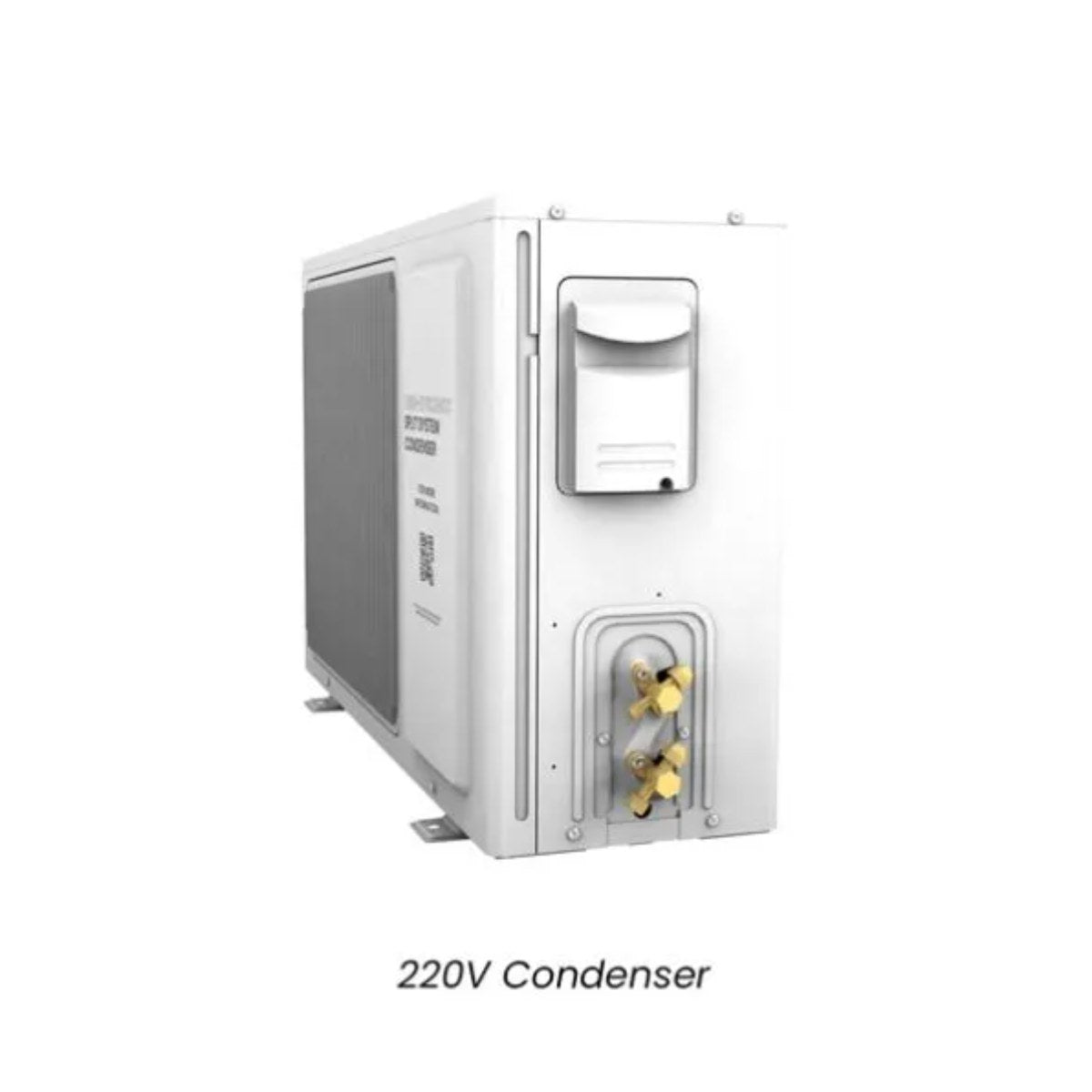

Quantum 12000 Split Ducted Wine Cooling System: 220V High Efficiency Condenser
The 220V High Efficiency Condensers offer a host of advantages over our traditional 110V condensers, including simplified installation, ultra-quiet operation, energy efficiency, & ability to operate in extreme climates.
For more information about our latest Split-System innovation, please watch the following video.

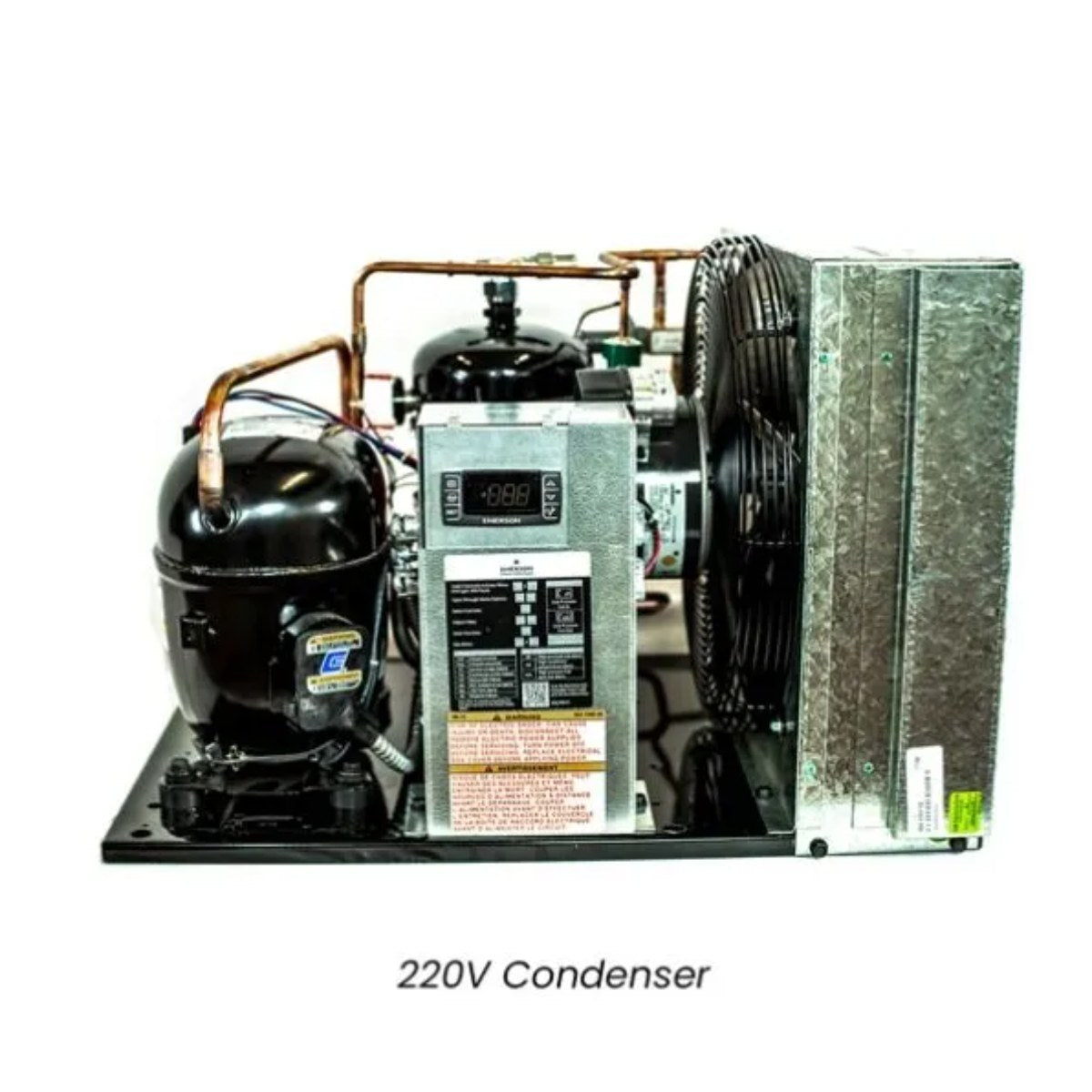

Quantum 12000 Split Ducted Wine Cooling System: Copeland 220V Condenser
The 220V Copeland Condensers operate on a pump-down system. For more information on how the pump-down cycle works, please watch the following video.
Quantum 12000 Split Ducted Wine Cooling System: UV-C Lighting System Option
Eliminate harmful microbes and enhance air quality with the UV-C Lighting System Option, an extra layer of protection for your wine cooling setup!
Quantum 12000 Split Ducted Wine Cooling System Technical Specifications
| Model | Quantum 12000 |
| Cellar Size | 4,000 cu. ft.* |
| BTU/h (60°F condenser air intake temperature) | 2147 / 14576 |
| BTU/h (75°F condenser air intake temperature) | 12187 / 14256 |
| BTU/h (85°F condenser air intake temperature) | 11704 / 13844 |
| CFM | 590 (low-speed) 650 (medium-speed) 710 (high-speed) |
| dbA | EVAPORATOR - 52 | CONDENSER - 52 |
| Dimensions | EVAPORATOR - 29.5”L x 30.9”W x 19.8”H | CONDENSER - 31.18"L x 10.75"W x 21.18"H |
| Refrigerant | R-134a |
| Horsepower | 1.5 HP |
| Voltage Rating | EVAPORATOR - 120V (15-amp dedicated circuit required) | CONDENSER - 220V (15-amp dedicated circuit required) |
| Weight (lbs) | EVAPORATOR - 96 | CONDENSER - 84 |
| Amps | EVAPORATOR - 9.2 (Running Amps) | CONDENSER - LRA 23.6, RLA 5.76, FLA 6.6 |
| Ducts | 14” Supply • 14” Return (Up to 35ft per duct) |
| Drain Line | 3/4” Female to base (CPPVC/PVC) |
| Installation | Evaporator unit is installed in the cellar. Condensing unit can be installed up to 100 ft of line set from the evaporator unit. |
| Thermostat | Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable) |
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature |
| Line Set | Liquid line 3/8” OD; Suction line 5/8” OD (less than 50 ft.), 3/4” (greater than 50 ft.) |
| Warranty | Two-year limited warranty with up to an additional (1) year grace period for installation. (parts and labor) |
Quantum 12000 Split Ducted Wine Cooling System Product Warranty
Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty.
A limited 2-year product warranty is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
WhisperKOOL Quantum 12000 Split Ducted Wine Cooling System Product Manuals
