WhisperKOOL Quantum 9000 Split Ducted Wine Cooling System
$10,605.00
Authorized WhisperKOOL Dealer · Full manufacturer warranty · Learn more
Condenser Type: 220V (Copeland Condenser)
Installation: this is a split system and requires a licensed HVAC-R technician to install and commission. WhisperKOOL states that failure to have the system installed by a qualified technician will void the warranty. Budget that labour alongside the unit.
In stock · Free shipping in the US. In-stock orders ship within three business days.
Pay over time with Shop Pay Installments or Affirm
Product Details

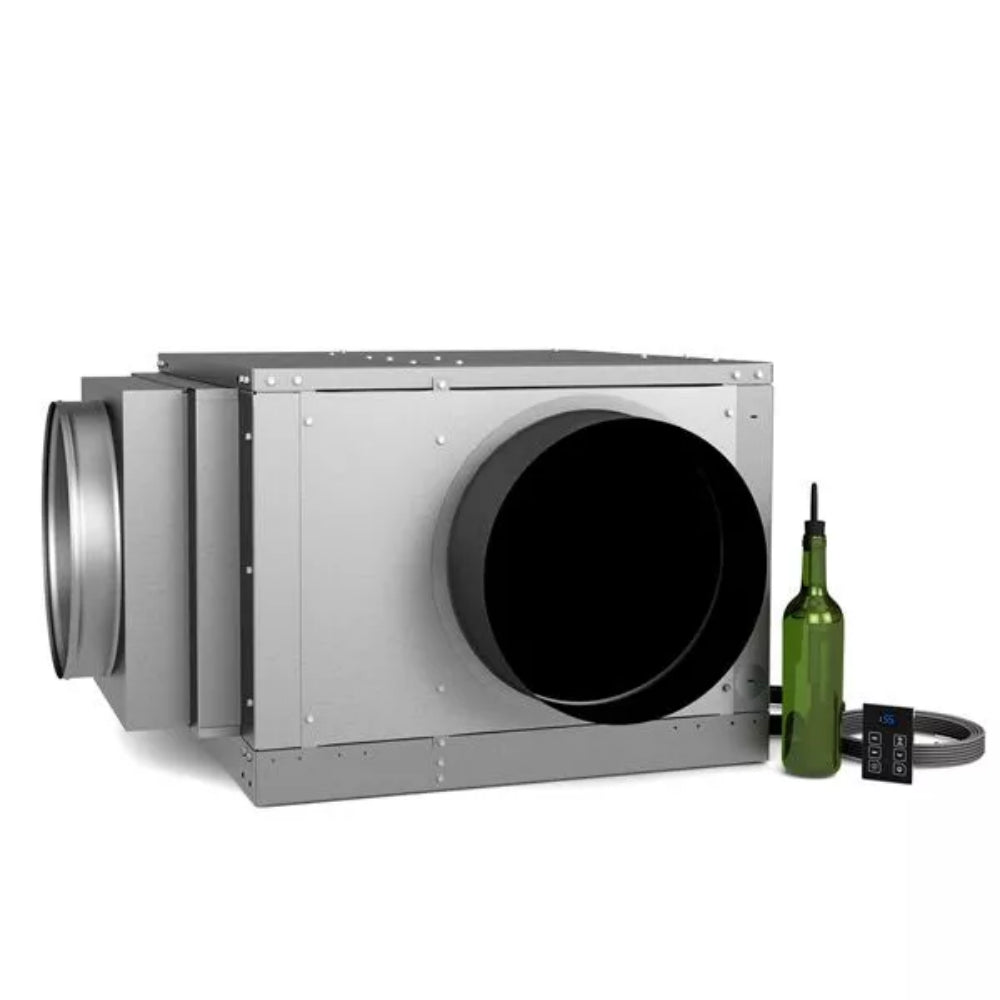

WhisperKOOL Quantum 9000: Advanced Split-Ducted Wine Cellar Cooling
The WhisperKOOL Quantum 9000 Split Ducted Wine Cooling System is a fully ducted split system built to hold a steady cellar environment, available now at Wine Cooler Collection.
With interchangeable evaporator airflow panels, you can direct airflow exactly where needed for even, consistent cooling. A built-in pump system removes excess condensation, keeping your collection safe and dry. Choose between standard or 24V thermostat options for added flexibility.

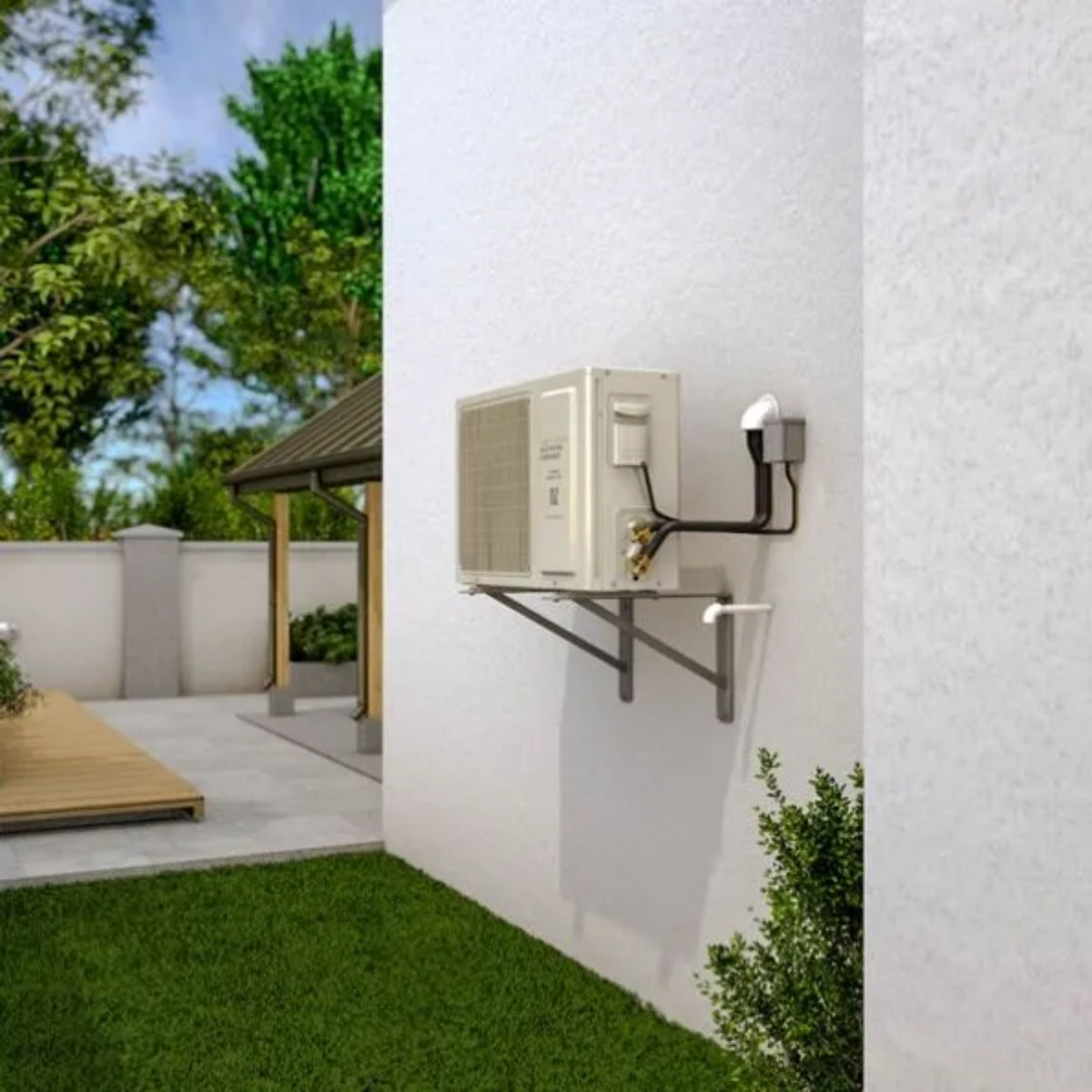

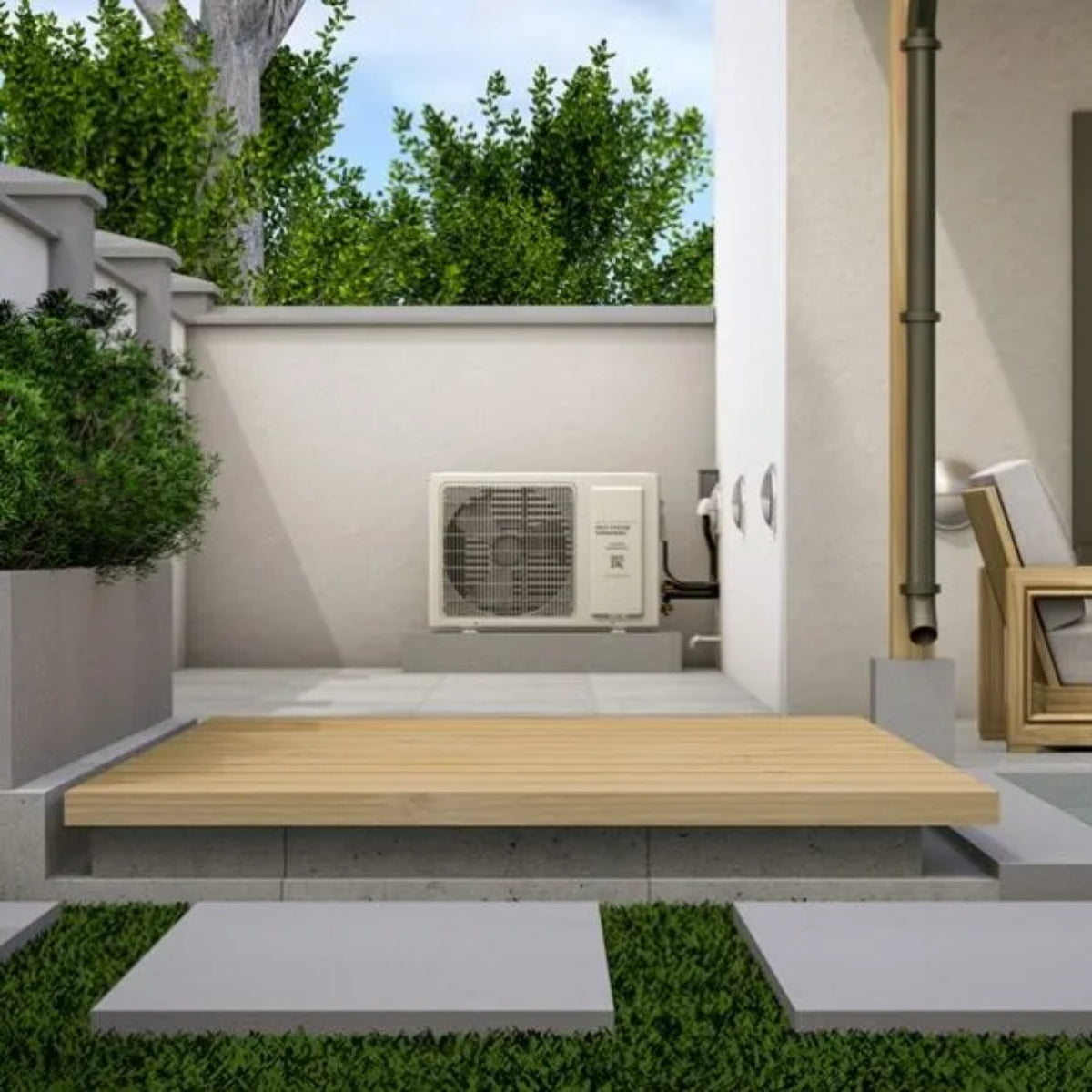

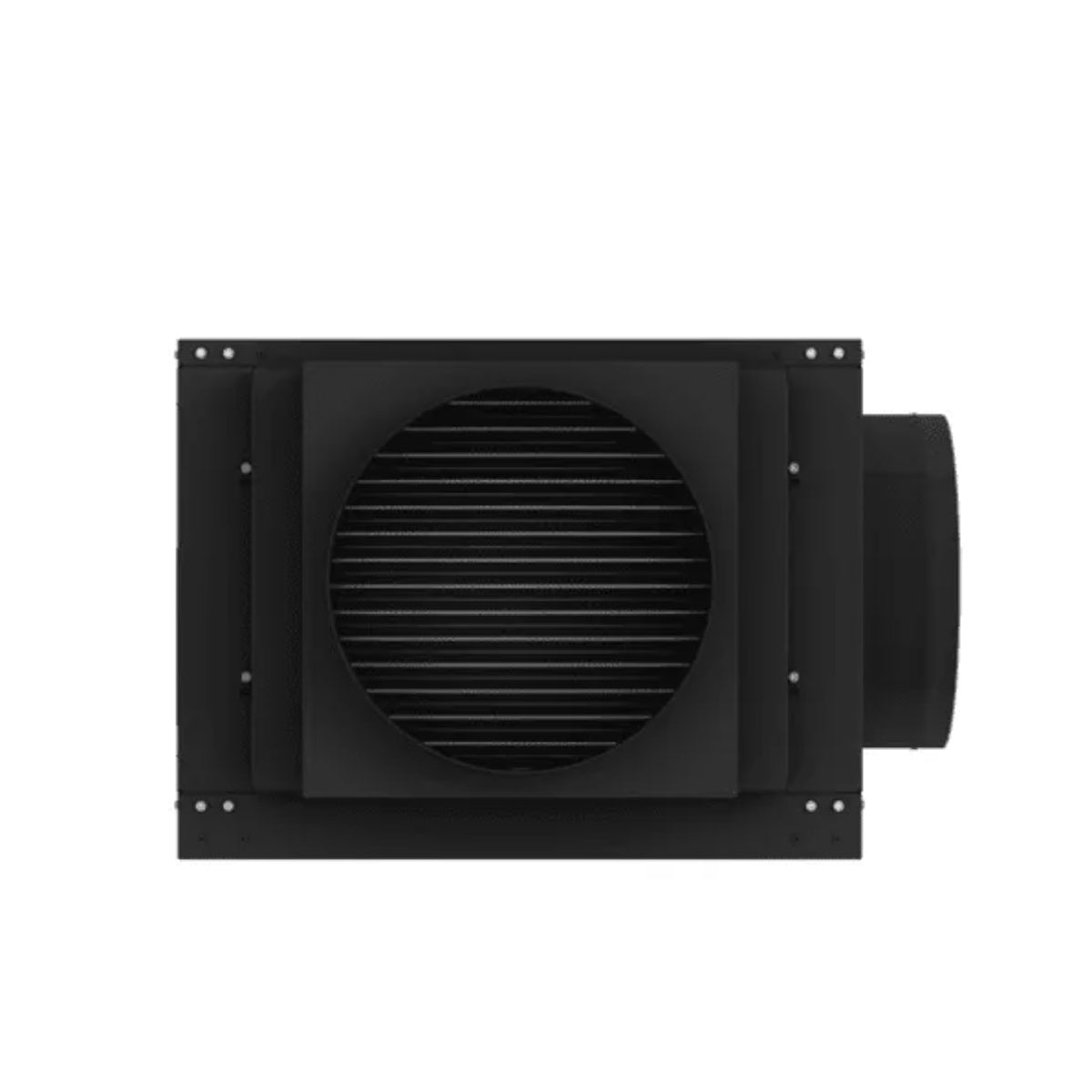

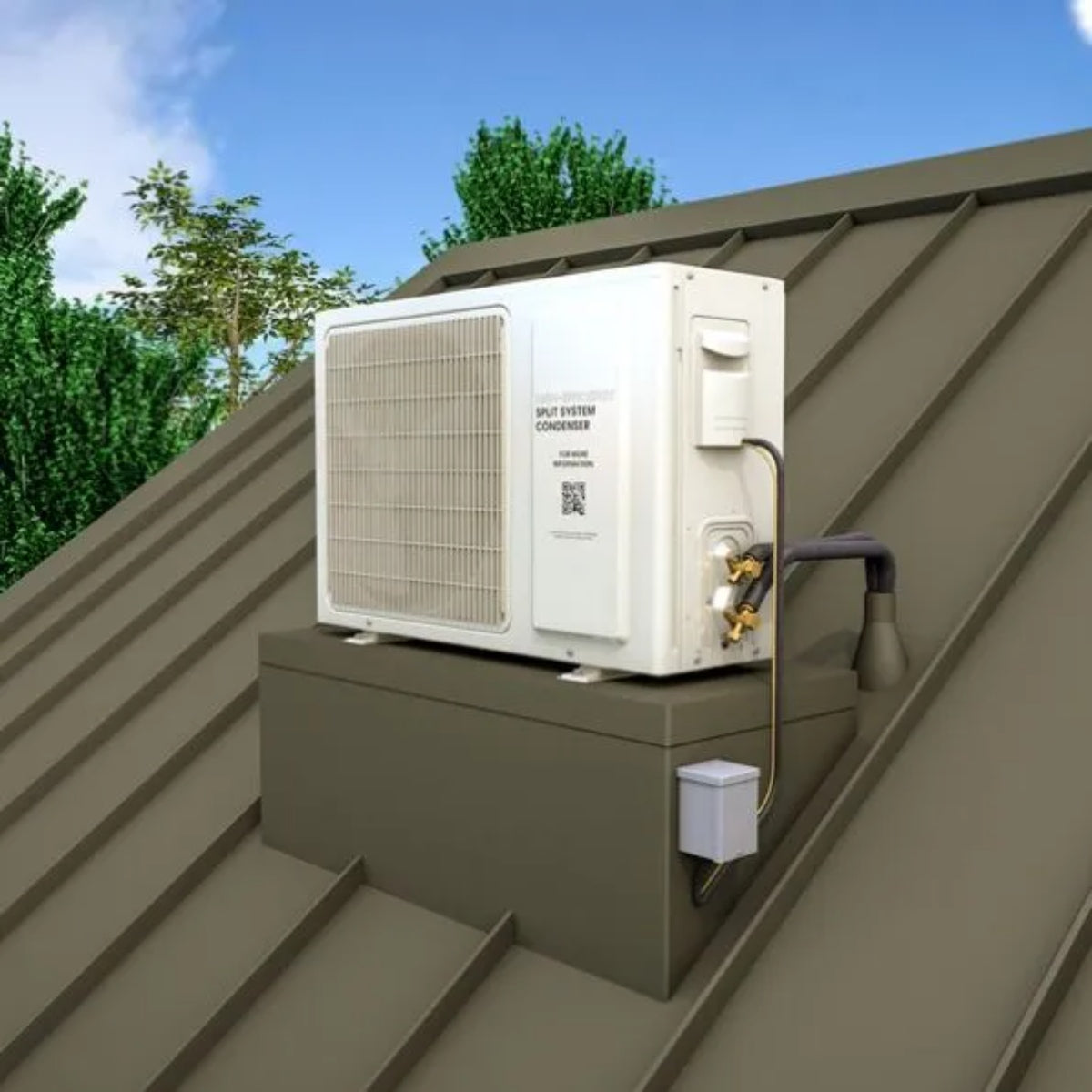

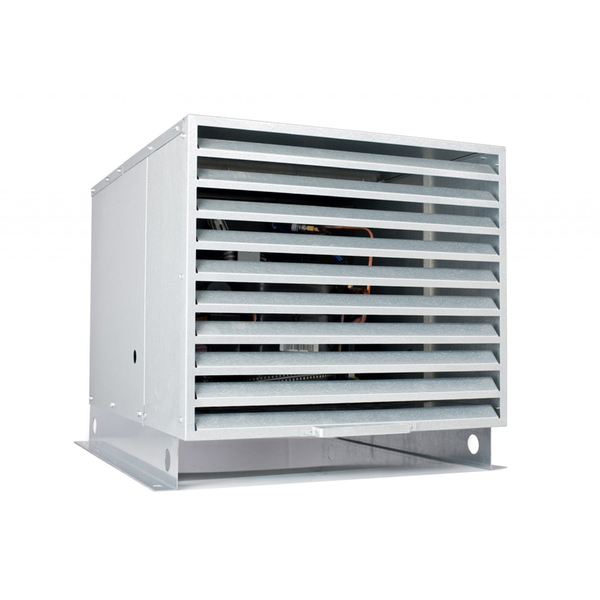

The electro-fin coated coils protect against cellar outgassing, helping preserve your wine’s quality. Plus, with optional exterior housing, you can install the condenser outdoors to reduce indoor noise and save space.
The system’s 220V High Efficiency Condenser delivers fast, energy-efficient cooling for long-term aging.
BTU/h Value Range: 9,572 – 10,786
The WhisperKOOL Quantum 9000 runs at 52 dBA at the evaporator and 48 dBA at the condenser, with the condensing unit sited up to 100 feet of line set from the evaporator.
Quantum 9000 Split Ducted Wine Cooling System Features
- 3-speed fan switch
- Stainless steel drip tray

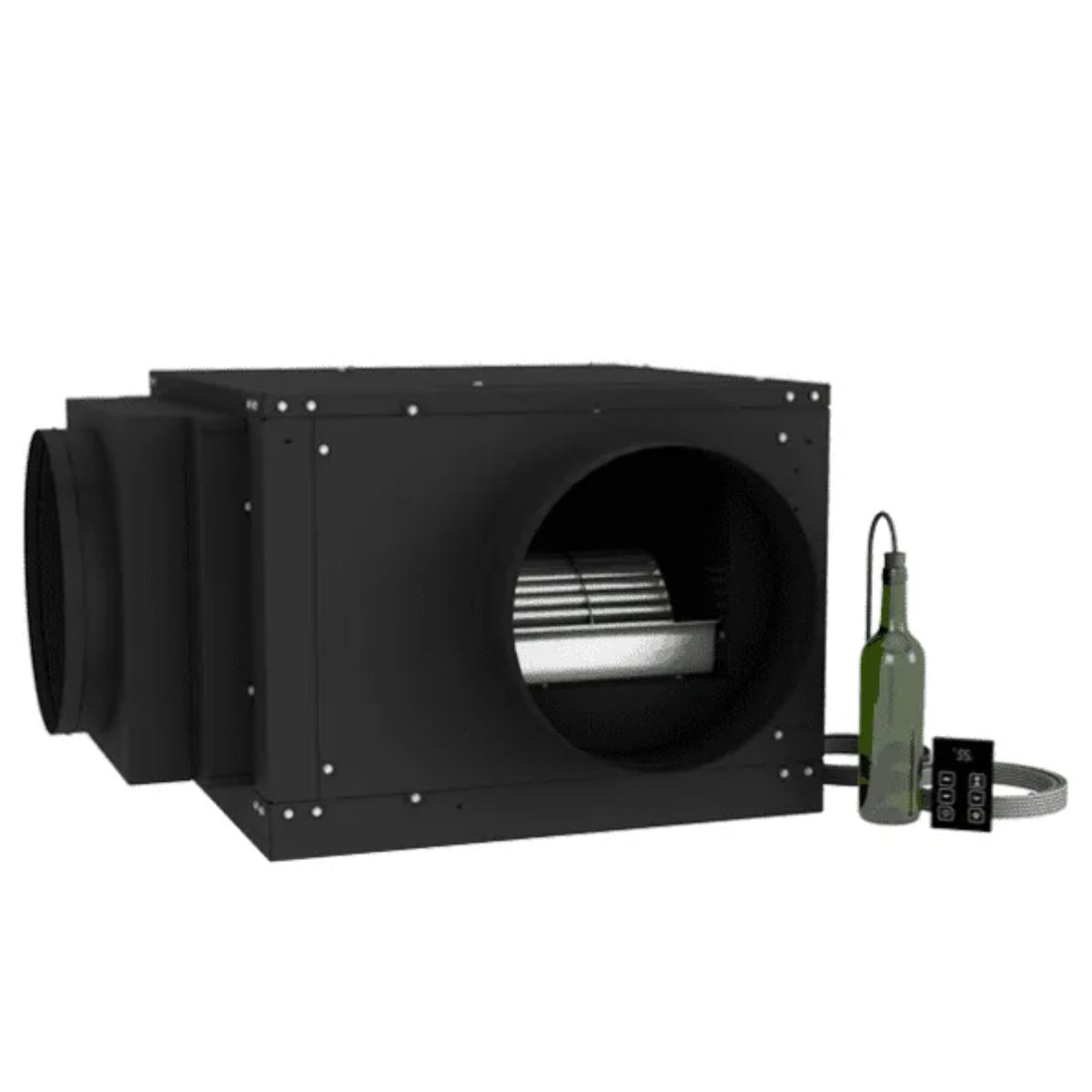

- Sleek new black metal kit
- 52 dBA at the evaporator, 48 dBA at the condenser
- UV-C lighting system (add-on)
- Flare fittings, which shorten the line-set work for your installing technician
- Advanced electronic control system
- Standard and 24V thermostat options available (add-on)
- Interchangeable evaporator airflow panels
- 55°F temperature differential between the cellar and the condensing unit air intake
Note: A qualified HVAC-R technician is required for the installation of the Quantum 9000. Failure to have the system installed by a qualified technician will void the warranty.
*PLEASE NOTE: WhisperKOOL does not provide a smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment.
Quantum 9000 Split Ducted Wine Cooling System 3D Tour

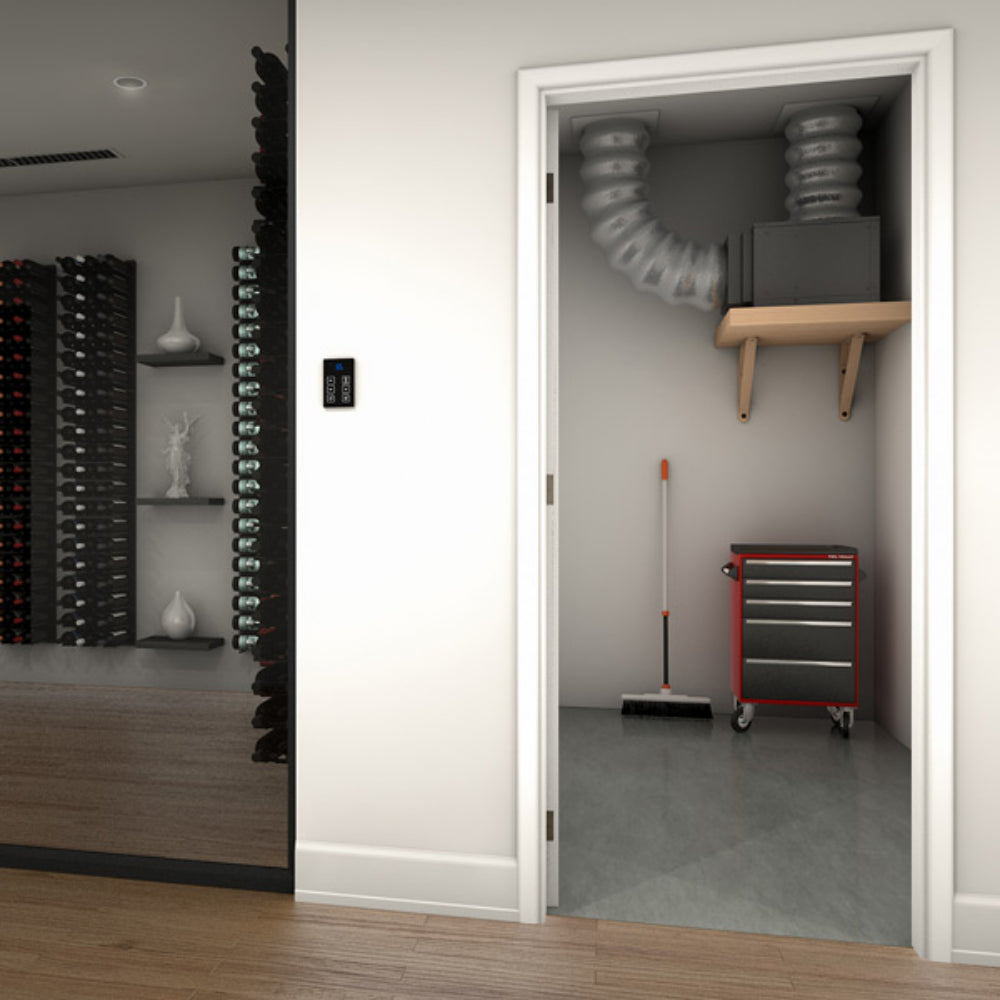

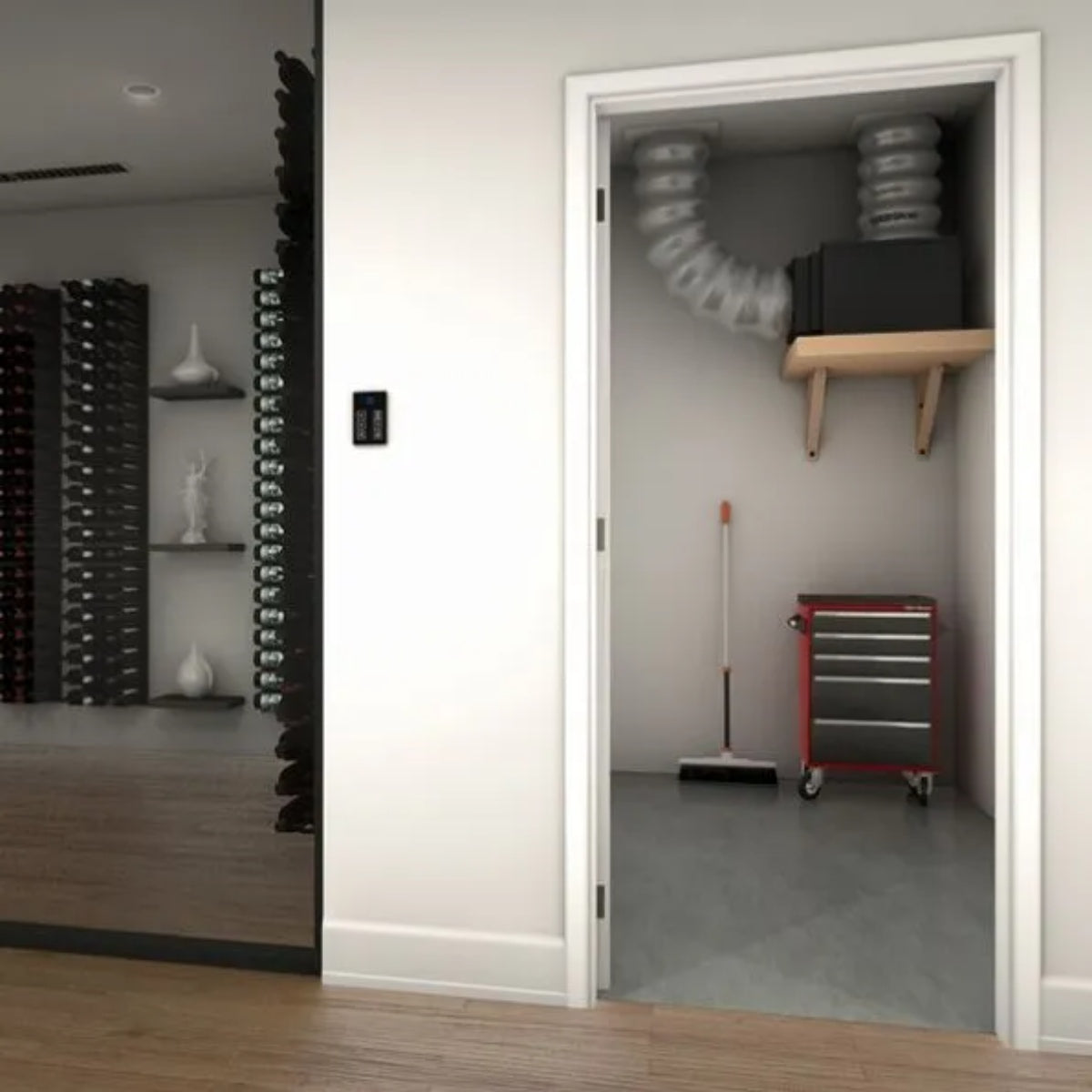

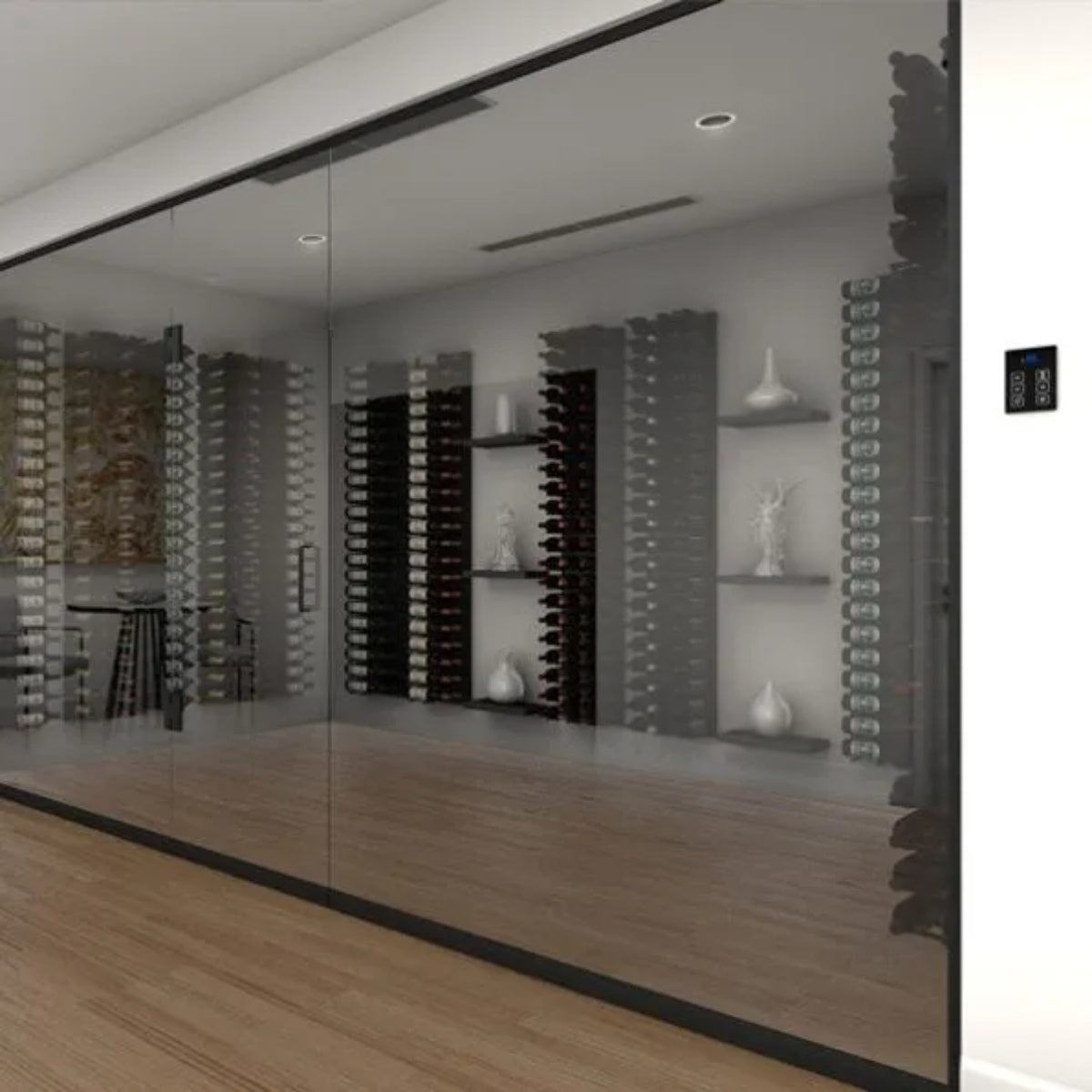

Explore the wine cellars in detail with our 3D tour. Step inside a modern home and see how each unit sits within a finished living space.

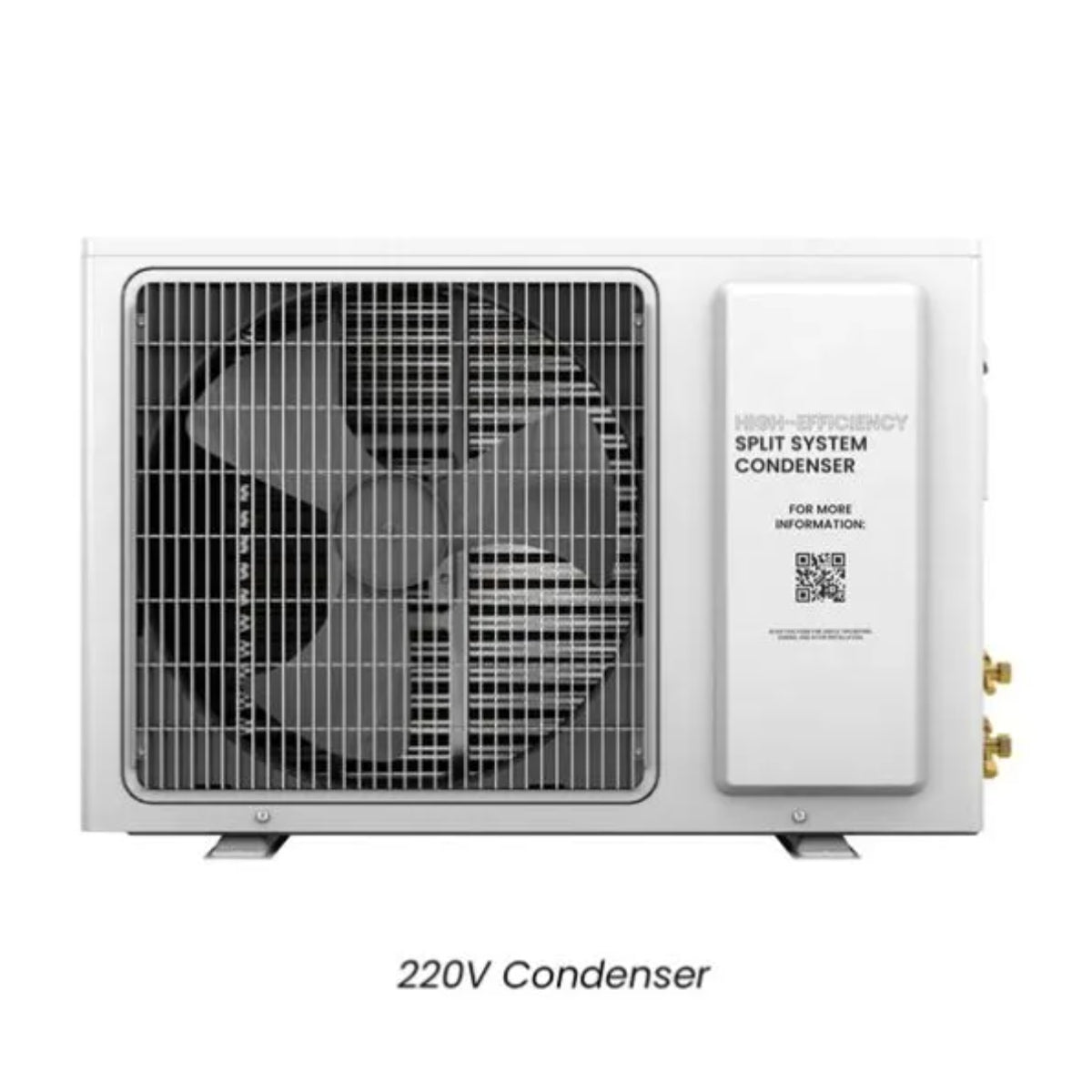

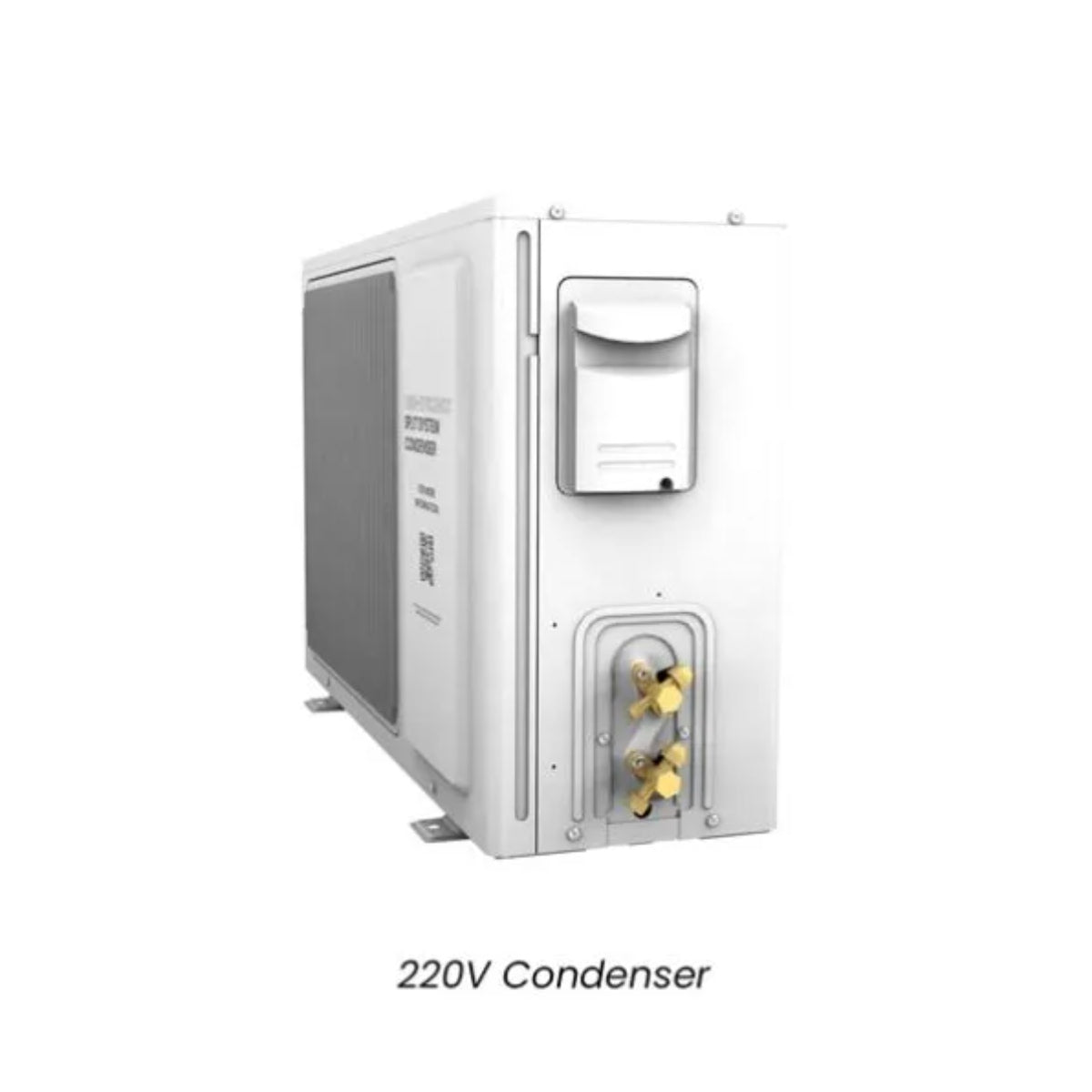

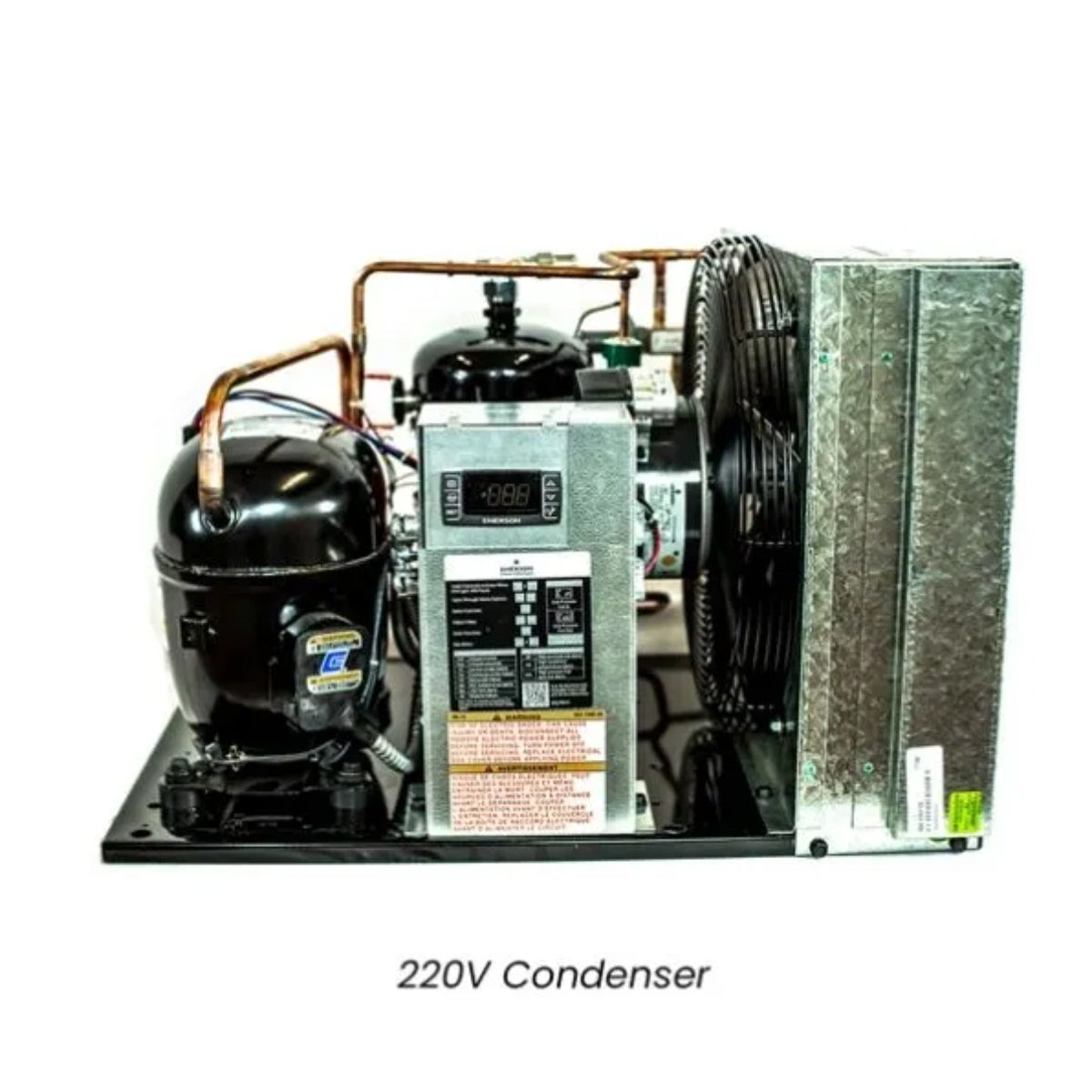

Quantum 9000 Split Ducted Wine Cooling System: 220V High Efficiency Condenser
The 220V High Efficiency Condensers offer a host of advantages over our traditional 110V condensers, including simplified installation, lower operating noise, energy efficiency, and the ability to operate in extreme climates.
For more information about our latest Split-System innovation, please watch the following video.
Quantum 9000 Split Ducted Wine Cooling System Technical Specifications
| Model | Quantum 9000 |
| Product Number | S-WKQS9000-000-2-1 |
| Cellar Size | Approx. 3,000 cu. ft. when the cellar is fully insulated and sealed with a proper vapor barrier |
| BTU/h (60°F condenser air intake temperature) | Sensible 10985 / Total 11361 |
| BTU/h (75°F condenser air intake temperature) | Sensible 10711 / Total 11019 |
| BTU/h (85°F condenser air intake temperature) | Sensible 10145 / Total 10786 |
| CFM | 590 (low-speed), 650 (medium-speed), 710 (high-speed) |
| DBA | Evaporator - 52, Condenser - 48 |

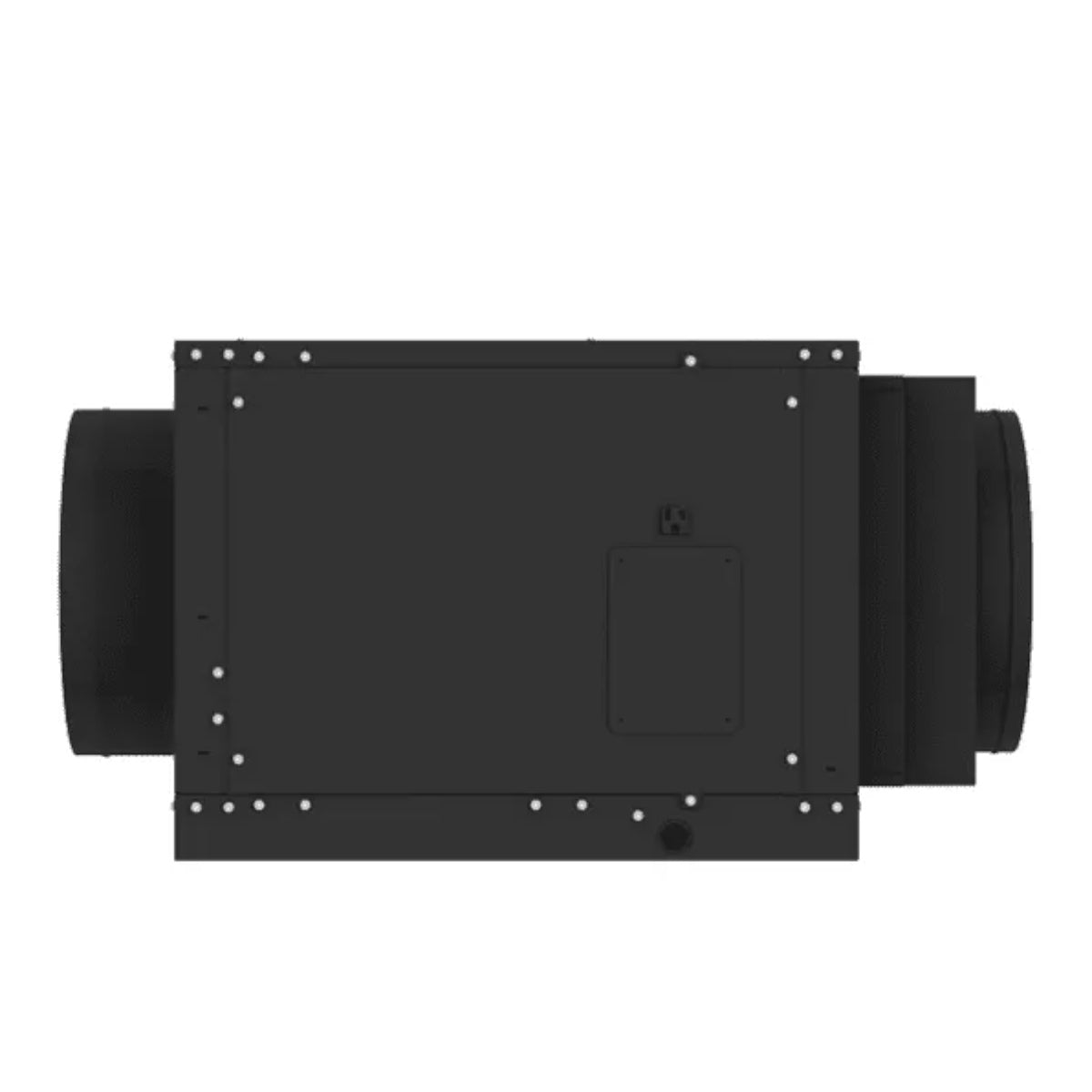

| Dimensions | Evaporator: 29.5”L x 30.9”W x 19.8”H Condenser: - 31.18"L x 10.75"W x 21.18"H |
| Refrigerant | R-134a |
| Horsepower | 1 HP |
| Voltage Rating | Evaporator: 120V (15-amp dedicated circuit required) Condenser: 220V (15-amp dedicated circuit required) |
| Weight (lbs) | Evaporator - 96, Condenser - 64 |
| Amps | Evaporator: 9.2 (Running Amps) Condenser: LRA 20, RLA 4.25, FLA 4.89 |
| Line Set | Liquid line 3/8” OD; Suction line 5/8” OD (less than 50 ft.), 3/4” (greater than 50 ft.) |
| Drain Line | 3/4” Female to base (CPPVC/PVC) |
| Ducts | 14” Supply • 14” Return (Up to 35ft per duct) |
| Installation | The evaporator unit is installed in the cellar. A condensing unit can be installed up to 100 ft of line set from the evaporator unit. |
| Thermostat | Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable) |
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature |
| Warranty | Two-year limited warranty with up to an additional (1) year grace period for installation. (parts and labor) |
Quantum 9000 Split Ducted Wine Cooling System Product Warranty
Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty.
A limited 2-year product warranty, with up to an additional 1-year grace period for installation, is offered with all split systems. Split systems do not carry a separate compressor warranty. The installing HVAC-R technician must complete their portion of the Split Startup Checklist, and you must return it to WhisperKOOL within 30 days of installation. The warranty starts at the date of purchase but is not activated until that checklist is approved. Warranty labor reimbursement is capped at $400.
