Smart Wine Cooling Solution: WhisperKOOL Through The Wall Extreme 5000 Ti
The WhisperKOOL Through The Wall Extreme 5000Ti is a through-the-wall, self-contained cooling system that maintains cellar temperature with condenser air intake up to 110°F.
With a 55°F temperature differential, it easily handles hot garages and outdoor-facing cellars, keeping your collection in ideal aging conditions.
It’s not just about cooling power. The 3-speed fan switch lets you adjust performance to match your setup and wine type. The liquid-temperature-measuring bottle probe ensures your wine is cooled directly, not just the surrounding air.
Want added protection? The optional UV-C Lighting System helps neutralize harmful microorganisms that could impact taste and quality.
BTU/h value range: 4126. Sound level: 51 dBA.
The WhisperKOOL Extreme 5000Ti is rated for cellars up to 1,250 cu. ft. on a dedicated 115V, 20-amp circuit.
Through The Wall Extreme 5000 Ti Features
- Built for easy through-the-wall installation
- Variable-speed fans deliver precise and efficient airflow control
- Maintains cellar temperature with condenser air intake up to 110°F
- Installs neatly between standard wall studs for a clean setup

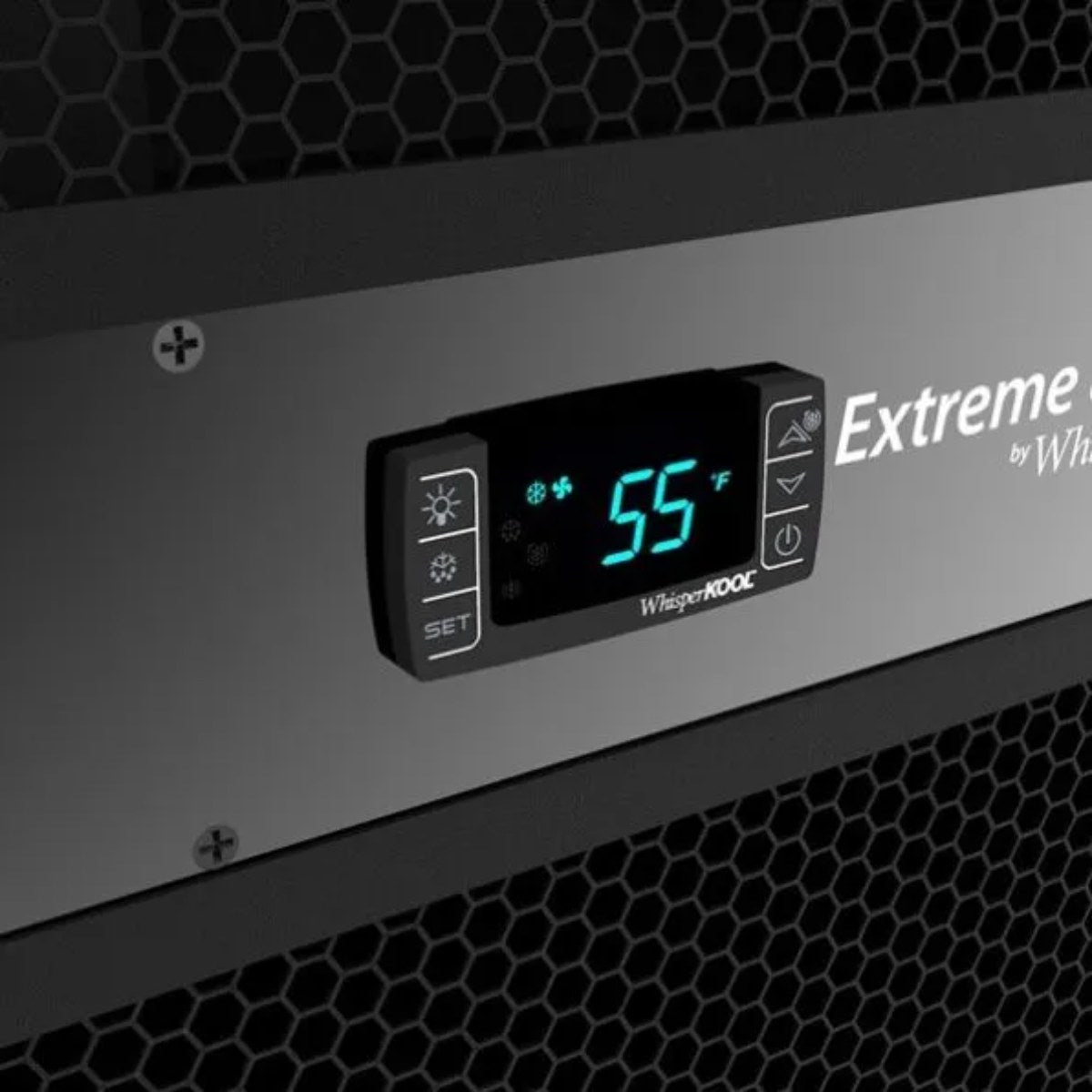

- Features an advanced digital display for user-friendly monitoring

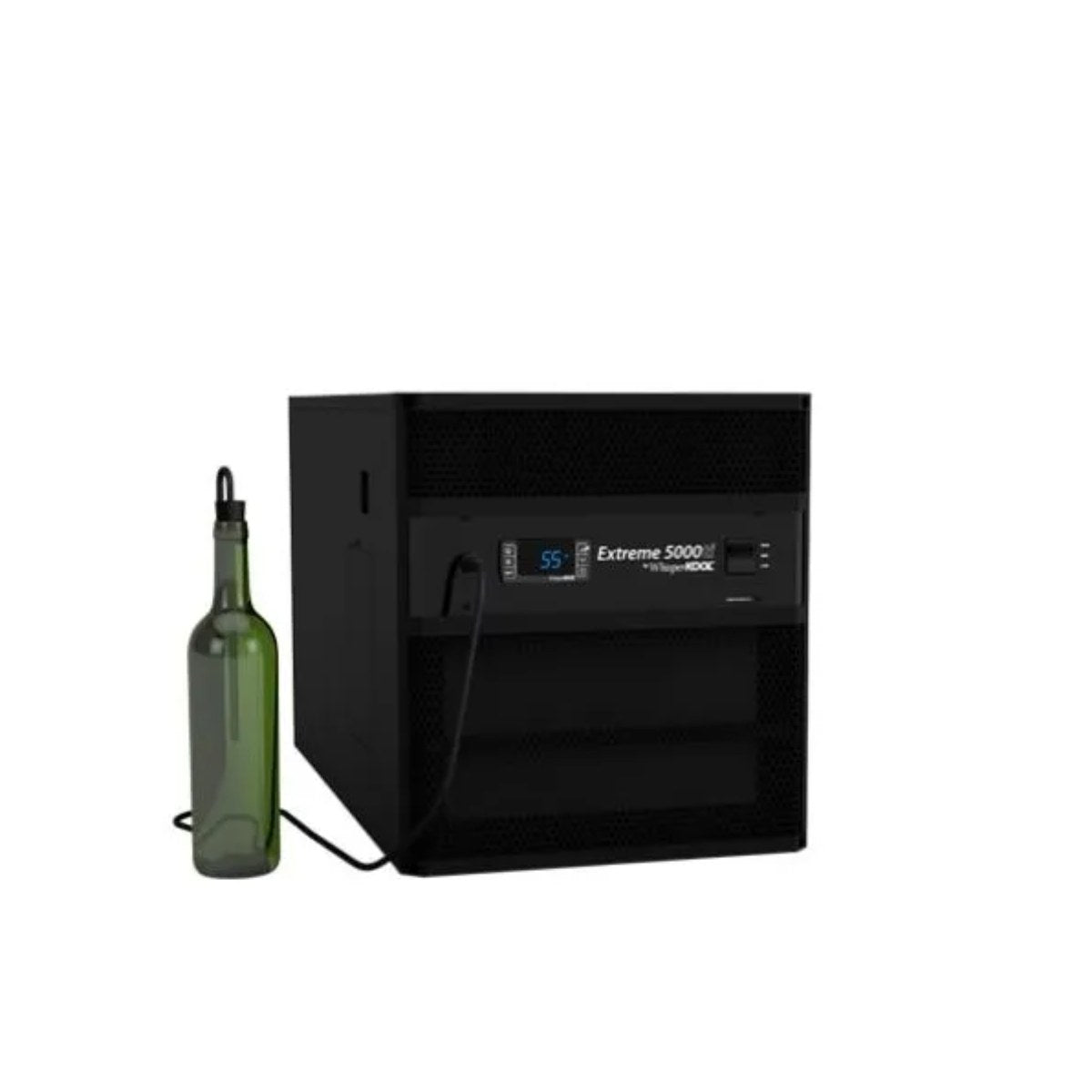

- Equipped with a bottle probe for accurate liquid temperature readings
- Fully ductable design to suit a variety of cellar layouts
- Maintains a 55°F temperature differential between the cellar and condensing unit intake
- Power switch accessible from either the front or rear for added convenience
- Optional UV-C lighting system available for enhanced protection
Through The Wall Extreme 5000 Ti 3D Tour

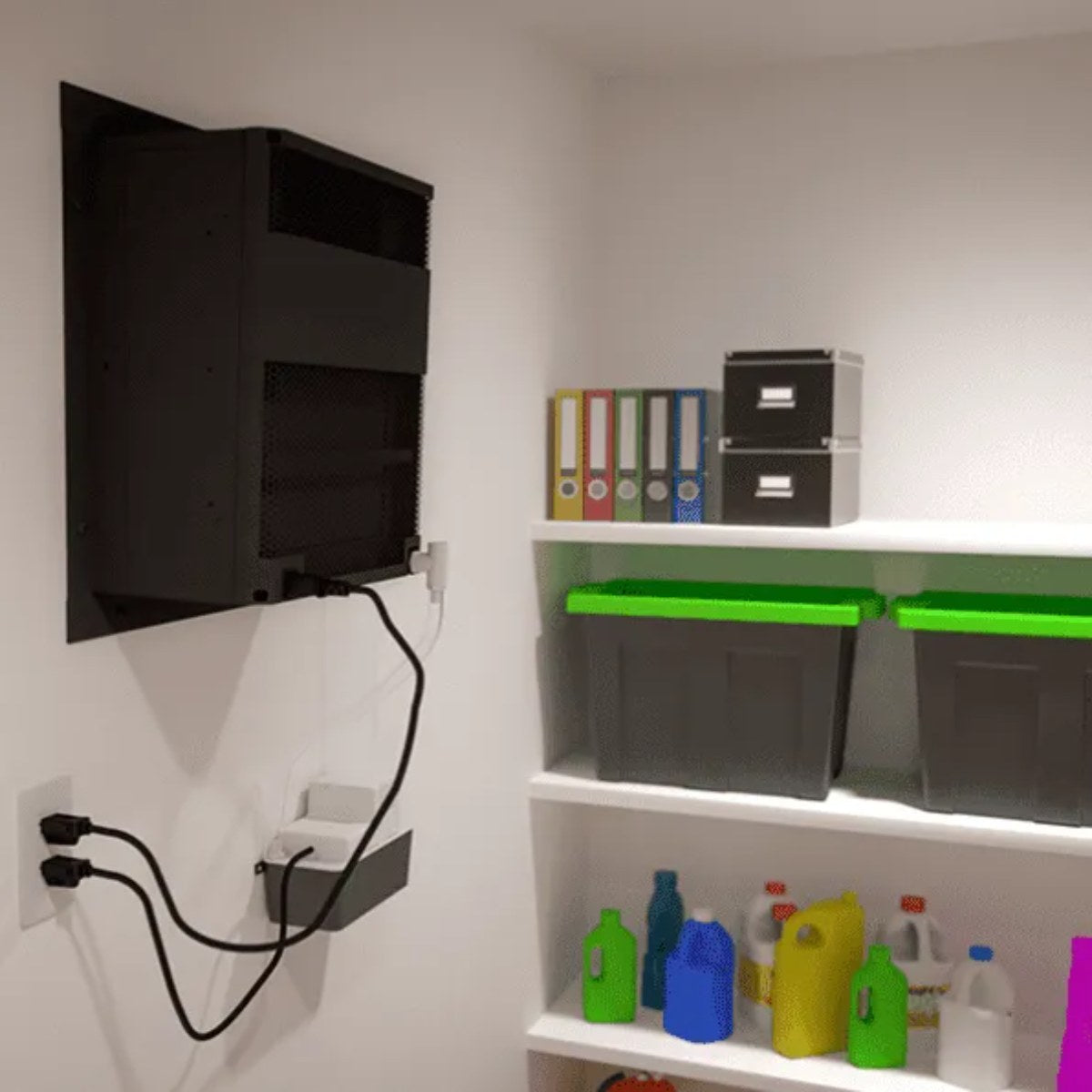

Explore the wine cellars in stunning detail with our 3D tour, step inside a modern home and see how each unit installs flush through the wall, with only the interior vent visible in the room.
Through The Wall Extreme 5000 Ti: UV-C Lighting System Option
Eliminate harmful microbes and enhance air quality with the UV-C Lighting System Option, an extra layer of protection for your wine cooling setup!
Through The Wall Extreme 5000 Ti: Ventilation Requirements
This video explains the proper ducting setup needed for hot air exhaust and fresh air intake to keep your system running at peak efficiency.
Through The Wall Extreme 5000 Ti Technical Specifications
| Model | 5000ti |
| Cellar Size | 1250 cu. ft.* |
| BTU/h (85°F condenser air intake temperature) | 4126 |
| Dimensions | 28”L x 14.25”W x 15.75”H |
| Refrigerant | R-134a |
| Horsepower | 1.62 HP |
| Voltage Rating | 115V (20 amp dedicated circuit required); 230V (subject to availability) |
| Weight (lbs) | 115 |
| Amps | 9 (running amps) |
| Ducting Options | Condensing side can be ducted. |
| Drain Line | 1/2” ID clear plastic tubing |
| Installation | Through-the-wall |
| Thermostat | Advanced digital display, liquid-temperature-measuring bottle probe (Retractable cable) |
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature |
| Outside Venting | Can be done if the outside temperature does not exceed 110°F, the external grille cover is highly recommended. |
| Warranty | 2 years parts and 2 years labor, from WhisperKOOL. |
Through The Wall Extreme 5000 Ti Product Warranty
Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty.
Warranty: 2 years parts and 2 years labor, from WhisperKOOL. This warranty is offered with all self-contained systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
