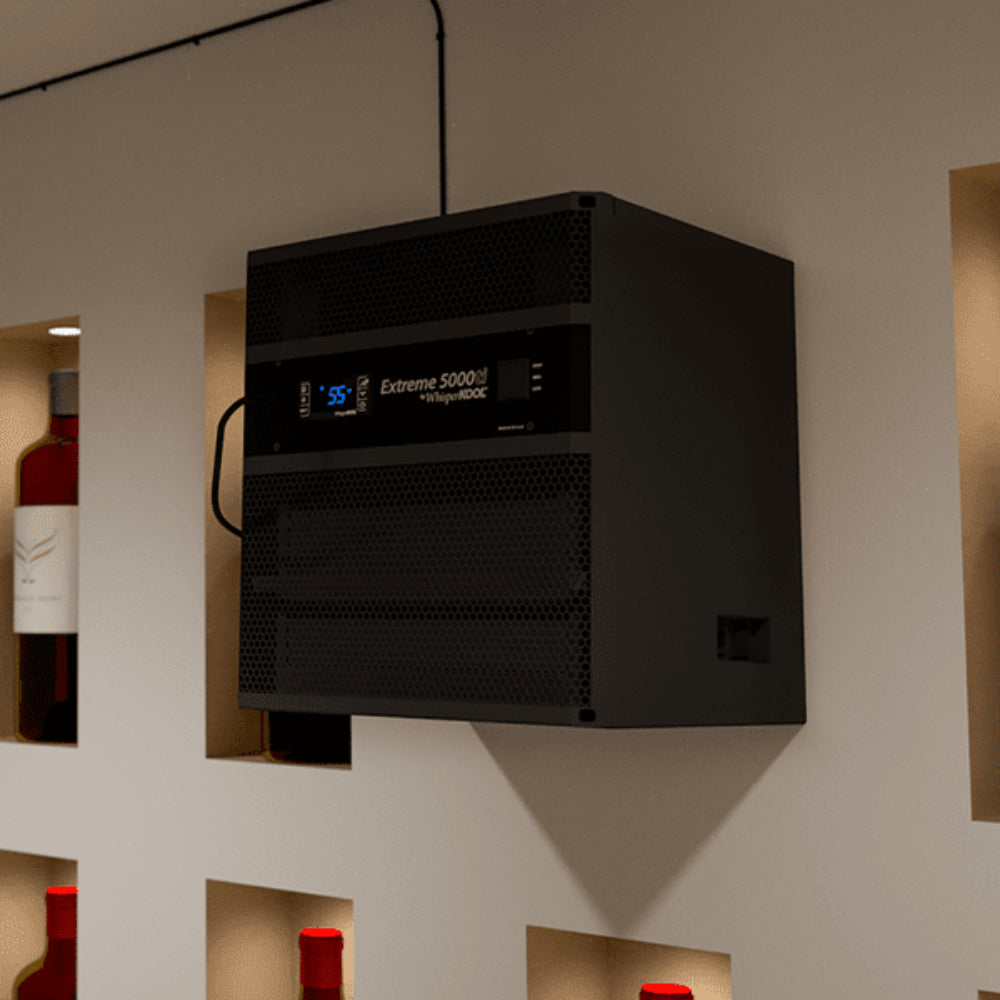

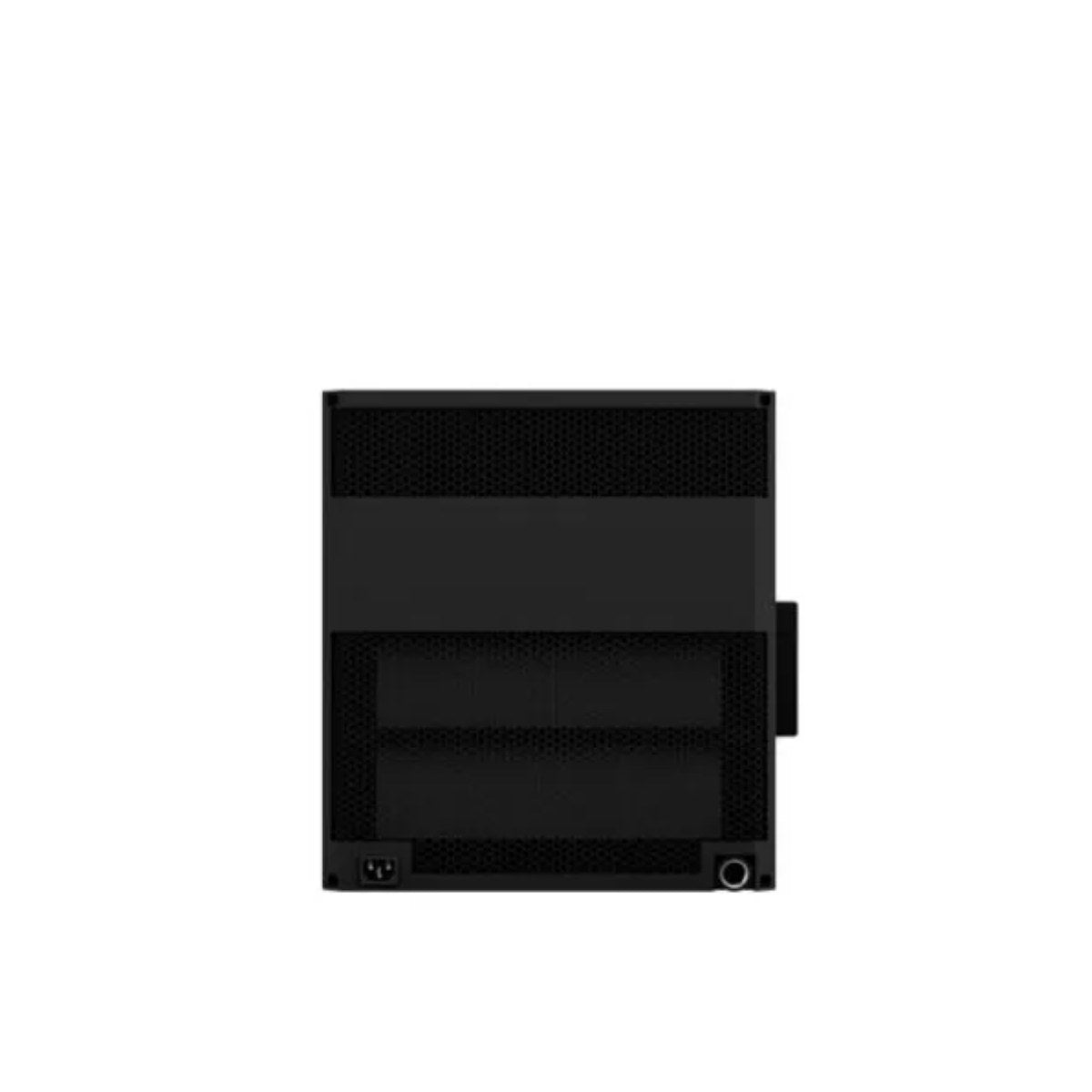

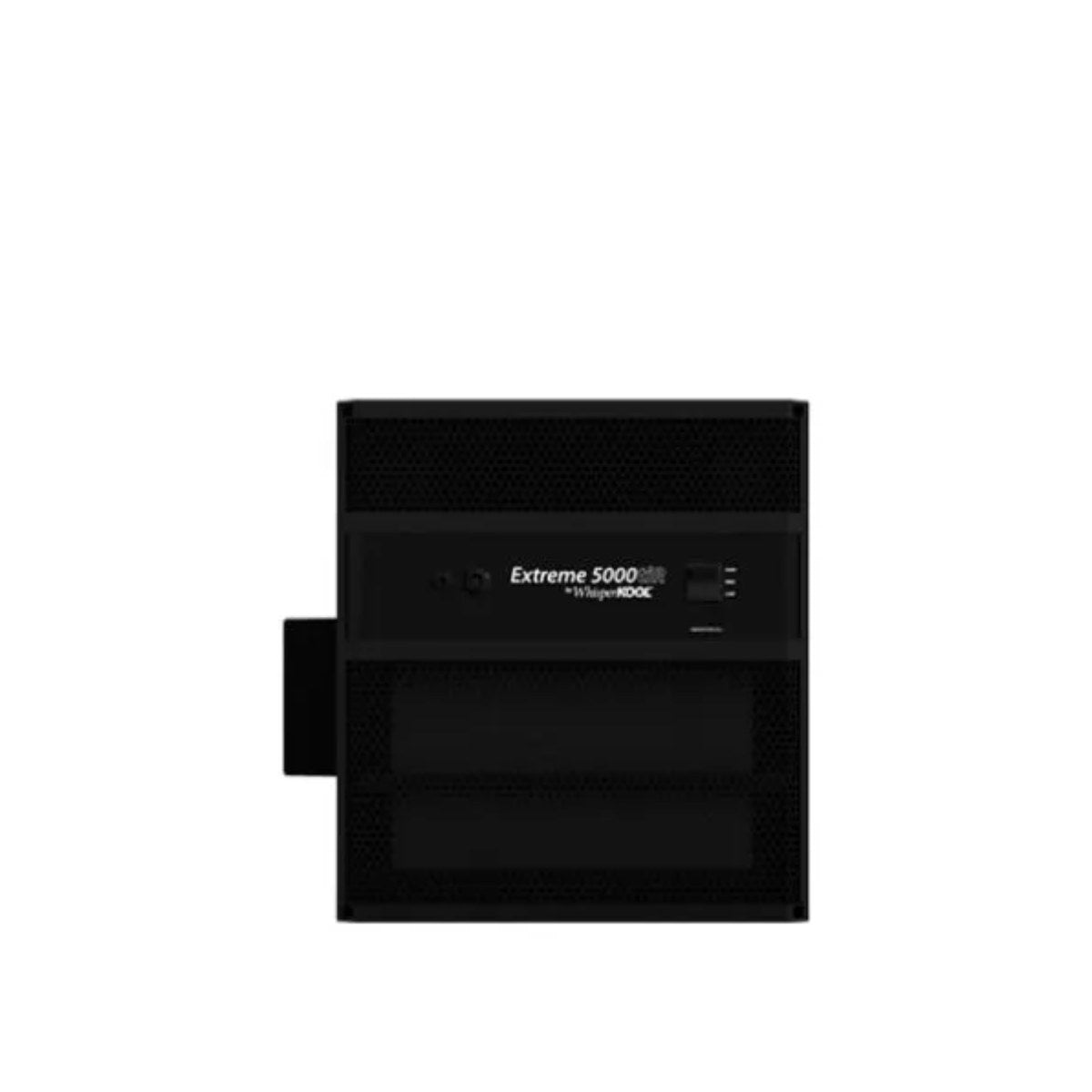

Professional Through‑The‑Wall Design: WhisperKOOL Extreme 5000 TiR
Take total control of your wine cellar with the WhisperKOOL Through The Wall Extreme 5000 TiR, a powerful cooling unit engineered to thrive in extreme conditions—only at Wine Cooler Collection.
Designed for reliable operation in the harshest climates, this system delivers a 55°F temperature differential and features variable-speed fans to keep your collection aging gracefully in a stable, quiet environment.
Install it up to 25 ducted feet away from your wine cellar for maximum placement flexibility, and monitor conditions easily using the remote digital display with a 50-ft. cable. Whether you prefer a standard or 24V thermostat, you’ll have full control over your wine storage setup.
Want to take protection a step further? Add the optional UV-C Lighting System to help neutralize harmful microbes and safeguard your wine’s integrity. And with quiet operation technology, sound levels stay as low as 51 dB, so your wine cools in peace.
The WhisperKOOL Extreme 5000 TiR is perfect for collectors who demand performance, precision, and peace of mind. Order yours today from Wine Cooler Collection and give your wine the care it deserves.
Extreme 5000 TiR Through The Wall System Features
- Designed for convenient through-the-wall installation
- Features variable-speed fans for optimized airflow and efficiency
- Delivers dependable performance in extreme environmental conditions
- Installs easily within standard wall studs for a clean, space-saving setup
- Includes a remote digital display with a 50-foot communication cable for flexible monitoring

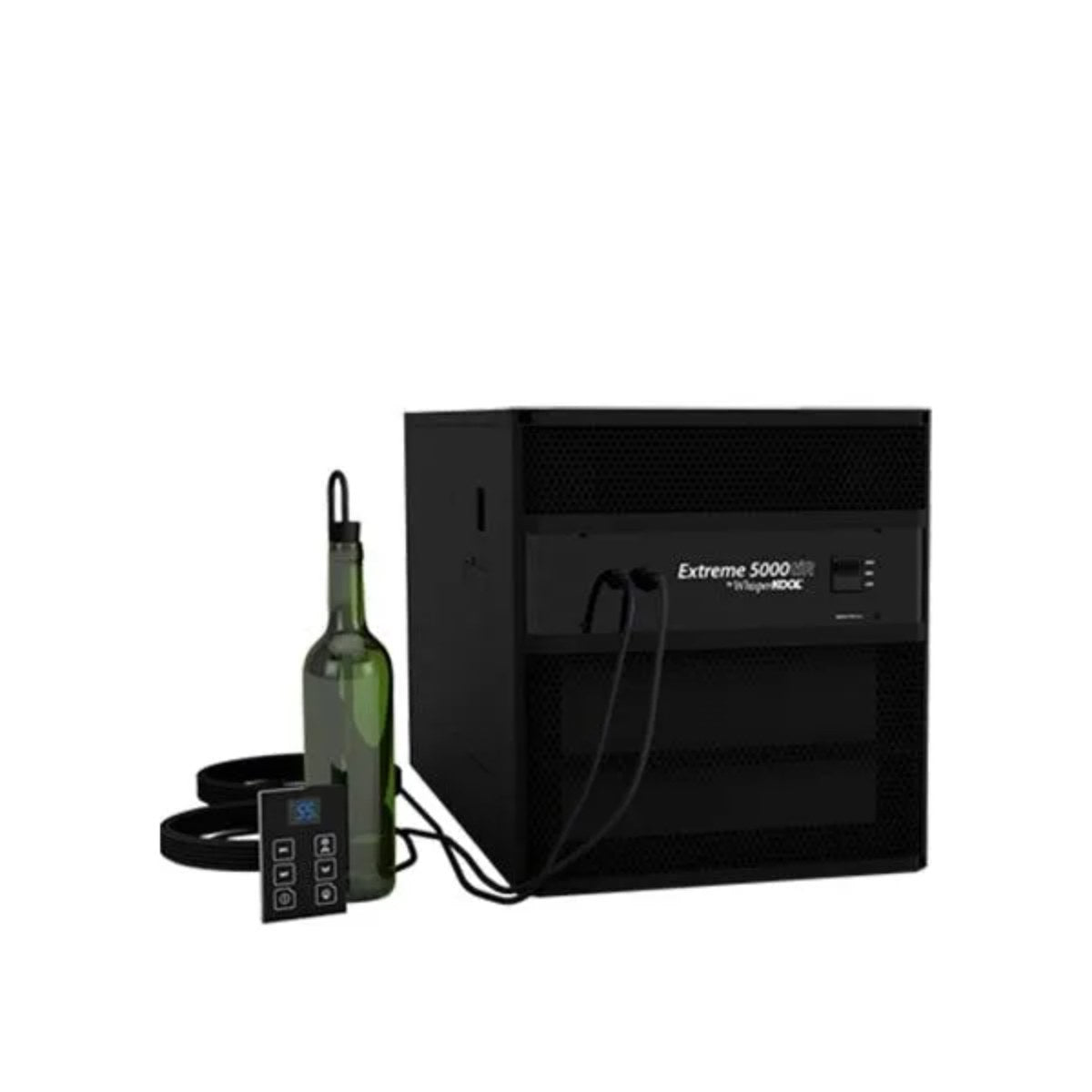

- Equipped with a bottle probe for precise liquid temperature measurement
- Fully ductable to accommodate various cellar layouts and airflow needs
- Offers a 55°F temperature differential between cellar air and condensing unit intake
- Supports both standard and 24V thermostat configurations for versatile control

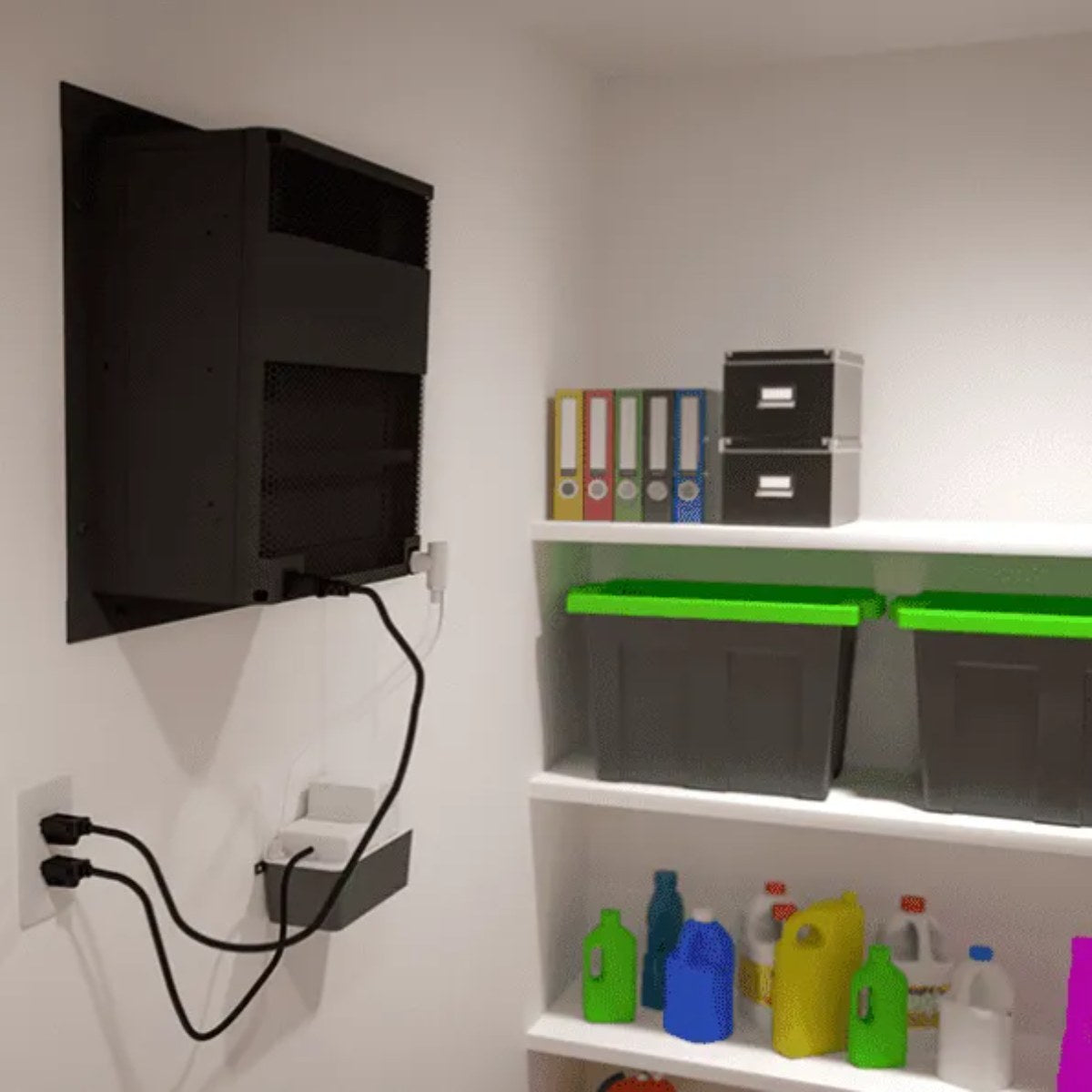

NOTE: If this unit will be installed through an exterior wall, you will need to purchase an exterior housing to protect the unit. If this unit will be installed through an interior wall, the hot air exhaust may be redirected to another location using the condenser ducting plenum kit.
*PLEASE NOTE: WhisperKOOL does not provide smart thermostat upon purchase of your Extreme tiR 5000. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment.
The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
Extreme 5000 TiR Through The Wall System 3D Tour
Explore the wine cellars in stunning detail with our 3D tour—step inside a modern home and see how each unit blends seamlessly into stylish living spaces.

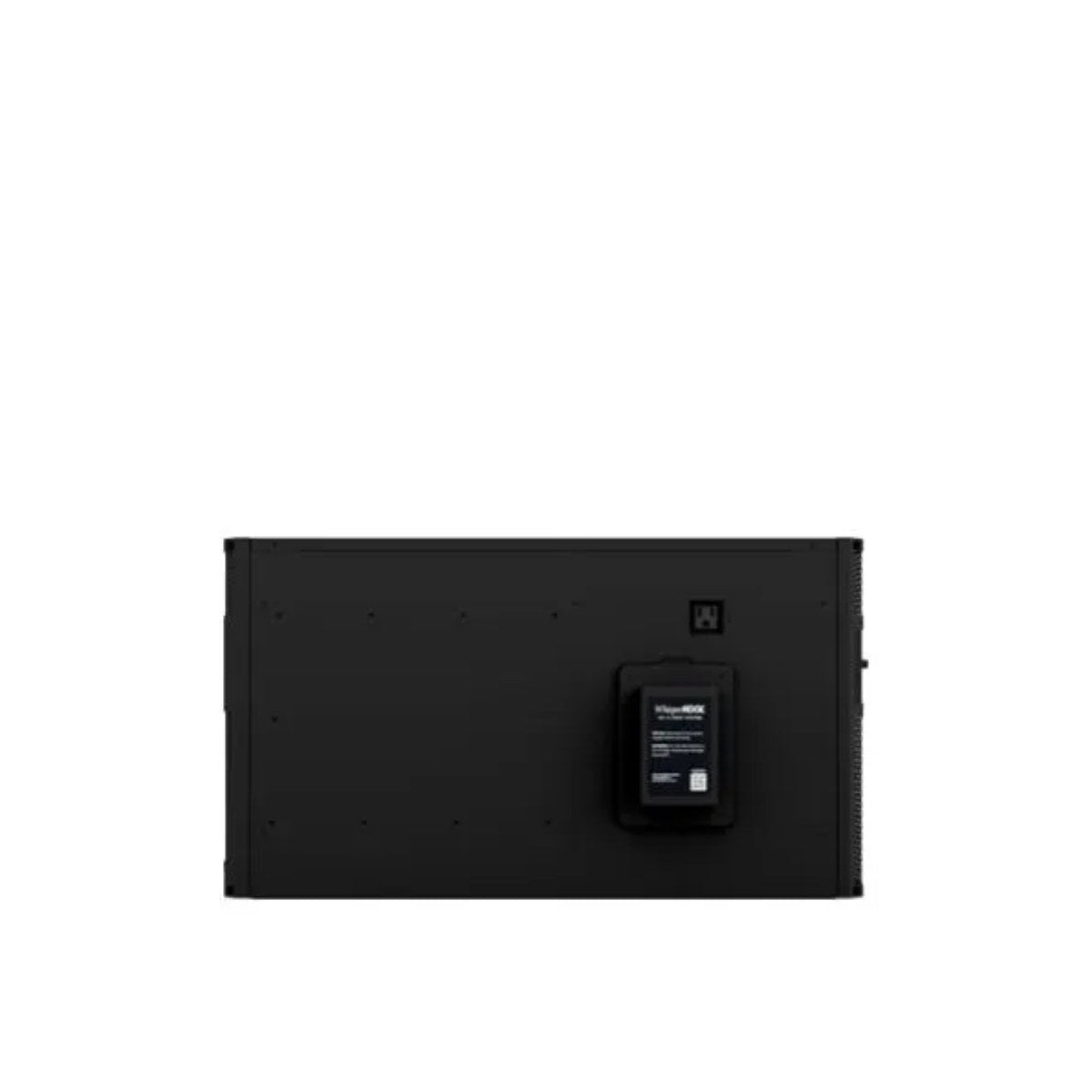

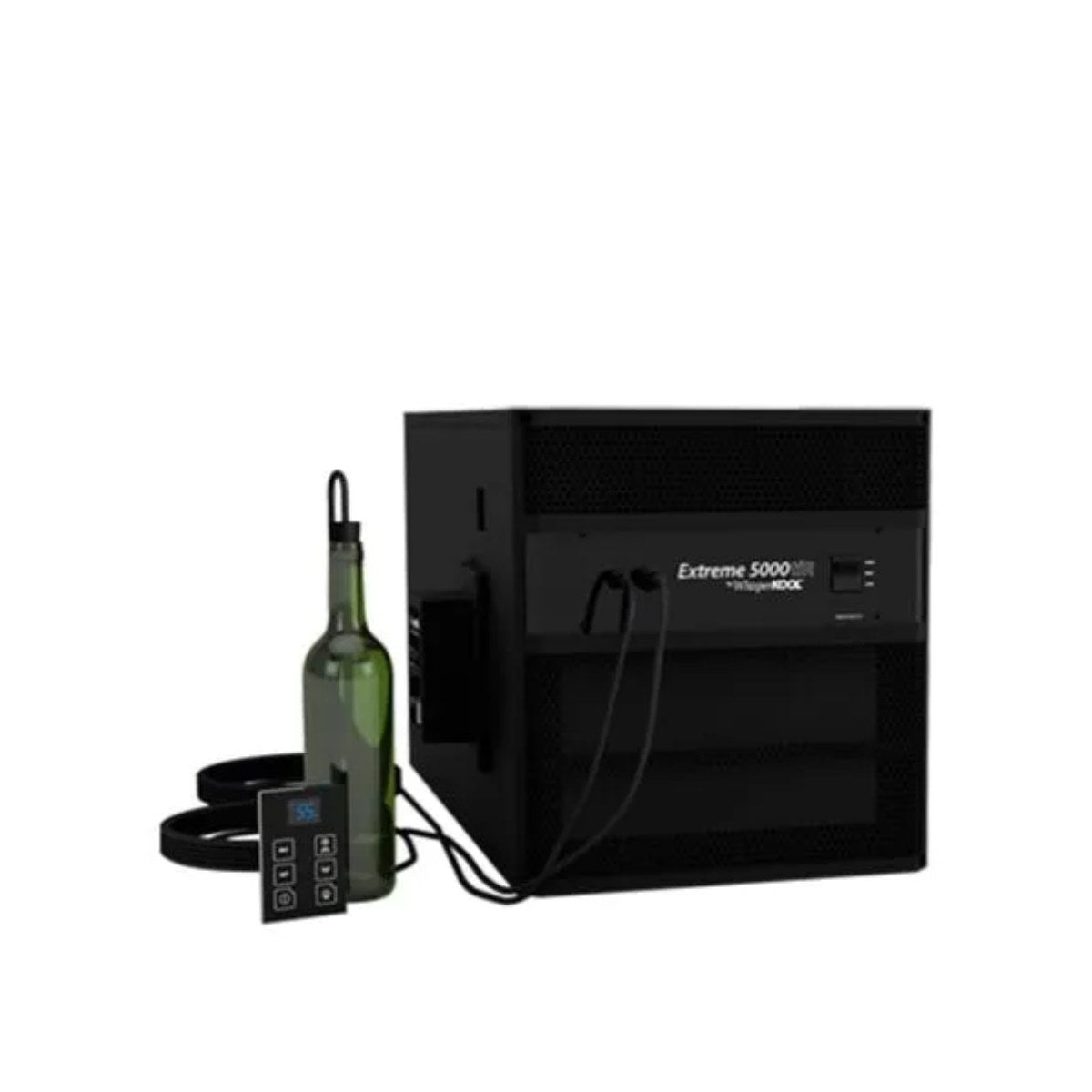

Extreme 5000 TiR Through The Wall System: UV-C Lighting System Option
Eliminate harmful microbes and enhance air quality with the UV-C Lighting System Option—an extra layer of protection for your wine cooling setup!
Extreme 5000 TiR Through The Wall System: Ventilation Requirements
This video explains the proper ducting setup needed for hot air exhaust and fresh air intake to keep your system running at peak efficiency.
Extreme 5000 TiR Through The Wall System Technical Specifications
| Model | 5000 tiR |
| Cellar Size | 1250 cu. ft.* |
| BTU/h (85°F condenser air intake temperature) | 4126 |
| Dimensions | 28”L x 14.25”W x 15.75”H |
| Refrigerant | R-134a |
| Horsepower | 1.62 HP |
| Voltage Rating | 115V (20 amp dedicated circuit required); 230V (subject to availability) |
| Weight (lbs) | 115 |
| Amps | 9 (running amps) |
| Ducting Options | Condensing side can be ducted. |
| Drain Line | 1/2” ID clear plastic tubing |
| Installation | Through-the-wall |
| Thermostat | Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable) |
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature |
| Outside Venting | Can be done if the outside temperature does not exceed 110°F, the external grille cover is highly recommended. |
| Warranty | 2-year limited warranty & up to an additional (6) month grace period for install / 5-year limited warranty (compressor) |
Extreme 8000 TiR Through The Wall System Product Warranty
Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty.
A limited 2-year product warranty is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
WhisperKOOL Through The Wall Extreme 5000 TiR Product Manuals
