WhisperKOOL Extreme 8000 TiR: Through‑The‑Wall Wine Cooling Excellence
Protect your prized collection with the WhisperKOOL Through The Wall Extreme 8000 TiR, a powerhouse cooling unit built for performance in the most demanding environments—available now at Wine Cooler Collection.
With a 55°F temperature differential, this system maintains precise wine storage conditions even in extreme outdoor climates. Engineered for reliable starting and running performance, it ensures your wine stays in its ideal temperature range all year round.
Installation is flexible—place the unit up to 25 ducted feet away from the cellar for a seamless, unobtrusive setup. The remote digital display with 50-ft. cable gives you full visibility and control, while standard and 24V thermostat compatibility adds to its customizability.
Enjoy quiet operation thanks to advanced sound-dampening technology, and benefit from variable-speed fans that maximise energy efficiency while preserving your wine in complete peace.
BTU/h value range: 6131
For wine lovers who expect superior performance and convenience, the WhisperKOOL Through The Wall Extreme 8000 TiR delivers lasting value. Order yours today from Wine Cooler Collection—because your wine deserves nothing less.
Extreme 8000 TiR Through The Wall System Features
- Through-the-wall application
- Variable-speed fans for efficient airflow control
- Operates reliably in extreme environments

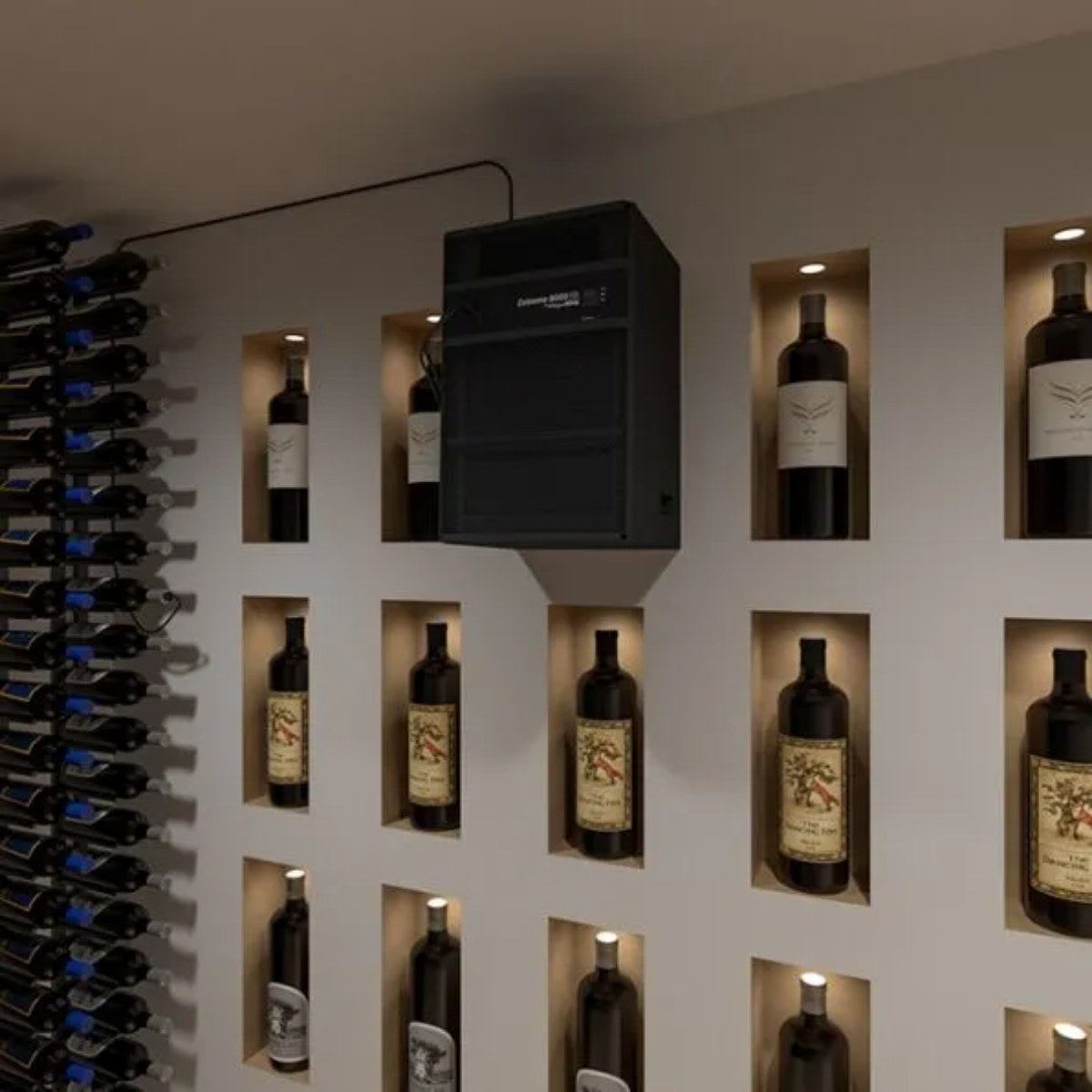

- Simple installation between wall studs

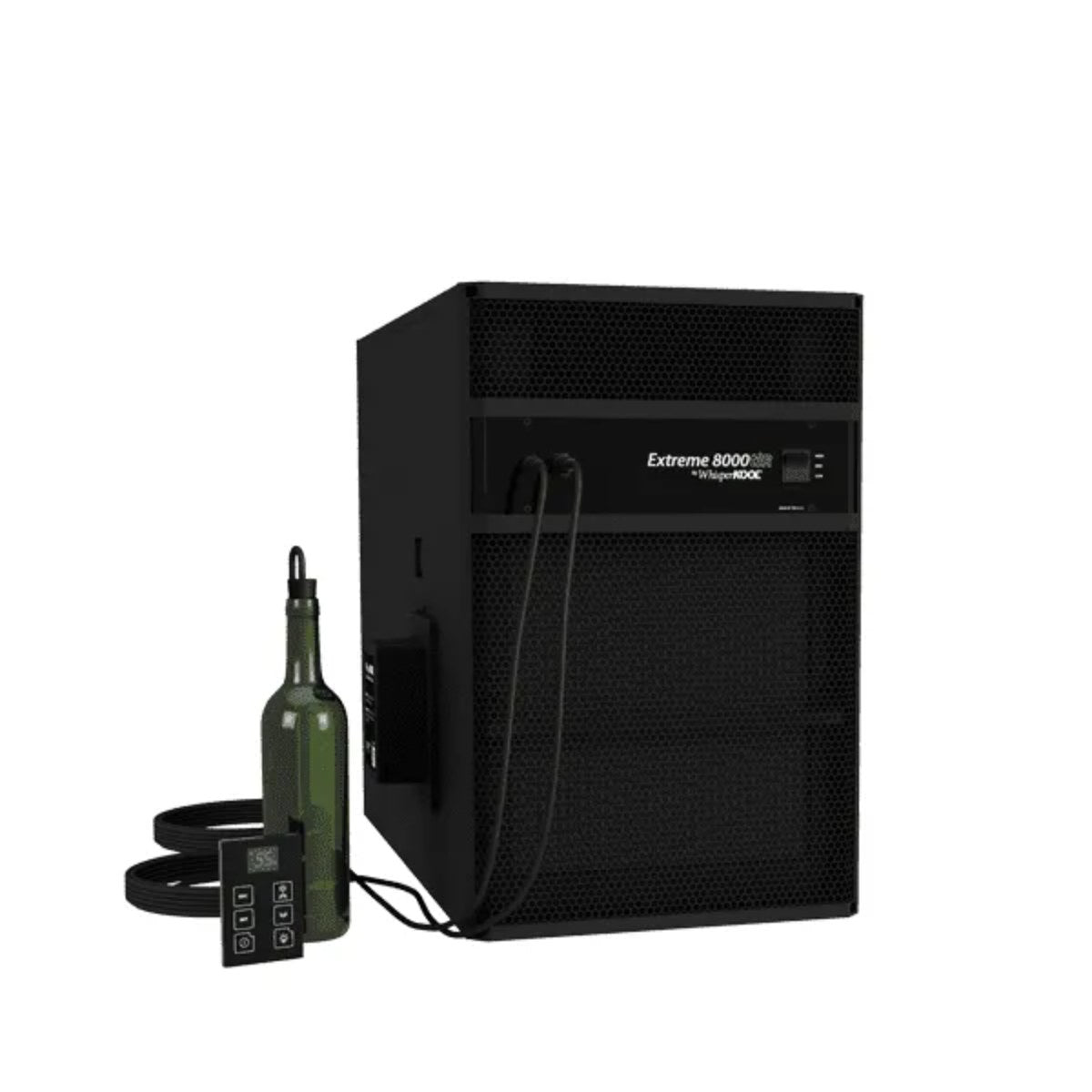

- Remote digital display with 50-ft. communication cable
- Liquid-temperature-measuring bottle probe for accurate readings
- Fully ductable for flexible configuration
- 55°F temperature differential between cellar and condensing unit air intake
- Compatible with both standard and 24V thermostat options

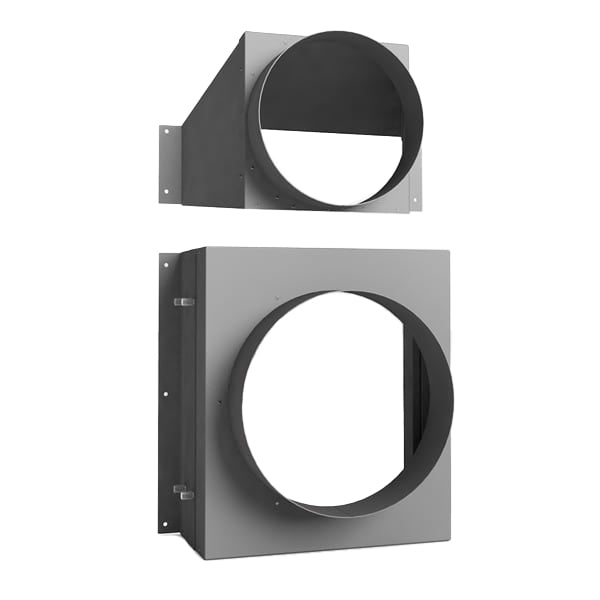

NOTE: If this unit will be installed through an exterior wall, you will need to purchase an exterior housing to protect the unit. If this unit will be installed through an interior wall, the hot air exhaust may be redirected to another location using the condenser ducting plenum kit.
*PLEASE NOTE: WhisperKOOL does not provide smart thermostat upon purchase of your Extreme tiR 8000. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment.
The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
Extreme 8000 TiR Through The Wall System 3D Tour
Explore the wine cellars in stunning detail with our 3D tour—step inside a modern home and see how each unit blends seamlessly into stylish living spaces.

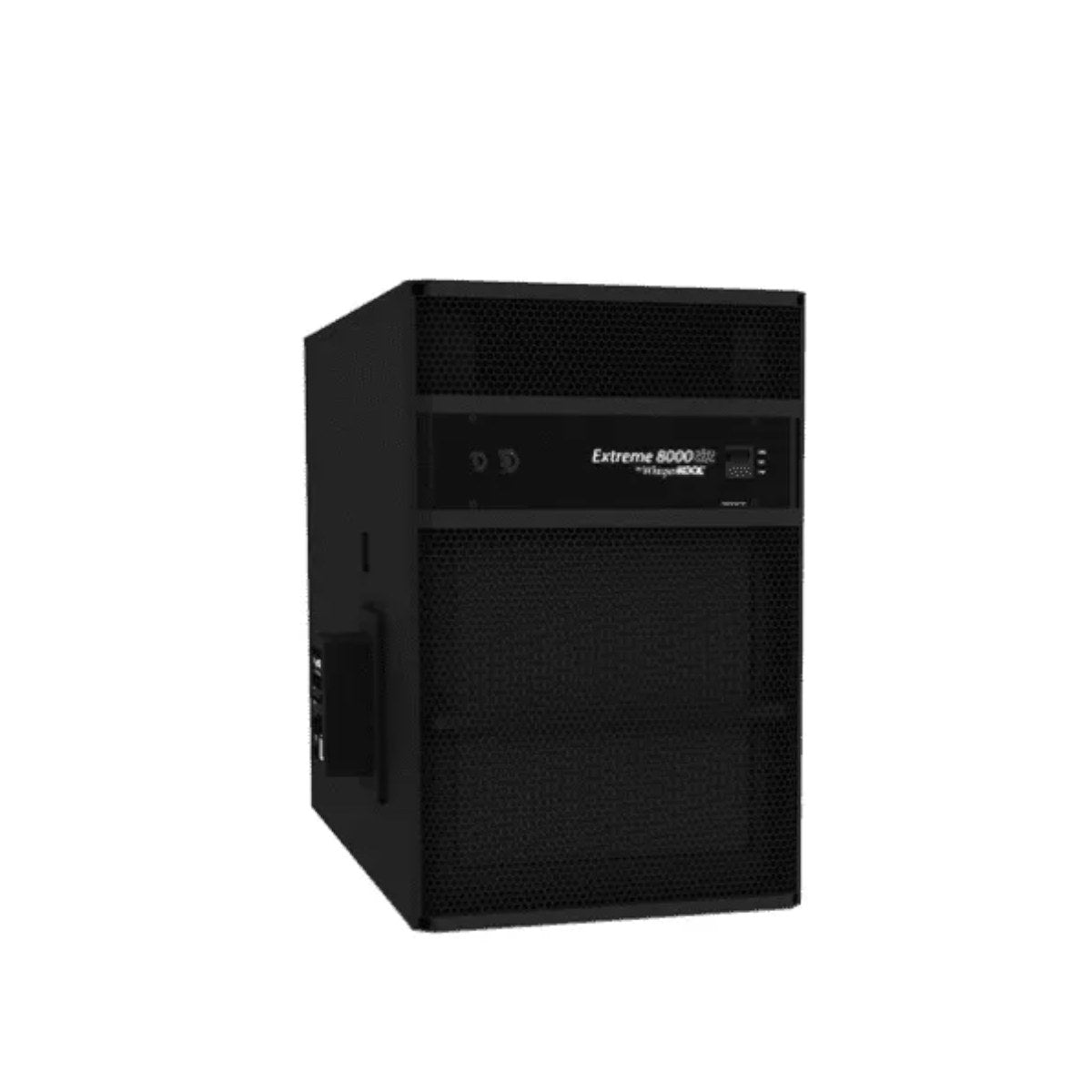

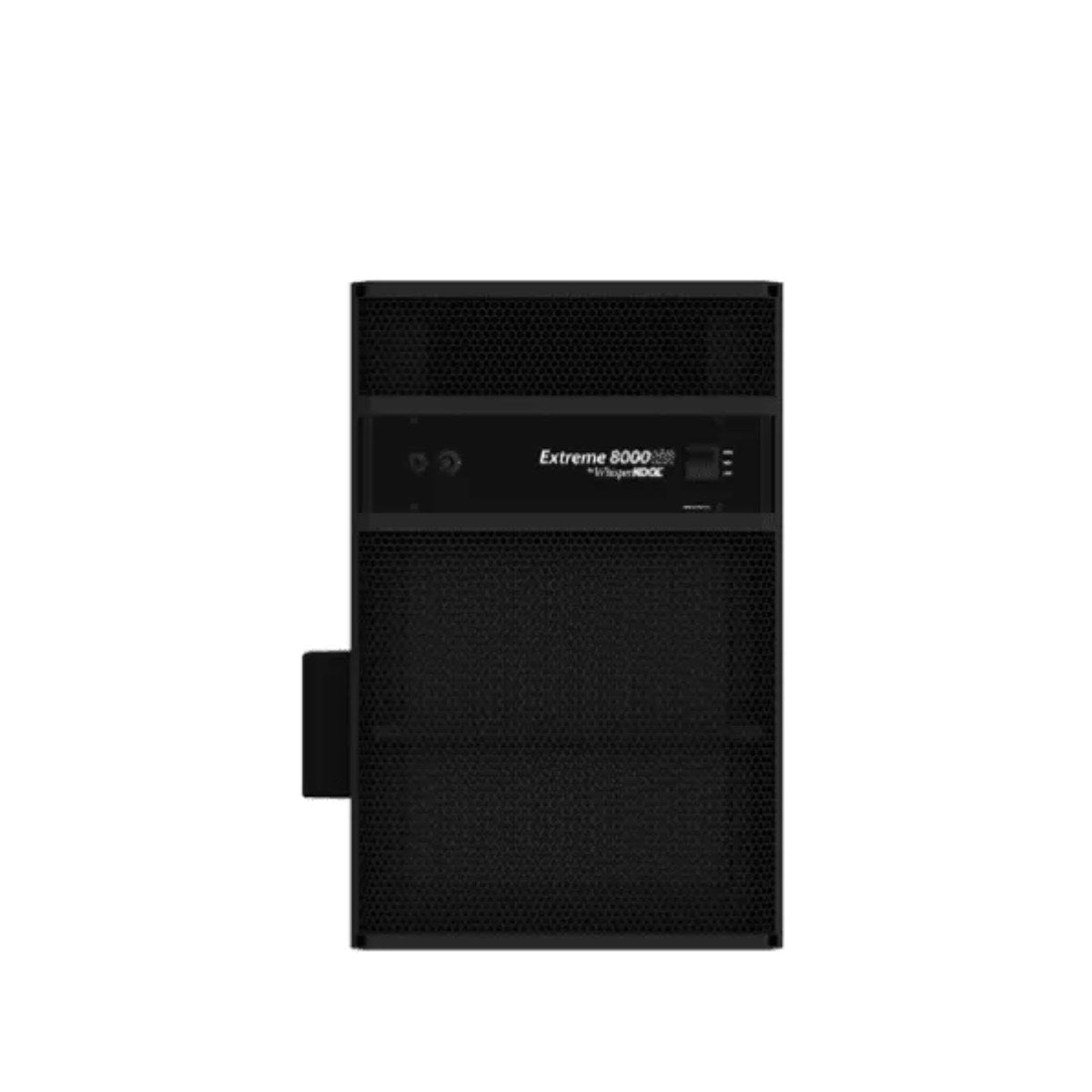

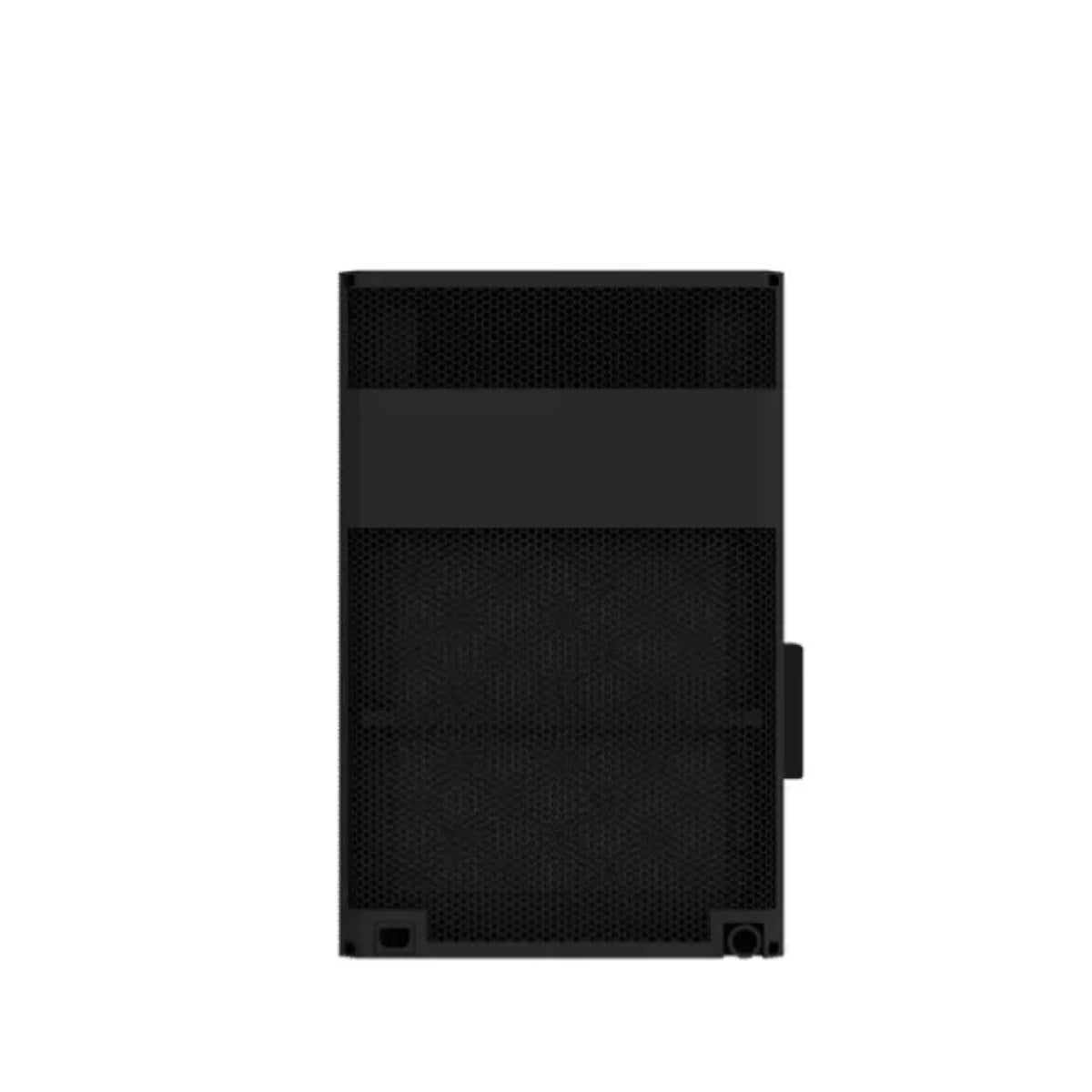

Extreme 8000 TiR Through The Wall System: UV-C Lighting System Option
Eliminate harmful microbes and enhance air quality with the UV-C Lighting System Option—an extra layer of protection for your wine cooling setup!
Extreme 8000 TiR Through The Wall System: Ventilation Requirements
This video explains the proper ducting setup needed for hot air exhaust and fresh air intake to keep your system running at peak efficiency.
Extreme 8000 TiR Through The Wall System Technical Specifications
| Model | 8000 tiR |
| Cellar Size | 2000 cu. ft.* |
| BTU/h (85°F condenser air intake temperature) | 6131 |
| Dimensions | 28” L x 14.25”W x 22.5”H |
| Refrigerant | R-134a |
| Horsepower | 2.4 HP |
| Voltage Rating | 115V (20 amp dedicated circuit required); 230V (subject to availability) |
| Weight (lbs) | 150 |
| Amps | 9 (running amps) |
| Ducting Options | Condensing side can be ducted. |
| Drain Line | 1/2” ID clear plastic tubing |
| Installation | Through-the-wall |
| Thermostat | Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable) |
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature |

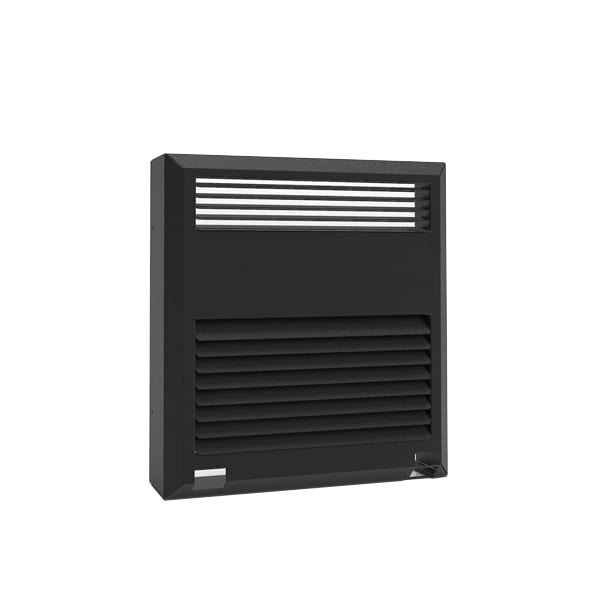

| Outside Venting | Can be done if the outside temperature does not exceed 110°F, the external grille cover is highly recommended. |
| Warranty | 2-year limited warranty & up to an additional (6) month grace period for install / 5-year limited warranty (compressor) |
Extreme 8000 TiR Through The Wall System Product Warranty
Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty.
A limited 2-year product warranty is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
WhisperKOOL Through The Wall Extreme 8000 TiR Product Manuals
