WhisperKOOL Twin Ceiling Mount 9000 Wine Cellar Cooler System
Condenser Type: 220V (Copeland)
Installation: this is a split system and requires a licensed HVAC-R technician to install and commission. WhisperKOOL states that failure to have the system installed by a qualified technician will void the warranty. Budget that labour alongside the unit.
In stock · Free shipping in the US. In-stock orders ship within three business days.
Pay over time with Shop Pay Installments or Affirm
Product Details
WhisperKOOL Twin Ceiling Mount 9000: Robust Cellar Climate Management
The WhisperKOOL Twin Ceiling Mount 9000 puts two evaporators in the ceiling to cool a large cellar while keeping floor and wall space clear, available now at Wine Cooler Collection.

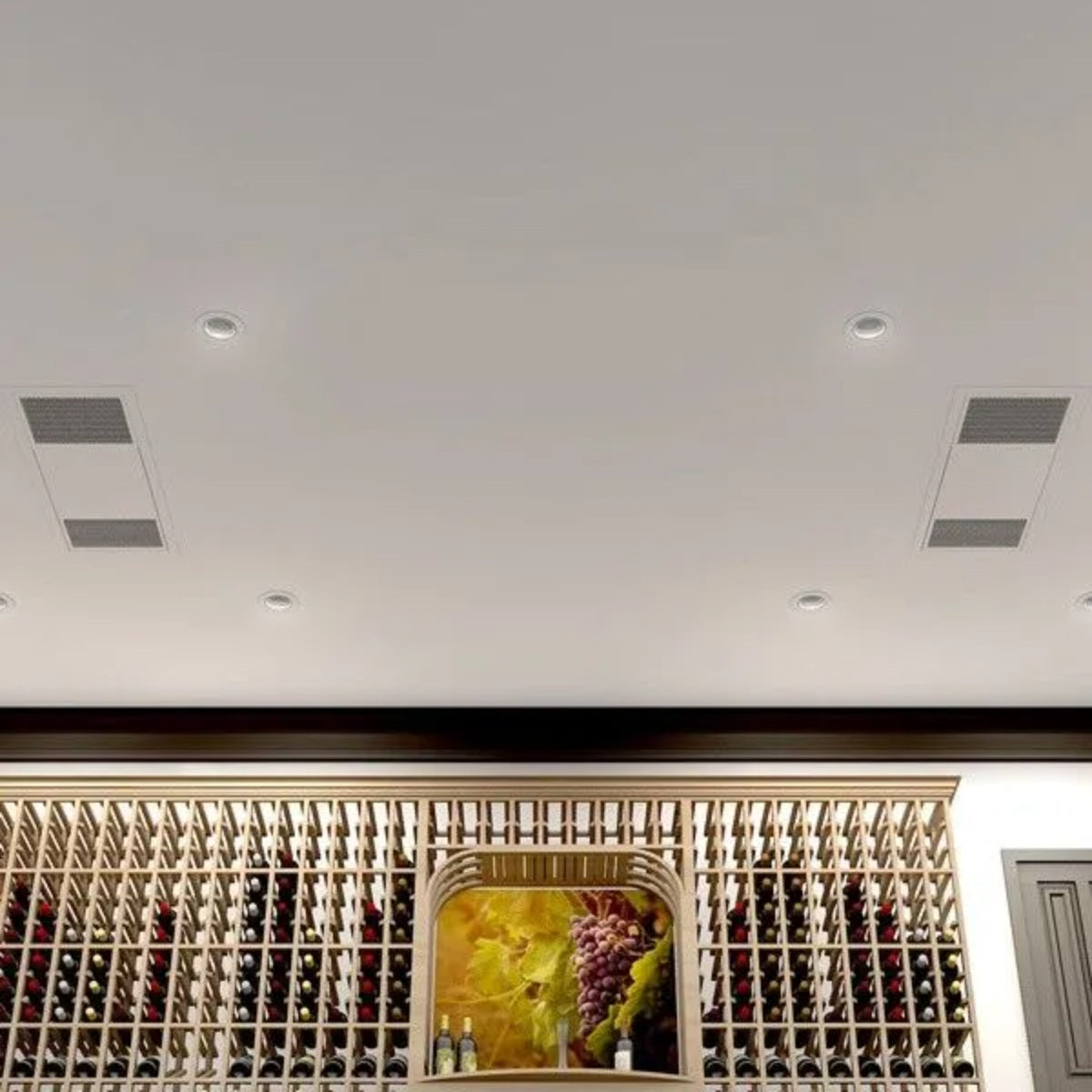

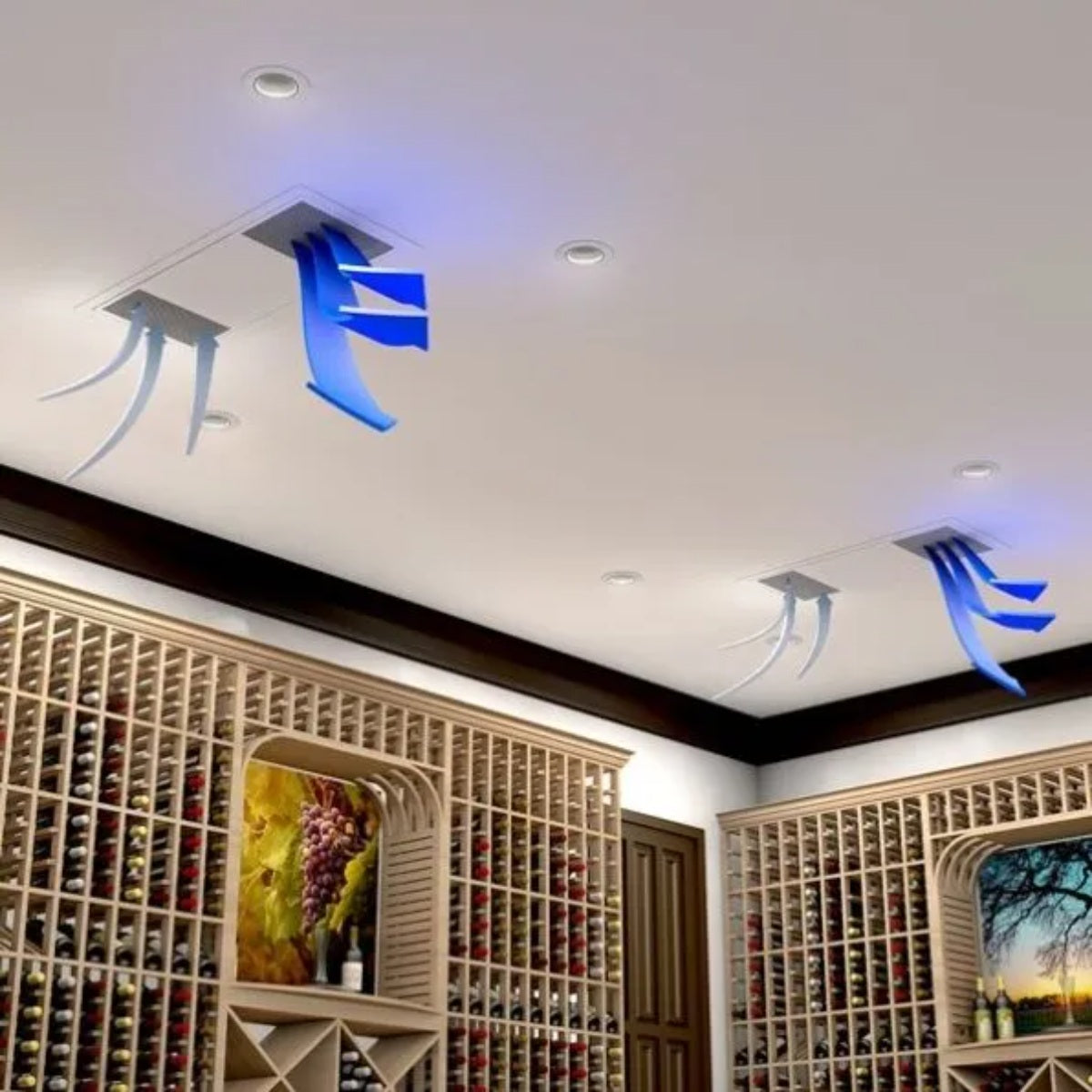

Engineered to draw in warm air from the ceiling and distribute cool air evenly, this system ensures stable temperatures across your entire cellar. Its low-profile design, complete with hex mesh grille and air filter, sits flush in your ceiling for an unobstructed view of your collection.

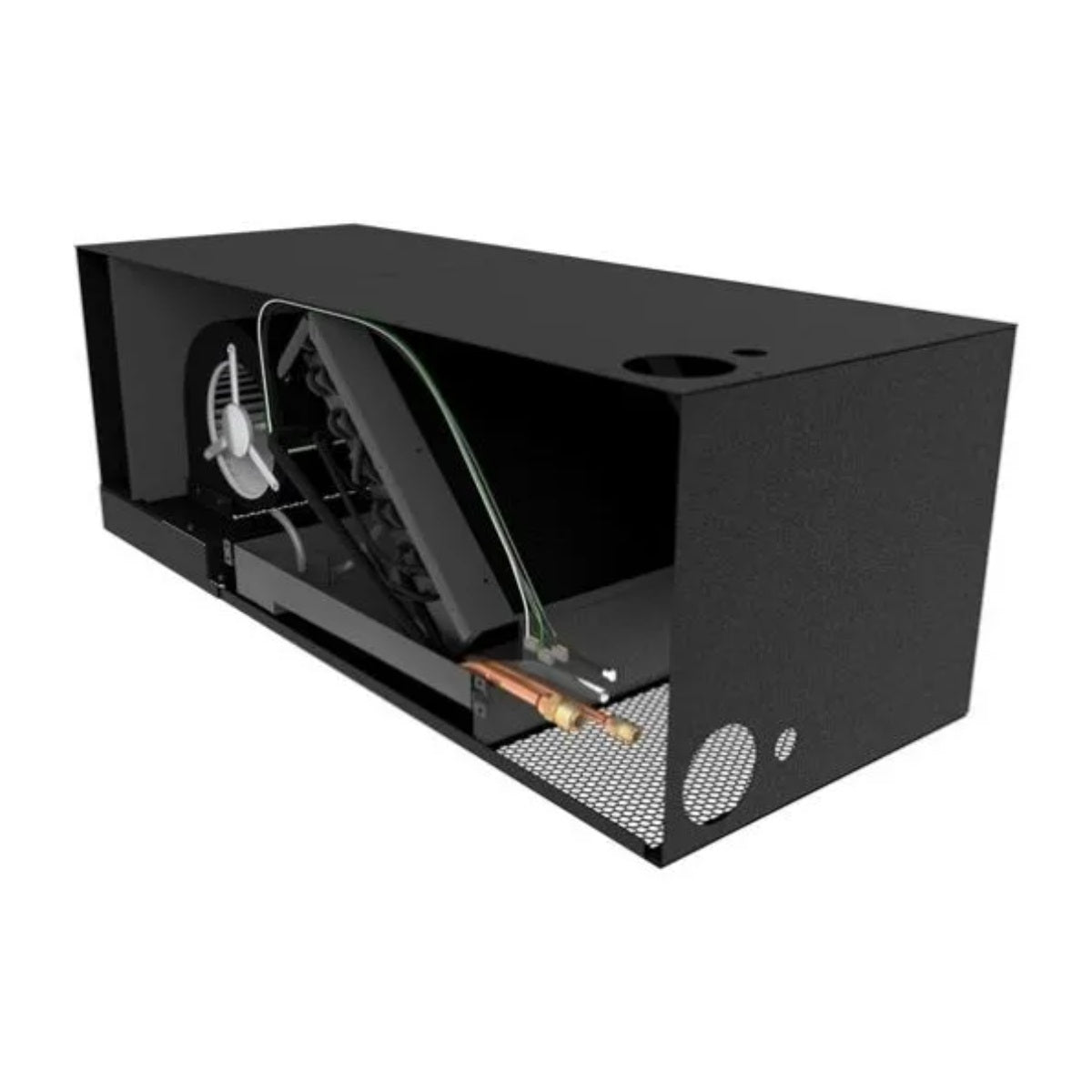

Built for durability, it features Duramax coils and flare fittings that shorten the line-set work for your installing technician. The KDT Digital Controller with 50-ft. cable provides convenient remote access, while standard and 24V thermostat options offer customizable control.
Powered by a 220V High Efficiency (H.E.) Condenser, the system delivers energy-efficient, reliable cooling in virtually any environment.
BTU/h value shown: 8500 – 10064
The WhisperKOOL Twin Ceiling Mount 9000 runs at 48 dBA on the medium setting, rising to 53 dBA on high. Available exclusively at Wine Cooler Collection.
Twin Ceiling Mount 9000 Wine Cellar Cooler System Features
- Offers excellent efficiency by drawing in warmer air that accumulates near the ceiling, then cooling and dispersing it throughout the environment
- Standard and 24V thermostat options available
- 2-speed fan switch
- Hex-mesh grille with built-in air filter
- Flare fittings, which shorten the line-set work for your installing technician
Note: A qualified HVAC-R technician is required for the installation of your Twin Ceiling Mount. Failure to have the system installed by a qualified technician will void the warranty.
*PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
Twin Ceiling Mount 9000 Wine Cellar Cooler System 3D Tour
Explore the wine cellars in detail with our 3D tour. Step inside a modern home and see how each unit sits within a finished living space.

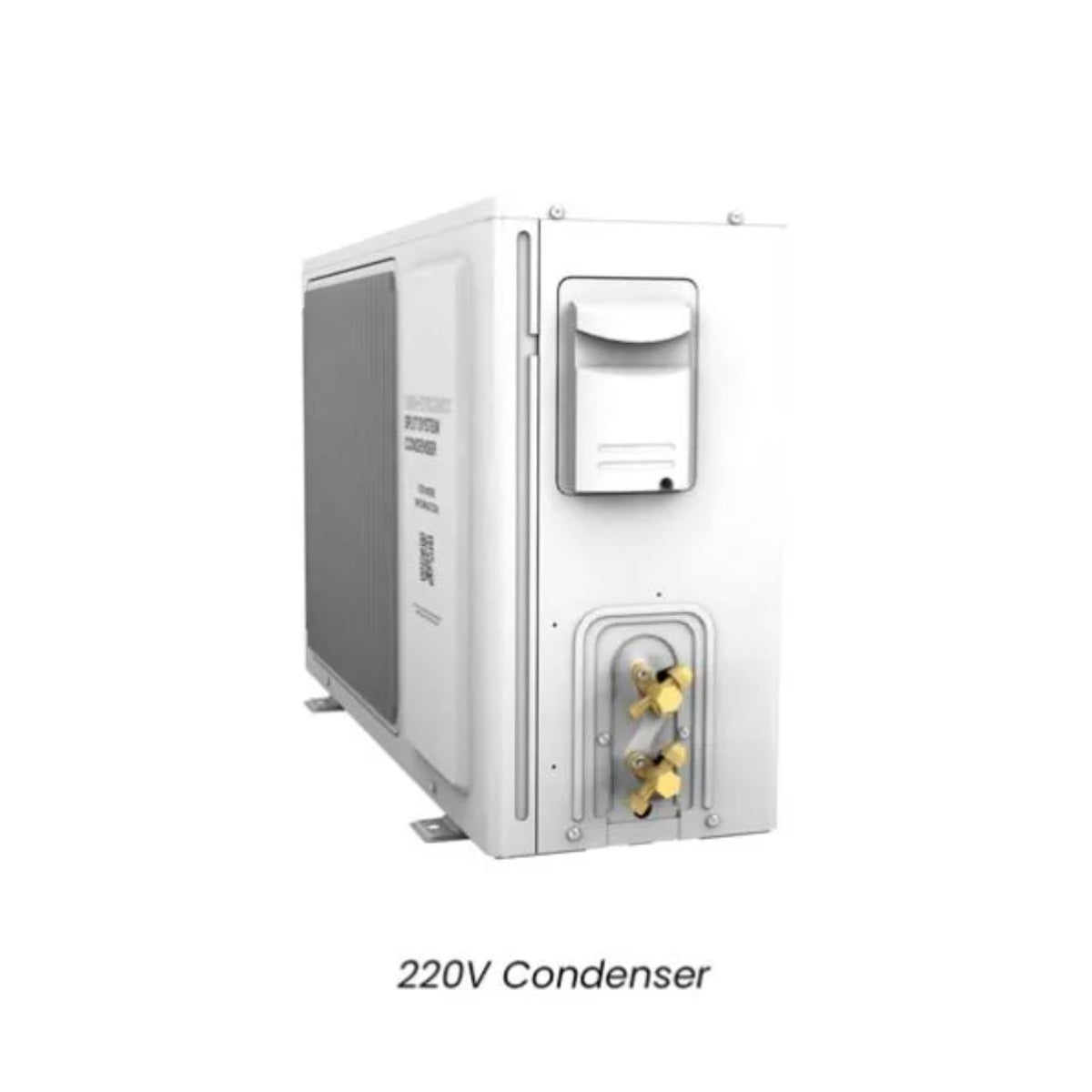

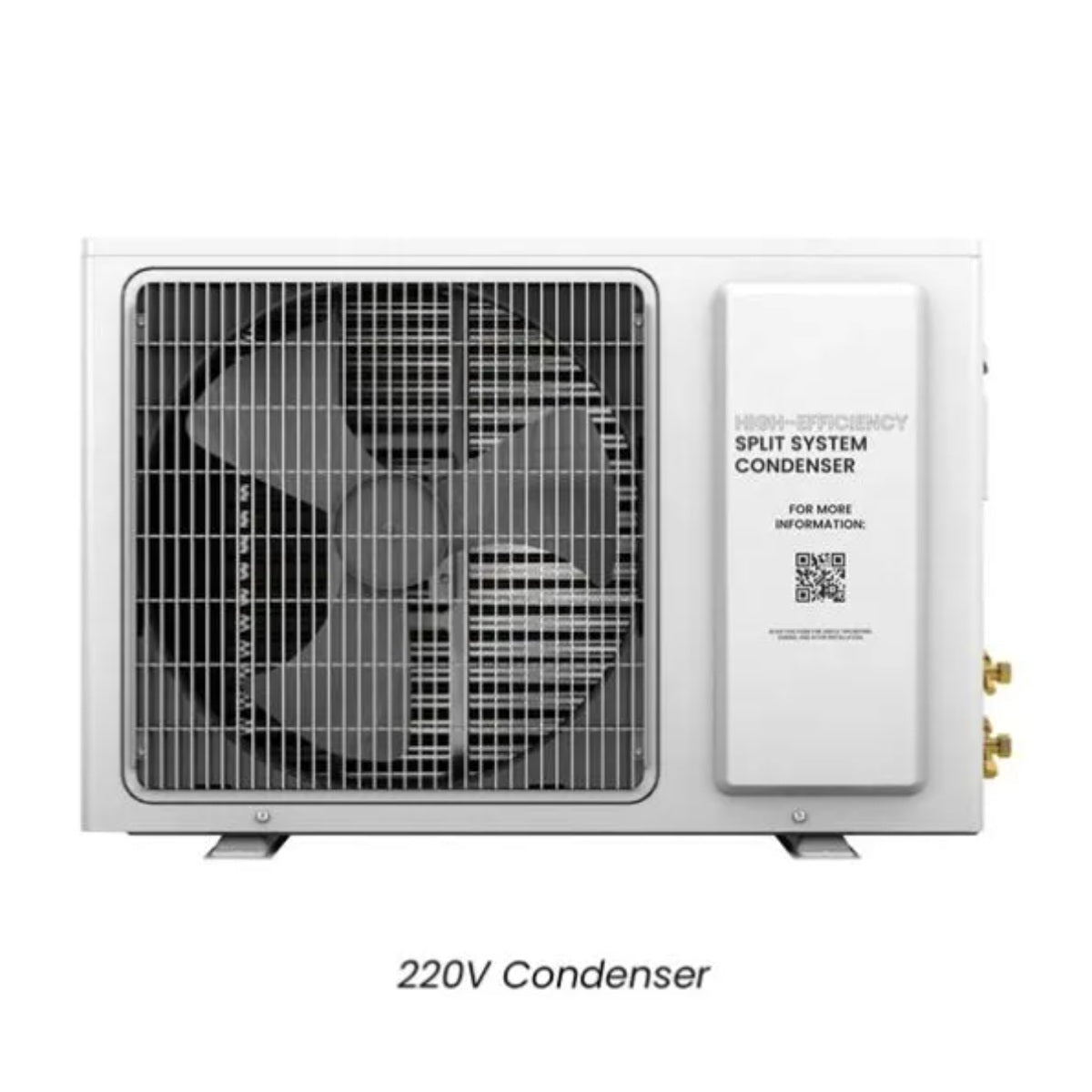

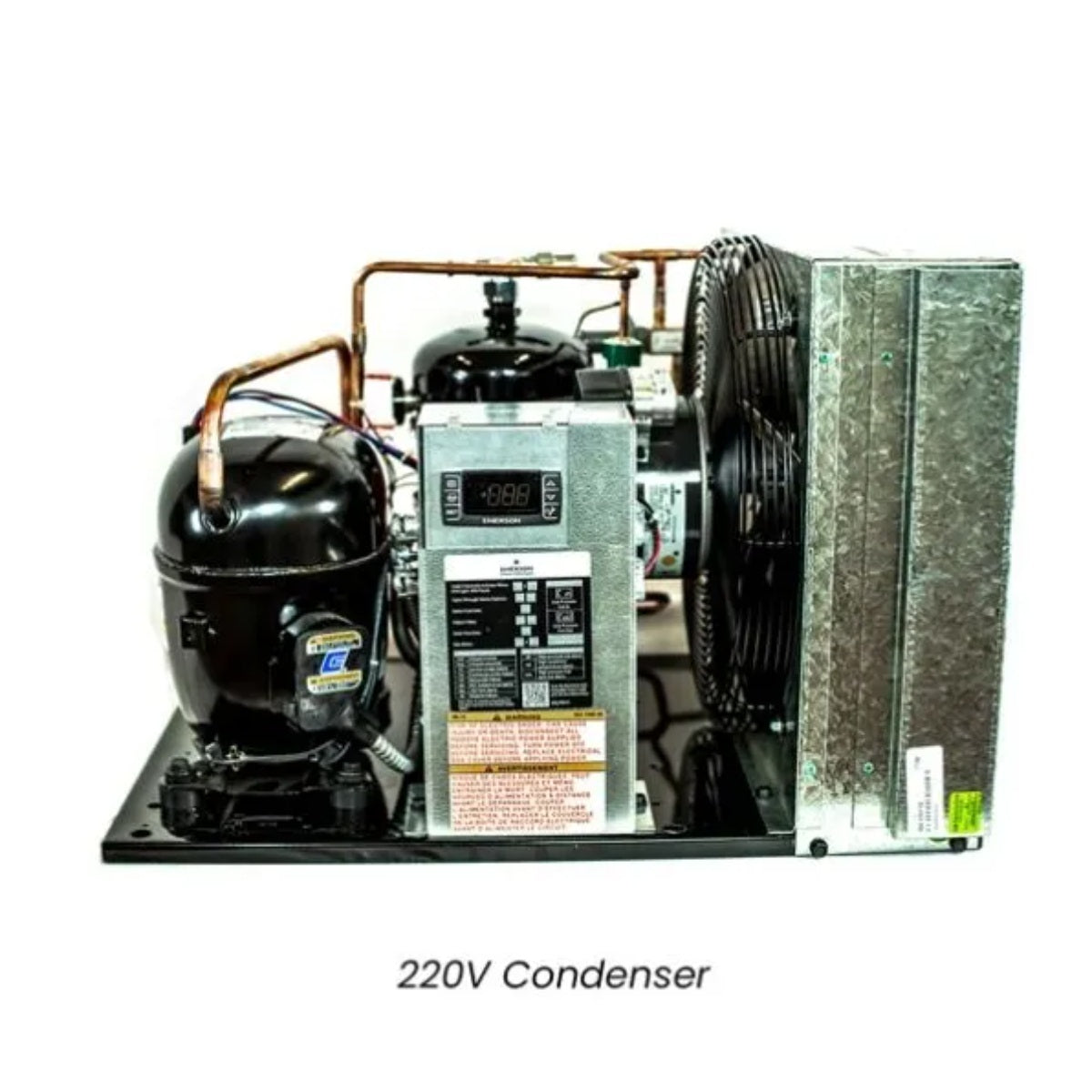

Twin Ceiling Mount 9000 Wine Cellar Cooler System: 220V High Efficiency Condenser
The 220V High Efficiency Condensers offer a host of advantages over our traditional 110V condensers, including simplified installation, lower operating noise, energy efficiency, and the ability to operate in extreme climates. For more information about our latest Split-System innovation, please watch the following video.
Twin Ceiling Mount 9000 Wine Cellar Cooler System Technical Specifications
For Evaporator
| Model | Twin 9000 |
| Cellar Size | 3500 cu. ft * |
| BTU/h (60°F condenser air intake temperature) | Medium: 8951 / 9948 • High: 9292 / 10604 |
| BTU/h (75°F condenser air intake temperature) | Medium: 8796 / 9707 • High: 8952 / 9992 |
| BTU/h (85°F condenser air intake temperature) | Medium: 8561 / 9079 • High: 8631 / 9183 |
| dBA | Medium: 48 • High: 53 |
| Dimensions | 35.75”L x 14.5”W x 12.75”H |
| Refrigerant | R-134a |
| Voltage Rating | 120V (15-amp dedicated circuit required) |
| Weight (lbs) | 66 |
| Amps | Primary: 1.74 (Running Amps) Secondary: 1.04 (Running Amps) |
| Drain Line | 1/4" ID clear plastic tubing (not provided) - Rigid tube recommended |
| Installation | The evaporator unit is installed in the cellar. A condensing unit can be installed up to 100 line feet from the evaporator unit. |
| Thermostat | Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable), 24V - customer supplied |
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature |
| Warranty | Two-year limited warranty with up to an additional (1) year grace period for installation. (parts and labor) |
For Condenser
| dBA | 48 |
| Dimensions | 31.18"L x 10.75"W x 21.18"H |
| Condensing Unit HP | 1HP |
| Voltage Rating | 220V (15-amp dedicated circuit required) |
| Weight (lbs) | 64 |
| Amps | LRA 20, RLA 4.25, FLA 4.89 |
| Line Set | Liquid Line 3/8" OD; Suction Line 5/8" OD (less than 50 ft.), 3/4" (greater than 50 ft.) |
| Installation | The evaporator unit is installed in the cellar. The condensing unit is installed up to 100 line feet from the evaporator unit. |
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature. |
| Warranty | Two-year limited warranty (parts and labor) |
Twin Ceiling Mount 9000 Wine Cellar Cooler System Product Warranty
Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty.
A limited 2-year product warranty, with up to an additional 1-year grace period for installation, is offered with all split systems. Split systems do not carry a separate compressor warranty. The installing HVAC-R technician must complete their portion of the Split Startup Checklist, and you must return it to WhisperKOOL within 30 days of installation. The warranty starts at the date of purchase but is not activated until that checklist is approved. Warranty labor reimbursement is capped at $400.
