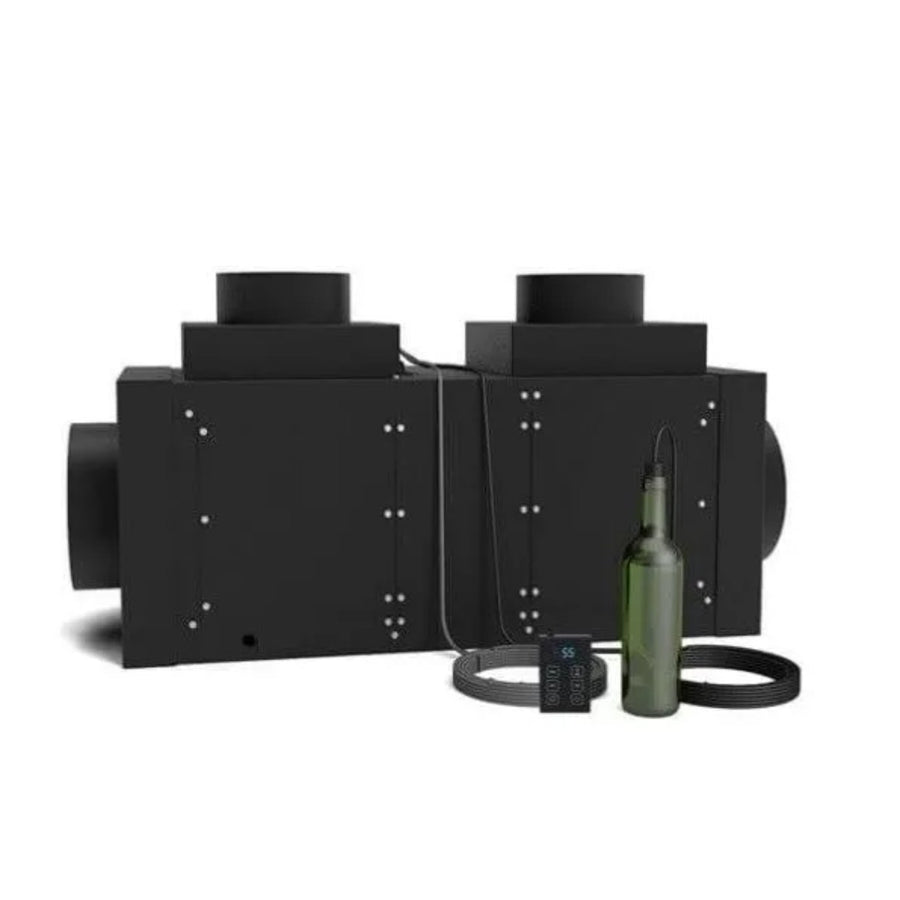

WhisperKOOL Phantom 5000 Fully Ducted Wine Cooling System
$7,185.00
Authorized WhisperKOOL Dealer · Full manufacturer warranty · Learn more
In stock · Free shipping in the US. In-stock orders ship within three business days.
Pay over time with Shop Pay Installments or Affirm
Product Details
Efficient, Fully Ducted Cooling from WhisperKOOL Phantom 5000
At Wine Cooler Collection, we offer the WhisperKOOL Phantom 5000 Fully Ducted Wine Cooling System, a fully ducted, self-contained system rated for cellars up to 1,250 cu. ft.
The Phantom 5000 offers an optional UV-C lighting system that helps protect against bacterial growth and airborne contaminants. With customizable ducting options, this unit allows for flexible installation, so you can design a system that fits your cellar layout perfectly.
Equipped with a remote KDT Plus controller and 50-ft. cable, you can conveniently monitor and adjust your wine cellar’s temperature from a distance, without ever stepping into the room. The system is finished with a corrosion-resistant drip tray and a sleek black powder-coated exterior, combining reliable performance with modern style.
Designed to operate in ambient temperatures up to 110°F, the Phantom 5000 is an ideal choice for homes and cellars in warmer regions. Whether you're building a new wine room or upgrading an existing one, this system provides efficient, consistent cooling for your valuable collection.
BTU/h value range: 5521
Phantom 5000 Wine Cooling System Features
- Sound level: WhisperKOOL does not publish a decibel rating for the Phantom line. Ask us and we will put the question to the manufacturer in writing.
- Corrosion-resistant drip tray ensures long-term durability
- Optional UV-C lighting system provides added microbial protection
- Bottle probe included for precise liquid temperature monitoring
- Quick-access components allow for easy maintenance and service
- Designed to perform reliably in ambient temperatures up to 110°F
Note: No licensed HVAC-R technician is required. The Phantom 5000 is self-contained, with supply and return ducted to the cellar, so there is no field refrigerant work.
*PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
Phantom 5000 Wine Cooling System 3D Tour
Explore the wine cellars in stunning detail with our 3D tour, step inside a modern home and see how each cabinet sits out of sight in a mechanical room, connected to the cellar by ducting run up to 25 feet.
Phantom 5000 Wine Cooling System: UV-C Lighting System Option
Eliminate harmful microbes and enhance air quality with the UV-C Lighting System Option, an extra layer of protection for your wine cooling setup!
*Please note: This feature will need an additional 4 inches of clearance on the side of the unit. See the owner manual for more information.
Phantom 5000 Wine Cooling System Technical Specifications
| Model | Phantom 5000 |
| Cellar Size | 1250 cu. ft.* |
| BTU/h (85°F condenser air intake temperature) | 5521 |
| CFM | 326 with blowers in top orientation | 312 with blowers in side orientation |
| Dimensions | 37”L x 15.75”H x 15.75”W (without duct plenums); 48”L x 22.75” H x 15.75”W (duct plenums on top of unit); 15.75” H x 22.75”W (duct plenums on side of unit) |
| Refrigerant | R-134a |
| Horsepower | 1/3 HP |
| Voltage Rating | 115V (20 amp dedicated circuit required) |
| Weight (lbs) | 115 |
| Amps | 7.6 (running amps) |
| Duct SIze | 10” return | 8” supply (evaporator and condenser) |
| Drain Line | 1/2” ID clear plastic tubing (10 feet provided) |
| Installation | Can be installed up to 25 duct feet away from cellar |
| Thermostat | Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable) |
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature |
| Warranty | 2 years parts and 2 years labor, from WhisperKOOL. |
Phantom 5000 Wine Cooling System Product Warranty
Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty.
Warranty: 2 years parts and 2 years labor, from WhisperKOOL. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
WhisperKOOL Phantom 5000 Fully Ducted Wine Cooling System Product Manuals
