Product Details

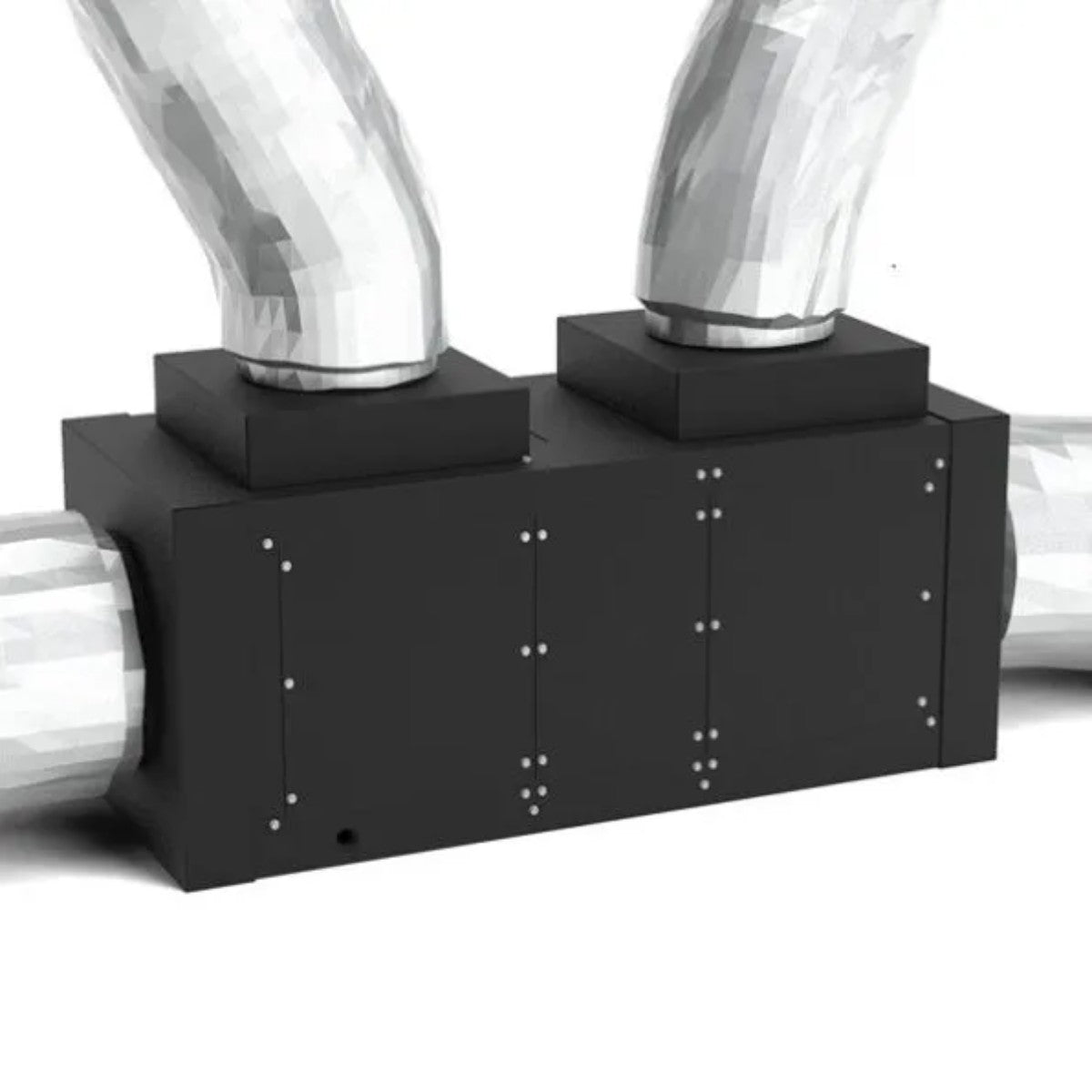

WhisperKOOL Phantom 8000 for Powerful Fully Ducted Wine Cooling

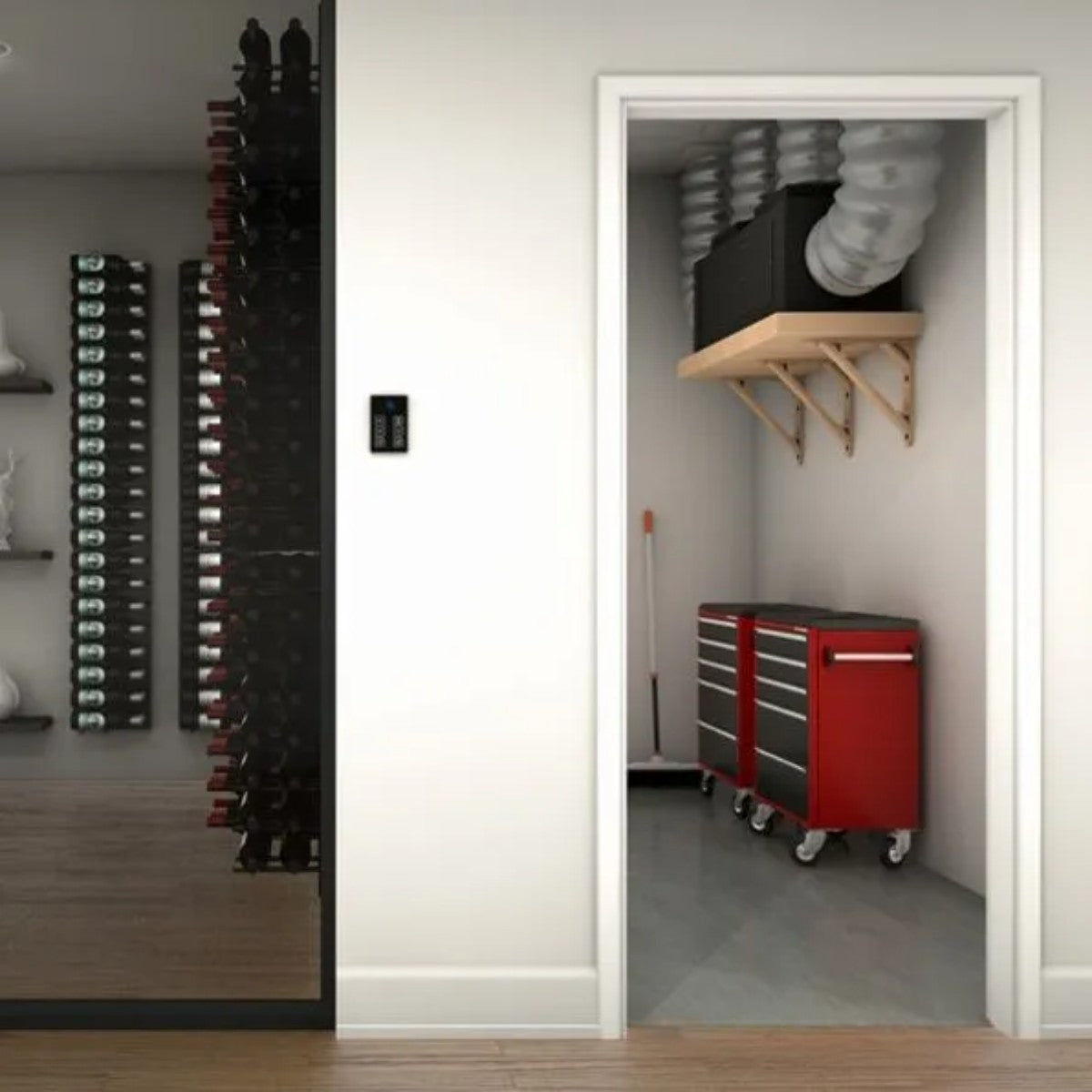

The WhisperKOOL Phantom 8000 Fully Ducted Wine Cooling System holds cellars up to 2,000 cubic feet at 55°F. The unit itself sits in a mechanical room and can run up to 25 duct feet from the cellar, so nothing mechanical lives in the wine room.
Because the refrigeration circuit is sealed and factory charged, there is no field refrigerant work. That means no licensed HVAC-R technician is required, unlike the Platinum Split and Quantum lines.
With multiple ducting configurations, you can route airflow to suit your cellar layout. The remote KDT Plus controller with a 50-ft. cable lets you monitor and adjust temperature from outside the cellar.
The Phantom 8000 has a corrosion-resistant drip tray and a black powder-coated finish, and it holds a 55°F cellar with condenser air intake as high as 110°F, which suits warm climates and unconditioned mechanical rooms.
Cooling capacity: 6,025 BTU/h at 85°F condenser air intake.
A UV-C lighting system is available as an add-on. It needs an extra 4 inches of side clearance. Details in the section below.
Phantom 8000 Wine Cooling System Features
- Installs up to 25 duct feet from the cellar, so the compressor noise stays in the mechanical room
- Corrosion-resistant drip tray for long-lasting durability
- UV-C lighting system (add-on) for enhanced microbial protection

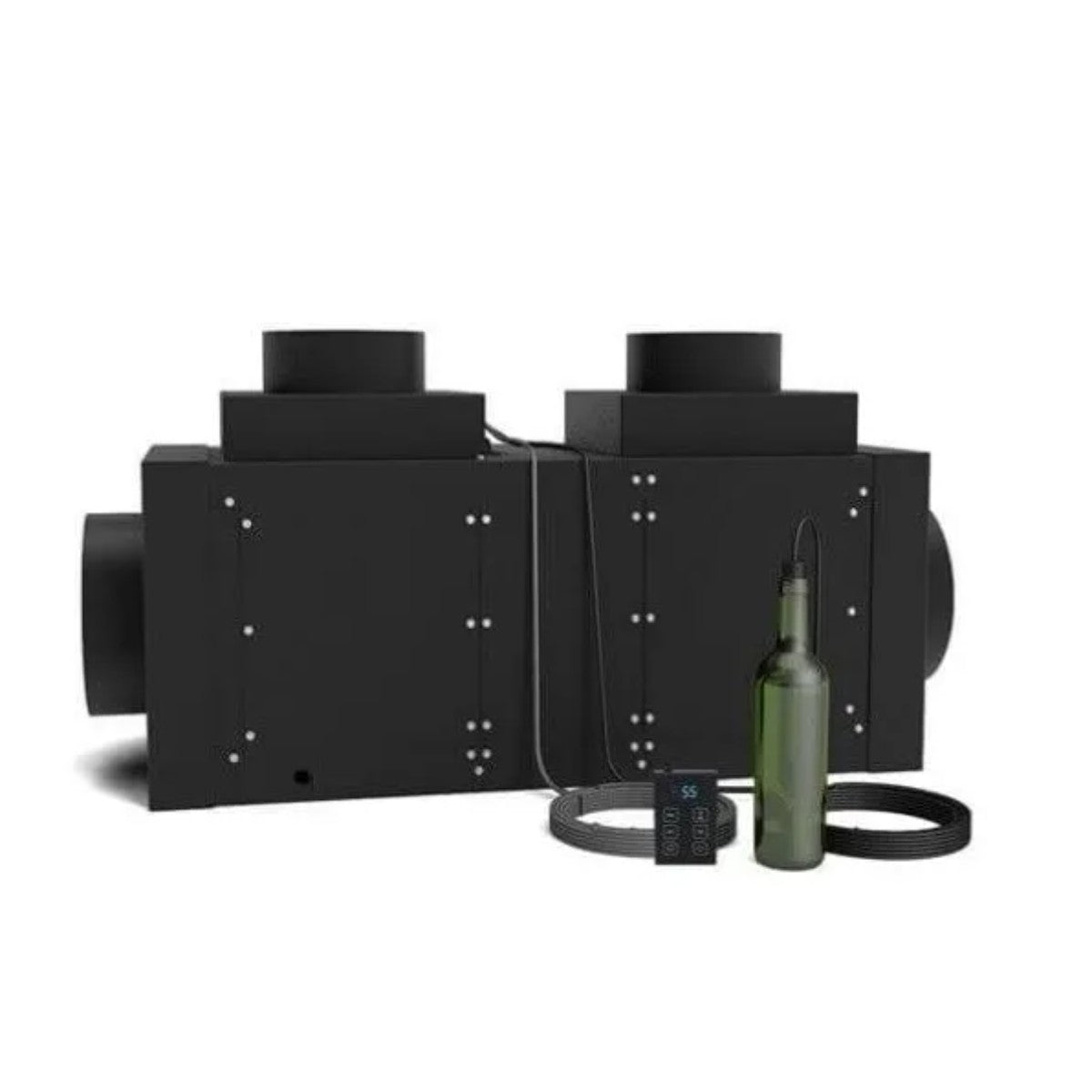

- Includes a bottle probe for accurate liquid temperature measurement
- Quick-access components for easy maintenance and servicing
- Operates reliably in ambient temperatures up to 110°F
Sound level: WhisperKOOL does not publish a decibel rating for the Phantom line. Ask us and we will put the question to the manufacturer in writing.
Installation: No licensed HVAC-R technician is required. The system ships factory charged with no field refrigerant work. You will need a dedicated 115V 20 amp circuit, duct runs, and a gravity drain line.

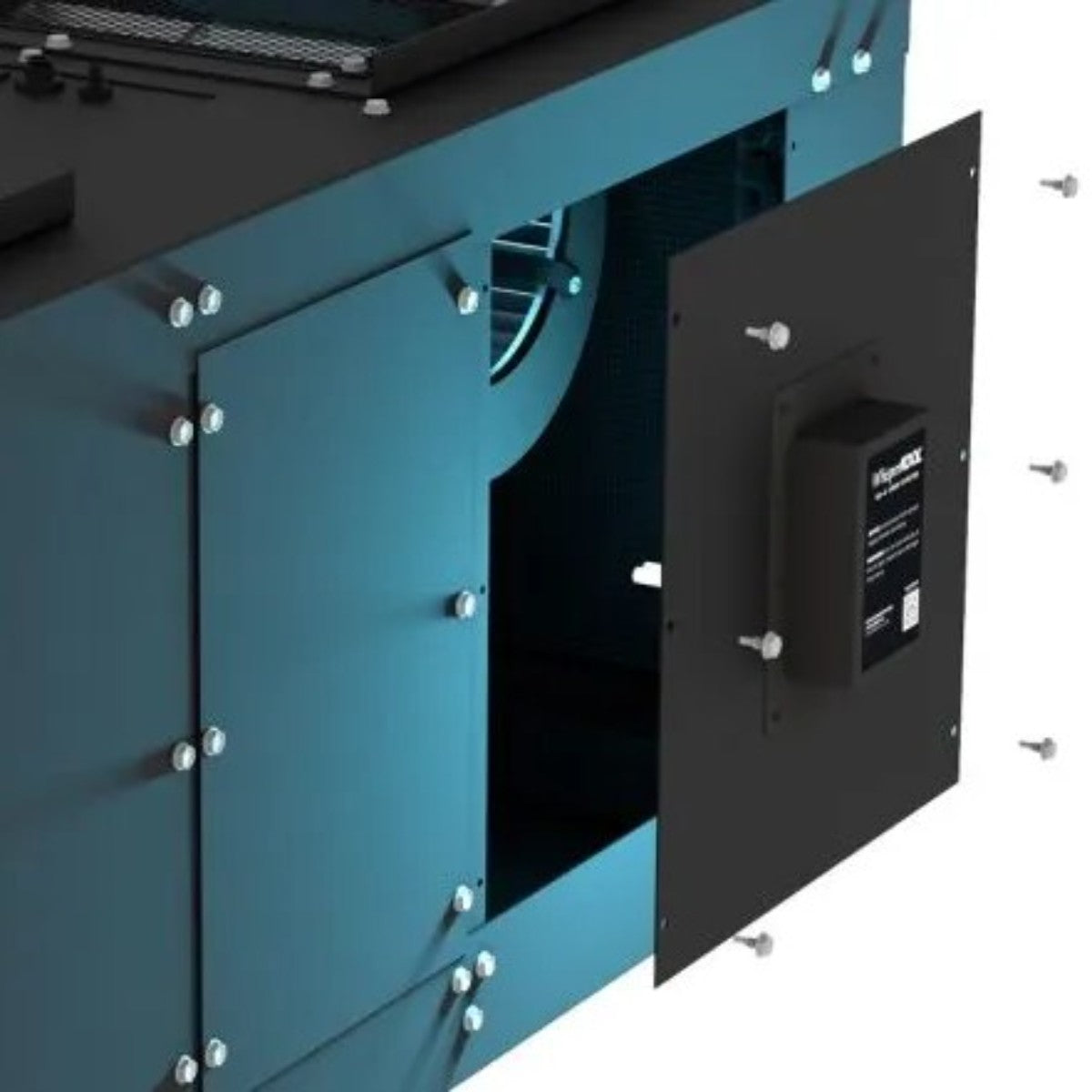

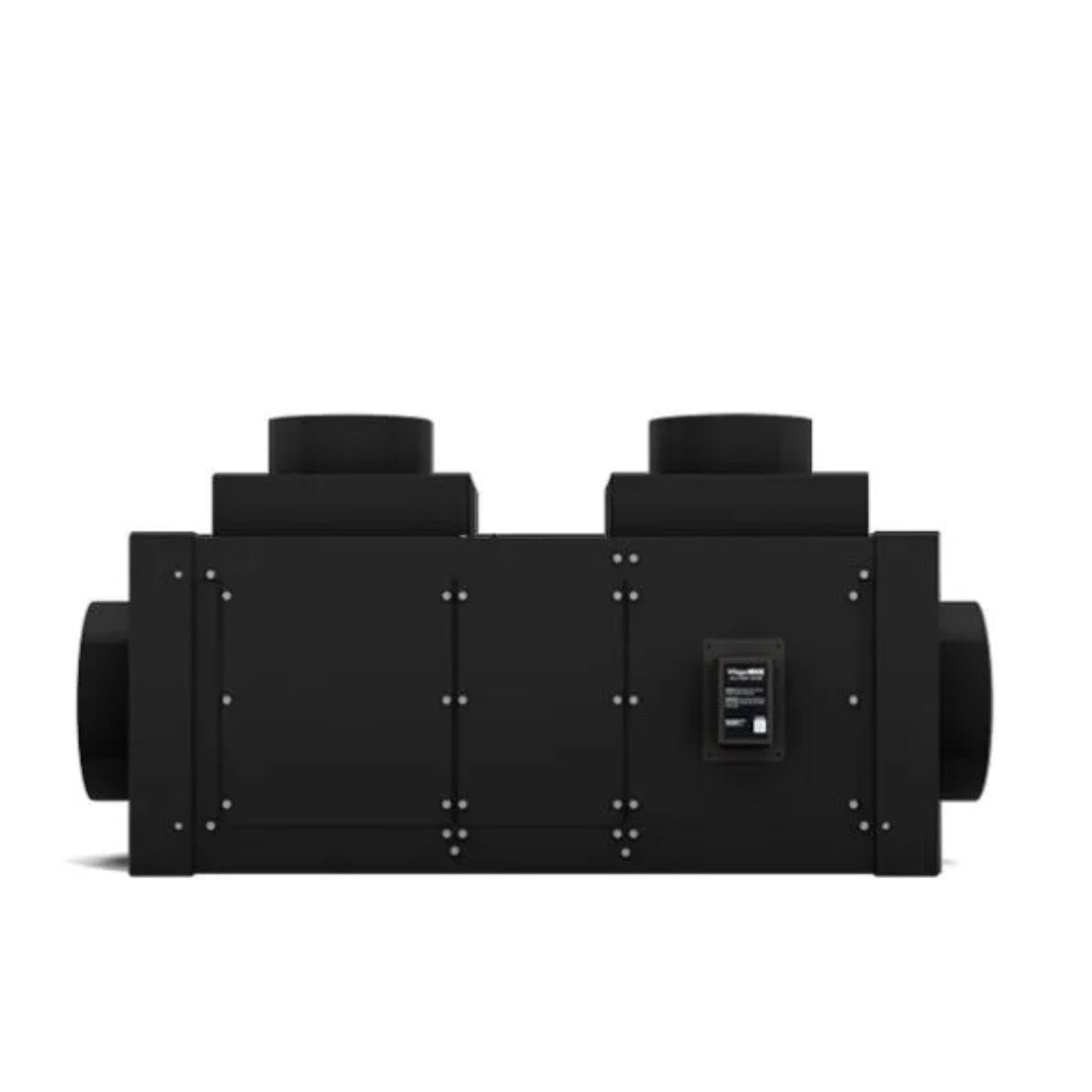

*PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
Phantom 8000 Wine Cooling System 3D Tour
Step inside a finished cellar in the 3D tour and see where a ducted unit sits relative to the wine room.
Phantom 8000 Wine Cooling System: UV-C Lighting System Option
The UV-C Lighting System is an optional add-on that reduces airborne microbes in the cellar.
*Please note: This feature will need an additional 4 inches of clearance on the side of the unit. See the owner manual for more information.
Phantom 8000 Wine Cooling System Technical Specifications
| Model | Phantom 8000 |
| Cellar Size | 2000 cu. ft.* |
| BTU/h (85°F condenser air intake temperature) | 6025 |
| CFM | 340 with blowers in top orientation | 335 with blowers in side orientation |
| Dimensions | 37”L x 15.75”H x 15.75”W (without duct plenums); 48”L x 22.75” H x 15.75”W (duct plenums on top of unit); 15.75” H x 22.75”W (duct plenums on side of unit) |
| Refrigerant | R-134a |
| Horsepower | 1/2 HP |
| Voltage Rating | 115V (20 amp dedicated circuit required) |
| Weight (lbs) | 115 |
| Amps | 10 (running amps) |
| Duct SIze | 10” return | 8” supply (evaporator and condenser) |
| Drain Line | 1/2” ID clear plastic tubing (10 feet provided) |
| Installation | Can be installed up to 25 duct feet away from cellar. No licensed HVAC-R technician required. |
| Thermostat | Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable) |
| Temp. Delta | Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature |
| Warranty | 2 years parts and 2 years labor, from WhisperKOOL |
Phantom 8000 Wine Cooling System Product Warranty
Products purchased from Wine Cooler Collection are covered by our supplier’s exclusive warranty.
Warranty: 2 years parts and 2 years labor, from WhisperKOOL. The warranty starts at the date of purchase and is activated once a Product Warranty Checklist has been submitted and approved by WhisperKOOL. A grace period of up to six months is allowed for installation.
